Antenna FlyFishRC OSPREY 5.8G IPEX 90mm LHCP Cyan

Product detailed description

Antenna FlyFishRC OSPREY 5.8G IPEX 90mm LHCP Cyan

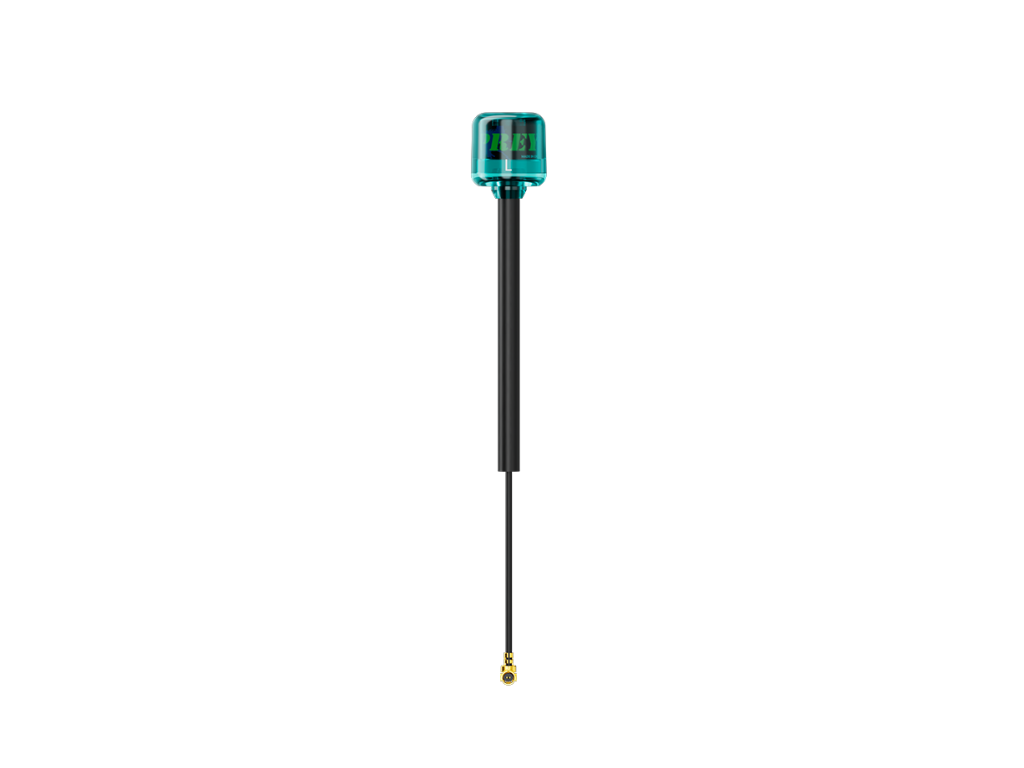

The FlyFishRC Osprey 5.8G is a compact and lightweight circularly polarized antenna designed for FPV applications operating in the 5.8GHz frequency band. Its four-leaf construction, high radiation efficiency, and compact sealed housing provide reliable signal transmission, improved penetration, and clear video reception.

Features:
- Compact and lightweight four-leaf circularly polarized design
- High radiation efficiency for strong and reliable signal transmission
- Wide frequency coverage across the mainstream 5.8GHz FPV band
- Impact-resistant, hermetically sealed polycarbonate housing
- Lightweight RG1.13 coaxial cable with protective tubing

Specifications:
Model: Osprey
Frequency: 5.8GHz
Frequency Range: 5.6–6.0GHz
Gain: 2.82dBi
VSWR: ≤ 1.2:1
Radiation Efficiency: 99%
Polarization: LHCP (Left-Hand Circular Polarization)
Connector: IPEX / U.FL (IPEX 1)
Cable Type: RG1.13 Coaxial Cable with Protective Tube
Antenna Head Dimensions: 14.1x14mm
Product Length: 104mm
Cable Version: 90mm
Color: Cyan
Weight: 2.8g

Package includes:
1x Antenna FlyFishRC OSPREY 5.8G IPEX 90mm LHCP Cyan
