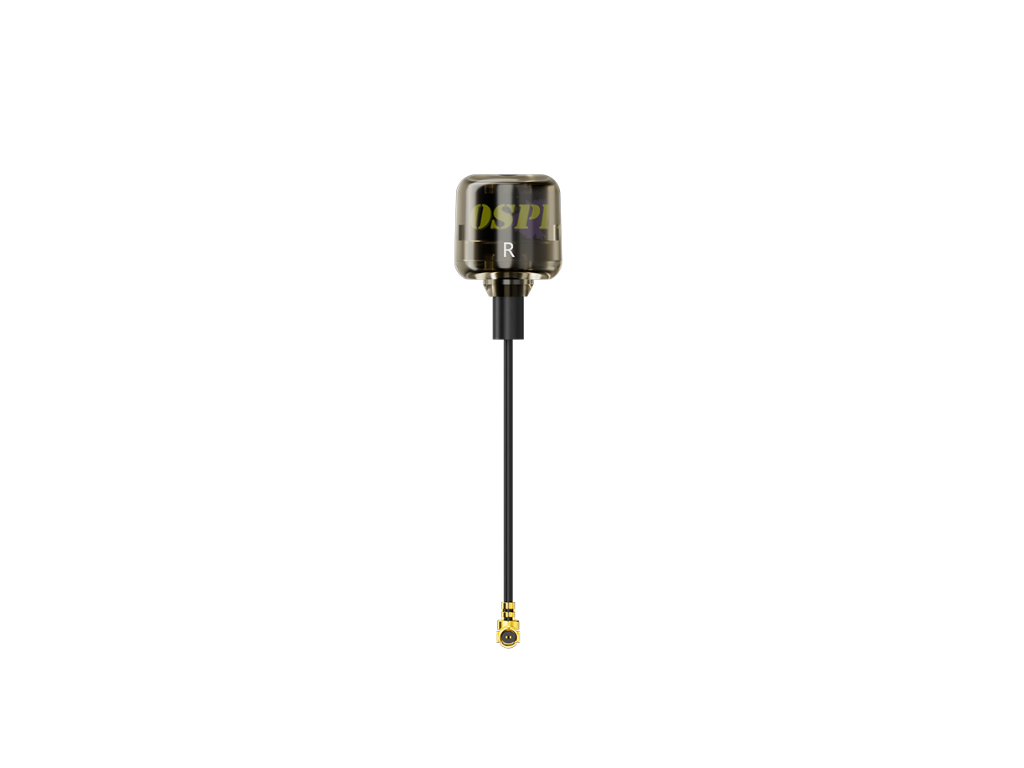

Antenna FlyFishRC OSPREY 5.8G IPEX 40mm RHCP Black
Code: A000504Product detailed description
Antenna FlyFishRC OSPREY 5.8G IPEX 40mm RHCP Black The FlyFishRC Osprey 5.8G is a compact and lightweight RHCP FPV antenna designed for reliable 5.8GHz signal transmission. Its four-leaf construction, high radiation efficiency, and durable sealed housing provide strong signal performance, clear video transmission and improved range. Features: - Compact and lightweight four-leaf circularly polarized design - RHCP polarization for reliable FPV signal transmission - High radiation efficiency for strong and consistent performance - Impact-resistant, hermetically sealed polycarbonate housing - Short RG141 coaxial cable with IPEX/U.FL connector Specifications: Brand: FlyFishRC Model: Osprey Antenna Type: FPV Antenna Frequency: 5.8GHz Frequency Range: 5.6–6.0GHz Gain: 2.82dBi VSWR: ≤ 1.2:1 Radiation Efficiency: 99% Polarization: RHCP (Right-Hand Circular Polarization) Connector: IPEX / U.FL Antenna Head Dimensions: 14.1x14mm Length: 40mm Cable Type: RG141 Coaxial Cable Color: Black Weight: 2.1g Package includes: 1x Antenna FlyFishRC OSPREY 5.8G IPEX 40mm RHCP Black
Additional parameters
| Category: | VTX Antennas |
|---|---|
| Warranty: | 2 years |
| Length: | 40 mm |
| Frequency: | 5.8 GHz |
| Polarization: | RHCP |
| Connector Type: | U.FL / IPX |
| The item has been sold out… | |
