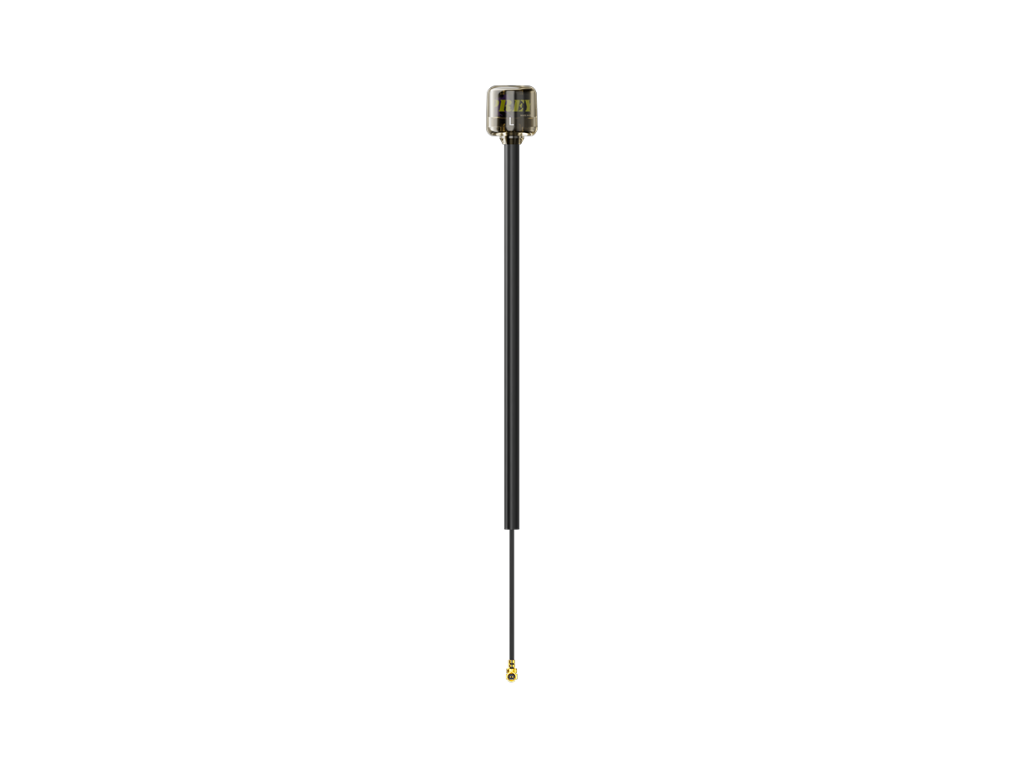

Antenna FlyFishRC OSPREY 5.8G IPEX 140mm LHCP Black
Code: A000201Product detailed description
Antenna FlyFishRC OSPREY 5.8G IPEX 140mm LHCP Black The FlyFishRC Osprey 5.8G is a compact and lightweight circularly polarized antenna designed for FPV applications in the 5.8GHz frequency band. Its four-leaf construction, high radiation efficiency, and impact-resistant sealed housing provide reliable signal transmission, clear video reception and improved range. Features: - Compact and lightweight four-leaf circularly polarized design - High radiation efficiency for reliable signal transmission - Wide 5.6–6.0GHz frequency range for mainstream 5.8GHz FPV applications - Impact-resistant, hermetically sealed polycarbonate housing - Lightweight RG1.13 coaxial cable with protective tubing Specifications: Model: Osprey Frequency: 5.8GHz Frequency Range: 5.6–6.0GHz Gain: 2.82dBi VSWR: ≤ 1.2:1 Radiation Efficiency: 99% Polarization: LHCP (Left-Hand Circular Polarization) Connector: U.FL / IPEX 1 Cable Type: RG1.13 Coaxial Cable with Protective Tube Antenna Head Dimensions: 14.1x14mm Product Length: 154mm Cable Length: 140mm Color: Black Weight: 3.56g Package includes: 1x Antenna FlyFishRC OSPREY 5.8G IPEX 140mm LHCP Black
Additional parameters
| Category: | VTX Antennas |
|---|---|
| Warranty: | 2 years |
| Length: | 140 mm |
| Frequency: | 5.8 GHz |
| Polarization: | LHCP |
| Connector Type: | U.FL / IPX |
| The item has been sold out… | |
