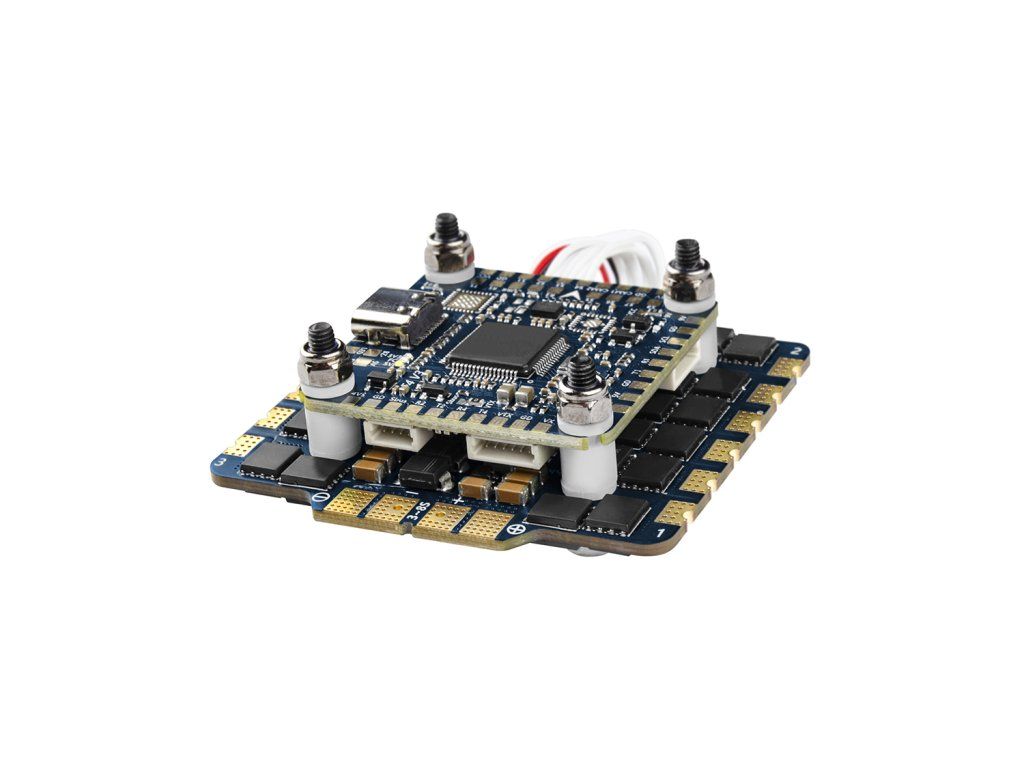

Stack Pilotix F405 V3 ICM42688 AM32 80A CZ

The Pilotix F405 V3 ICM42688 AM32 80A CZ is an FPV flight controller featuring an STM32F405 MCU and AT32F421K8U7 ESC MCU, supporting a continuous current of 80A and peak current of 100A. This model includes support for Betaflight firmware and features an analog OSD. This flight controller is designed with a firmware target of PILOTIXF405V3 and operates with a range of input voltages from 3 to 8S. It integrates an ICM42688-P gyro with SPI connectivity along with a built-in accelerometer and magnetometer. Additionally, the ESC setup is capable of multiple protocols such as DShot150, DShot300, and PWM, enhancing versatility in control. Operating conditions for the F405 V3 range from -20 to 40 °C, with storage temperatures of -30 to 50 °C. It requires passive cooling through natural airflow and has a humidity range of 20-95% RH (non-condensing). The product is backed by a 2-year warranty.
