Receiver Jumper ELRS 2.4G PWM 6-Channel

Product detailed description

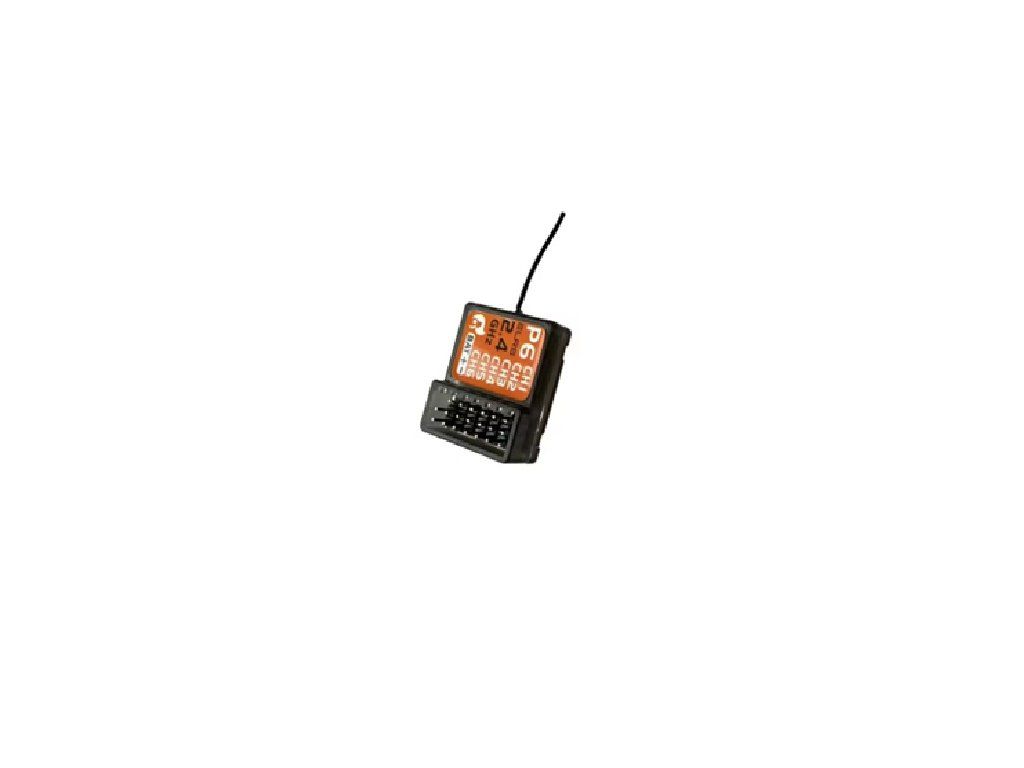

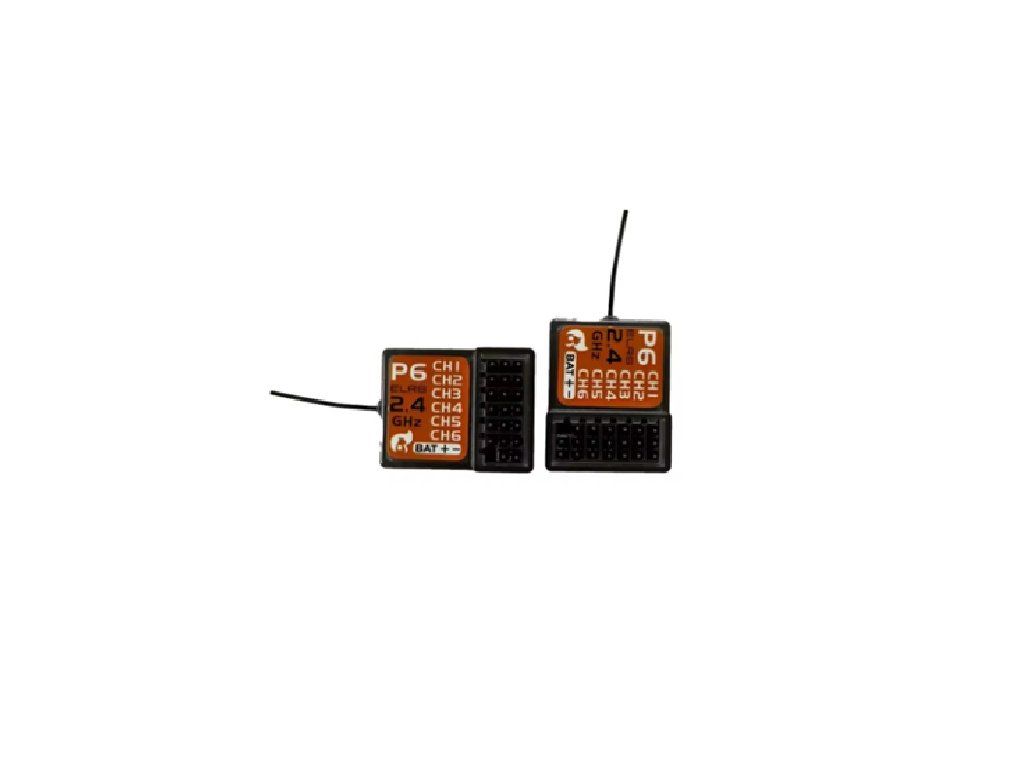

Receiver Jumper ELRS 2.4G PWM 6-Channel

The Jumper ELRS 2.4G PWM 6-Channel Receiver is a compact and reliable receiver designed for model aircraft, FPV drones, RC helicopters, and multirotor platforms. Built around the advanced ExpressLRS protocol, it delivers stable long-range connectivity, low latency response, and smooth multi-channel control in a lightweight and easy-to-install form factor.

Features:
- Supports ExpressLRS 2.4GHz protocol for reliable long-range communication
- Six PWM output channels for versatile RC applications
- Low latency signal transmission for precise and responsive control
- Supports real-time voltage telemetry monitoring
- Compact and lightweight design for small aircraft and drone builds
- Ultra-short antenna design for simplified installation
- Excellent resistance to interference on the 2.4GHz frequency band
- Suitable for airplanes, FPV drones, helicopters, and multirotors
- Easy setup and integration with compatible ELRS transmitters

Specifications:
Product Name: Receiver Jumper ELRS 2.4G PWM 6-Channel
Protocol: ELRS 2.4G
Operating Voltage: DC 4.8-8.4V
Antenna: Ultra-short antenna
Voltage Telemetry: Supported
Telemetry Voltage Range: 1S-6S
Channels: 6 PWM Outputs
Weight: 6.6g

Package includes:
1x Receiver Jumper ELRS 2.4G PWM 6-Channel
