Receiver BETAFPV SuperX ELRS Gemini Xross Mono (ELRS 868/915M or 2.4G)

Product detailed description

Receiver BETAFPV SuperX ELRS Gemini Xross Mono (ELRS 868/915M or 2.4G)

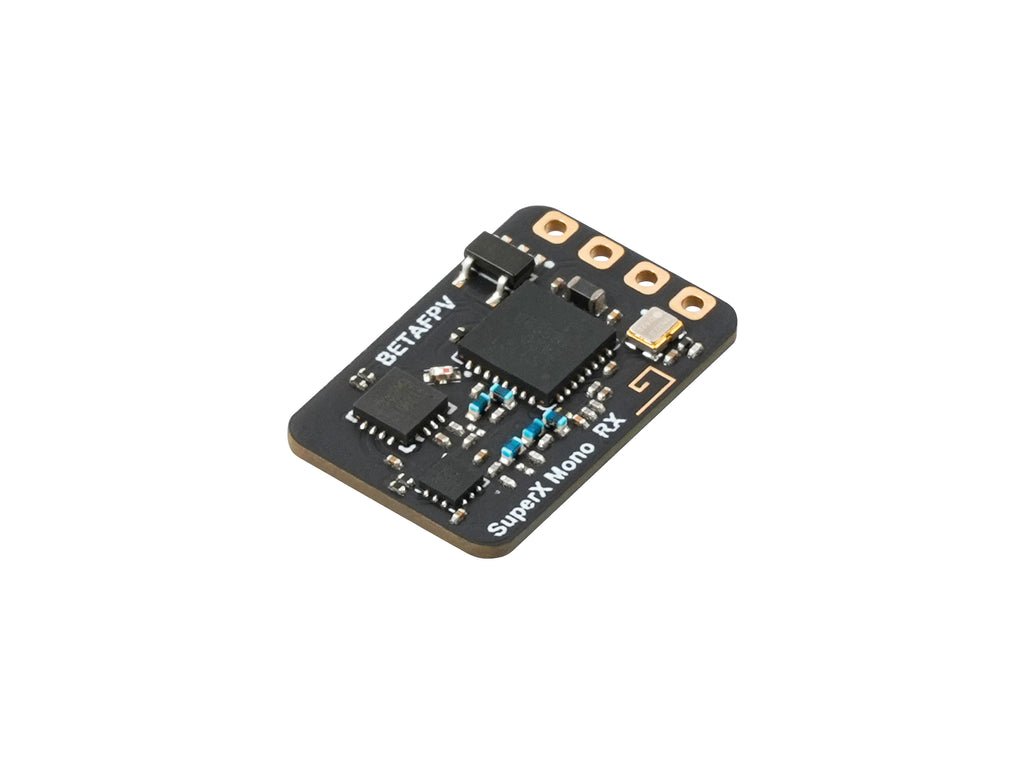

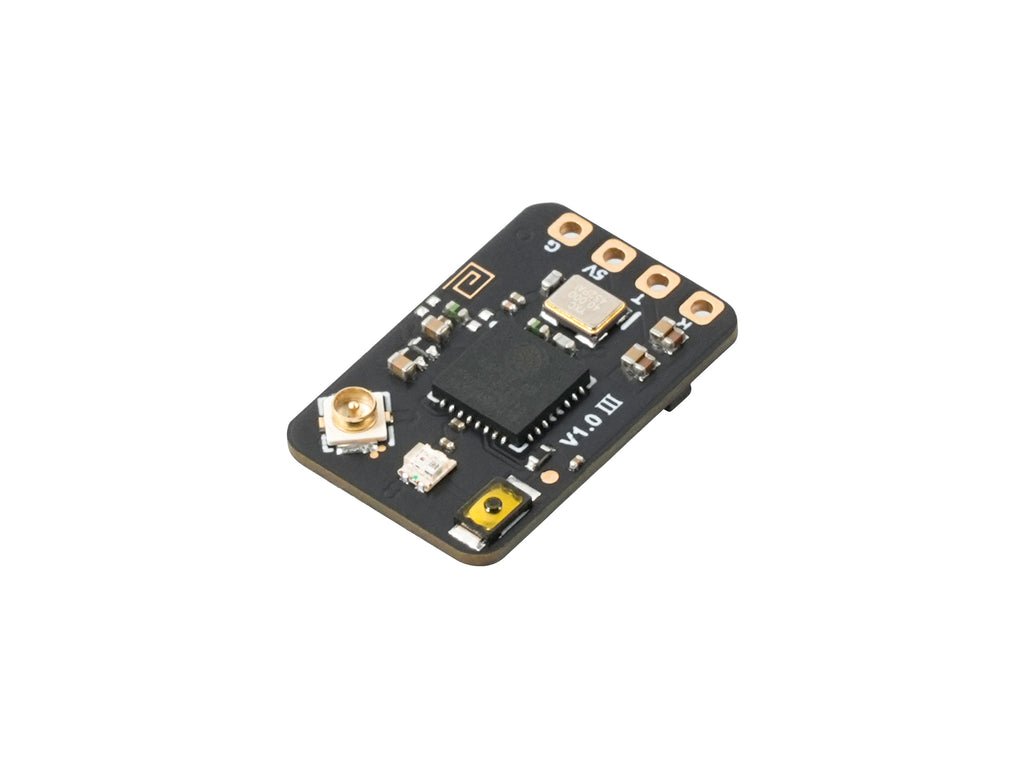

The compact and lightweight SuperX Mono Receiver harnesses a single LR1121 chip with a dual-band antenna, enabling seamless switching between 868/915M and 2.4G. This cost-effective solution maintains impressive 1000Hz packet rates (in FSK mode) while offering exceptional value, making it ideal for micro builds and budget-conscious pilots who need versatile performance in both close-range freestyle and long-distance applications.

Features:
- Semtech LR1121 RF chips + Espressif ESP32-C3
- LoRa and blistering 1000Hz FSK modes
- Supports 868/915M Gemini, 2.4G Gemini, 868/915M+2.4G GemX
- Band-switching for micro builds
- Works with Micro/Micro V2/Nano V2/SuperG TX modules
- Compact and lightweight

Specifications:

MCU: ESP32-C3
Telemetry Power: 20dBm
Input Voltage: 5V
Protocols: CRSF, SBUS, SUMD, DJI RS2 Pro, MAVLink
RF Chip: Single LR1121
Reception Mode: Single
Frequency Band: 868/915M or 2.4G
Antenna Connector: IPEX MHF1 x1

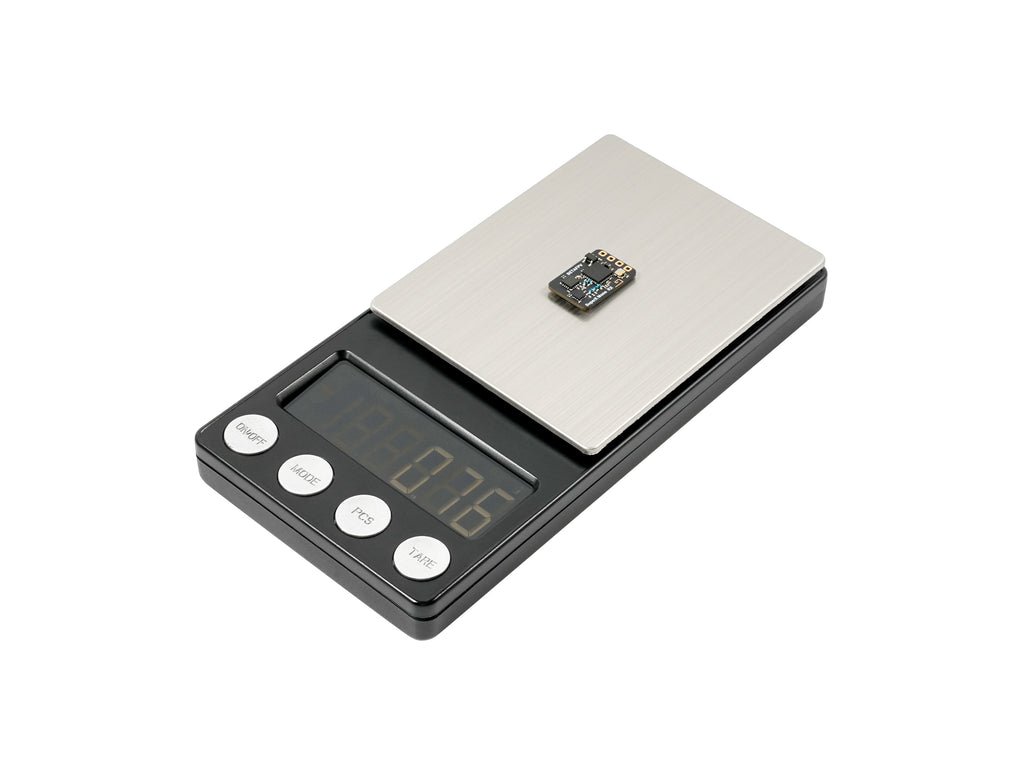

Weight: 0.82g
Dimensions: 12.3 x 18.6mm
LUA Name: BFPV SuperX Mon
Recommended: 2''- 5'' drones (racing, freestyle, long-range)

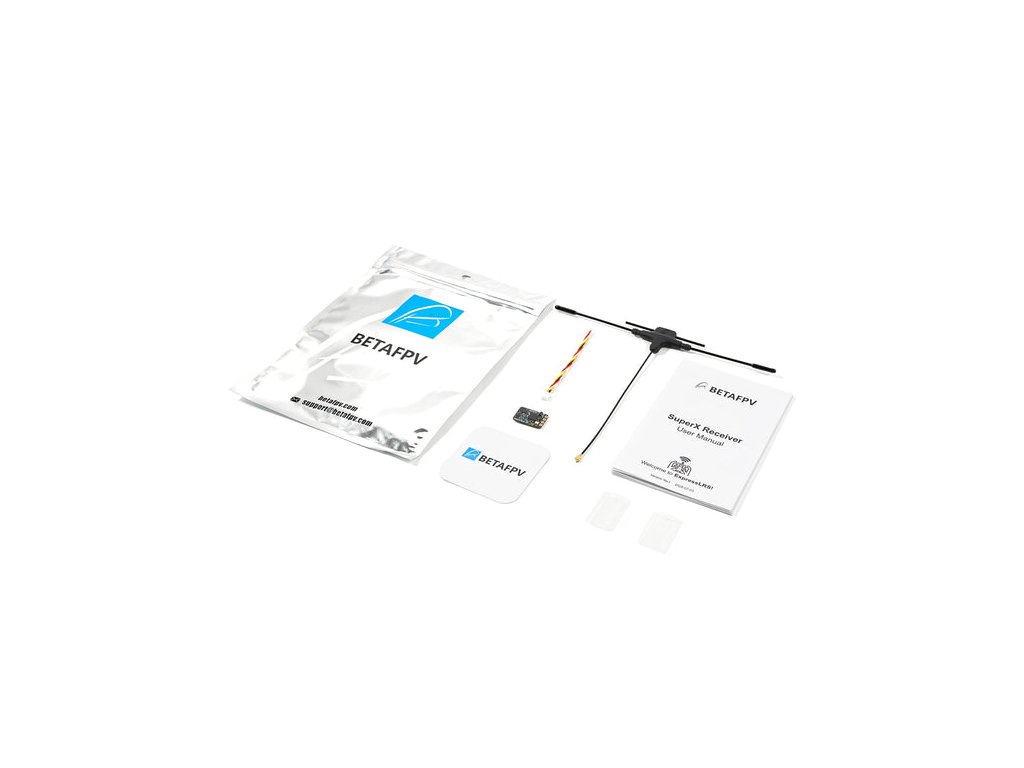

Package includes:
1x SuperX Mono Receiver (ELRS 868/915M or 2.4G)

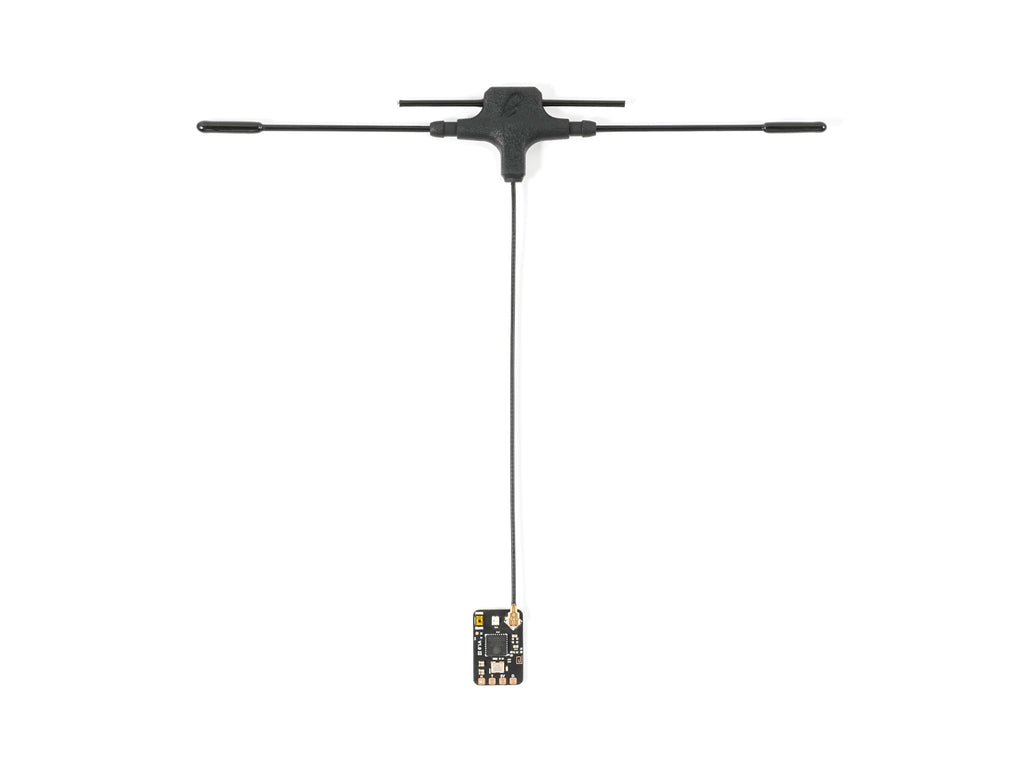

1x Dual-band T Antenna
1x SH1.0 Connector (Single Ended)
2x Heat Shrink Tubing
1x User Manual
