FPV Thermal Camera Pilotix T256 CVBS+USB (9mm)

Product detailed description

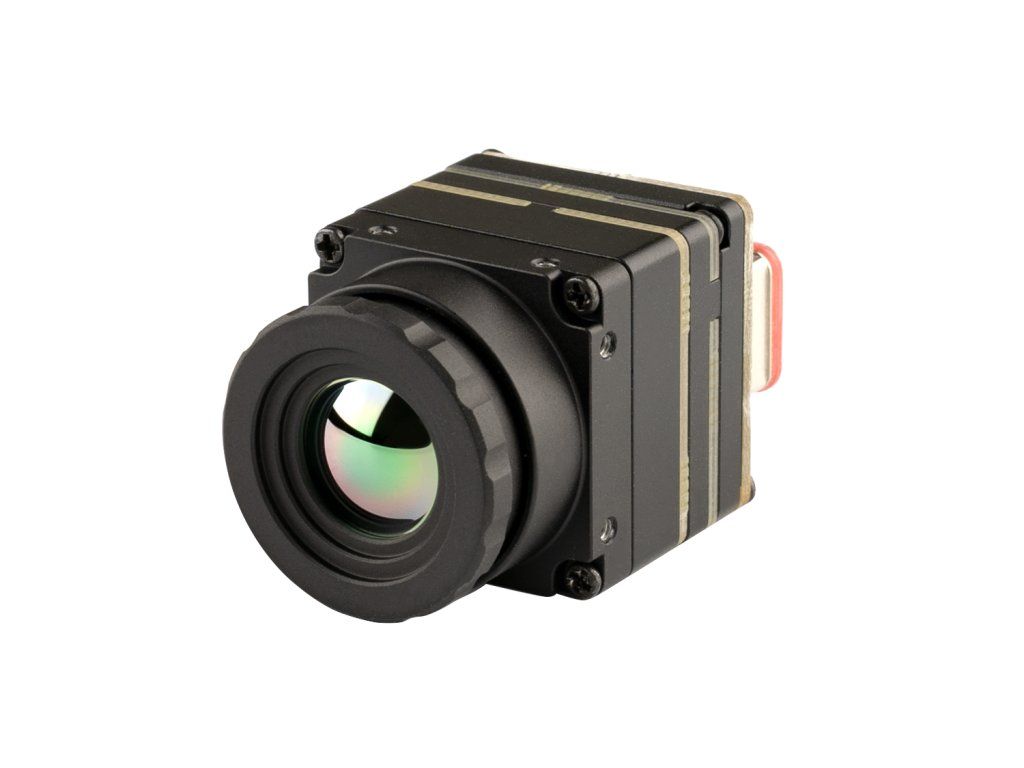

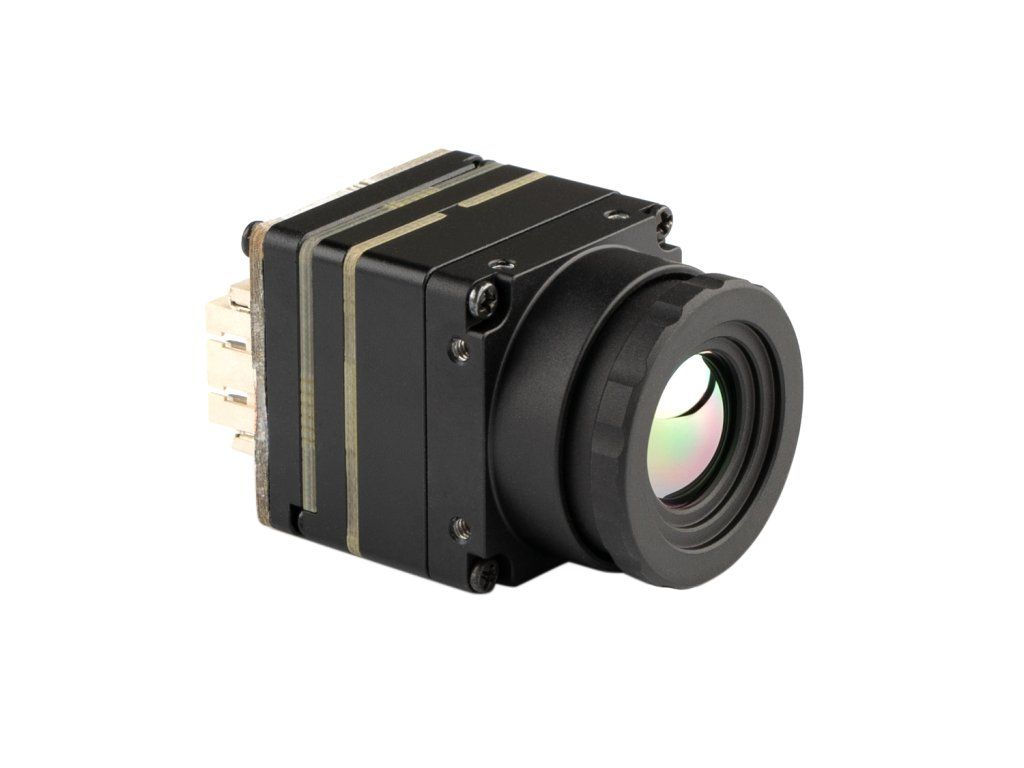

FPV Thermal Camera Pilotix T256 CVBS+USB (9mm)

The Pilotix T256 CVBS+USB (9mm) is a compact uncooled thermal camera module designed for FPV drones, robotic platforms, industrial monitoring, and embedded systems requiring thermal vision. Equipped with a high-sensitivity vanadium oxide detector, it captures clear thermal images in challenging conditions such as complete darkness, smoke, fog, and low-contrast environments.

Thanks to its dual-output design, the module can transmit analog CVBS video for standard FPV goggles or transmitters while simultaneously providing USB digital output for recording, onboard processing, or integration with external systems. This makes it a practical solution for UAV operators who need both real-time piloting and thermal data acquisition.

Compared to shorter focal length versions, the 9 mm lens provides a narrower viewing angle and significantly longer observation range, making it better suited for identifying distant heat sources, surveillance tasks, and precision inspection flights.

Features:
- Vanadium oxide uncooled infrared detector
- 256×192 thermal imaging resolution
- High sensitivity 25mK thermal detection

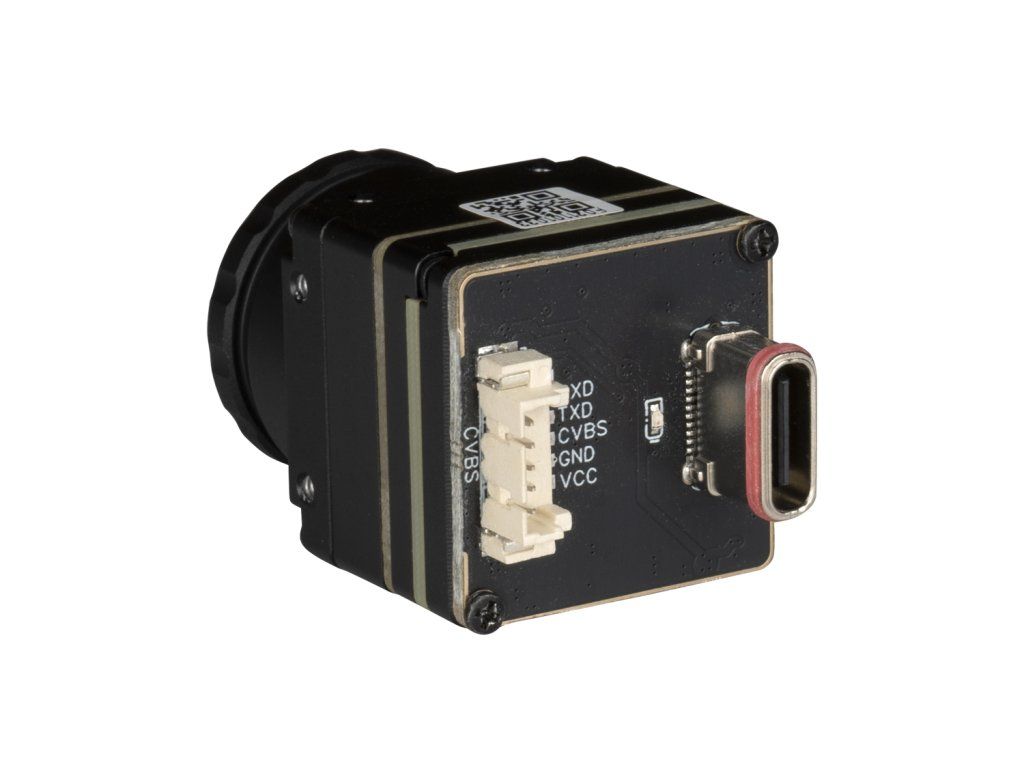

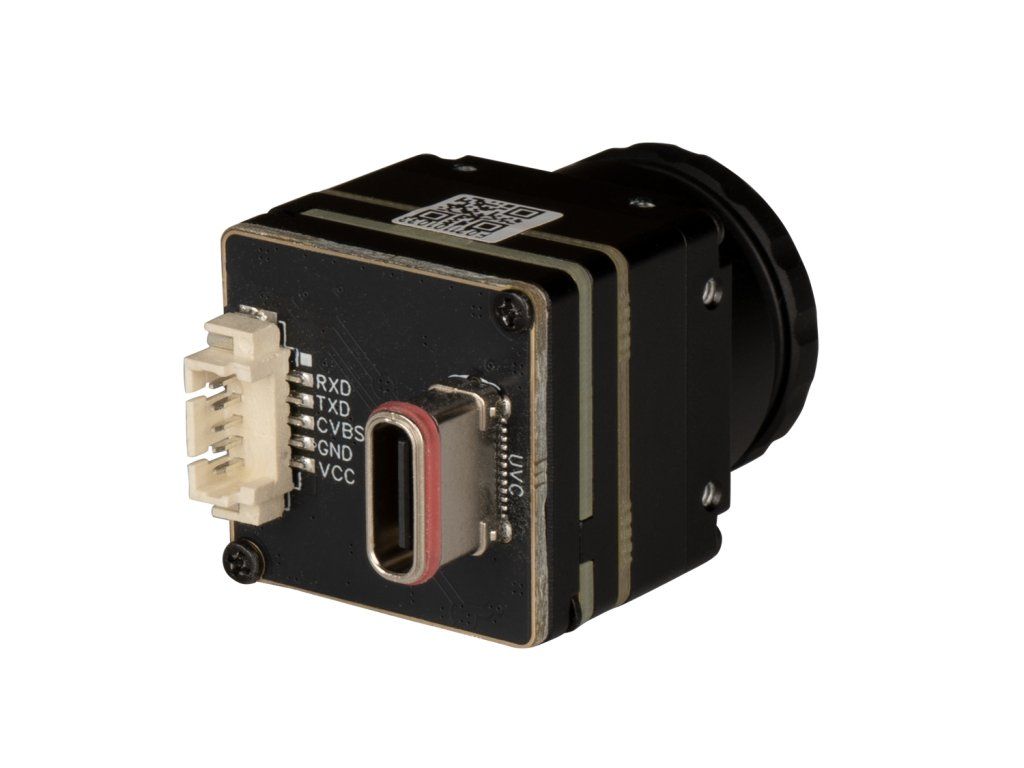

- Dual video output: analog CVBS + USB

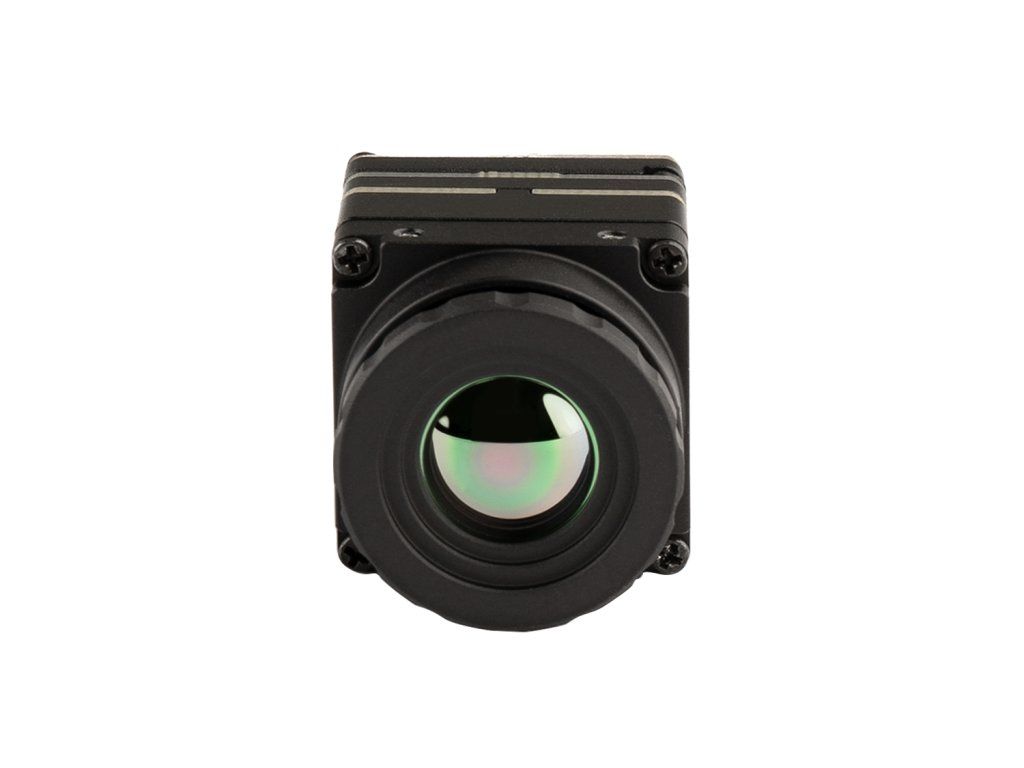

- Narrow-angle 9 mm lens for longer-range observation
- Multiple thermal display palettes
- Continuous digital zoom from 1.0× to 8.0×
- Image flip and mirroring functions
- Compact lightweight housing for FPV drones
- Designed for harsh operating environments

Specifications:

Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane Detector
Resolution: 256x192
Lens: 9mm
Effective Frame Rate: 25/50Hz
Pixel Pitch: 12μm
Field of View (FOV): 19.4° x 14.6° x 24.1° (HxVxD)
Spectral Band: 8~14μm
Noise Equivalent Temperature Difference (NETD): 25mK@25 °C,F#1.0,25Hz
Thermal Time Constant: <12ms

Image Adjustment:

Non-uniformity Correction: Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment: 0~100, optional
Polarity/Palette: White-hot/Black-hot/Various palettes supported
Digital zoom: 1.0~8.0xcontinuous zoom (step size: 0.1)
Image Mirroring: Vertical/Horizontal/Diagonal

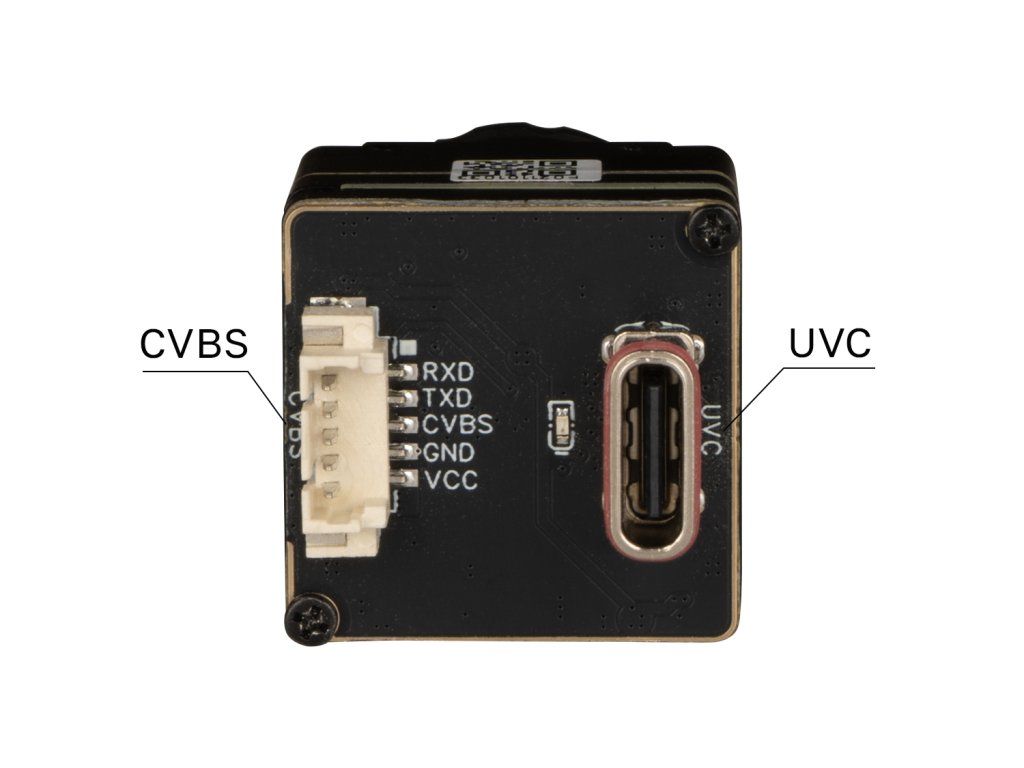

Electricity Parameters:

Analog Video: PAL/NTSC
Digital Video: DVP/BT656/USB2.0
Communication Interface: UART/I2C/USB2.0
Power Supply Input: 5V
Typical power consumption of USB output @25°C: <0.35W

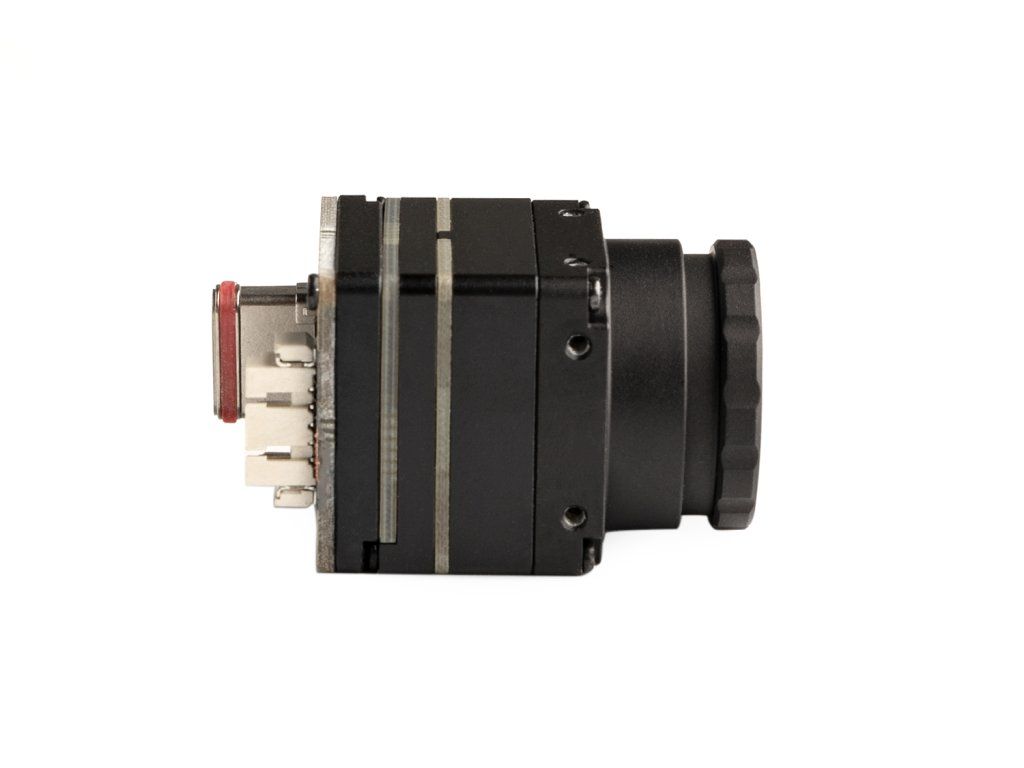

Physical Characteristics:

Weight (without lens): <7g
Dimensions (without lens): 21x21x10.3 mm

Environment Adaptability:

Operating Temperature: -40 °C~+80°C
Storage Temperature: -50°C~+85°C
Humidity: 5%-95%, non-condensing
Vibration: 6.06g, random vibration, all axes
Impact: 80g, 4ms, final peak sawtooth wave, three axes and six directions

Package Includes:

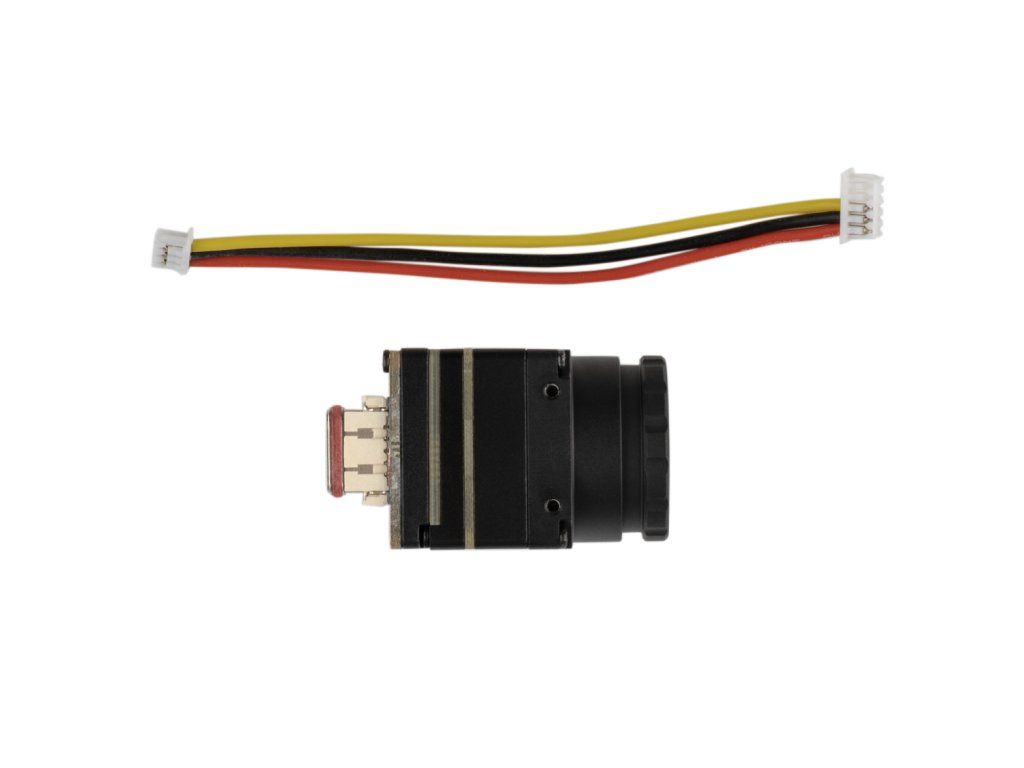

1x FPV Thermal Camera Pilotix T256 CVBS+USB (9mm)
1x Interface Cable
