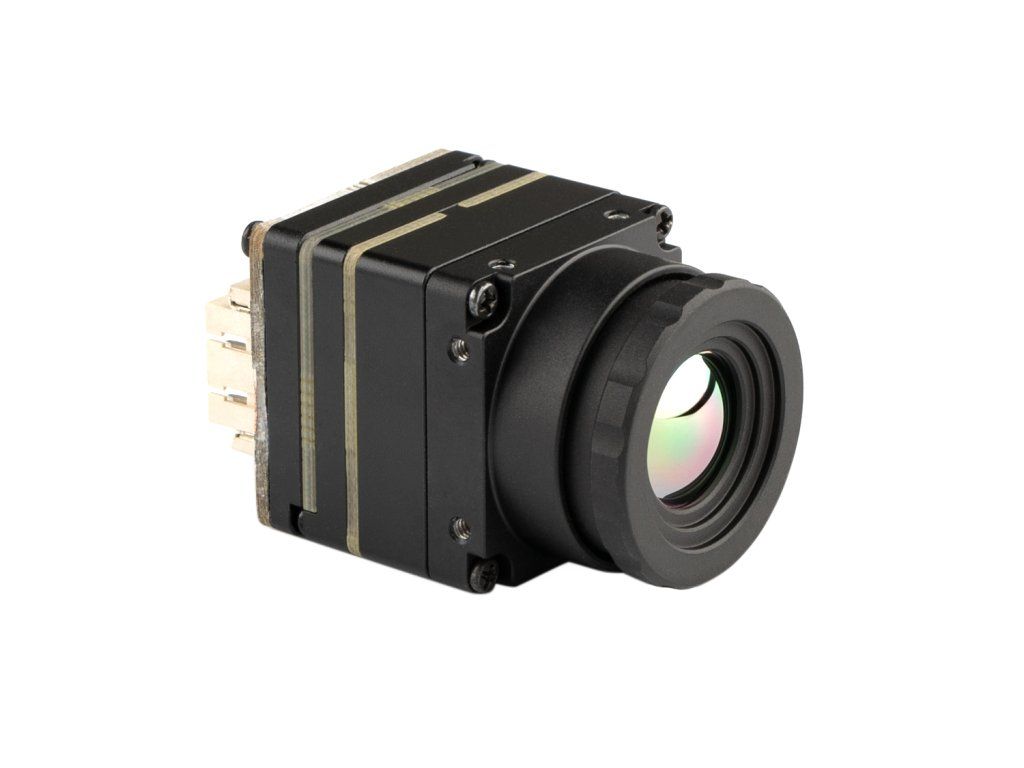

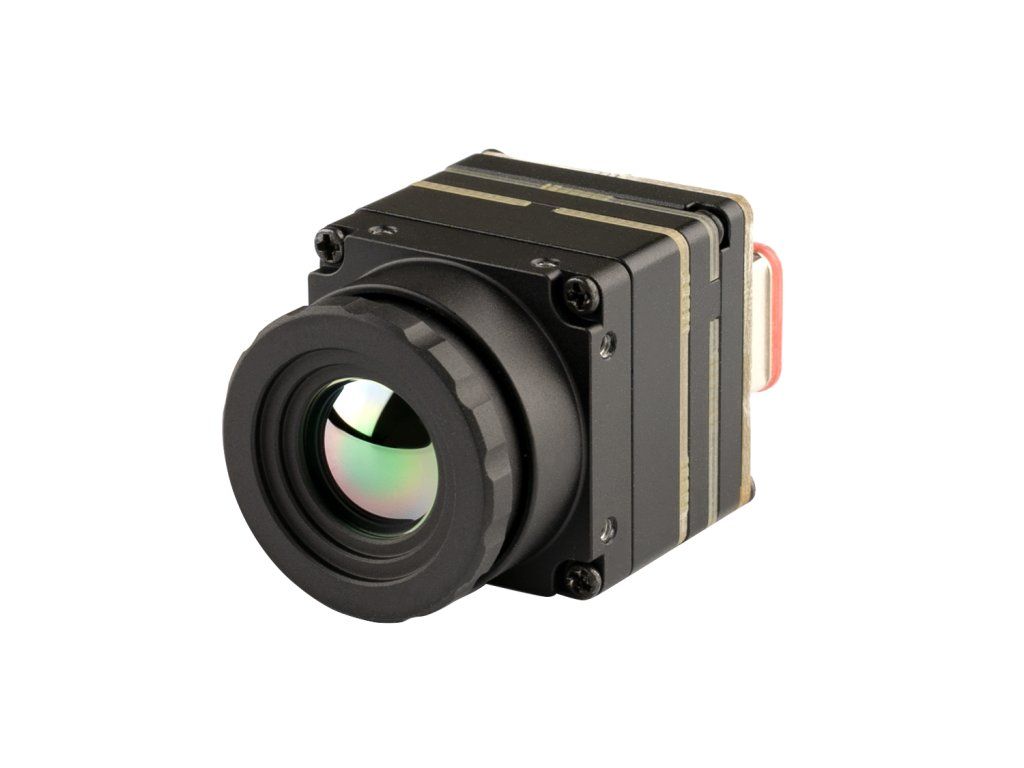

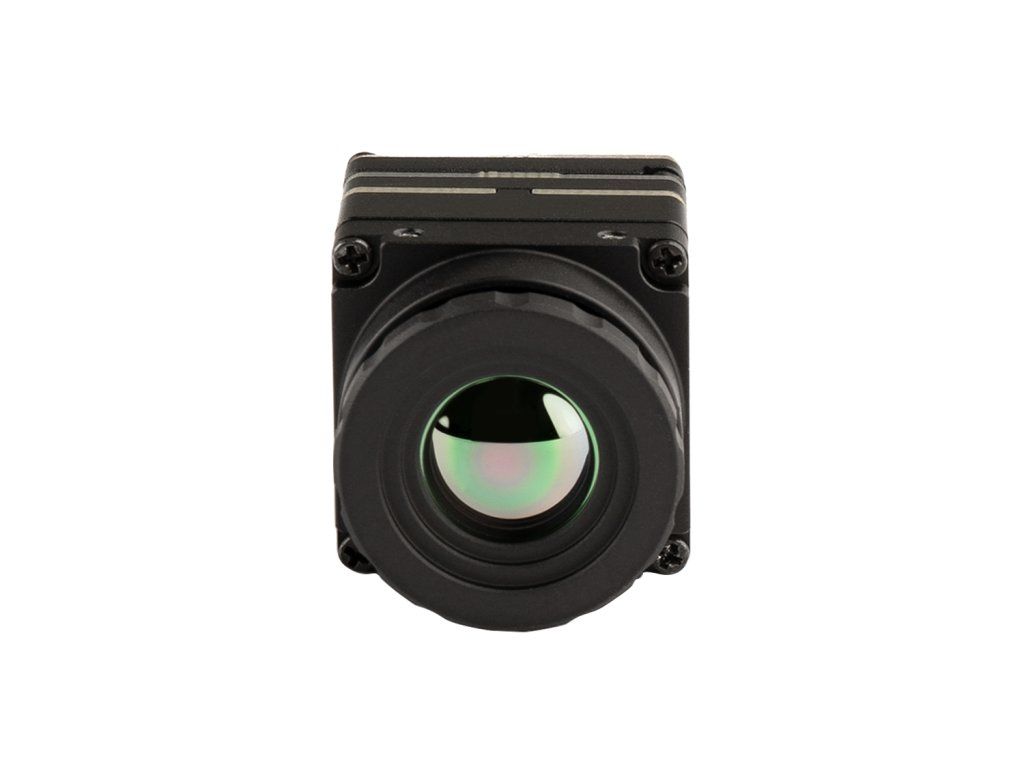

FPV Thermal Camera Pilotix T256 CVBS (9mm)

The Pilotix T256 CVBS (9mm) is a compact uncooled thermal camera module built for analog FPV systems, UAV surveillance, search applications, and industrial monitoring. It uses a vanadium oxide infrared detector to deliver reliable thermal imaging in darkness, smoke, fog, and other low-visibility conditions.

This version features analog CVBS output, making it compatible with traditional FPV transmitters, monitors, and goggles. The 9 mm lens provides a narrower field of view compared to wide-angle versions, allowing improved detection and observation of distant heat sources. This makes it suitable for long-range thermal scouting, inspection tasks, and aerial search operations.

Its lightweight design, low power consumption, and compact dimensions make the camera easy to integrate into custom drone builds and embedded projects where analog thermal video is required.

Features:
- Vanadium oxide uncooled infrared focal plane detector
- 256×192 thermal imaging resolution
- Analog CVBS video output
- 9 mm lens for longer-range thermal observation
- High sensitivity 25mK NETD
- Multiple thermal display palettes
- Continuous digital zoom 1.0×–8.0×
- Image mirroring functions
- Lightweight compact form factor
- Suitable for harsh environmental conditions

Specifications:

Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane Detector
Resolution: 256x192
Lens: 9mm
Effective Frame Rate: 25/50Hz
Pixel Pitch: 12μm
Field of View (FOV): 19.4° × 14.6° × 24.1° (H × V × D)
Spectral Band: 8~14μm
Noise Equivalent Temperature Difference (NETD): 25mK@25 °C,F#1.0,25Hz
Thermal Time Constant: <12ms

Image Adjustment:

Non-uniformity Correction: Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment: 0~100, optional
Polarity/Palette: White-hot/Black-hot/Various palettes supported
Digital zoom: 1.0~8.0xcontinuous zoom (step size: 0.1)
Image Mirroring: Vertical/Horizontal/Diagonal

Electricity Parameters:

Analog Video: PAL/NTSC
Communication Interface: UART/I2C
Power Supply Input: 5V
Typical power consumption @25°C: <0.35W

Physical Characteristics:

Weight (without lens): <7g
Dimensions (without lens): 21x21x10.3 mm

Environment Adaptability:

Operating Temperature: -40 °C~+80°C
Storage Temperature: -50°C~+85°C
Humidity: 5%-95%, non-condensing
Vibration: 6.06g, random vibration, all axes
Impact: 80g, 4ms, final peak sawtooth wave, three axes and six directions

Package Includes:

1x FPV Thermal Camera Pilotix T256 CVBS (9mm)
1x Interface Cable
