FPV Thermal Camera Pilotix T256 CVBS (4mm)

Product detailed description

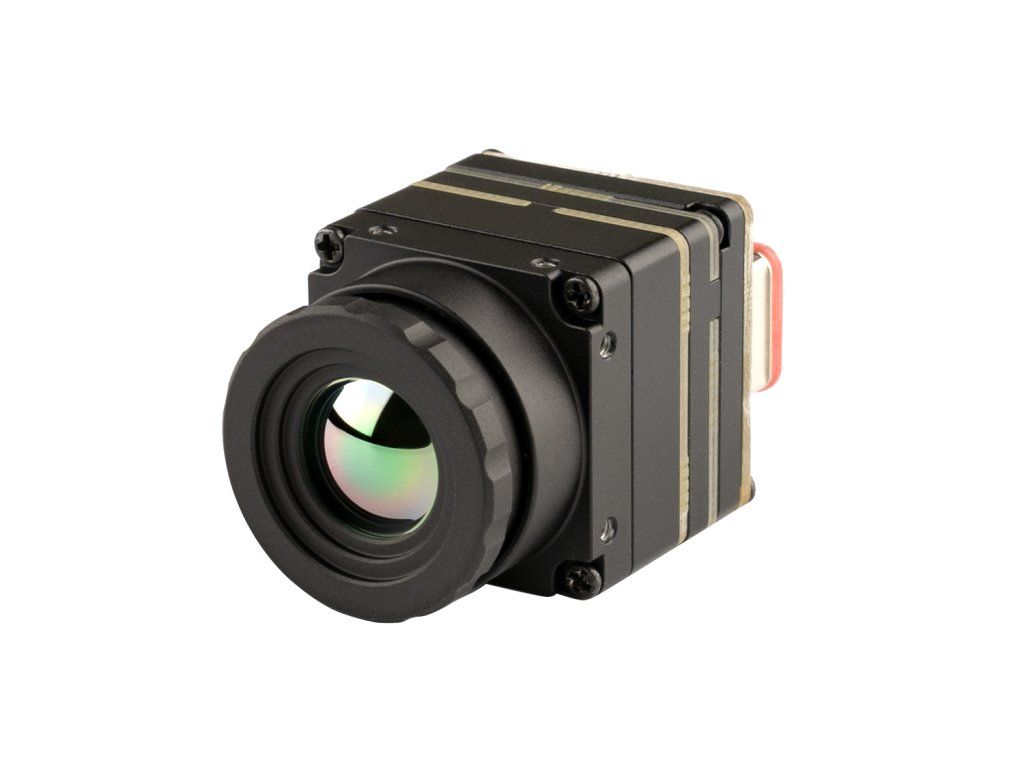

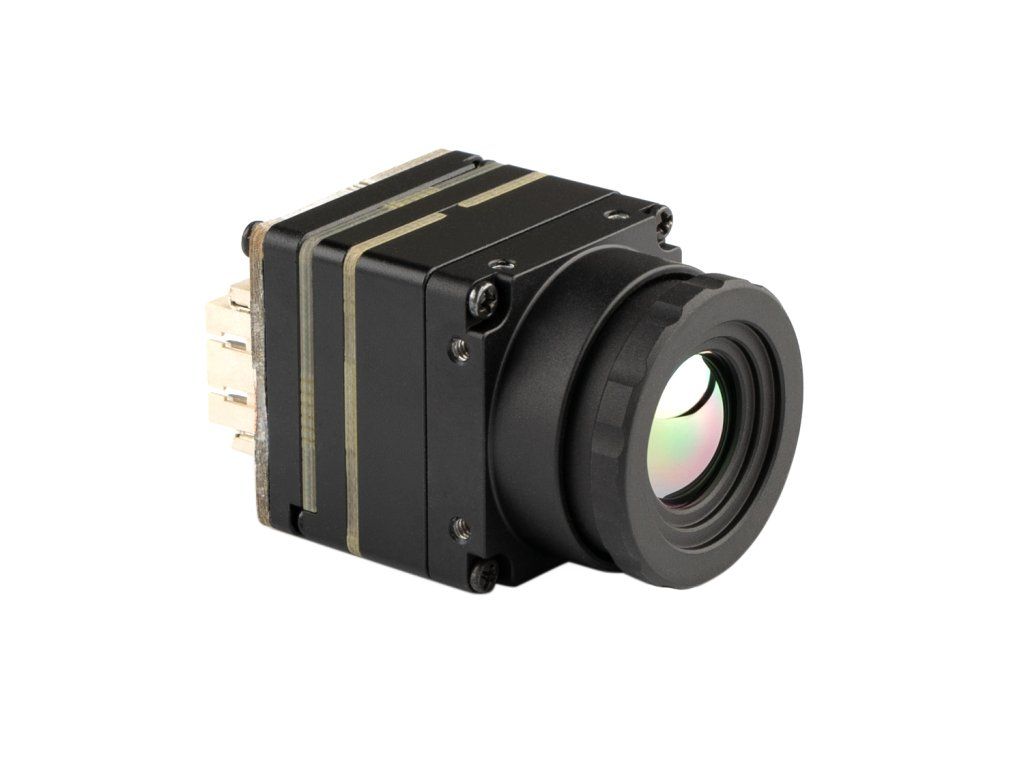

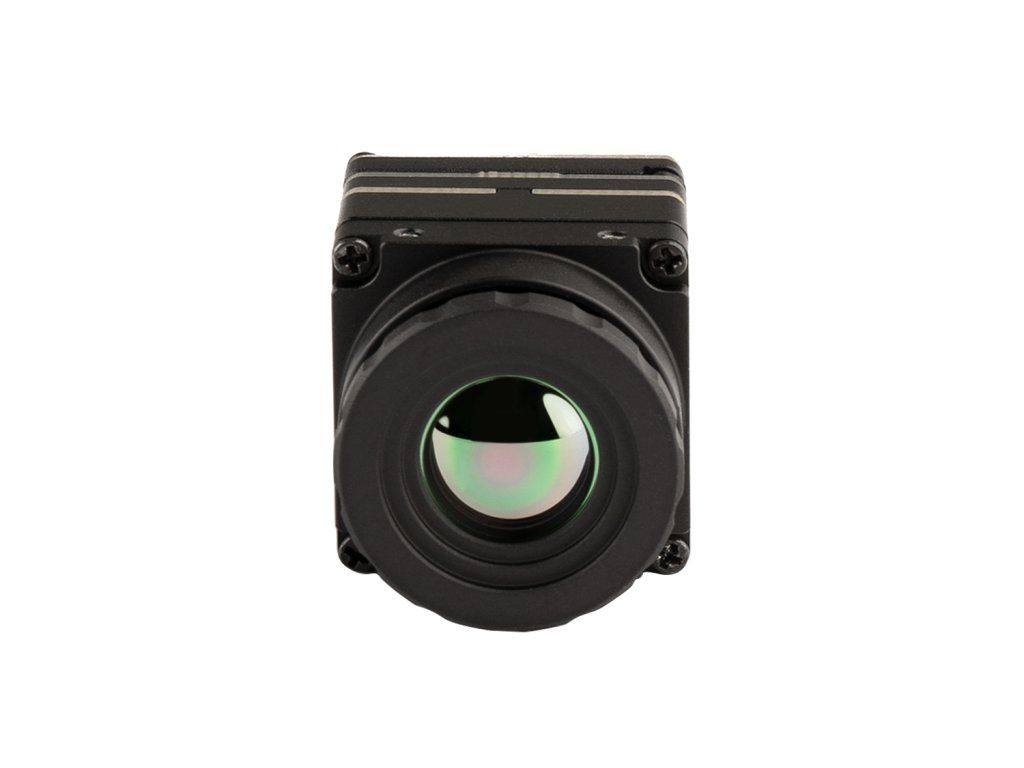

FPV Thermal Camera Pilotix T256 CVBS (4mm)

The Pilotix T256 CVBS (4mm) is a lightweight uncooled thermal camera designed for analog FPV systems, compact UAVs, robotics, and inspection platforms. Using a vanadium oxide infrared focal plane detector, it provides clear thermal imaging in darkness and visually challenging environments where standard cameras cannot operate effectively.

This version is equipped with a CVBS analog video output, making it suitable for direct connection to traditional FPV video transmitters, goggles, and analog monitoring systems. Its compact size and low power consumption make integration simple for lightweight drone builds, while the 4 mm lens offers a wide viewing angle suitable for navigation, area scanning, and general-purpose thermal observation.

With multiple image palettes, digital zoom, and image mirroring functions, the module can be adapted to a wide range of aerial and ground-based applications.

Features:

- Vanadium oxide uncooled infrared focal plane detector
- 256×192 thermal resolution
- Analog CVBS video output
- 4 mm lens with wide-angle thermal view
- High sensitivity 25mK NETD
- Supports multiple thermal palettes
- Continuous digital zoom 1.0×–8.0×
- Image mirroring and flip options
- Compact lightweight construction
- Suitable for FPV drones and embedded systems

Specifications:

Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane Detector
Resolution: 256x192
Lens: 4mm
Effective Frame Rate: 25/50Hz
Pixel Pitch: 12μm
Field of View (FOV): 43.6° x 33.4° x 54.1° (HxVxD)
Spectral Band: 8~14μm
Noise Equivalent Temperature Difference (NETD): 25mK@25 °C,F#1.0,25Hz
Thermal Time Constant: <12ms

Image Adjustment:

Non-uniformity Correction: Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment: 0~100, optional
Polarity/Palette: White-hot/Black-hot/Various palettes supported
Digital zoom: 1.0~8.0xcontinuous zoom (step size: 0.1)
Image Mirroring: Vertical/Horizontal/Diagonal

Electricity Parameters:

Analog Video: PAL/NTSC
Communication Interface: UART/I2C
Power Supply Input: 5V
Typical power consumption @25°C: <0.35W

Physical Characteristics:

Weight (without lens): <7g
Dimensions (without lens): 21x21x10.3 mm

Environment Adaptability:

Operating Temperature: -40 °C~+80°C
Storage Temperature: -50°C~+85°C
Humidity: 5%-95%, non-condensing
Vibration: 6.06g, random vibration, all axes
Impact: 80g, 4ms, final peak sawtooth wave, three axes and six directions

Package Includes:

1x FPV Thermal Camera Pilotix T256 CVBS (4mm)
1x Interface Cable
