FC Pilotix H743-WING V3 Advanced CZ

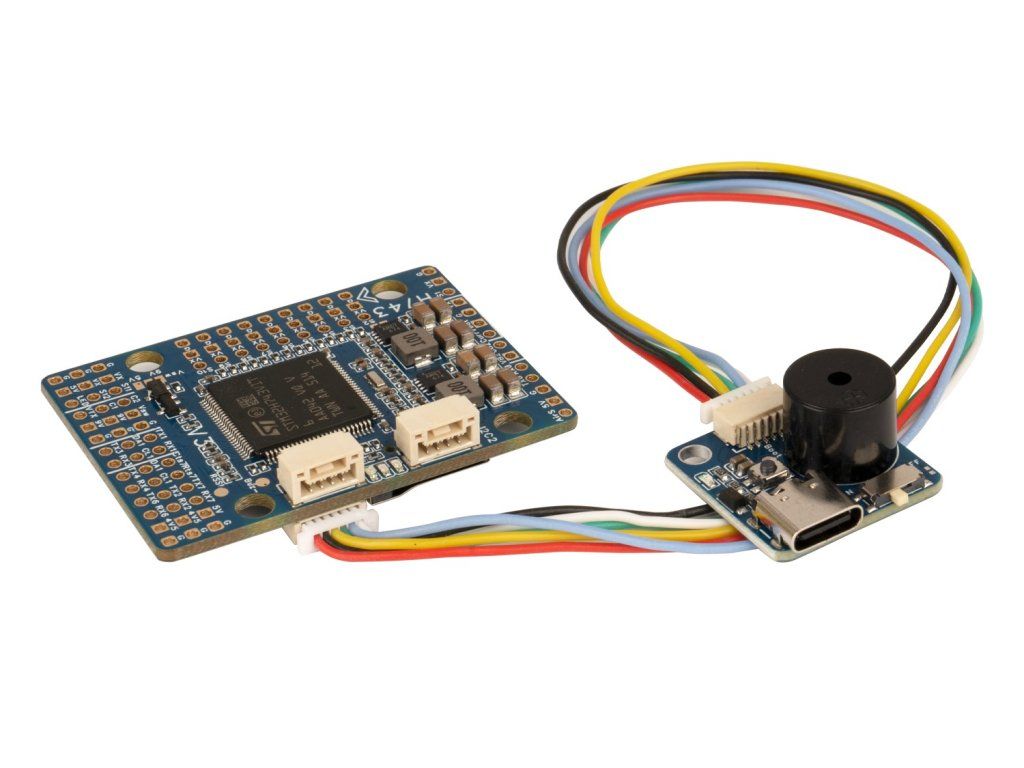

The Pilotix H743-WING V3 Advanced CZ is an FPV flight controller built around the STM32H743VIT6 microcontroller unit. This Pilotix board features a dual gyroscope configuration and supports multiple firmware platforms including ArduPilot, INAV, and Betaflight. The flight controller incorporates two ICM42688-P gyroscopes connected via SPI with an 8 kHz update rate, a built-in accelerometer, and a DPS310 barometer. It provides 7 UART ports, 6 SPI ports, 1 I2C port, and a USB Type C connection for configuration. The board offers 4 motor control outputs supporting multiple protocols including PWM, OneShot125, OneShot42, Multishot, and DShot variants up to DShot1200 with bi-directional DShot capability. Receiver compatibility includes SBUS, CRSF, IBUS, DSMX, SUMD, and PPM protocols. The analog OSD system features 2 video inputs with analog video input and output. Additional features include an SD card slot, LED strip output, buzzer, and DFU button. A linear BEC provides 5V at 2A output. The board measures 54 x 36 mm with 30.5 x 30.5 mm M3 mounting pattern and weighs 30 grams. Operating temperature ranges from -20 to 40°C with storage temperature from -30 to 50°C and humidity tolerance of 20-95% RH non-condensing. Package includes soldering pins with 2 years warranty.
