FC HGLRC F405 8S V2

Product detailed description

FC HGLRC F405 8S V2

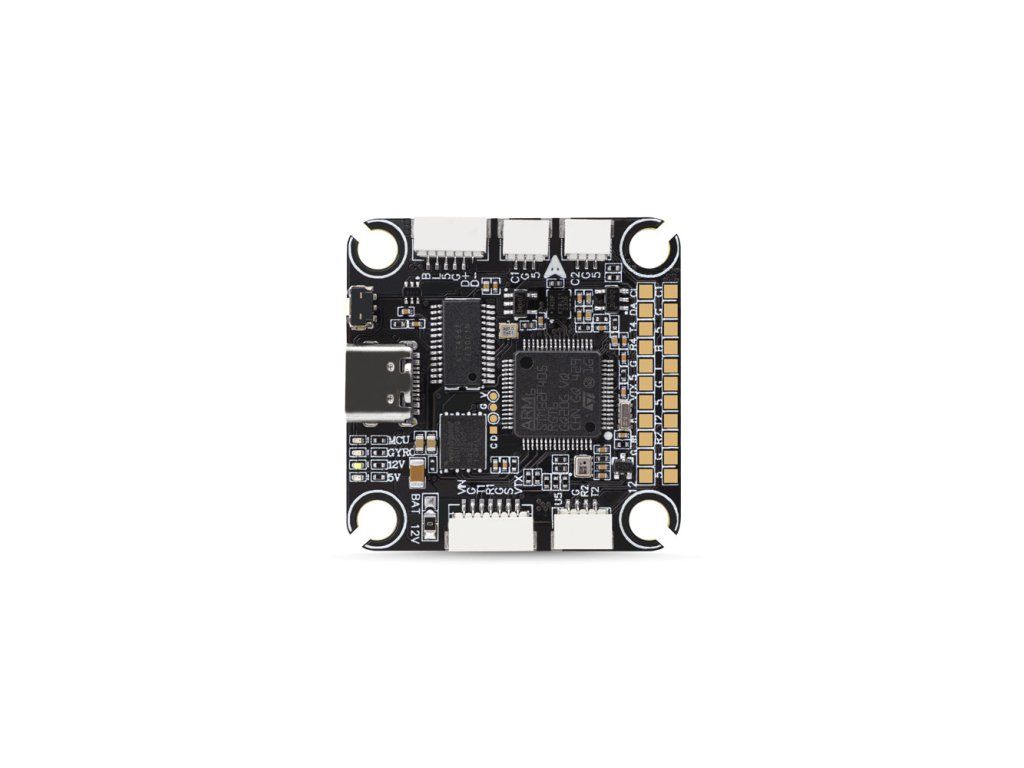

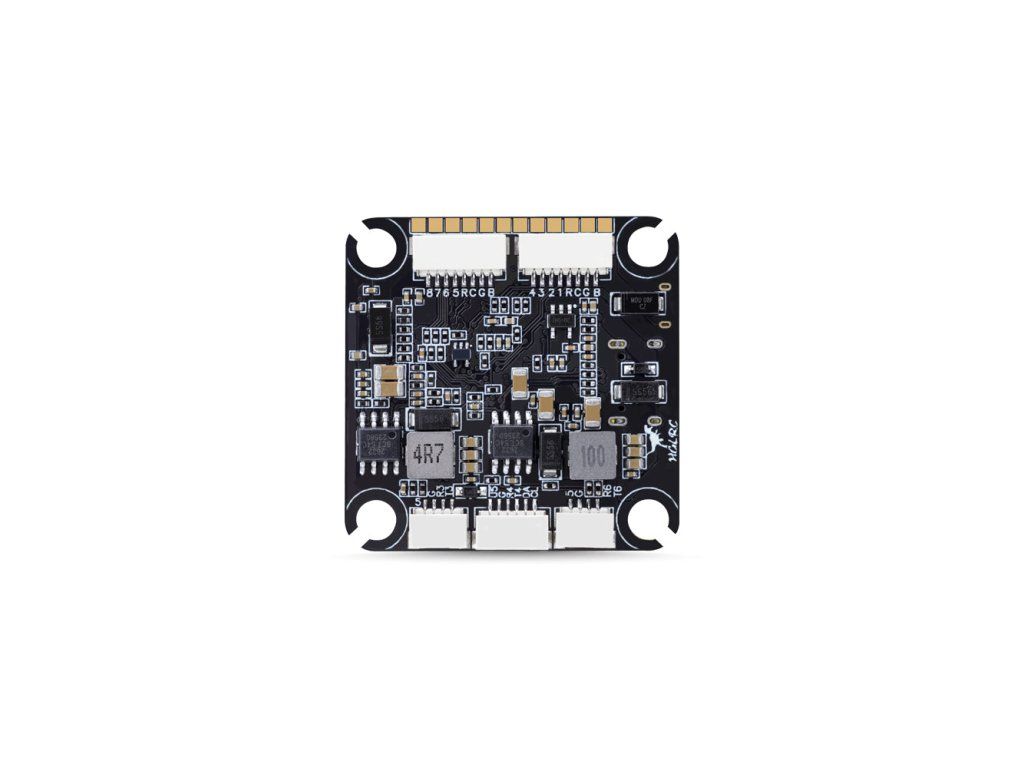

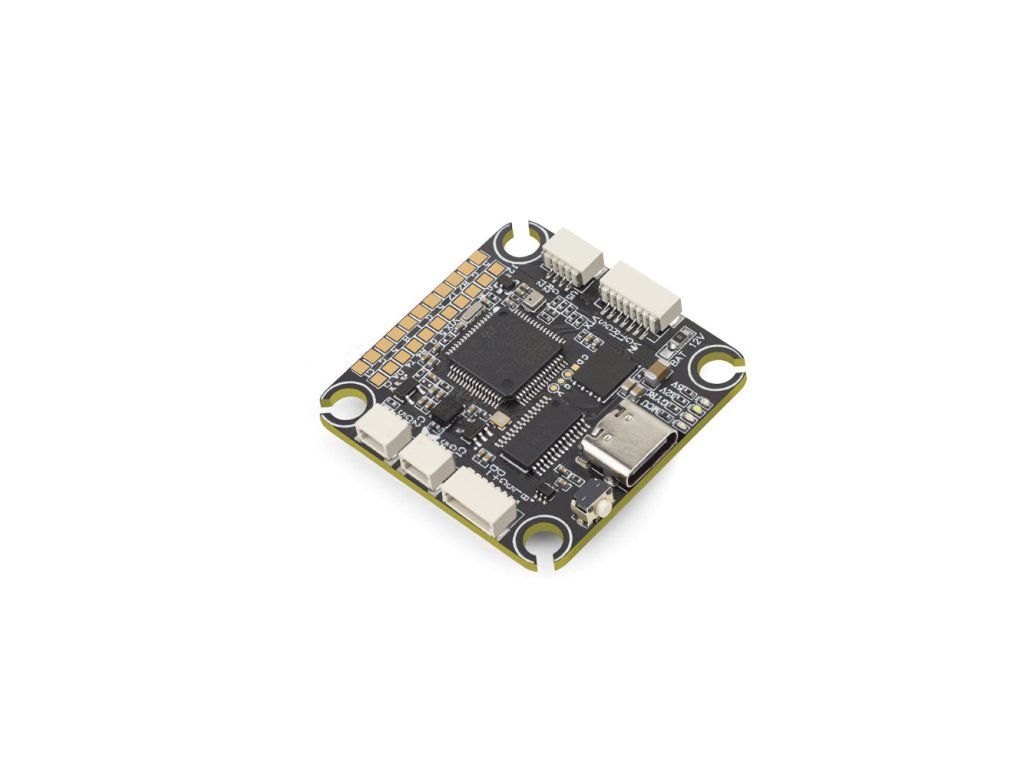

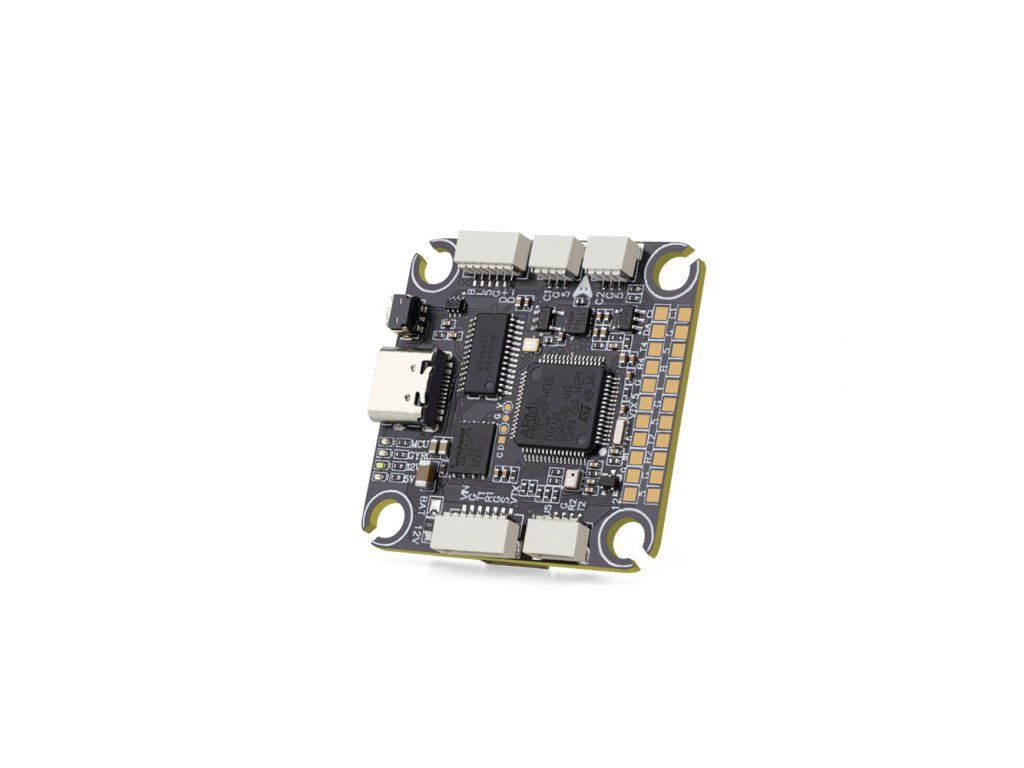

The HGLRC F405 8S V2 is a powerful flight controller designed for FPV pilots seeking reliable performance, flexible connectivity, and support for high-voltage power systems. Built around the STM32F405 processor and equipped with the ICM42688 gyroscope, it delivers smooth flight characteristics and precise control for freestyle, racing, and long-range drones. The integrated 16MB Blackbox memory enables detailed flight data recording, while six UART ports provide extensive compatibility with modern FPV peripherals. Supporting up to 8S LiPo batteries, the F405 8S V2 offers stable operation and dependable performance for demanding FPV applications.

Features:
- Supports high-voltage 2S–8S LiPo battery systems
- Integrated barometer enhances altitude-related flight functions
- AT7456E OSD chip enables real-time flight data display
- Six UART ports allow easy connection of GPS, receivers, VTXs, and telemetry devices
- Optimized layout for clean installations and efficient wiring
- Suitable for freestyle, racing, cinematic, and long-range FPV drones
- Designed for dependable operation in demanding flight conditions

Specifications:
Brand: HGLRC
Product Name: HGLRC F405 8S V2 FC
Firmware Target: HGLRC_F405_S
MCU: STM32F405
Gyroscope: ICM42688
OSD Chip: AT7456E
Barometer: SPA06-003
Blackbox Memory: 16MB
UART Ports: 6
Input Voltage: 7.4V–33.6V
Battery Compatibility: 2–8S LiPo
Dimensions: 36.3x36.3mm
Mounting Pattern: 30.5x30.5mm (M3)
Weight: 9.6g

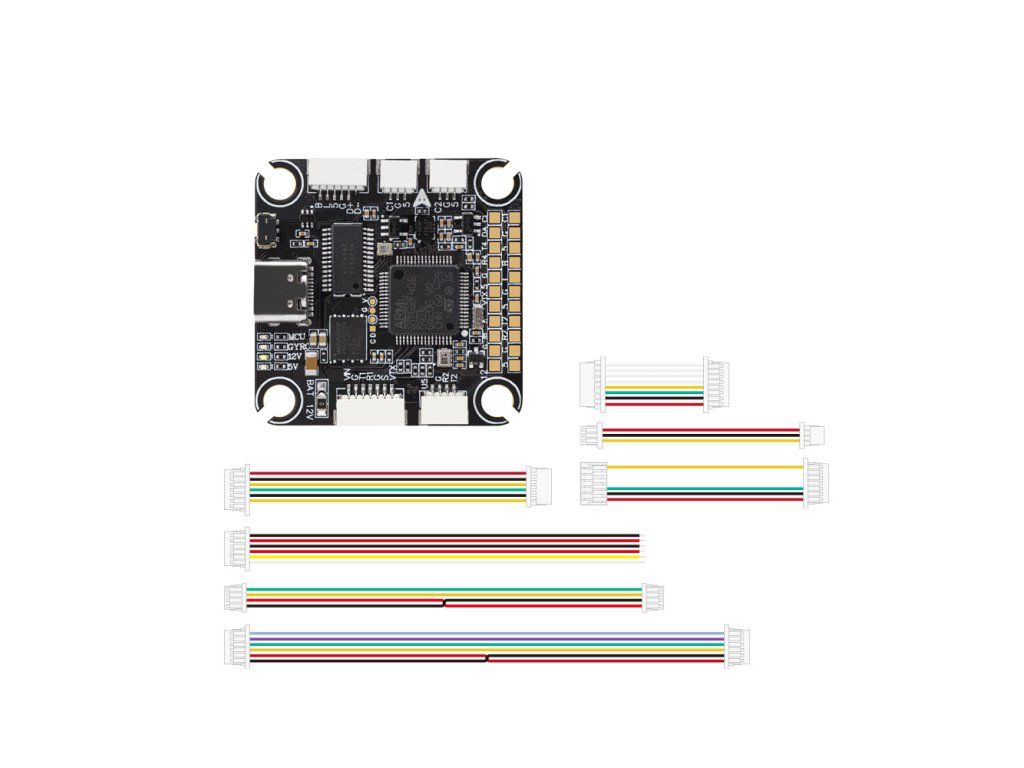

Package includes:
1x HGLRC F405 8S V2 Flight Controller
1x Connection Cables Set
1x Vibration Damping Hardware
1x HGLRC Sticker Set
