VRX Walksnail Avatar With Moonlight Kit

Product detailed description

VRX Walksnail Avatar With Moonlight Kit

The Walksnail Avatar FPV VRX with Moonlight Kit delivers an unparalleled FPV experience, combining a lightweight, portable receiver module with a powerful 4K starlight camera and VTX system for stunning aerial footage in any lighting condition. The Avatar VRX weighs just 83g and features an advanced 4-antenna design, including 2 directional antennas, for uninterrupted transmission up to 10km. Paired with the Moonlight Kit's starlight sensor, 4K/60fps recording, and 160° FOV camera, this system captures smooth, stable, low-latency HD video whether flying in daylight or after dark. Built-in EIS and Gyroflow support further ensure fluid, jello-free footage for freestyle and cinematic flying alike.

Features:
— Lightweight 83g VRX design for effortless on-the-go portability
— Advanced 4-antenna array (including 2 directional antennas) for up to 10km transmission range
— 1080P/60fps HD video with H.265 encoding and just 22ms latency on the VRX side
— HDMI output for uncompressed video signal from the Walksnail HD system
— Canvas Mode OSD support, compatible with Betaflight, INAV, and KISS
— Moonlight Kit starlight sensor for enhanced low-light and night flying performance
— 4K/60fps recording with built-in EIS and Gyroflow support for smooth, stable footage
— 160° FOV moonlight camera for a wide, natural field of view
— Manual shutter and ISO control for full creative flexibility in any lighting
— Includes ND8 filter and silicone mounting pads for stable, vibration-free camera mounting
— Wide voltage input (7.4V–25.2V) compatible with 2S–6S battery setups

Specifications:

Avatar FPV VRX:
Model: Avatar FPV VRX
Communication Frequency: 5.725–5.850GHz
Transmitter Power (EIRP): FCC <30dBm / CE <14dBm / SRRC <20dBm / MIC <25dBm
I/O Interface: HDMI, Micro SD card slot, DC 5.5*2.1mm
HDMI Output: 1080p60fps, 720p100fps, 720p60fps
Power Input: 7–25.2V (2S–6S)
SD Card Support: Up to 256GB
System: Avatar HD System
Weight: 83g
Dimensions: 114mm x 55mm x 22mm

Red Bird Antenna (VRX):
Polarization: LHCP
Bandwidth: 5.6–6.0GHz
Average Gain: 1.9dBi
Radiation Efficiency: ≥97%
VSWR: ≤1.3
Cross-Polar Rejection: -15 to -30dB
Connector: RP-SMA
Dimensions: H24.8mm x R15.3mm
Weight: 4.2g

Moonlight Kit (VTX):
Model: Moonlight Kit
Communication Frequency: 5.725–5.850GHz
Transmitter Power (EIRP): FCC <30dBm / CE <14dBm / SRRC <20dBm / MIC <25dBm
I/O Interface: JST1.04 (Power In), JST0.86 (USB), Micro SD card slot, IPEX-1
Sensor: Starlight Sensor
Shutter: Rolling Shutter
Power Consumption: 12V@1.4A, 8V@2.2A
Memory Card Type: U3 MicroSD, up to 256GB
Camera Size: 19.6 x 19 x 24mm
VTX Size: 15.3 x 34.5 x 34.5mm
VTX Mounting Hole Distance: 20x20mm / 25x25mm (M2)
Weight: 38.5g (antenna not included)
OSD: Canvas Mode
Latency: Average 22ms
Antennas: 2 (IPEX)

Moonlight Camera:
Sensor: 1/1.8-inch
FOV: 160°
Aperture: F2.1
ISO: 100–25600
Recording Resolution: 4K@30/60fps, 2.7K@30/60fps, 1080p@60/100fps, 720p@60fps
Max Bitrate: 150Mbps
Video Format: MP4 (H.264)
Shutter: Rolling Shutter
3D DNR: Supported
Gyroflow: Supported
Built-in EIS: Supported
Power Input: 7.4V–25.2V
Memory Card Type: Micro SD, up to 256GB
Power Consumption: 12V@0.8+0.1A
Dimensions: Camera 19.5 x 19 x 24mm; REC Board 34.5 x 34.5 x 8.3mm
Weight: Camera 8.9g (without wire); Recording Board 10g

VTX Antenna (Moonlight):
Model: Avatar V2 Antenna
Polarization: LHCP
Frequency Range: 5600–6000MHz
Average Gain: 1.9dBi
VSWR: <1.5
Input Impedance: 50Ω
Interface: IPEX-1
Dimensions: R15 x 45mm (without cable)
Weight: 2g

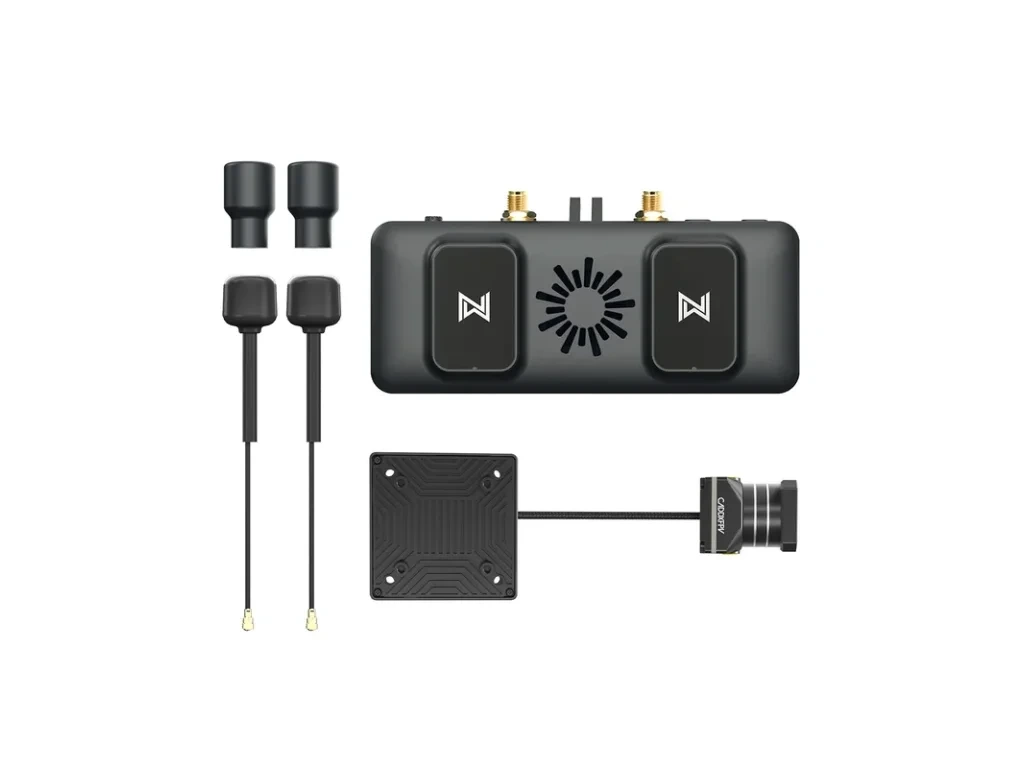

Package Includes:
1x Avatar FPV VRX
2x Red Bird Antenna
1x HDMI Cable
1x 2-in-1 DC Power Cable
1x Moonlight Kit VTX
1x Moonlight Camera
2x Avatar V2 Antenna
1x ND8 Filter
Silicone Mounting Pads
