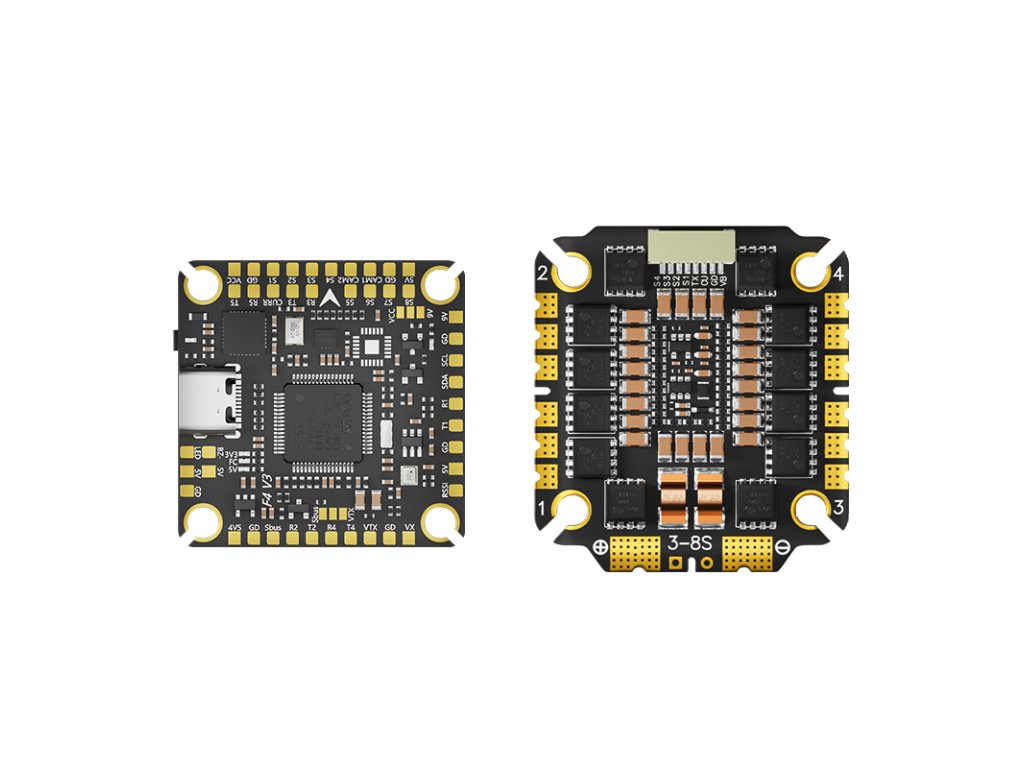

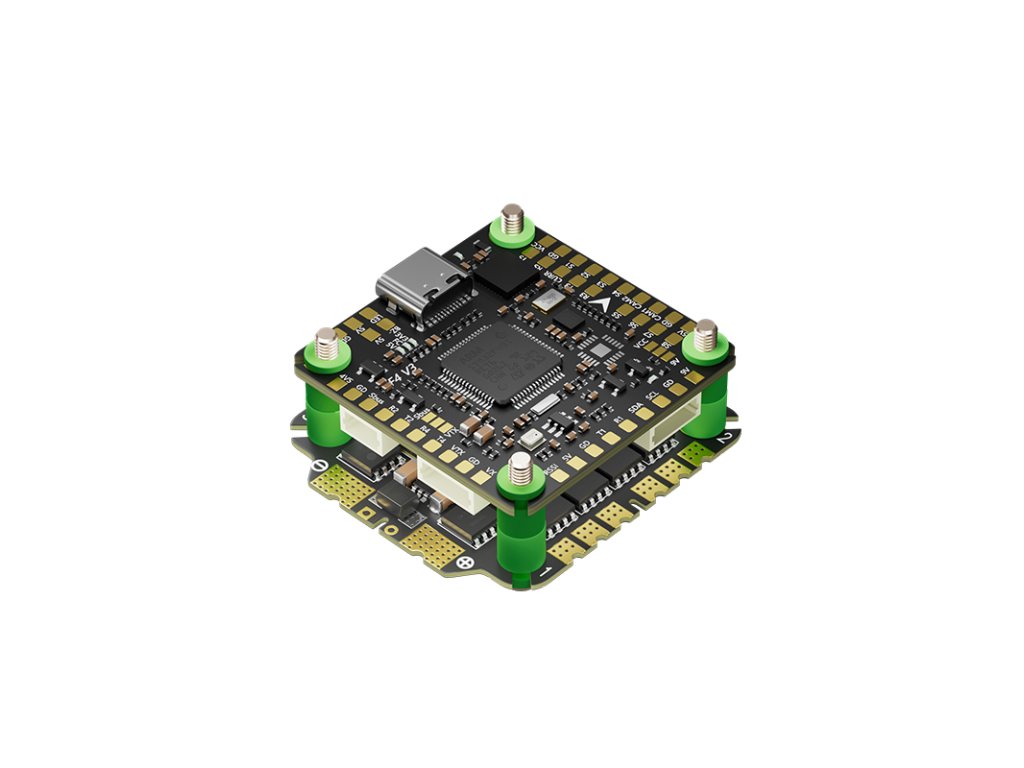

Stack Pilotix F405 V3 ICM42688 AM32 75A

The Pilotix F405 V3 ICM42688 AM32 75A is a versatile FPV flight controller featuring the STM32F405 microcontroller and an integrated AM32 ESC providing a continuous current of 75A and a peak current of 85A. It supports multiple protocols including DShot300, DShot600, DShot150, Multishot, and OneShot. This flight controller is designed with analog OSD capabilities and is compatible with Betaflight firmware, ensuring a robust operational environment. It includes a built-in ICM42688-P gyro and an SPL06 barometer, providing essential sensory data for precise flight control. The device operates within an input voltage range of 3 to 8S and includes telemetry support for current, voltage, temperature, and RPM monitoring. Operating conditions for the F405 V3 range from -20 to 40 °C with humidity tolerances of 20-95% RH (non-condensing). The product warranty period stands at 2 years, and it includes a variety of package contents such as shock-absorbing balls, cables, and more, ensuring comprehensive installation support.
