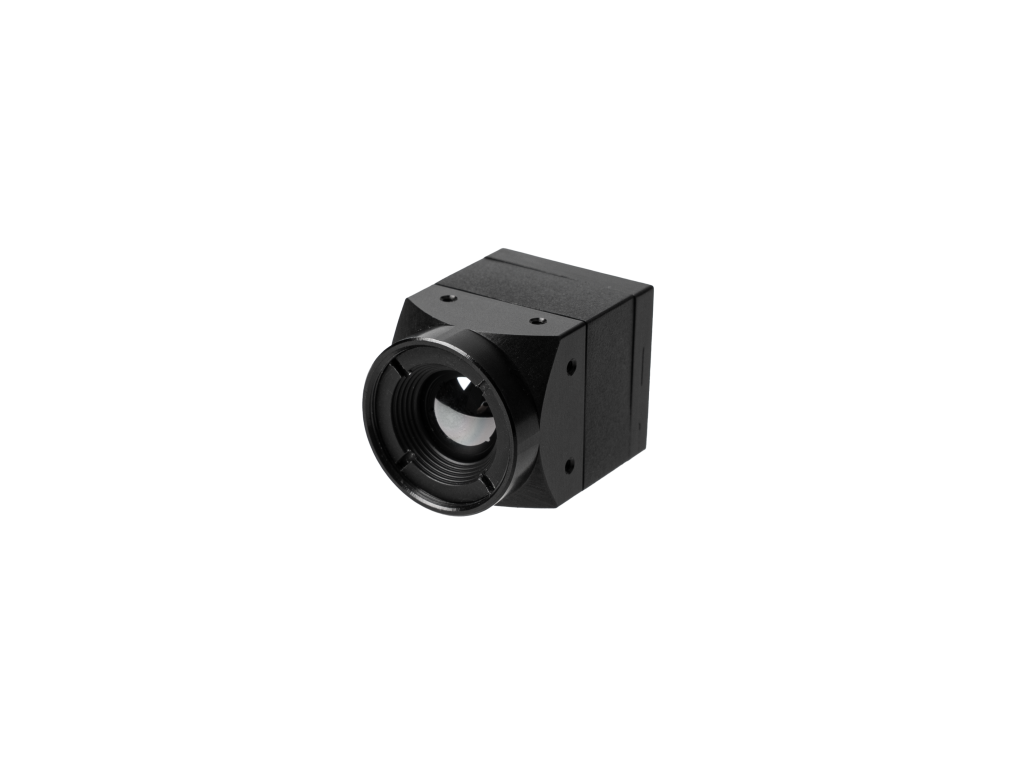

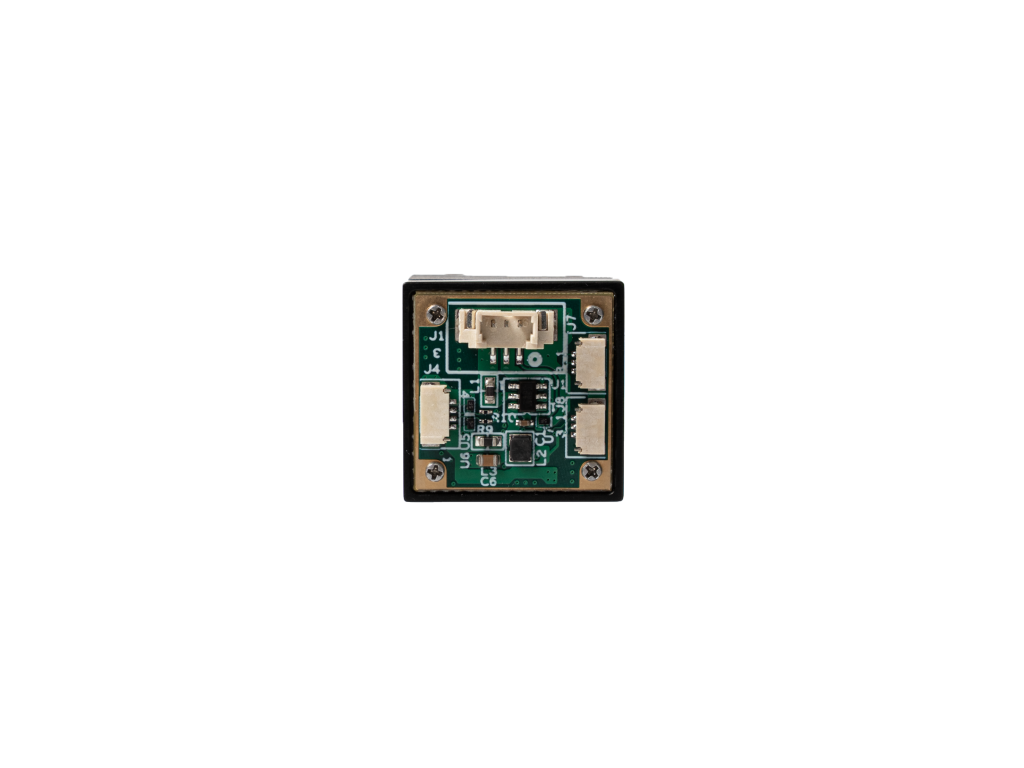

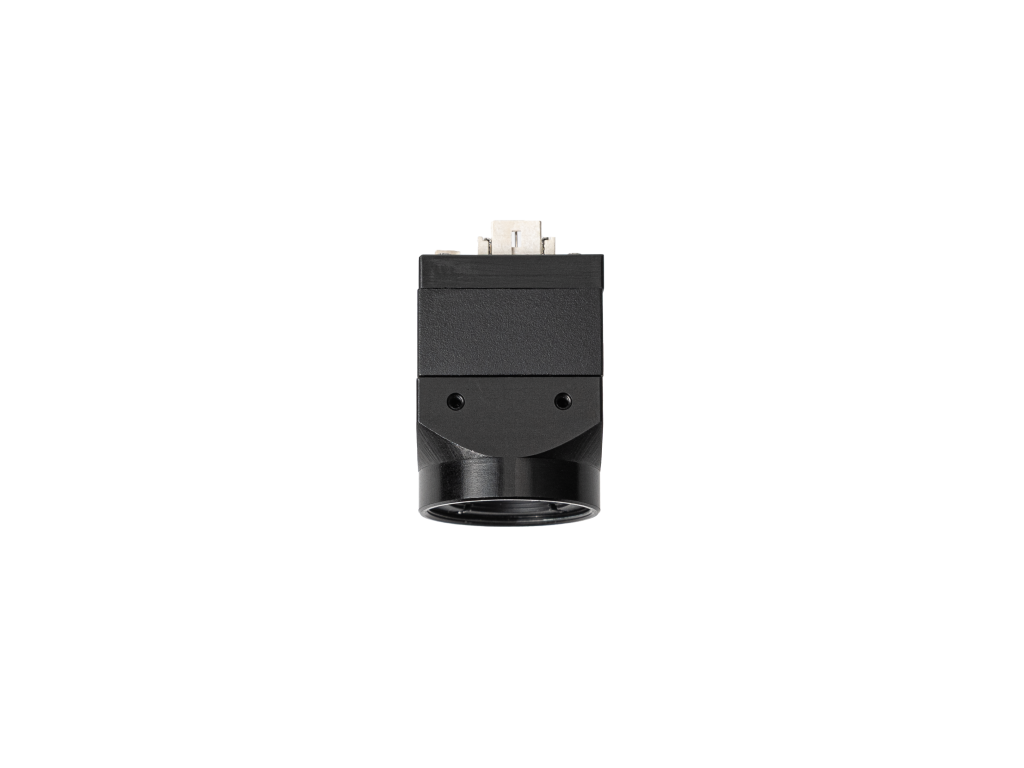

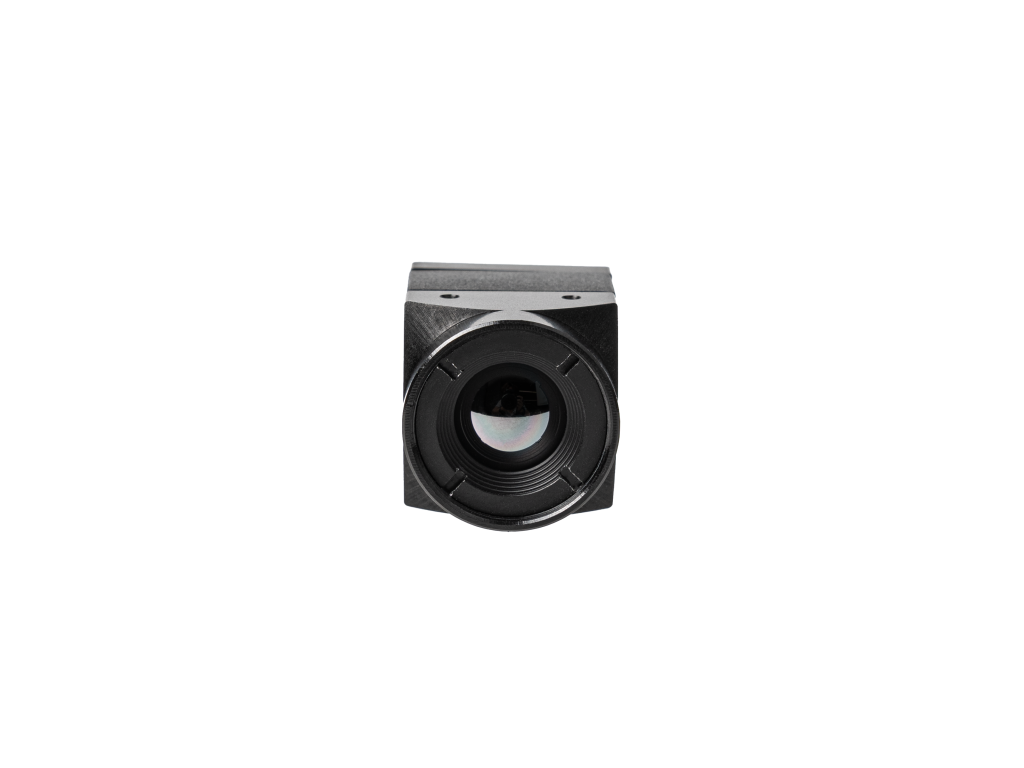

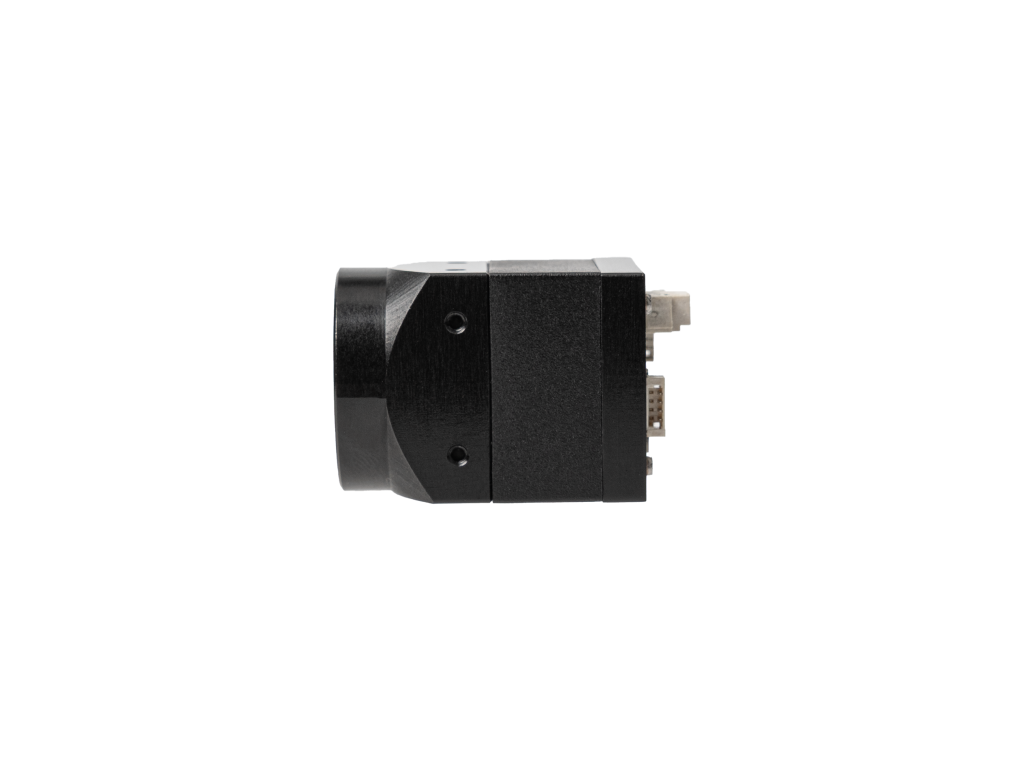

FPV Thermal Camera Pilotix T640 CVBS+USB (9mm)

Product detailed description

FPV Thermal Camera Pilotix T640 CVBS+USB (9mm)

The Pilotix T640 CVBS+USB (9mm) is a compact uncooled thermal camera module designed for FPV drones, robotic systems, night vision devices, and industrial thermal imaging applications. Equipped with a high-resolution 640x512 vanadium oxide detector and a 9mm lens, it delivers detailed thermal imaging with enhanced long-range observation capabilities in complete darkness, smoke, fog, and difficult environmental conditions. Its dual CVBS and USB video outputs allow simultaneous analog FPV transmission and digital video processing for advanced UAV and embedded system integration.

Thanks to its dual-output design, the module can transmit analog CVBS video for standard FPV goggles or transmitters while simultaneously providing USB digital output for recording, onboard processing, or integration with external systems. This makes it a practical solution for UAV operators who need both real-time piloting and thermal data acquisition.

Compared to shorter focal length versions, the 9 mm lens provides a narrower viewing angle and significantly longer observation range, making it better suited for identifying distant heat sources, surveillance tasks, and precision inspection flights.

Features:
- Vanadium oxide uncooled infrared detector
- 640x512 thermal imaging resolution
- Dual video output: analog CVBS + USB
- Narrow-angle 9mm lens for longer-range thermal observation
- High thermal sensitivity for detailed heat detection
- Multiple thermal display palettes
- Manual and automatic brightness/contrast adjustment
- Image mirroring support
- 2D and 3D noise reduction processing
- Compact lightweight housing for FPV drones
- Designed for harsh operating environments

Specifications:
Basic Information:
Detector Type: Vanadium Oxide Uncooled Infrared Detector
Resolution: 640x512
Lens: 9.1mm F1.0
Frame Rate: 50Hz
Pixel Pitch: 12μm
Field of View (HxVxD): 48.1°x38.4°x59°
IFOV: 1.32mrad
Spectral Range: 8~14μm
NETD: <40mK @25°C, F#1.0
External Synchronization: 10~50Hz Rising-edge Trigger

Image Adjustment:
Brightness/Contrast Adjustment: Manual / Automatic
Color Palette: Supported
Image Mirroring: Supported
Image Processing:
Temperature Control Algorithm
2D Denoising
3D Denoising
Histogram Equalization

Electricity Parameters:
Analog Video: CVBS
Digital Video: USB (UVC)
Communication Interface: UART
Power Supply Input: 5~12V DC
Typical Power Consumption: ≤0.50W; 0.40W @25°C

Physical Characteristics:
Weight (without lens): 8g
Dimensions (without lens): 21x21mm

Environment Adaptability:
Operating Temperature: -40°C~+80°C
Storage Temperature: -45°C~+85°C
Humidity: 5%~95%, non-condensing
Vibration: 6.06g, random vibration, all axes
Shock Resistance: 8ms sawtooth wave, 3 axes, 6 directions

Package includes:
1x FPV Thermal Camera Pilotix T640 CVBS+USB (9mm)
1x Interface Cable
