FC Pilotix H743-WING V3 Advanced

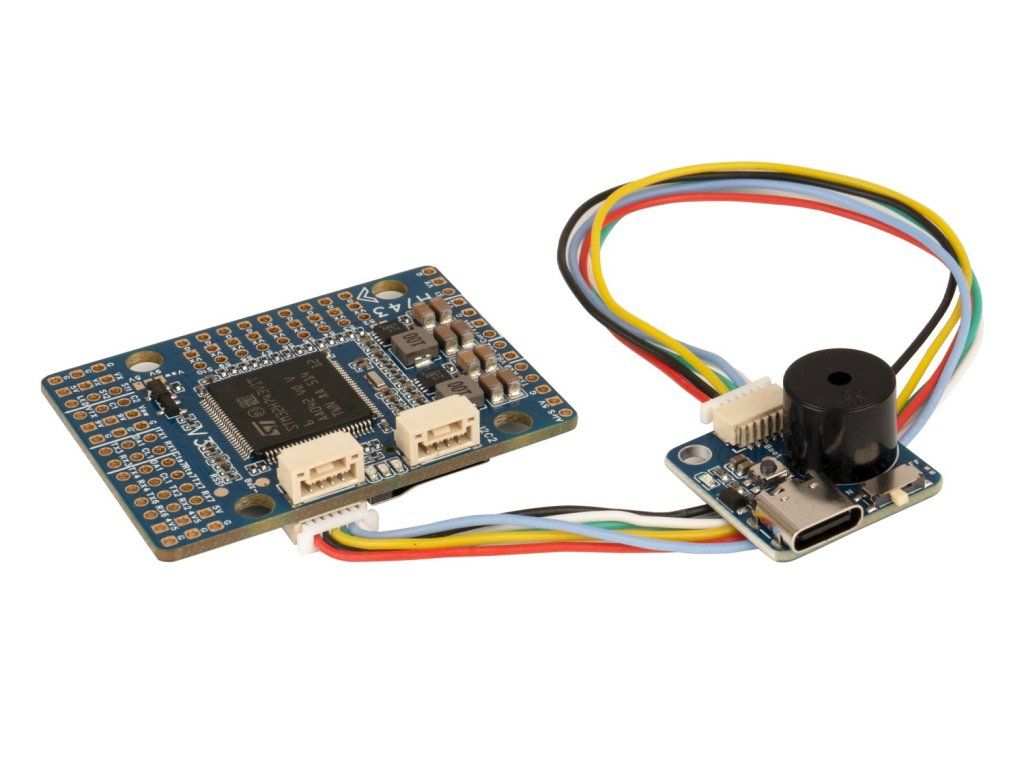

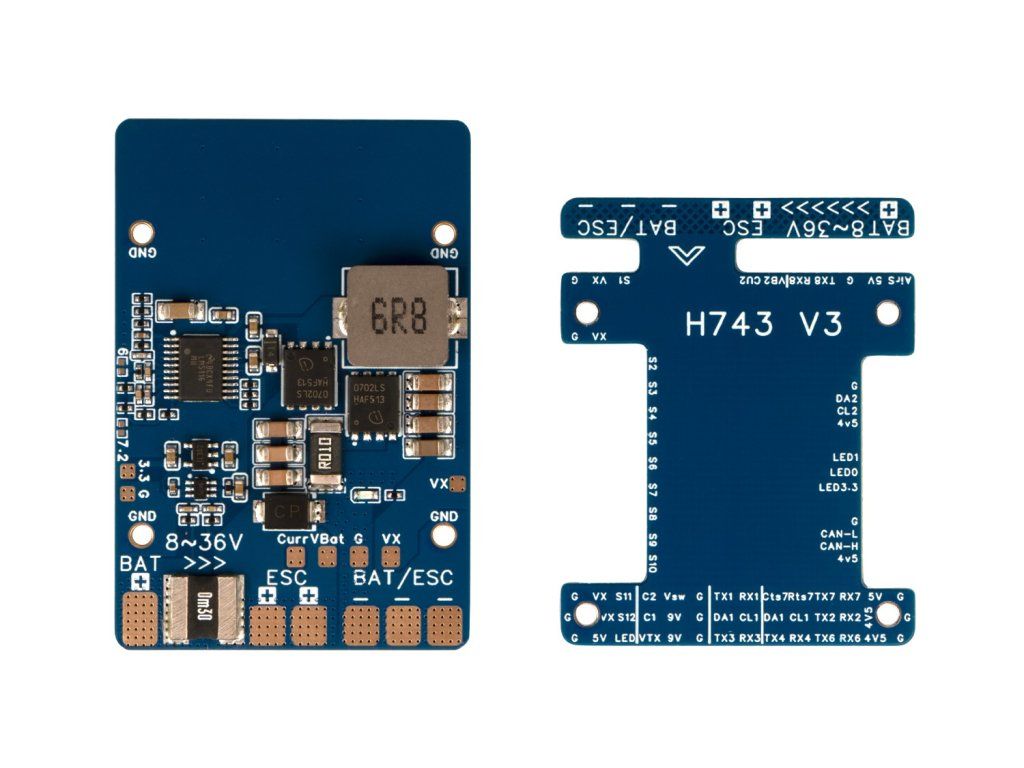

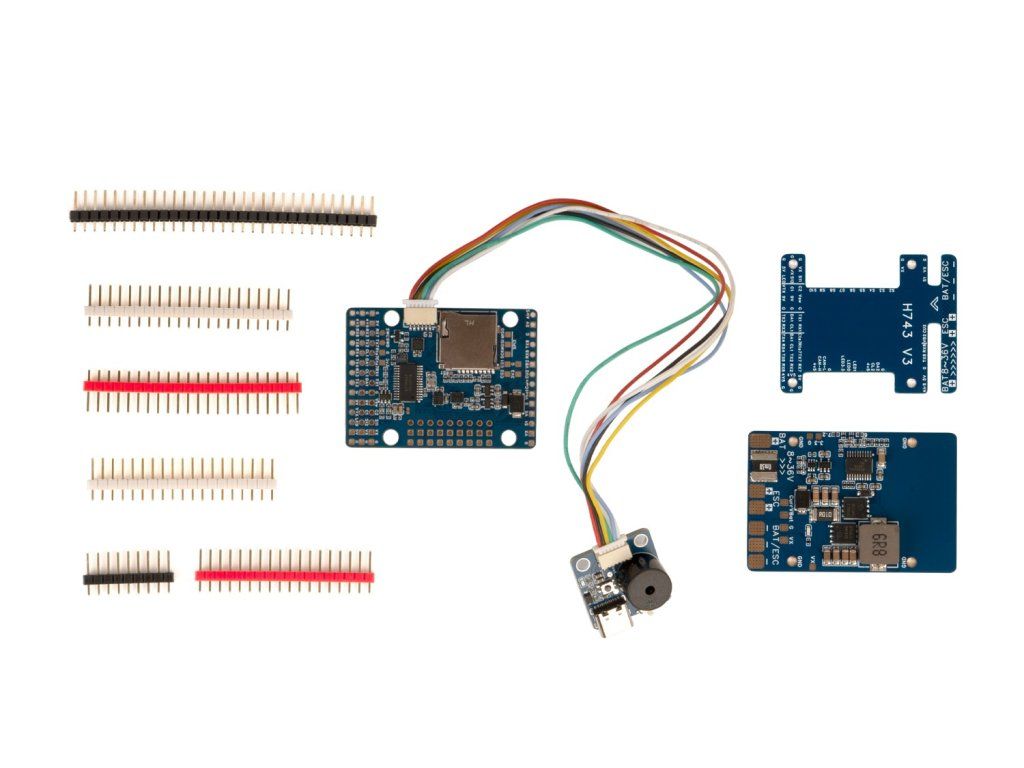

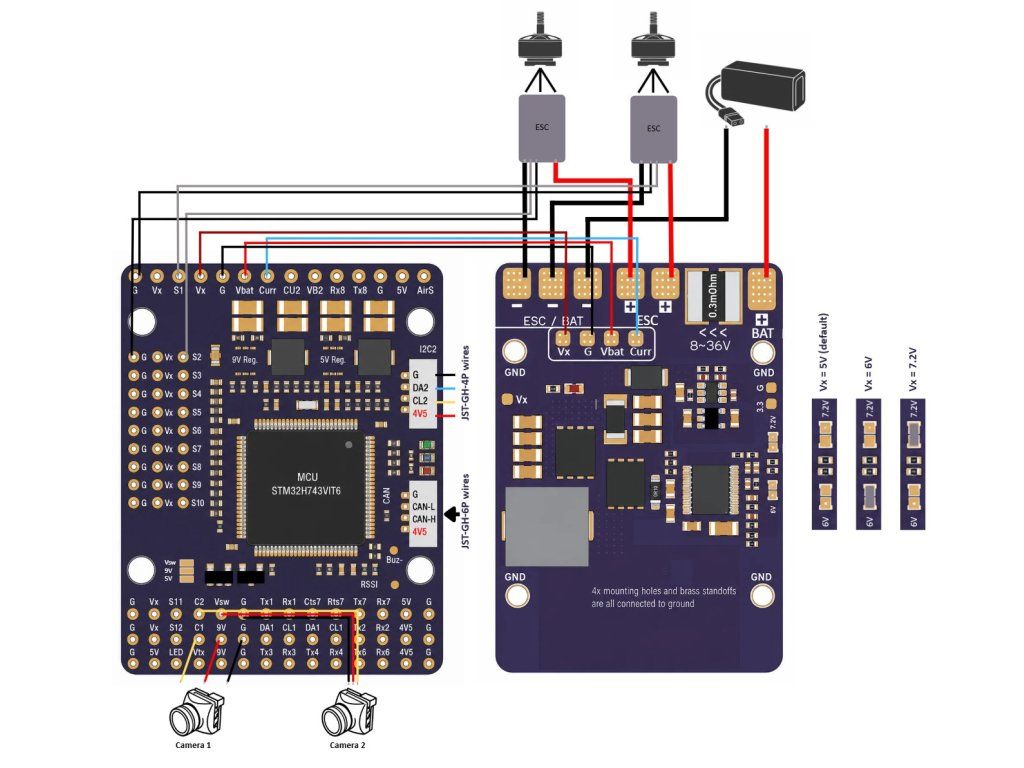

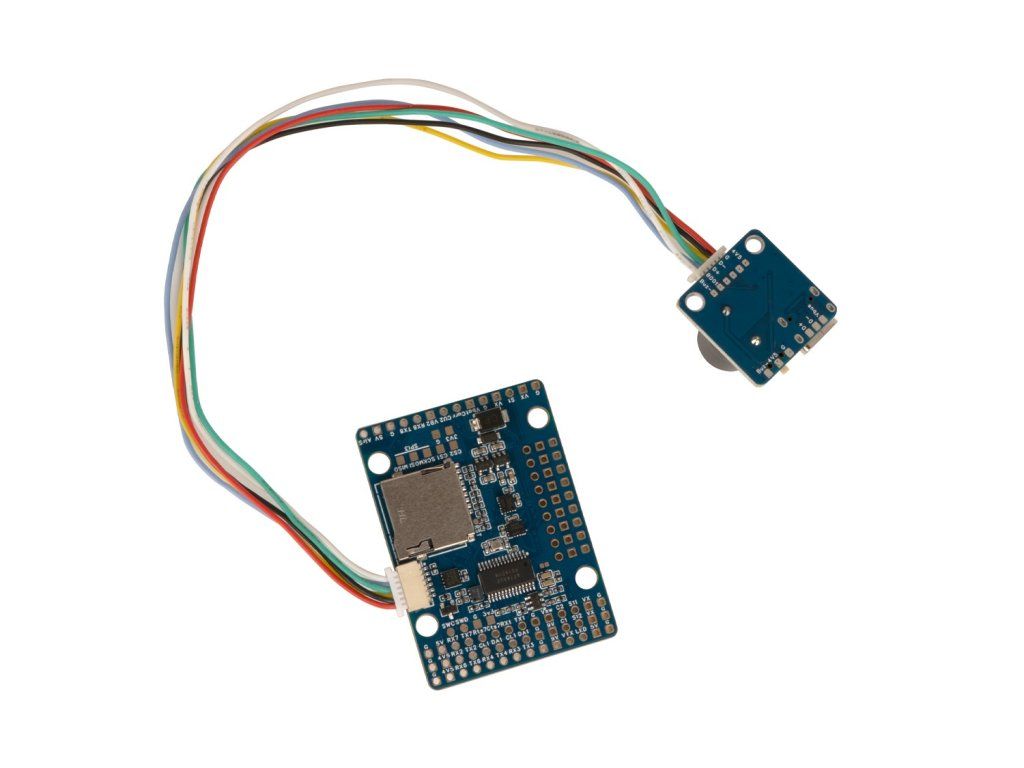

The Pilotix H743-WING V3 Advanced is an FPV flight controller built around the STM32H743VIT6 microcontroller, designed for wing aircraft applications. This board features dual ICM42688-P gyroscopes connected via SPI with an 8 kHz update rate, a built-in accelerometer, and a DPS310 barometer. The flight controller supports ArduPilot and INAV firmware and includes analog OSD capability with 2 analog video inputs and analog video output. Motor control is provided through 4 outputs supporting PWM, OneShot125, OneShot42, Multishot, and DShot protocols from 150 to 1200, including bi-directional DShot. Connectivity options include 7 UART ports, 6 SPI ports, 1 I2C port, and a USB Type-C port. The board accepts SBUS, CRSF, IBUS, DSMX, SUMD, and PPM receiver protocols, and features an SD card slot, LED strip output, buzzer, and DFU button. A linear BEC provides 5V at 2A output. The board measures 54 x 36 mm with 30.5 x 30.5 mm M3 mounting pattern and weighs 30 g. Operating temperature ranges from -20 to 40°C with humidity tolerance of 20-95% RH non-condensing. Package includes soldering pins with 2-year warranty.
