Motor iFlight XING 2205 (Φ12/M2) 2450KV

Product detailed description

XING 2205 FPV Motor (Φ12/M2) 2450KV

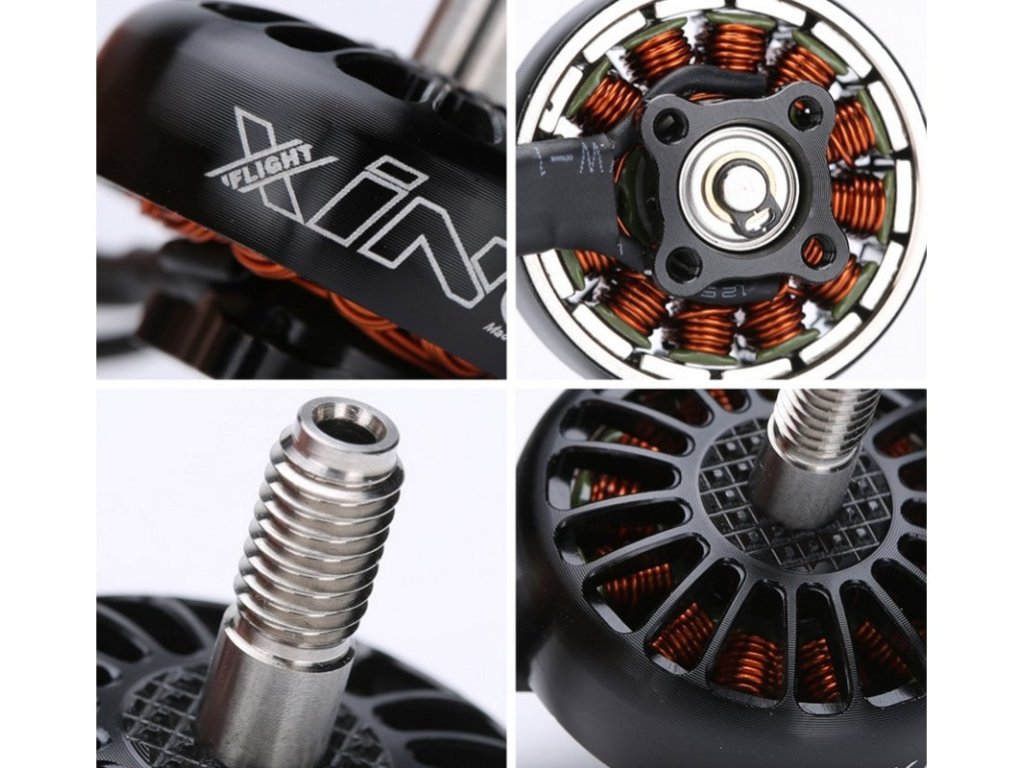

The iFlight XING 2205 is a black brushless motor designed for FPV drones.

Features:

- High-strength 5mm steel shaft
- Japanese NSK φ8*φ3*4 bearings
- N52H curved magnets
- Motor wires are protected
- Dynamically balanced

Specifications
KV: 2450KV
Weight(included wire): 25.3g
Dimension: φ28.6*16mm
Interphase Resistance: 72.41mΩ
Input Volts: 24V
Peak Current: 38.43A
Max Watt:  910W
Mounting Holes: 12*12 φ2mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 13.5mm
Lead: 160mm/22AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ8*φ3*4
Winding: Single Strand copper winding

Package includes:
1 x XING 2205 FPV NextGen Motor black
4 x M2*7mm screws
1 x M5 Flange Nut
