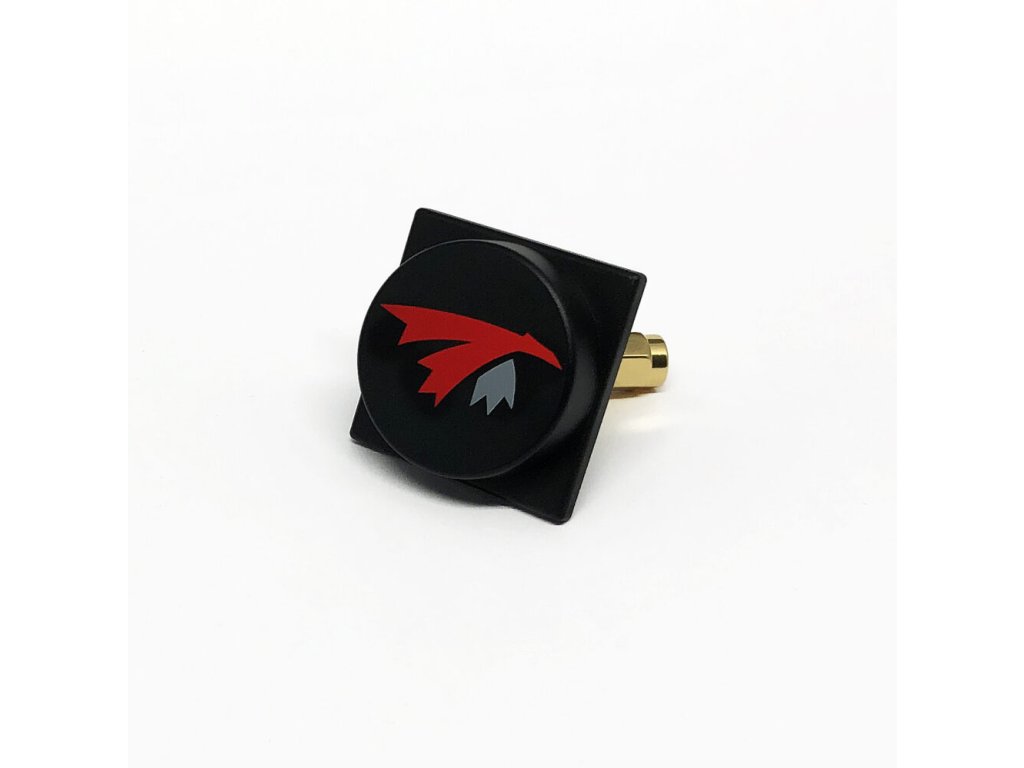

Antenna TrueRC X-AIR MK II SMA
Code: 0608597253122Product detailed description
X-Air MK II SMA The X-AIR 5.8 Mk. II is the latest redesign of the X-AIR 5.8 antenna. Featuring aerospace grade PCB material and latest computer aided engineering, there’s no compromise in beam width or gain and now size! Almost 1/4 of the footprint of the original, same wide coverage and high axial ratio make it perfect for far off venture without antenna aiming adjustment. Specs Bandwidth: 5.1GHz-6.7GHz Gain: 9.5-10.5 dBic Polarization: RHCP Beam-width (H and V)*: 120deg Beam-width @-3dB(H and V)**: 68deg. Connector: SMA Dimension: 32 x 32 x 16mm *Coverage where reception is at least equivalent to an omni **Coverage where at least 70% of the max range is obtained
Additional parameters
| Category: | Goggle Antennas |
|---|---|
| Weight: | 0.03 kg |
| Length: | 32mm |
| Frequency: | 5.8GHz |
| Polarization: | RHCP |
| Connector Type: | SMA |
| The item has been sold out… | |
