VTX Pilotix R3000 5.8G 3.0W

Product detailed description

VTX Pilotix R3000 (5.8G 3.0W)

Specifications:

48CH 5.8G frequency range: (A.B.E.F.R.L; 5362MHz-5045MHz)
Max power: 3W
Input voltage: DC 6V-28V
Antenna connector: MMCX
Heat-dissipating method: aluminum alloy heat sink&fan
Hole spacing: 20mm*20mm
Dimension: 40.8mm*24.8mm*13.3mm
Weight: 17.8g

Operating Instructions:

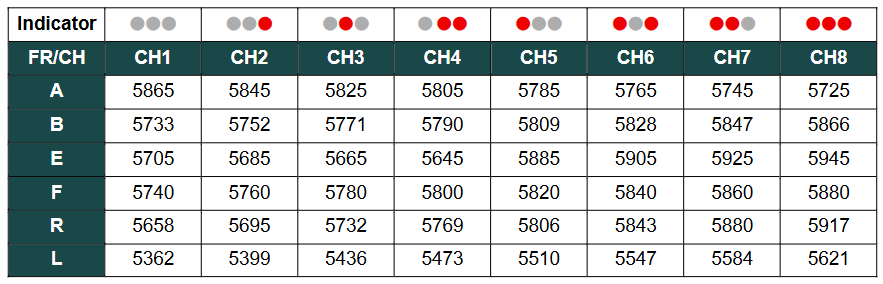

Frequency Switching: Single click to switch. (Blue light indicates the current frequency for CH1/CH2/CH3).
Frequency Group Switching: Press and hold for 2 seconds to enter the switching mode, then single click to switch. (The red light's blinking indicates the current frequency group).
Frequency Groups: A/B/E/F/R/L
Power Switching: Press and hold for 6 seconds to enter the switching mode, then single click to switch. (The green light's blinking indicates the current power level).
Power Levels: 25mW/1.6W/2.0W/2.5W/MAX(3W) (After setting, it will automatically save and exit after 8 seconds of inactivity).



Package includes:
1x VTX Pilotix (5.8G 3.0W)
