VTX Pilotix R2500 V1.0 4.9-5.8G 2.5W

Product detailed description

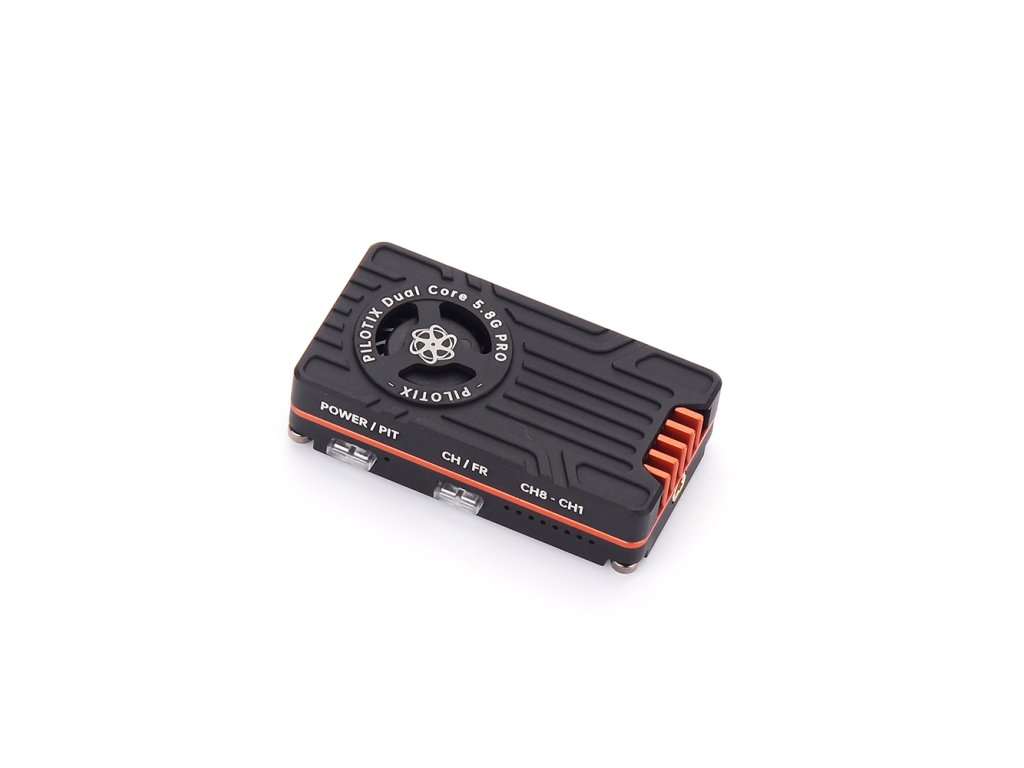

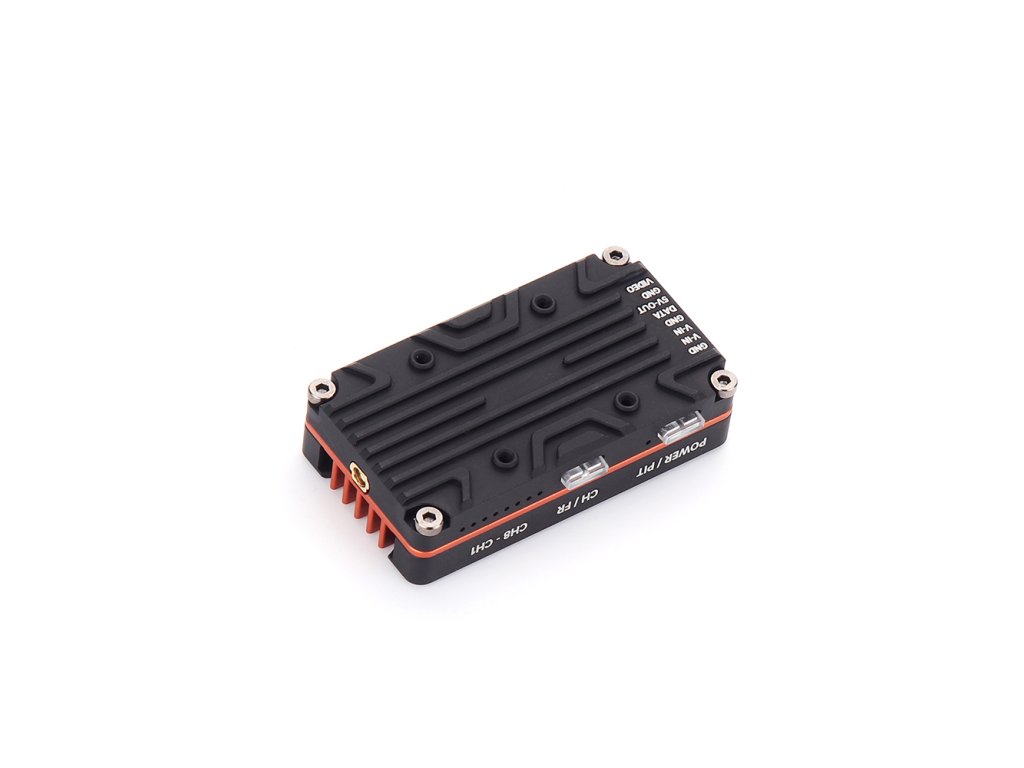

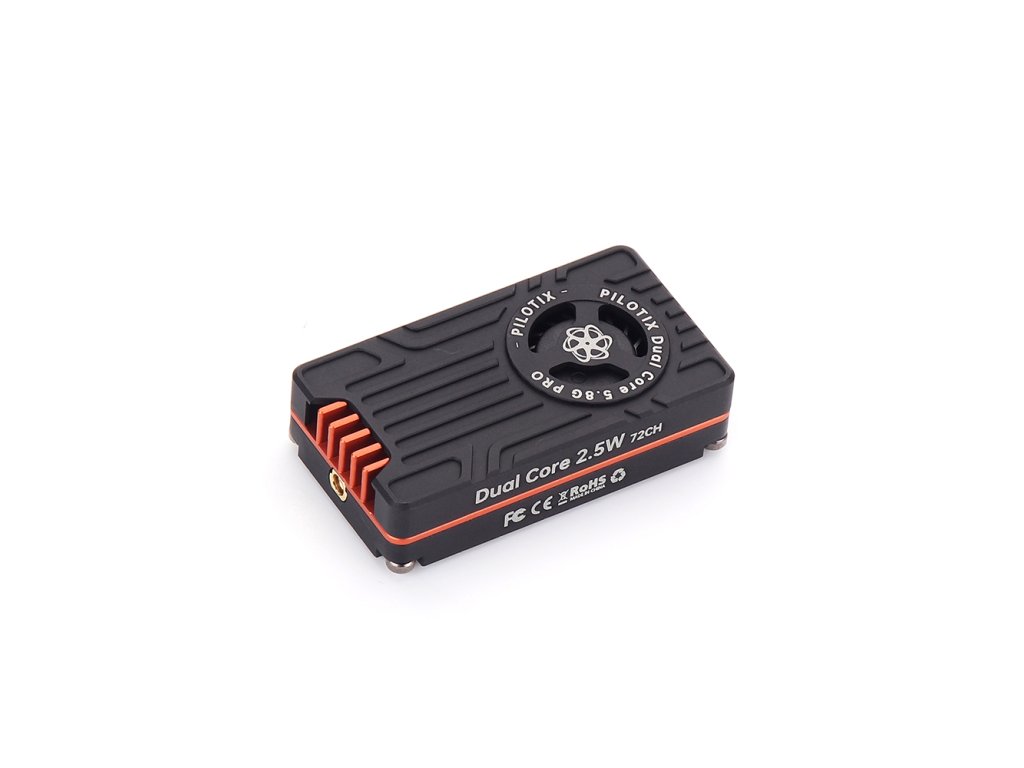

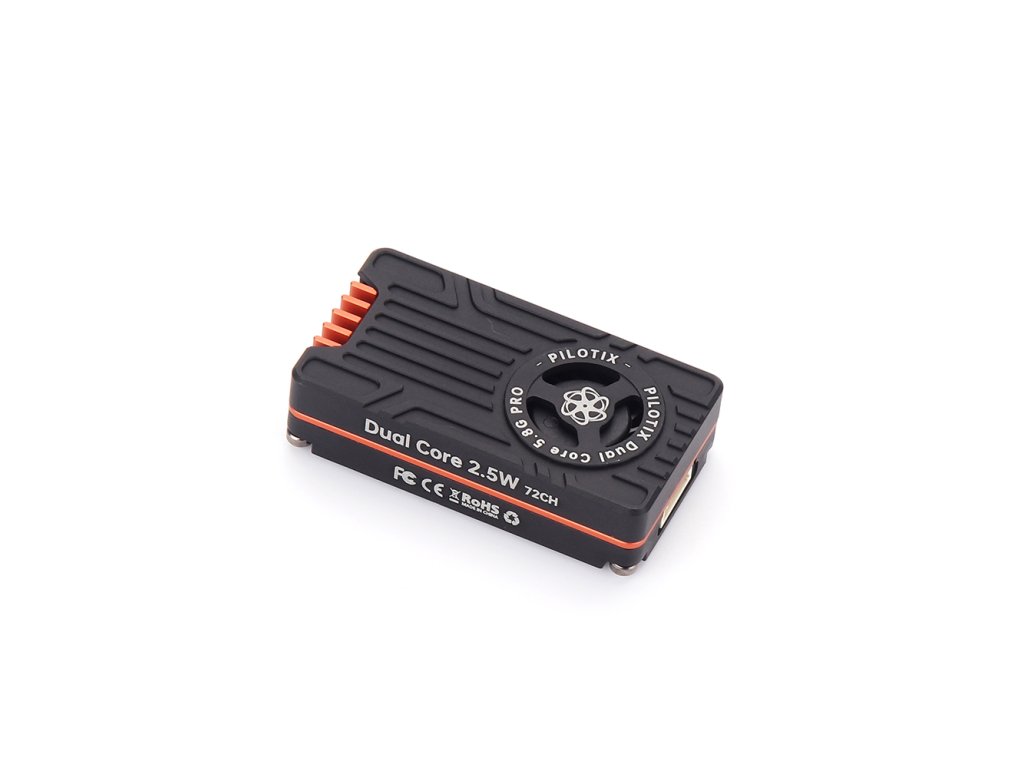

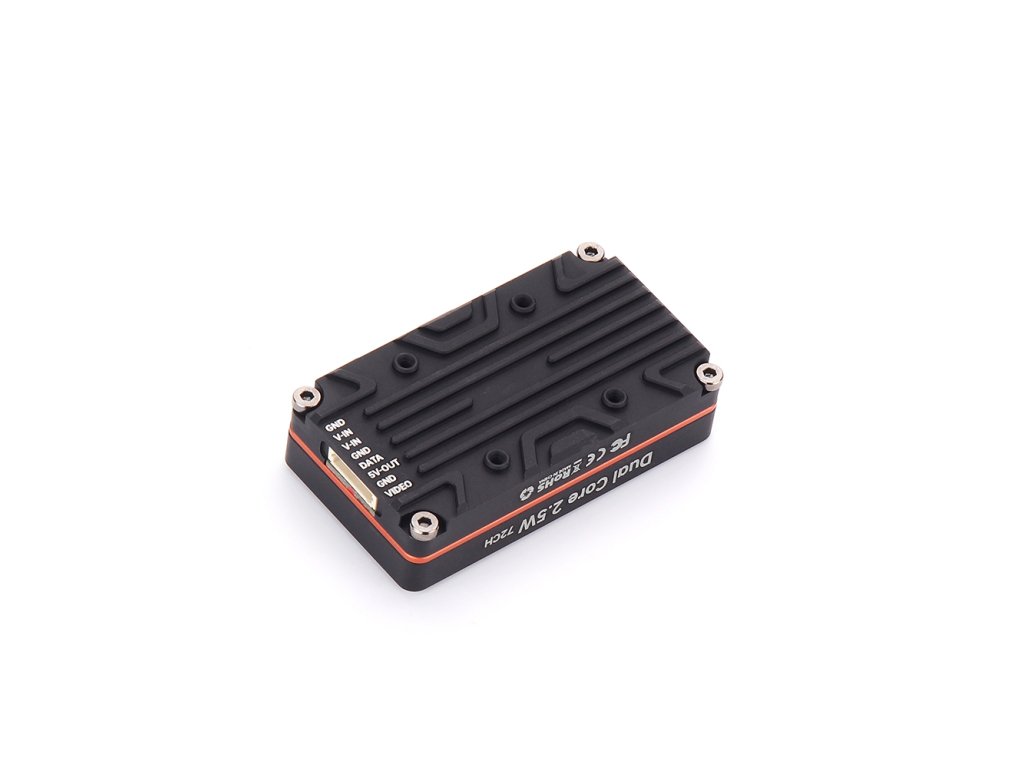

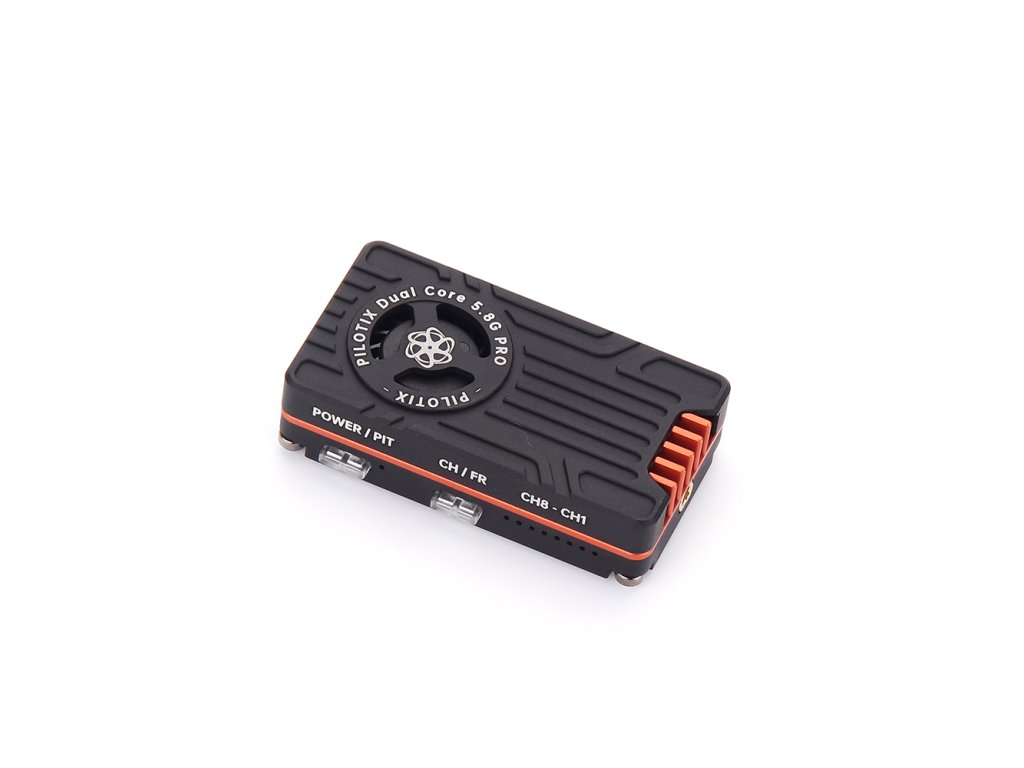

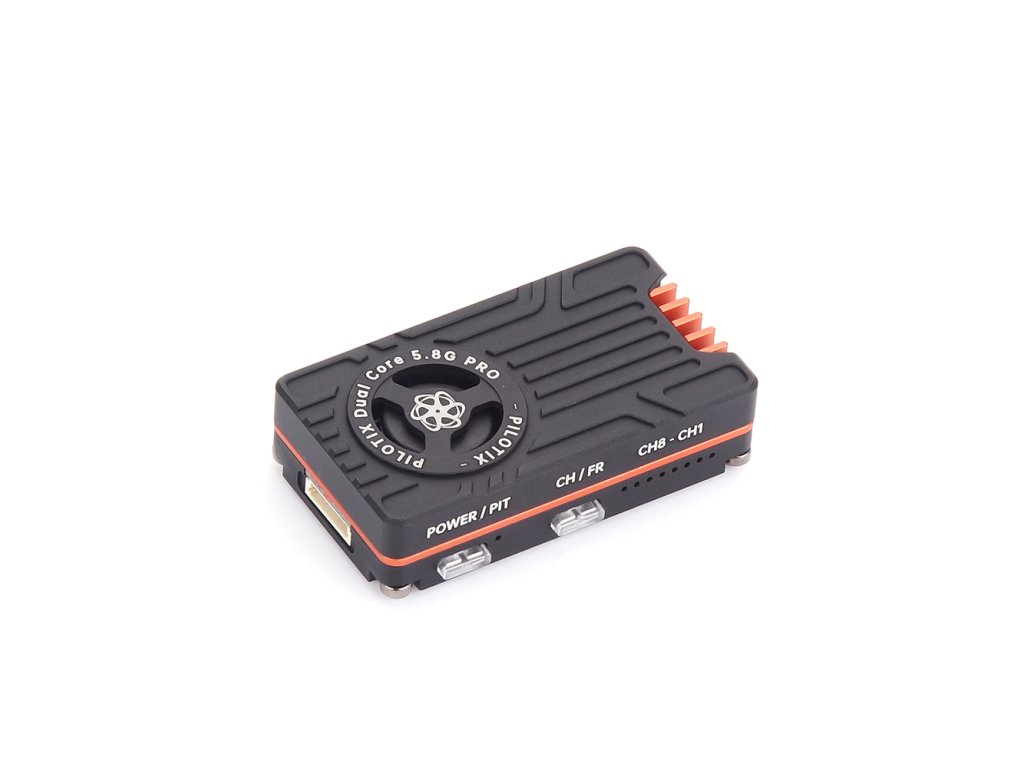

VTX Pilotix R2500 V1.0 (5.8G 2.5W)

The Pilotix R2500 V1.0 is a high-powered video transmitter designed for FPV drones. Operating at 4.9-5.8G with an output power of 2.5W, it provides strong and stable video transmission, making it ideal for long-range flights and demanding environments. Its compact and lightweight design ensures easy installation and compatibility with a wide range of drone setups, offering reliable performance for professional pilots.

Specifications:

Model: Pilotix R2500 V1.0 (5.8G 2.5W)
Working Voltage: DC7-36V
Working Current:
- 680mA (12V/1000mW)
- 1400mA (12V/2500mW)
Operating temperature: -10~60°C
RF Impedance: 50Ω
Video Input Impedance: 75Ω
Antenna interface: MMCX
Input video amplitude: CVBS 0.8-1.2VP-P
Video format: NTSC/PAL
Protocol: IRC
Number of Channels: 72CH (A-B-E-F-R-L-O-U-H-X)
Output Power: PIT-25mW-1000mW-2000mW-2500mW
Size: 53x29.4x14.4mm
Mounting hole: 20x20mm - M2
Weight: 30g

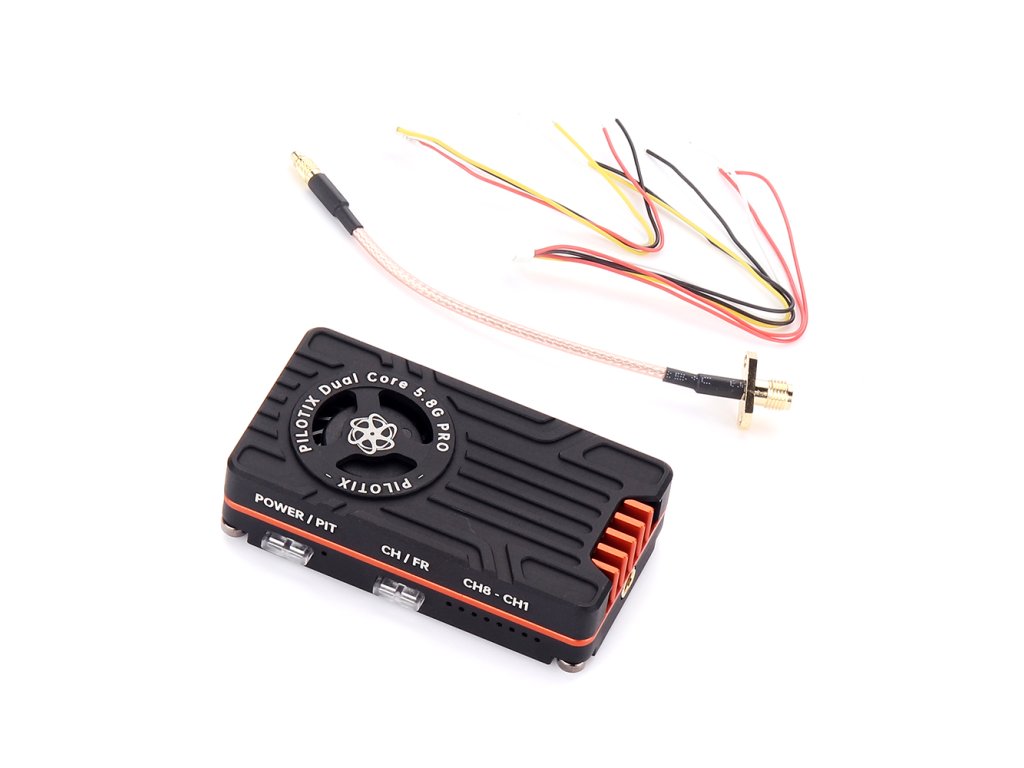

Package includes:
1x VTX Pilotix R2500 V1.0 (5.8G 2.5W)
