    VTX Pilotix R2500 5.8G 2.5W

    Code: 4138
    EU Brand
    Not rated
    14466 vtx pilotix r2500 5 8g 2 5w
    77,40 € 64 € excl. VAT
    In stock (>20 pcs)
    Delivery to:
    09/12/2025

    Detailed information

    Product detailed description



    VTX Pilotix R2500 (5.8G 2.5W)

Specifications:

InputVoltage: DC7-36V(2-8S)
Power Consumption: 120-860mA(12V/25mW-2500mW)
Operating temperature: -10~60°C
Impedance: 75Ω
Dimensions: 39.2x29x12mm
Connector: MMCX
Format: NTSC/PAL

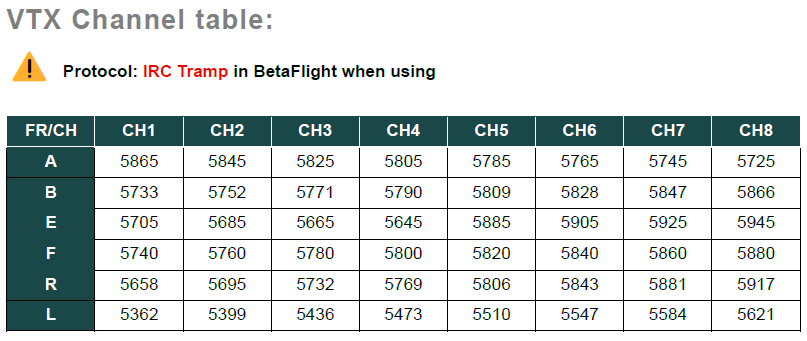

Protocol: IRCTramp
Weight: 16.5g
Mounting: 25.5*25.5mm/@M2
Power Output: PIT/25mW/400mW/800w/1600mW/2500mW
Built-in microphone


Package includes:
1x VTX Pilotix R2500 (5.8G 2.5W)

    Additional parameters

    Category: VTX
    Weight: 0.03 kg
    Frequency: 5.8GHz
    Video Protocol: Analog
    Power (W): 2.5W
