VTX HGLRC Zeus Nano 350mW

Product detailed description

VTX HGLRC Zeus Nano 350mW

The HGLRC Zeus Nano 350mW VTX is a compact and lightweight video transmitter designed for FPV drones, offering flexible power output and reliable signal transmission. CE certified and equipped with a built-in microphone, it supports a wide range of applications from casual flying to competitive FPV racing. Its small size, low weight, and multiple mounting hole options make it easy to integrate into micro quads, toothpick drones, or other compact builds.

Features:
- Compact and lightweight design for easy integration in small FPV drones.
- Adjustable output power: PIT/25/100/200/350mW for flexible range control.

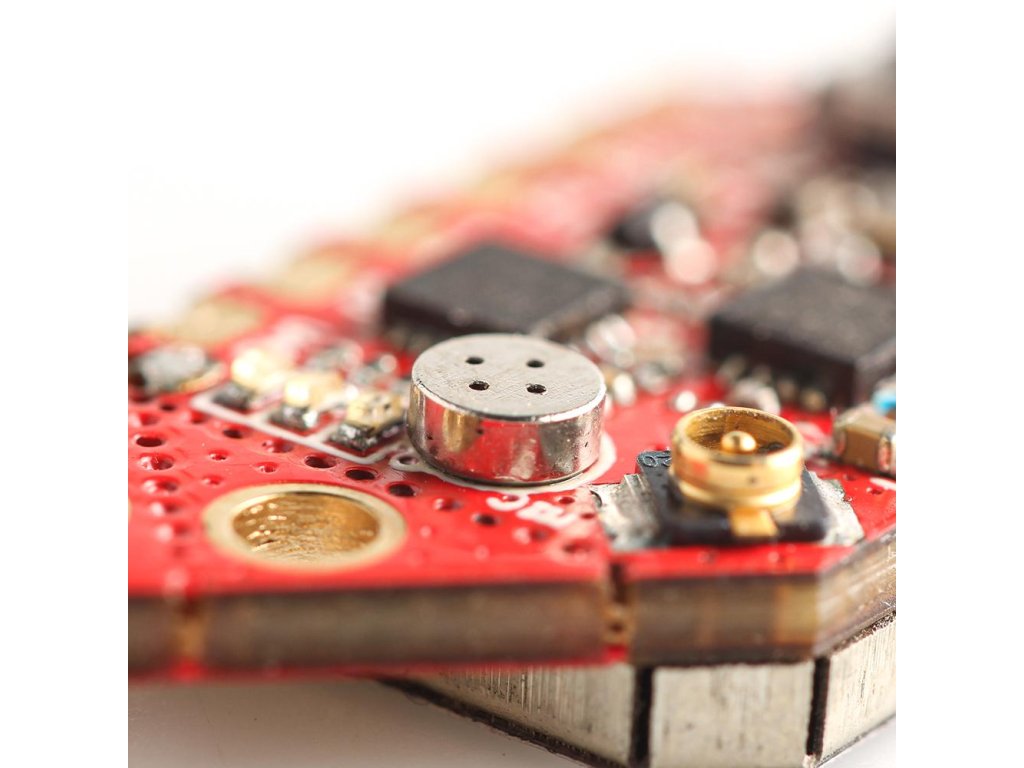

- Built-in microphone captures in-flight audio.
- Standard 40 FPV channels across A/B/E/F/R frequency groups.
- CE certified for safety and quality assurance.

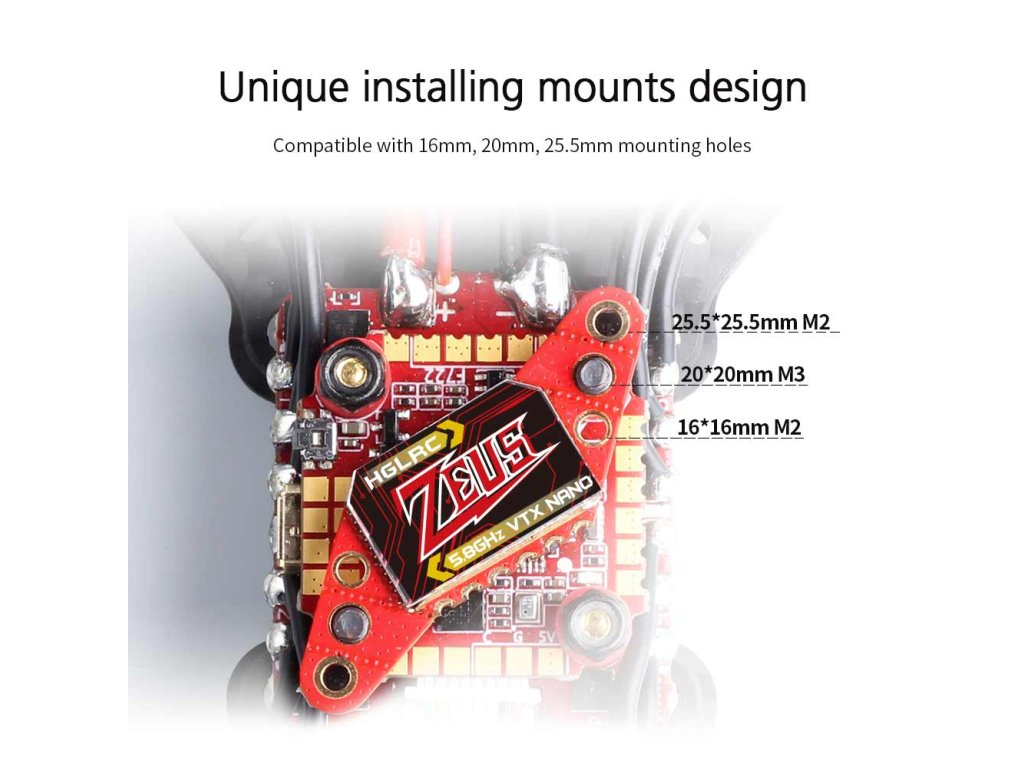

- Multiple mounting hole options (16x16, 20x20, 25.5x25.5 mm) for versatile installation.
- IPEX antenna interface with included linear antenna and SMA adapter for convenient connection.

Specification:
Model: Zeus Nano VTX
Input Voltage: DC 5V
Output Power & Current:
PIT: 75mA
25mW: 180mA / 16dBm
100mW: 280mA / 21.5dBm
200mW: 330mA / 24.5dBm
350mW: 400mA / 27.5dBm
Antenna Interface: IPEX
Channels: 40 (A/B/E/F/R groups)
Mounting Holes: 16x16mm / 25.5x25.5mm (M2), 20x20mm (M3)
Dimensions: 18.6x13.6x6mm

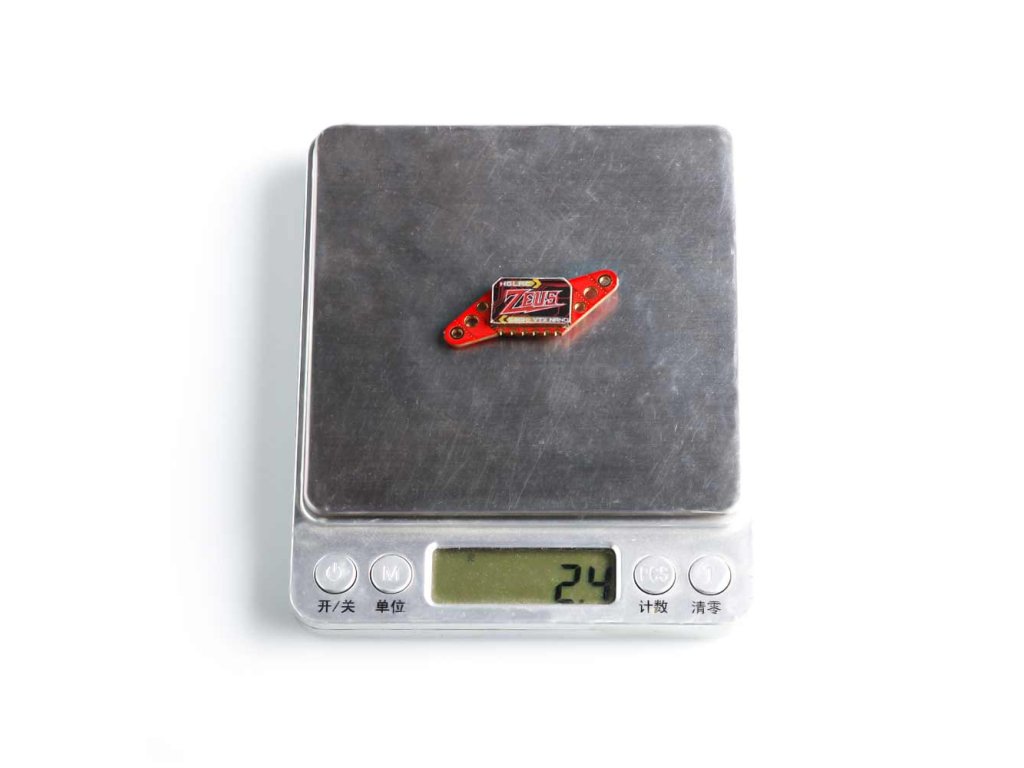

Weight: 2.4 g

Package includes:
1x Zeus Nano VTX
1x IPEX Linear Brass Antenna
1x IPEX to SMA Adapter Cable
6x VTX Cables
