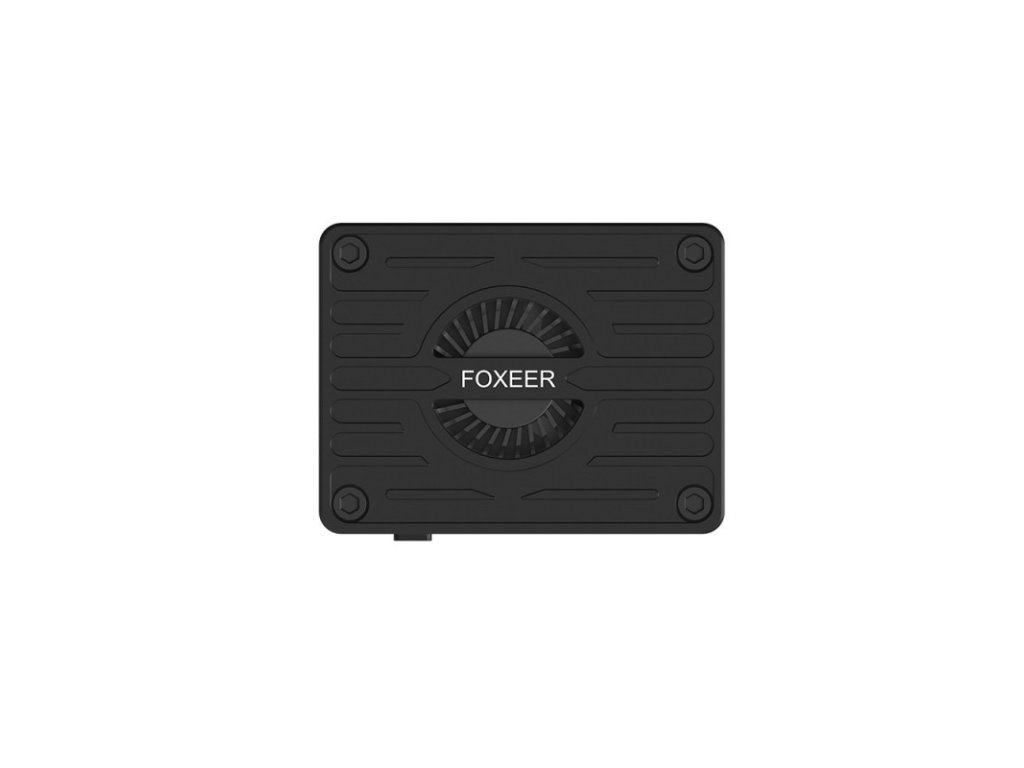

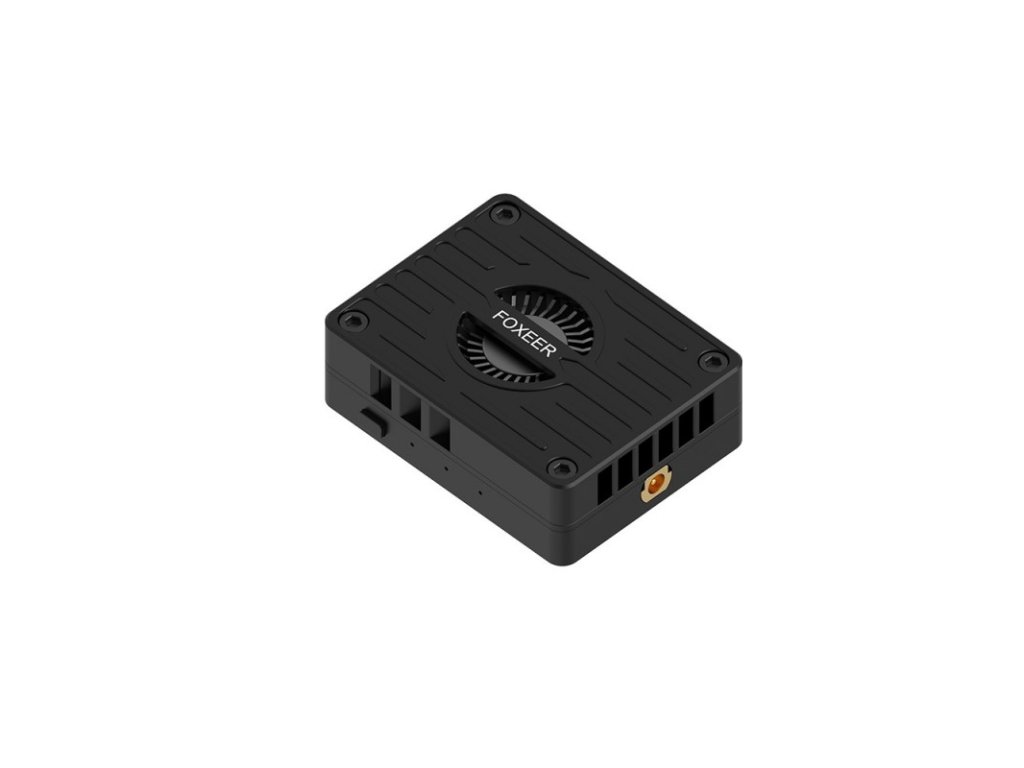

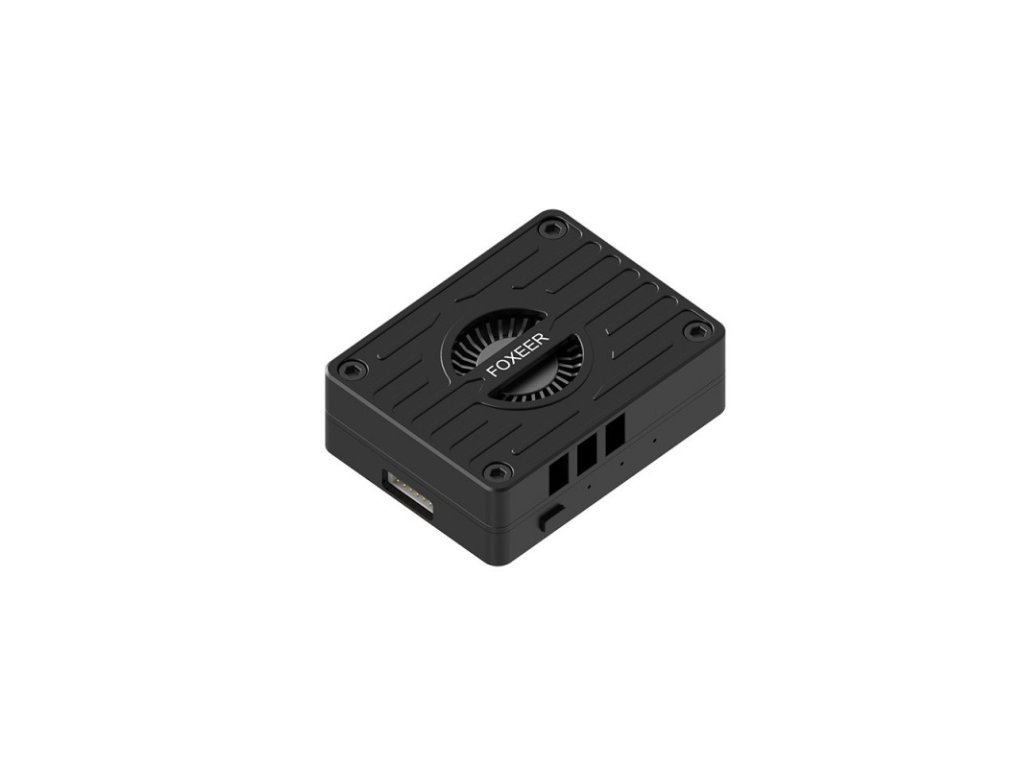

VTX Foxeer Reaper Extreme 4.9-6G 3W 80CH

Product detailed description

VTX Foxeer Reaper Extreme 4.9-6G 3W 80CH

The VTX Foxeer Reaper Extreme 4.9-6G 3W 80CH is a high-performance video transmitter designed for FPV drones. With a power output of 3W, this VTX provides an exceptionally strong and clear video signal, making it ideal for long-range and high-interference environments. It supports 80 channels, ensuring broad compatibility and flexibility in channel selection.

Features:

- 3W high power
- Build-in mic
- CNC heat dissipation shell
- Great filtering circuit, strong anti-interference ability

Specifications:

Name: Reaper Extreme 3W V2
Input Voltage: 9~36V
Output Voltage: 5V

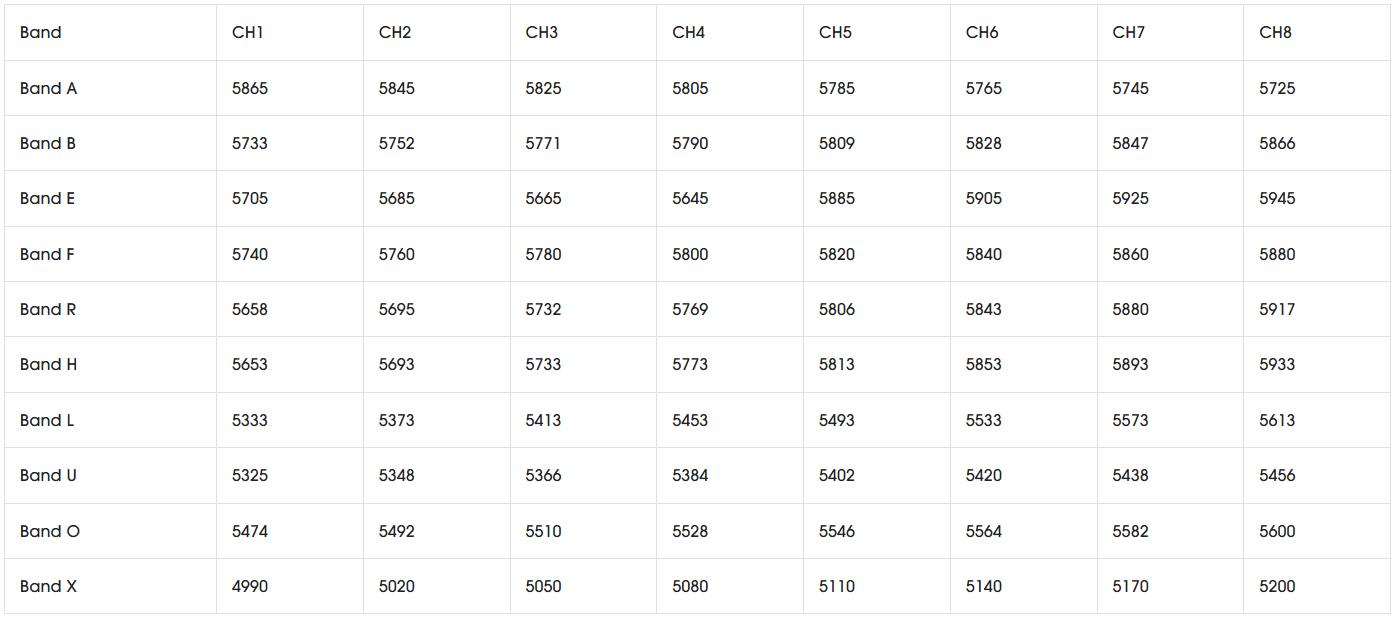

Channels: 80CH
Power: 25mW/200mW/500mW/1.5W/3W
Pit: Double click to enter
Fan: Yes
Weight: 15.2g
Size: 38x29.2x11.5mm
Consumption: 1.4A/10V

PIT On/Off:

Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off, PIT mode on; Red LED (PWR) on, PIT mode off.

Note:
If tramp cable is connected, the button will not work, can not adjust frequency and power, controller will take over.

BetaFlight only can accept 64 channels at most, so you need to remove 2 bands before input to BetaFlight.

Package Includes:
1x VTX Reaper Extreme 3W
1x Silicon cable
