AIO FC BETAFPV F405 2-4S Toothpick 20A BLHELI_32 V4-BMI270

Product detailed description

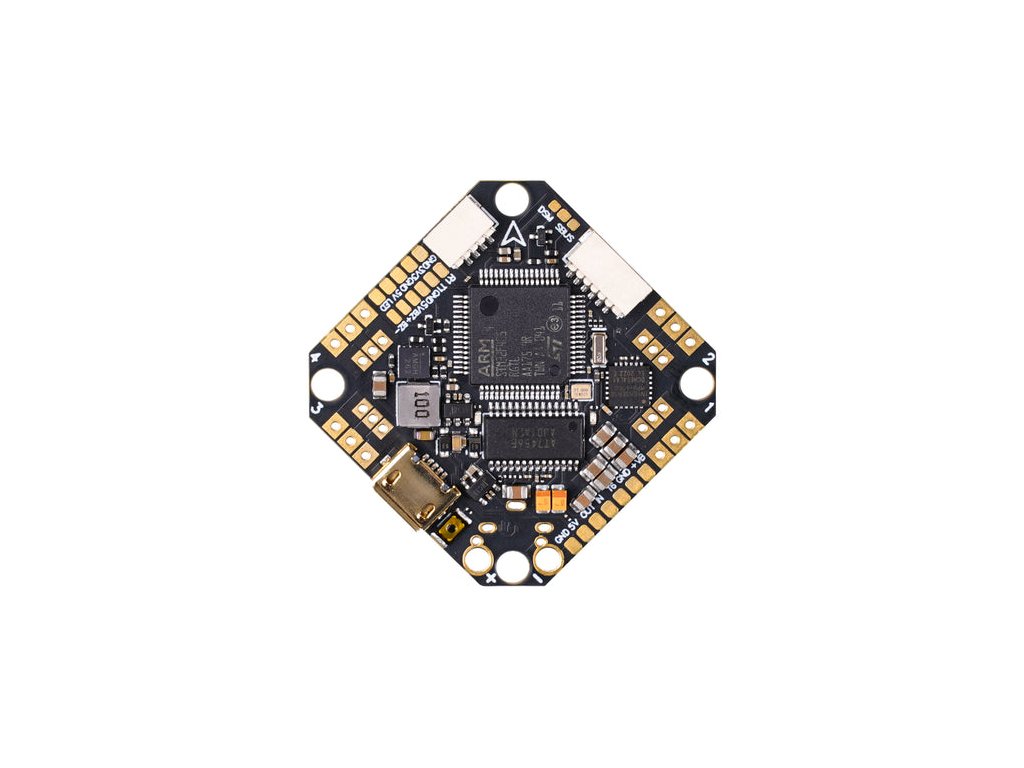

Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4-BMI270

Compared with the V3 version, the new FC board updates the F411 chip to F405. It can handle 20A of continuous current and up to 4S. The toothpick F405 2-4S AIO brushless flight controller also has BMI270 gyro. Suitable with Beta95X V3 and Beta95X V3 HD Digital VTX.

Specifications of FC:
CPU: STM32F405RGT6
Six-Axis: BMI270
Size: 26x26mm, whoop mounting pattern
Firmware version: Batefight-BETAFPV405-4.2.X
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
Connecter: XT30, it also can be changed to XT60 if pilots need it.
Weight: 5.76g

Specifications of ESC:
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-4S Lipo
Continuous current: 20A
Peak current: 22A
Firmware: BLHELI-32
