Frame iFlight Taurus X8 Pro O3

Product detailed description

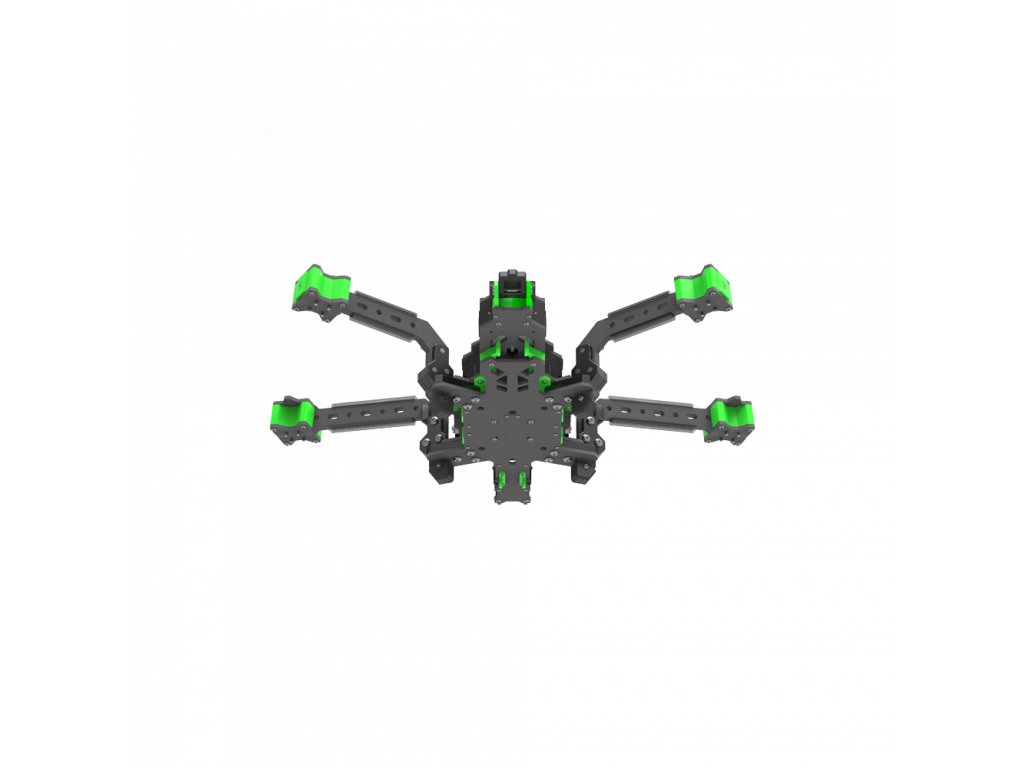

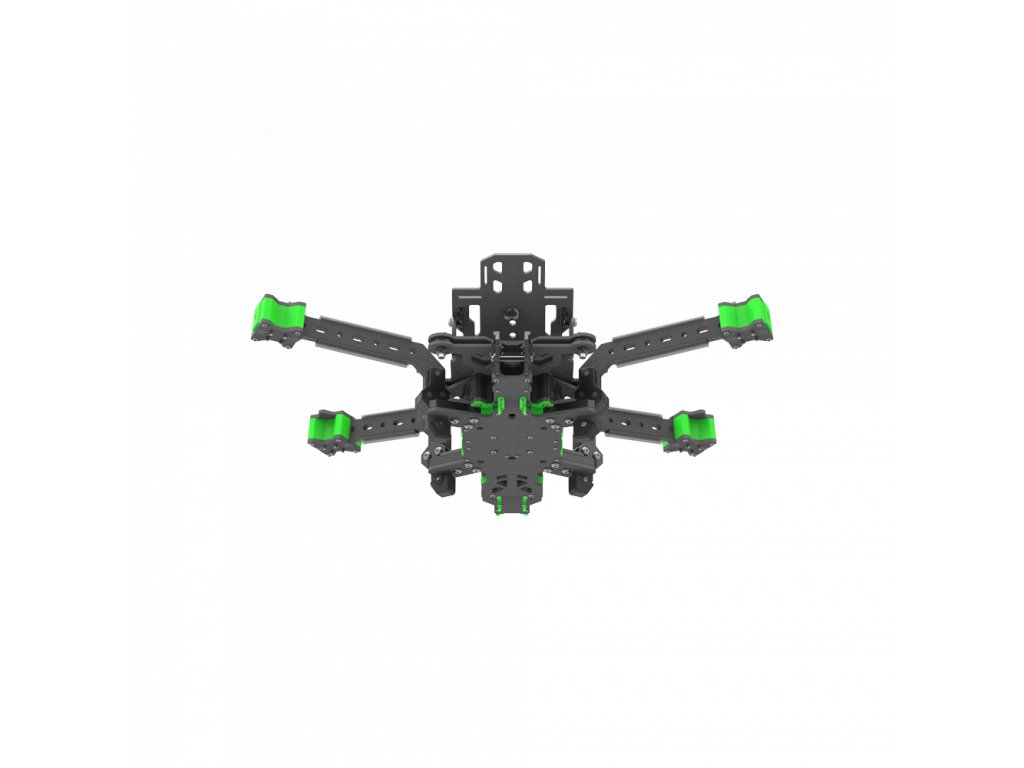

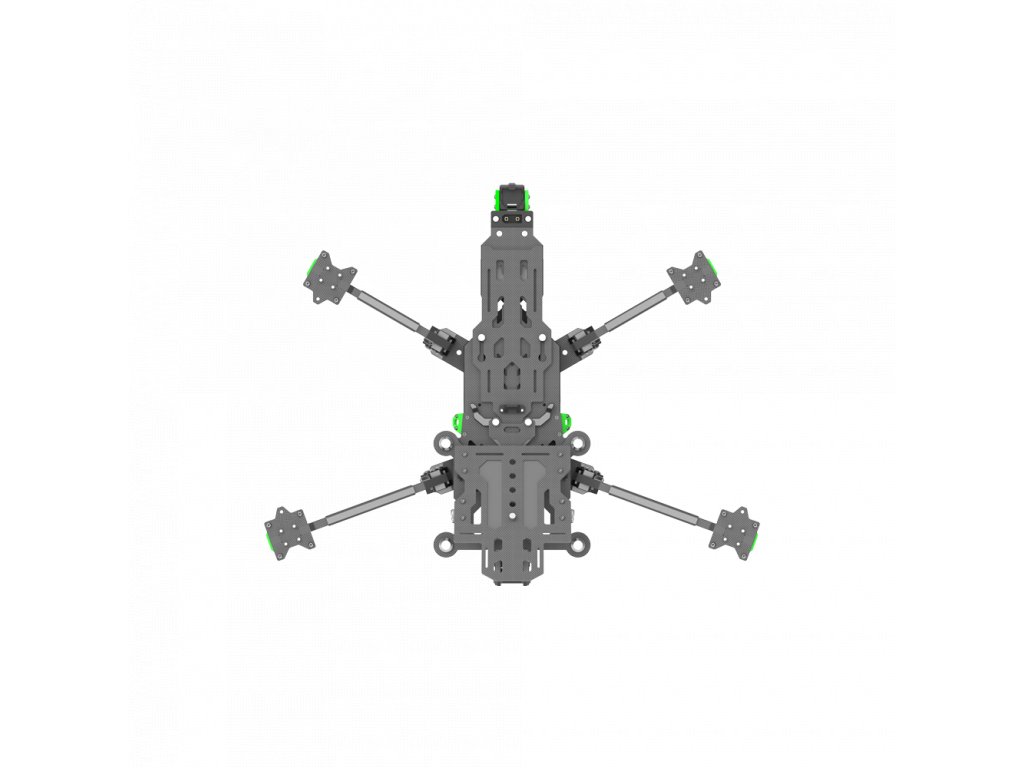

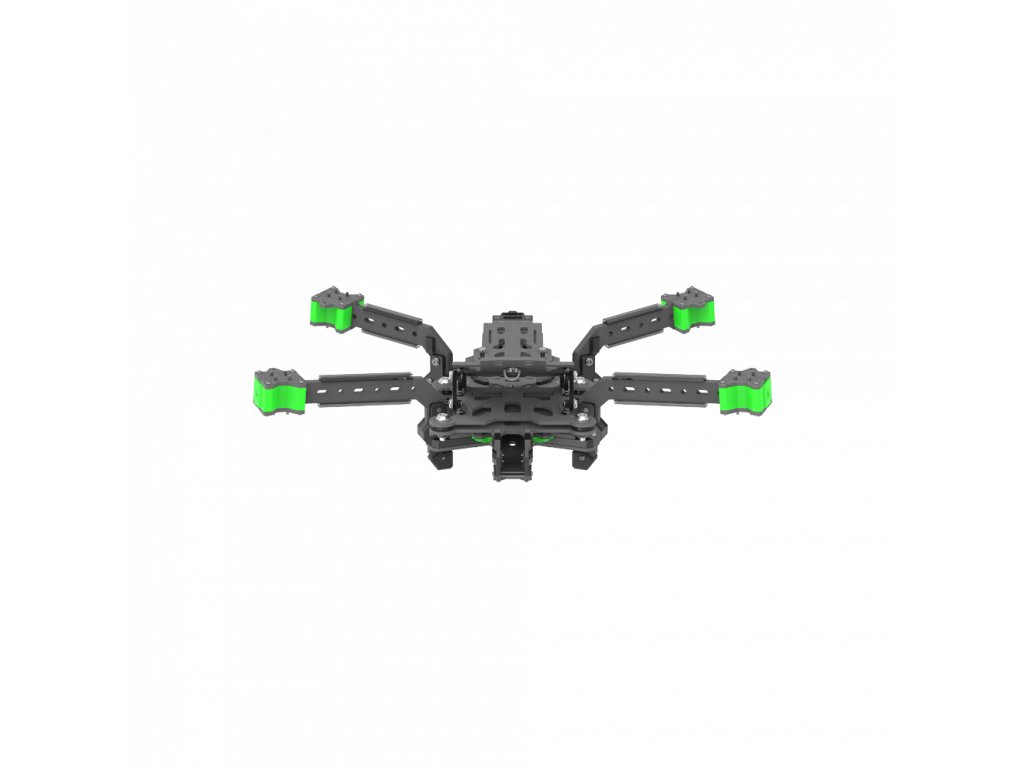

Taurus X8 Pro O3 Frame Kit

Features
- Optimized CG through the adjustable camera and battery mount
- Stable silicon-ball decoupled camera CNC mount
- Redundant ESC and motor configuration
- 2kg max payload for various cinema and DSLR cameras

Changelog
March 25, 2023: This Frame kit is compatible with the DJI O3 air unit.

Specifications
Product Name: Taurus X8 Pro HD Cinelifter Frame
Wheelbase: 450mm
Frame Dimension: 428*249 (body dimension)
Arm Thickness: 8mm
Bottom Plate Thickness: 3.5mm
Top Plate Thickness: 3mm
Upper Plate Thickness: 3mm
Camera Plate Thickness: 3mm
Motor Mounting: 19x19mm
VTX Mounting: 30.5*30.5mm/35*35mm
Weight: 1400grams (Included no TPU Parts)

Packing included
1 x Taurus V8 Pro HD Cinelifter Frame
2 x 20x400mm battery strap (Color May Vary)
2 x 20x410mm battery strap (Color May Vary)
2 x 20x500mm battery strap (Color May Vary)
1 x Taurus X8 Hardware Accessories Kit
1 x CNC Aluminum Alloy Cam Mount
1 x DJI Air unit mount TPU
1 x 3d Printed Parts Kit
2 x Battery Anti-slip pads
