FC iFlight SucceX-E Mini F722 V1.4 2-6S

Product detailed description

SucceX-E Mini F722 V1.4 2-6S Flight Controller

Features:

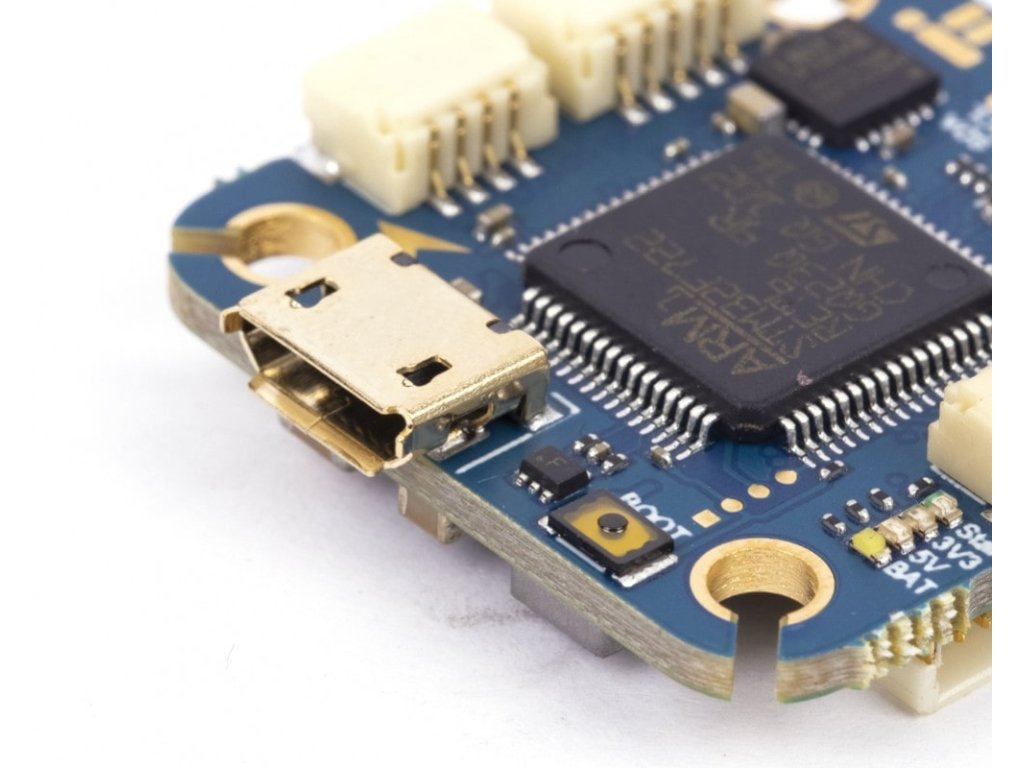

- Gold-plated plug
- BlackBox: 16MB
- Vista HD Plug-and-Play. No need to solder tiny wires.
- BAT, +5V, 3.3, Start indicator
- Smartaudio & IRC Tramp VTX protocol supported

Specifications:

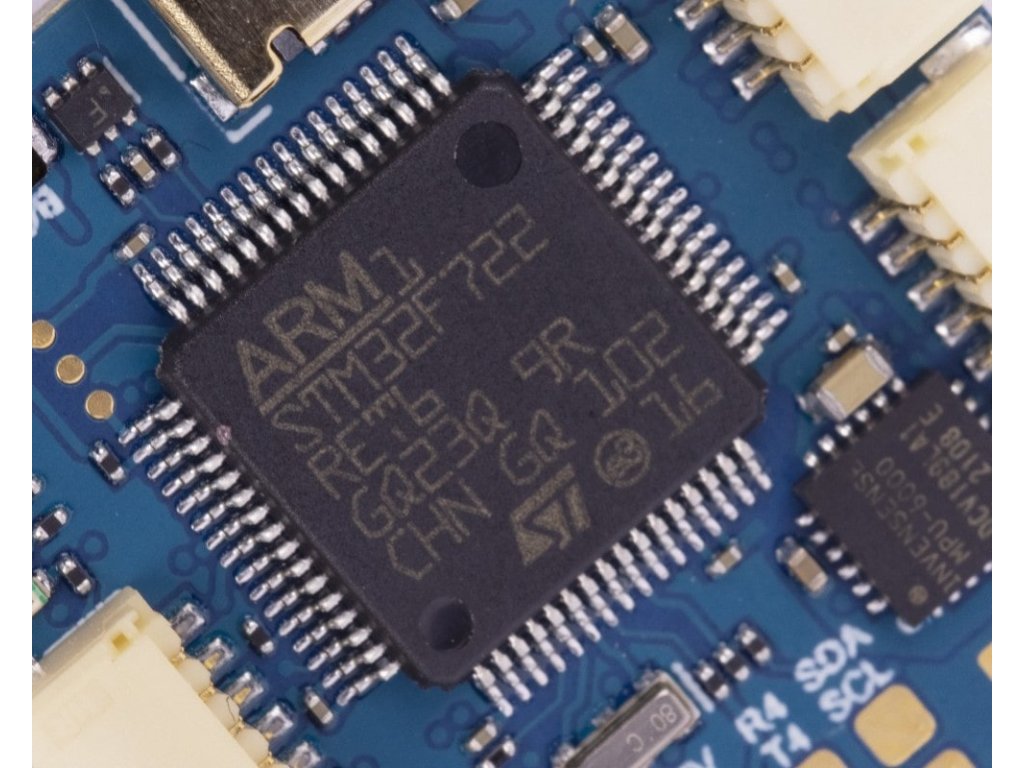

MCU: STM32F22RET6 216 MHz
Gyro: MPU6000
Baro: NO

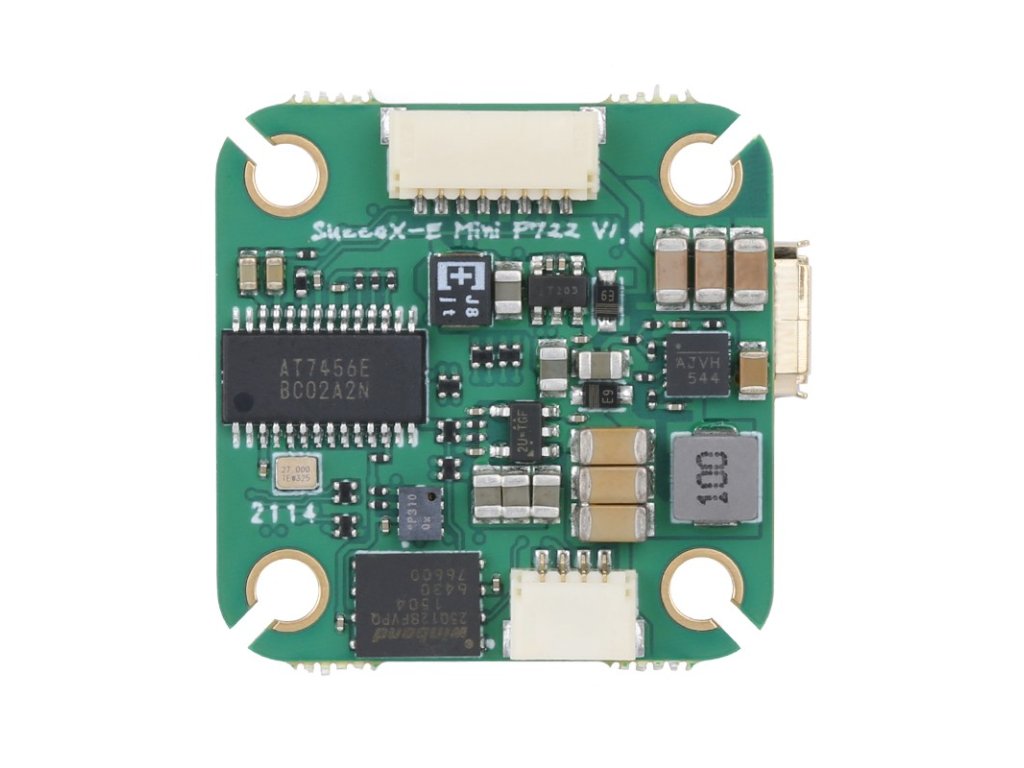

OSD: IFLIGHT OSD (AT7456E)
BEC: 5V 2.5A
BlackBox: 16MB
Uart:4*UART(UART1, UART2, UART4, UART5)
UART1 for VTX HD/Analog Telemetry
UART2 for Receiver
UART4 for GPS
UART4 for GPS or other sensors that require a serial port
UART5 for ESC Telemetry
4×Dshot/PWM outputs
1×12C

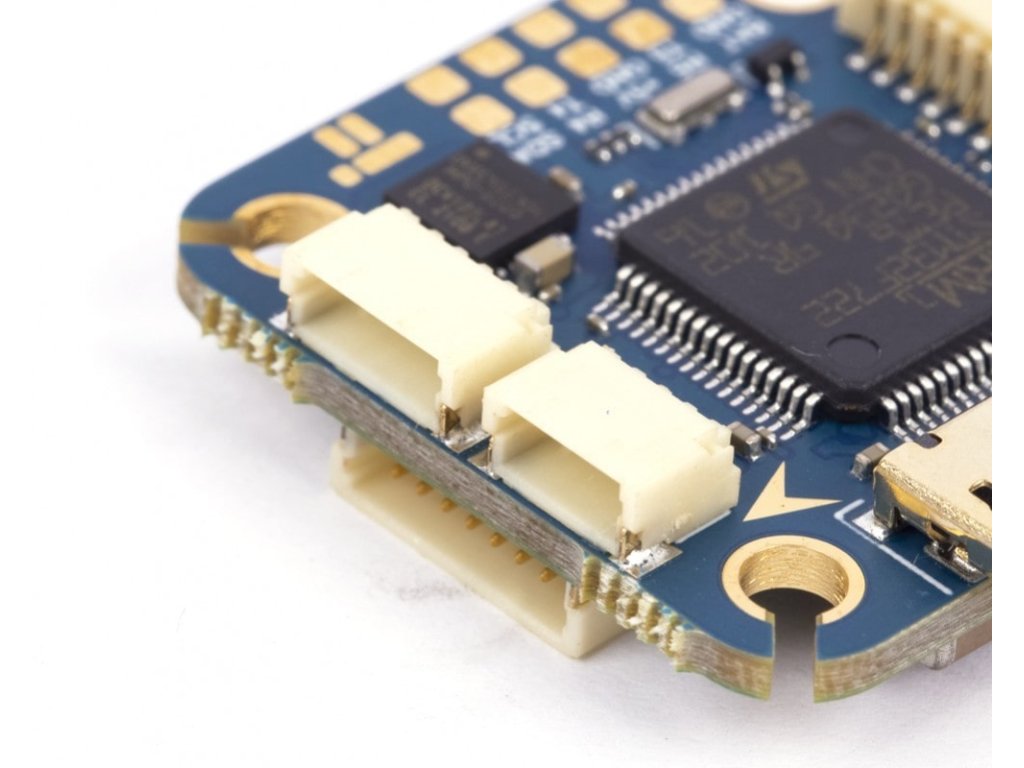

1×SH1.0 8pin connector for ESC (GND/BAT/M1/M2/M3/M4/CUR/R5)
1 x SH1.0 8pin connector for Any Receiver or VISTA (5V/T2/R2/GND/R1/T1/GND/BAT)
1 x SH1.0 4pin connector for VTX（5V/VBAT/GND/VTX/T1)
1 x SH1.0 4pin connector for Camera(5V/GND/CAM/CC)
1 x SH1.0 4pin connector for LED&Buzzer(GND/BZ-/LED/5V)

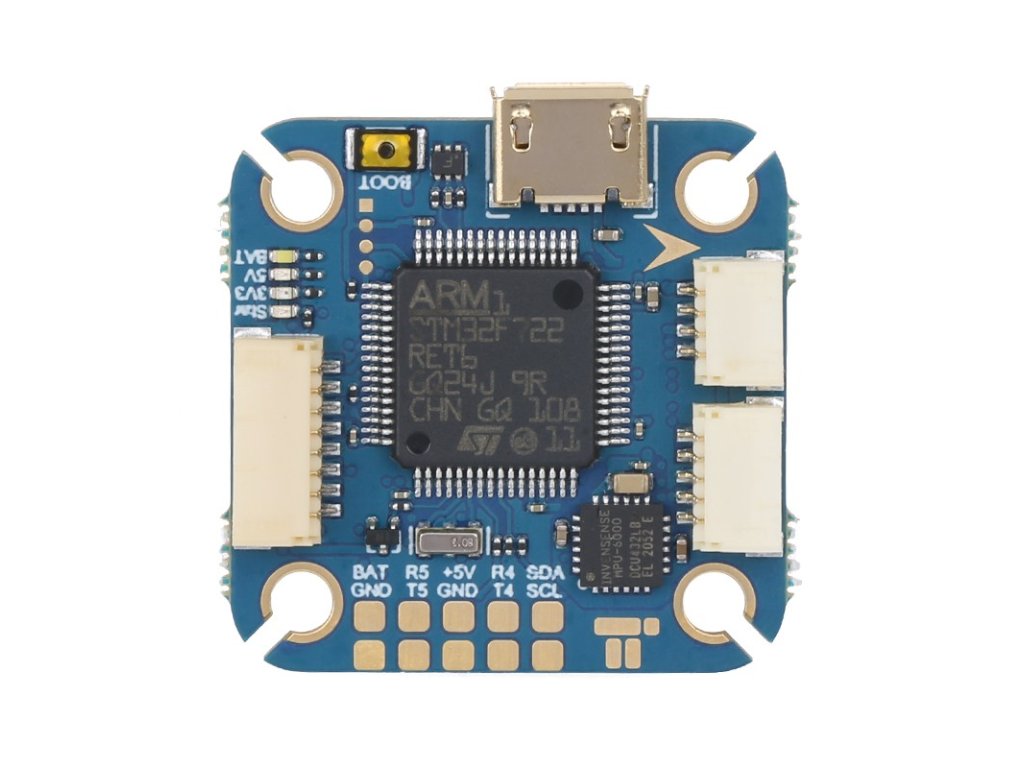

4×0201 LEDs for FC STATUS (Blue, Red, Orange ) and 3.3V indicator(Red) BAT/+5V/3.3V/start
WS2812 led Strip: Yes
Smartaudio & IRC Tramp VTX protocol supported
Beeper: Yes
Firmware: IFLIGHT_SUCCEX_E_F7 4.2.9

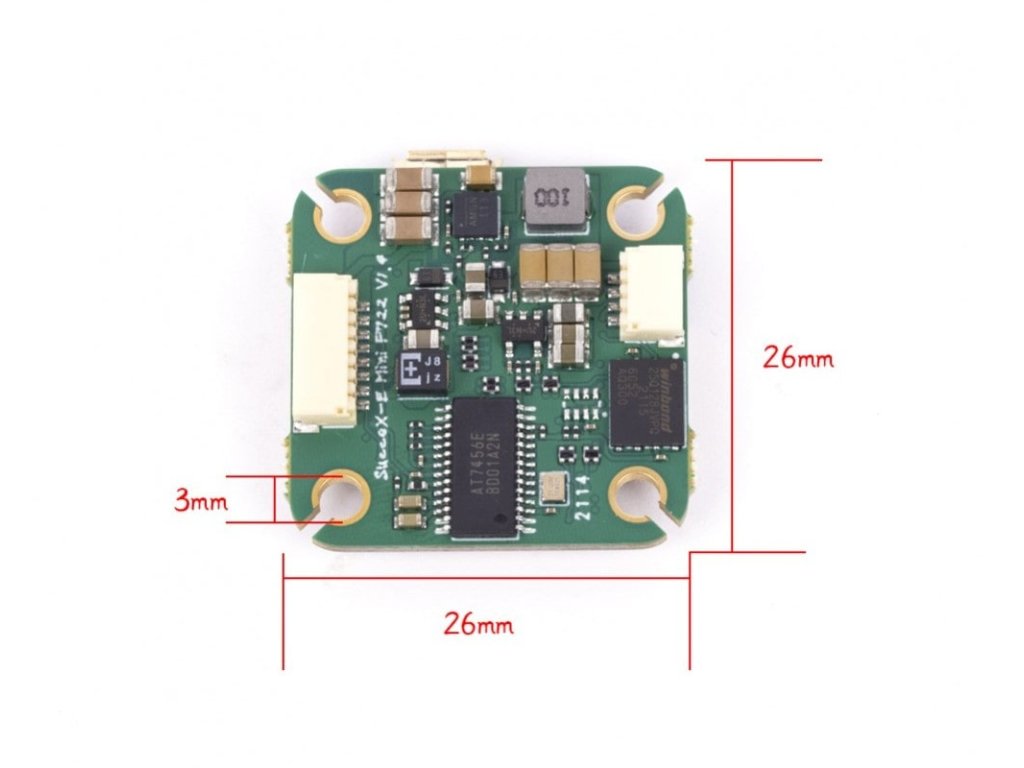

Outer Size: 27*27mm / 20*20mm φ3 mounting
Weight: 6.0g

Package Includes:
1x SucceX-E mini F7 V1.4 flight controller
1x Set x wire harness
