Stack TBS Lucid H7 8S 60A

Product detailed description

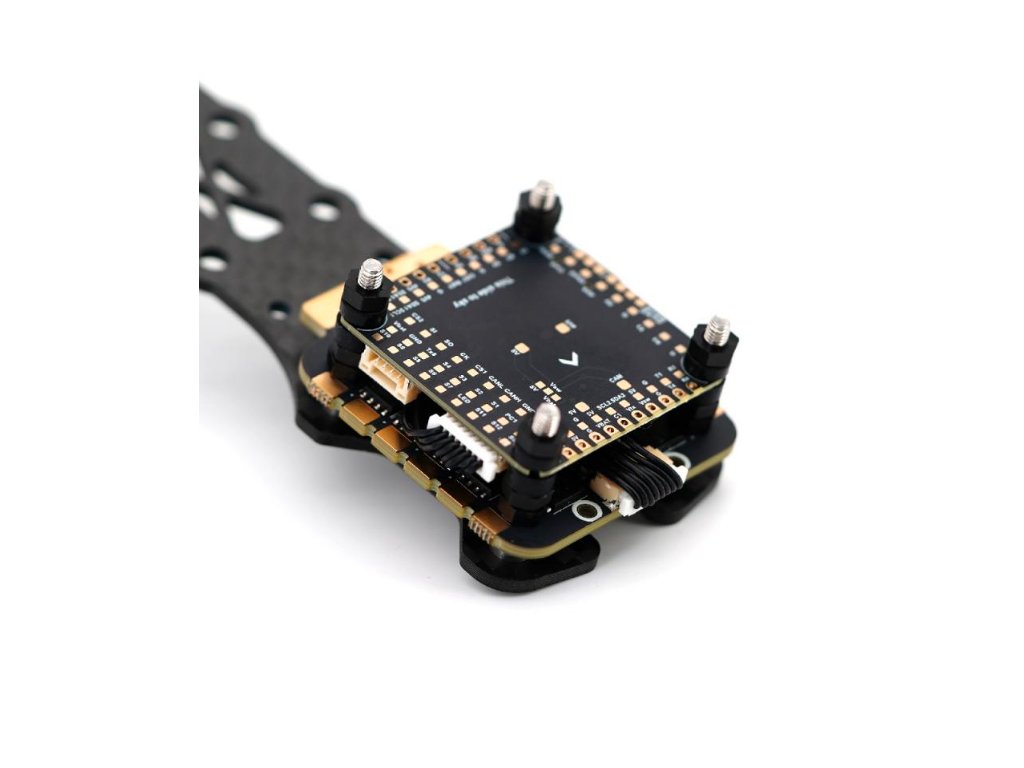

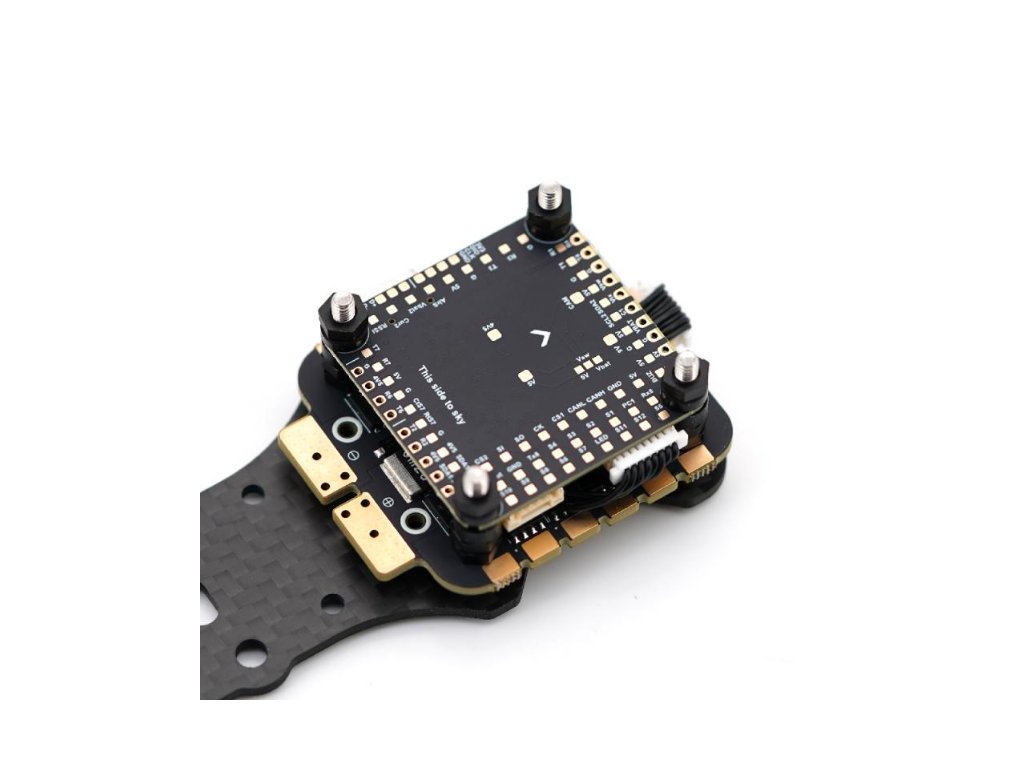

Stack TBS Lucid H7 8S 60A

The TBS Lucid H7 Stack 8S 60A is a powerful 4-in-1 stack combining an ultra-fast H7 flight controller with a high-current 8S-compatible ESC — ideal for high-voltage FPV builds, freestyle and cinematic drones.

Features:
- High-performance flight control with dual ICM42688 gyro sensors for precise stabilization.
- Integrated SPI OSD and barometer for clean telemetry and altitude awareness.
- Full-stack compatibility with modern firmware (AM32 for ESC, ArduPilot, Betaflight, INAV for FC).
- Gorilla-mount design keeps electronics secure and airflow optimized without center screw interference

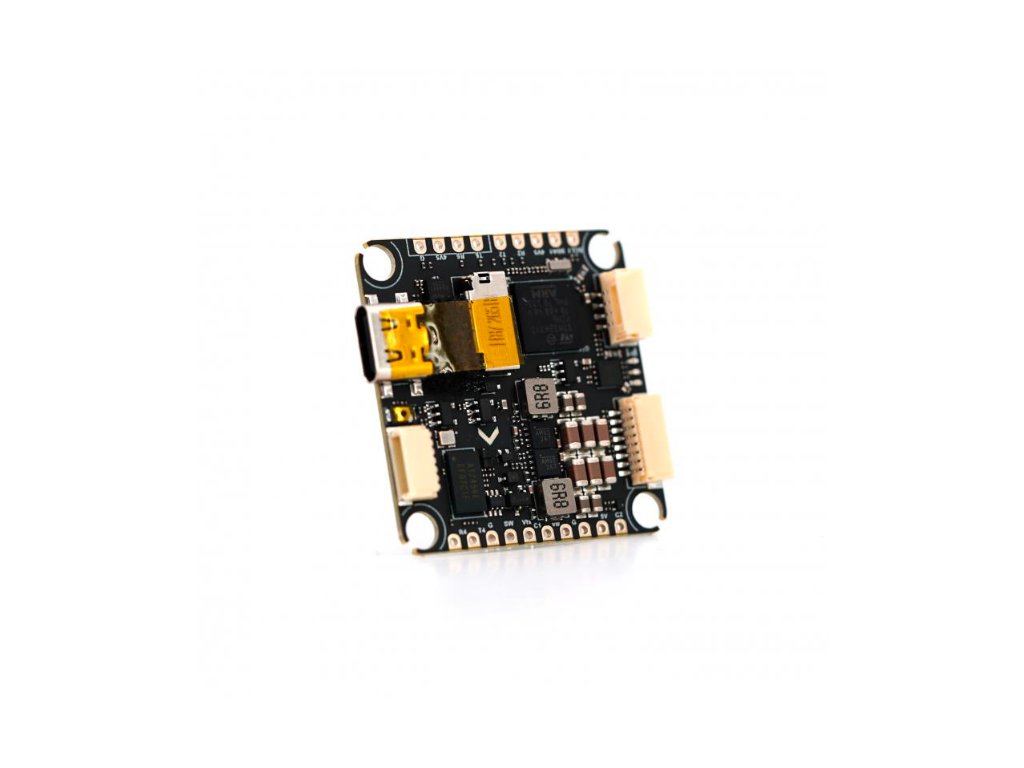

FC Specifications:
MCU: STM32H743VIH6 running at 480MHz, with 1MB RAM and 2MB Flash.
Gyro: ICM42688 x 2 (duo gyro)
OSD Chip: AT7456E (SPI2)
Barometer: Infineon DPS310 connected via I2C2.
PWM Outputs: 13 channels, including a dedicated “LED” pad.
Blackbox (BB): Data logging equipped with a MicroSD card slot (SDIO)
UARTs: 7 total (1, 2, 3, 4, 6, 7, 8) signal inversion ready
I2C Buses: 2 available.
CAN Bus: 1 available.
Analog Inputs: 6 ADC channels (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2).
LED Indicators: 3 LEDs (Blue, Green for FC Status, Red for 3.3V Power).
Breakout: SPI3 breakout available.
USB Interface: Type-C connector (USB 2.0 standard).
JST Connectors:
1x JST-SH1.0 8-pin (Vbat/ G/ Curr/ Rx8/ S1/ S2/ S3/ S4)
1x JST-GH1.25 4-pin (5V/ CAN-H/ CAN-L/ Ground).
Dual Camera Input: Switchable inputs for two cameras.
Power Control: Switch for filtered 5V/Vbat output power.
DJI FPV OSD: Compatible via any spare UART port.

ESC Specifications:
ESC software: AlkaMotors32 (AM32)
ESC target: tbslu8s4in1
Rated current: 60A x 4, 60 seconds
Peak Current: 85A x 4, 30 seconds
Propellers: Up to 11", over 7" requires good airflow
Input: 3-8S Lipo
Protocol: Bi-directional Dshot 300/600, KISS ESC Telemetry
ESC Current port: Yes
BEC:  No
Size: 50x42mm
Mounting: Gorilla-mount (39.5x16.0mm) & 30.5x30.5 mm or brackets for 20x20 mm
Weight: 17.58g, 22g incl. brackets

Package includes:
1x FC TBS Lucid H7
1x ESC 8S 4-in-1 ESC
Mounting hardware including Gorilla brackets for frame compatibility
