Stack iFlight Borg 5S RX Stack (Borg 60RS ESC)

The iFlight Borg 5S RX Stack is a high-performance racing stack designed for ultimate control and efficiency. The flight controller features a built-in ExpressLRS 2.4GHz receiver with an integrated antenna, offering reliable low-latency signal and smooth flight response. It supports 4–8S LiPo input and includes a 12V BEC with remote switching for powering VTX modules. Paired with the Borg 60RS ESC rated at 60A continuous current, this stack ensures stable, responsive power delivery. With flexible UART configuration and support for major VTX protocols, it’s built for competitive pilots who demand lightweight performance without compromise.

FC Specifications:

Input voltage: 4-8S; Support LIHV battery
MCU: AT32F435RGT7
Gyro: ICM42688
Barometer: N/A
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 4
Motor outputs: 4
I2C serial: Not supported
VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
LED controller: Yes
Beeper pad: Yes
Firmware target: IFLIGHT_BLITZ_ATF435(Betaflight)
Mount pattern: 20*20φ4
Dimensions: 34*28.5mm±1
Weight: 6.8g±1
BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

ESC Specifications:

Product Name: Borg 60RS ESC
Input Voltage: 4-8S; Support LIHV battery
Max. Continuous Current: 60A
Max. Burst Current: 65A (10s)
MCU: STM32G071N
Driver: FD6288
Firmware: BL32 (32bit ESC)
Target: IFLIGHT_BLITZ_G3 32.9
Current Sensor: N/A
BEC: N/A
Telemetry: Supported
Bidirectional DSHOT: Supported

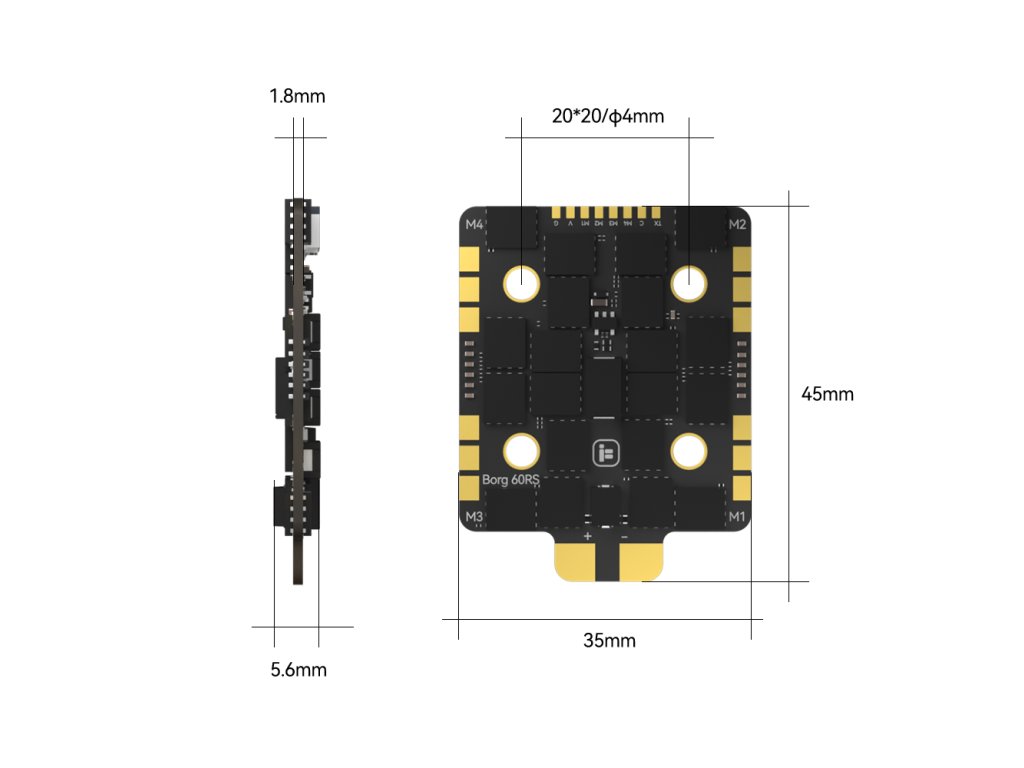

Dimensions: 45*35mm±1
Mounting Holes: 20 x20 mm/Φ4mm
Weight: 9.5g±1
Protocol: Supports DShot150/300/600, MultiShot,OneShot etc.

Package includes:

1 x Borg 60RS ESC
1 x Borg 5S RX Flight Controller
1 x Cable set
4 x Silicon grommets
