Stack FLYWOO GOKU HEX GN405 HD 20A V3 ELRS

Product detailed description

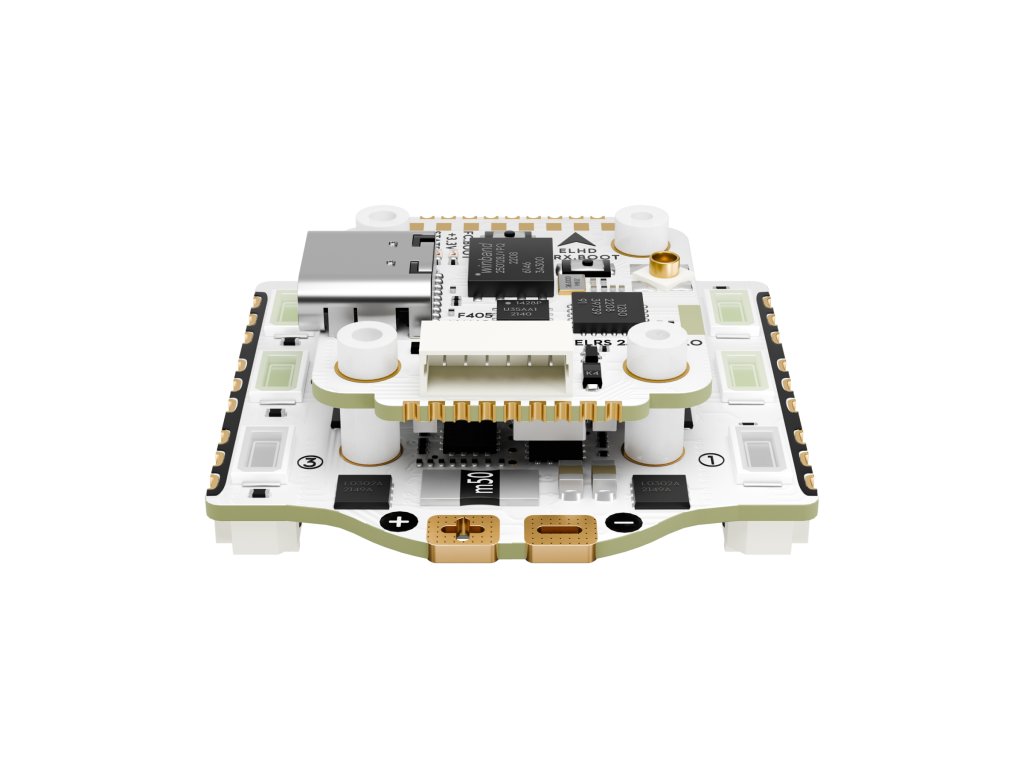

Stack FLYWOO GOKU HEX GN405 HD 20A Stack V3 ELRS

The FLYWOO GOKU HEX GN405 HD 20A Stack V3 is a compact and high-efficiency solution engineered for micro hexacopter builds. This stack pairs a robust STM32F405-based flight controller with built-in ELRS receiver and a 6-in-1 20A ESC, enabling seamless performance for advanced 2–4S setups. Featuring the precision ICM-42688P gyro, 16MB black box, and up to 6 UARTs, it supports demanding FPV configurations with reliable stability. Its plug-and-play architecture and 16×16 mm mounting format make it ideal for tight builds requiring multiple motor outputs without compromising power, control, or responsiveness.

Flight Controller:

MCU: STM32F405 BGA
Gyro: ICM-42688P (SPI)
OSD: No
Barometer: DP310
Black Box: 16MB
USB: Type-C
UARTs: 1 / 2 / 3 / 4 / 5 / 6
Input Voltage: 7.4V – 24V (2–6S LiPo)
BEC Output: 5V 2A / 3.3V 0.5A
Dimensions: 25 × 23 × 8 mm
Mounting Holes: M2 16×16 mm
Weight: 3 g

ESC:

ESC MCU: BB21F16G
Continuous Current: 20A
Input Voltage: 2–4S LiPo
Supported Protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot150/300/600
Power LED: No
Dimensions: 33 × 35 mm
Mounting Holes: M3 16×16 mm
Weight: 6.4 g

Package Includes:

1 × Stack FLYWOO GOKU HEX GN405 HD 20A Stack V3 ELRS
