Stack DIATONE MAMBA F405 MK2 +65 BLS (42688)

Product detailed description

Stack DIATONE MAMBA F405 MK2 +65 BLS (42688)

Mamba F405 MK2 +65 BLS is a high-quality stack designed by DIATONE for FPV drones. This stack includes the F405 MK2 flight controller and 65A electronic speed ​controller. It is a reliable and effective solution for building a powerful and stable UAV.

Features:

- The F405 MK2 FC flight controller has a built-in ICM-42688 gyroscope for high precision and stability of control.
- The 65A ESC power provides smooth and efficient control of the speed.
- Supports 4-6S batteries, allowing it to be used in different configurations and for different types of drones.

Specifications:

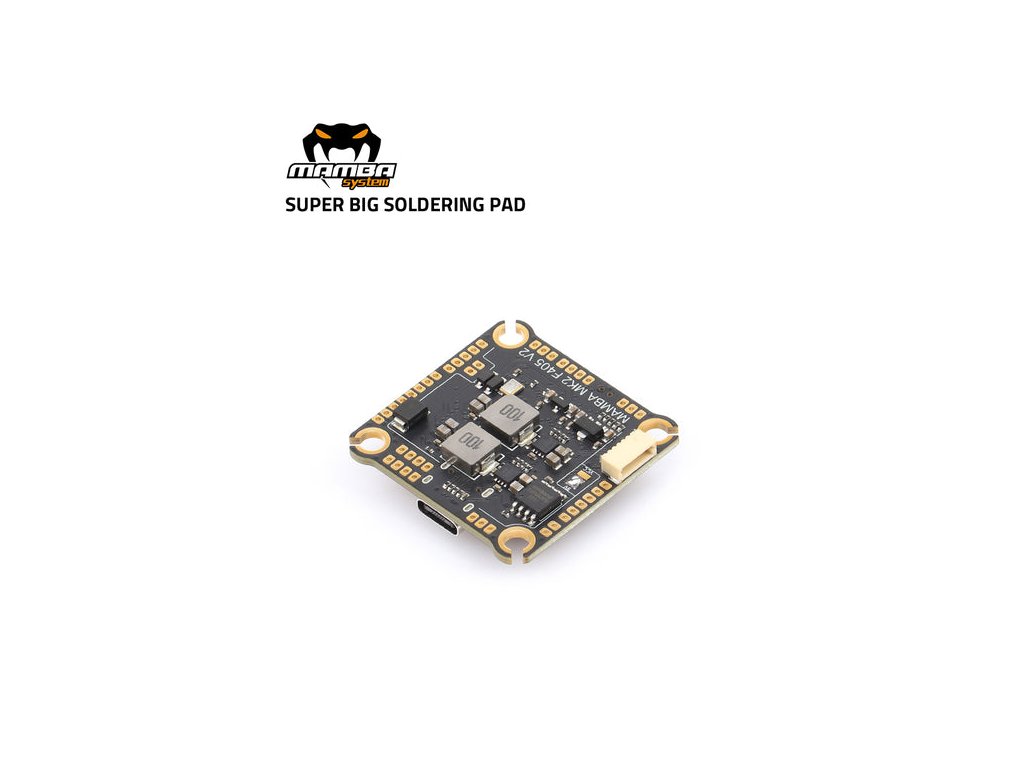

FC MAMBA F405 MK2 V2
MCU: STM32F405
Frequency: 168MHz
Gyro: ICM-42688-P
OSD: AT7456E
Blackbox: 16M Memory
Uarts: 3 set
Receiver: CRSF/SBUS/IBUS/DSM
12C: Yes
Buzzer Pad: Yes
CURR Pad: Yes
ESC Signal: 4 Set
BEC 3.3V: 0.5A
BEC 5V: 2A
BEC 9V: 2A
BF LED: Yes
AIR UNIT Port: Yes
BEC Protection: Yes
Receiver Protection: Yes
TVS Protection: Yes
Input: 6S Lipo
SoftWare: Betaflight
Mounting: 30.5x 30.5mm/M3
Size: 36x38x8mm

ESC MAMBA F65_BLS
CURR: Yes
Output Current: 65A
Peak Current: 75A
Input: 4-6S Lipo
BLHeli: BLHeli S
Target: CH40
Protocol: Dshot 300/600
Mounting: 30.5x30.5mm, Ø 3
Size: 44.5x40x6.8mm
Weight: 14g

Package Includes:
1x Stack MAMBA F405 MK2 +65 BLS (42688)
