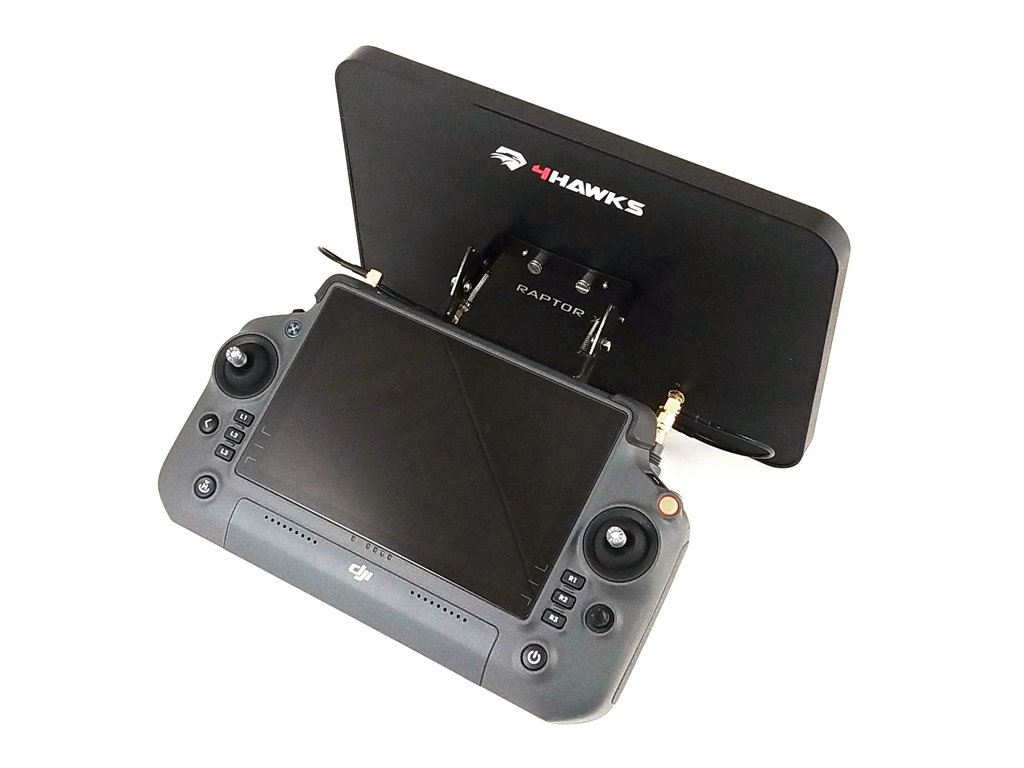

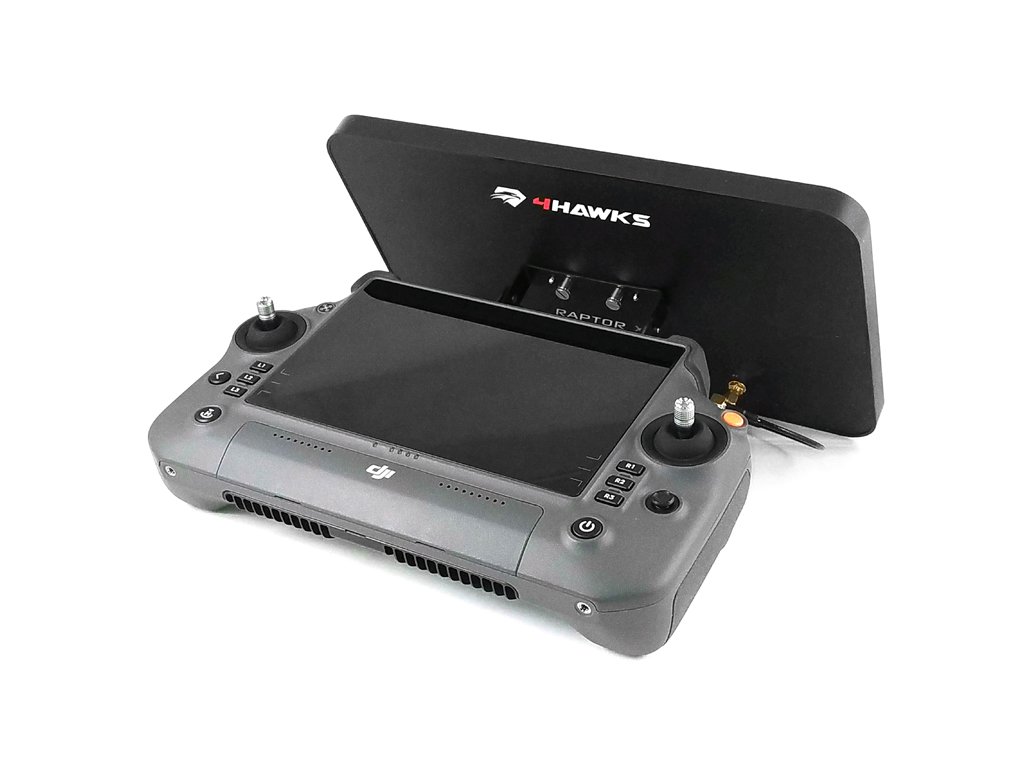

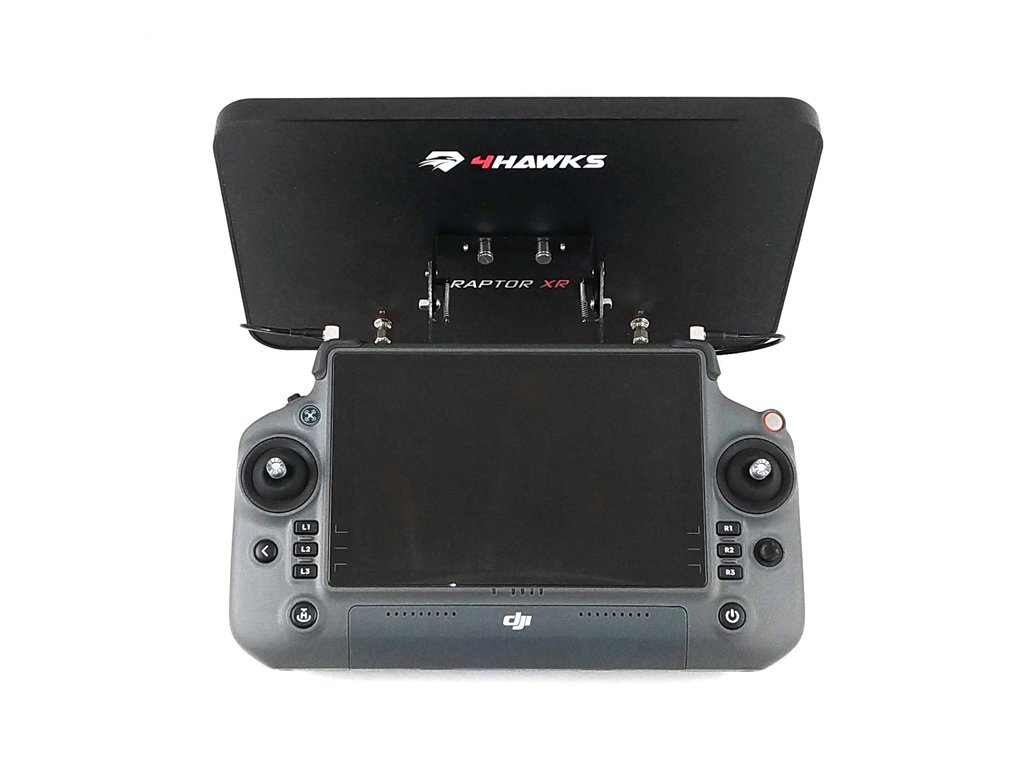

Antenna 4Hawks Raptor XR for DJI RC Plus Controller (M30T)

Product detailed description

Raptor XR for DJI RC Plus Controller (M30T)

Features:

- Maximize performance
- Concurrent dual band 2.4 & 5GHz
- No modification to the drone itself
- Long range extension without external boosters
- Design does not contain any removable parts
- Complete solution
- Controller NOT included

Specification:

Frequencies
Port 1: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Gain
Port 1: 11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)
Port 2: 11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)
VSWR
Port 1: < 1.50  (max. < 2.00)
Port 2: < 1.50  (max. < 2.00)
Beamwidth
Port 1: 70°/40° & 40°/25°
Port 2: 70°/40° & 40°/25°
Polarization
Port 1: Vertical
Port 2: Vertical
Impedance
Port 1: 50 Ω
Port 2: 50 Ω

Mechanical parameters:
Material Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Material Mounting: Stainless steel + paint
Weight: 520g (450g Antenna + 70g Mounting)
Dimensions: 29.2 x 18.2 x 2.1 cm
Connection: RP-SMA female
Tilt adjustment: 5 tilt positions, OnClick system

Package includes:
1x Range extender antenna
1x Stainless steel mounting kit
2x RP-SMA male RG316 black pigtails
2x MCX-SMA Adapter
1x 8mm wrench, 1,5 hex, 2,5 hex
1x Mounting socket screws
