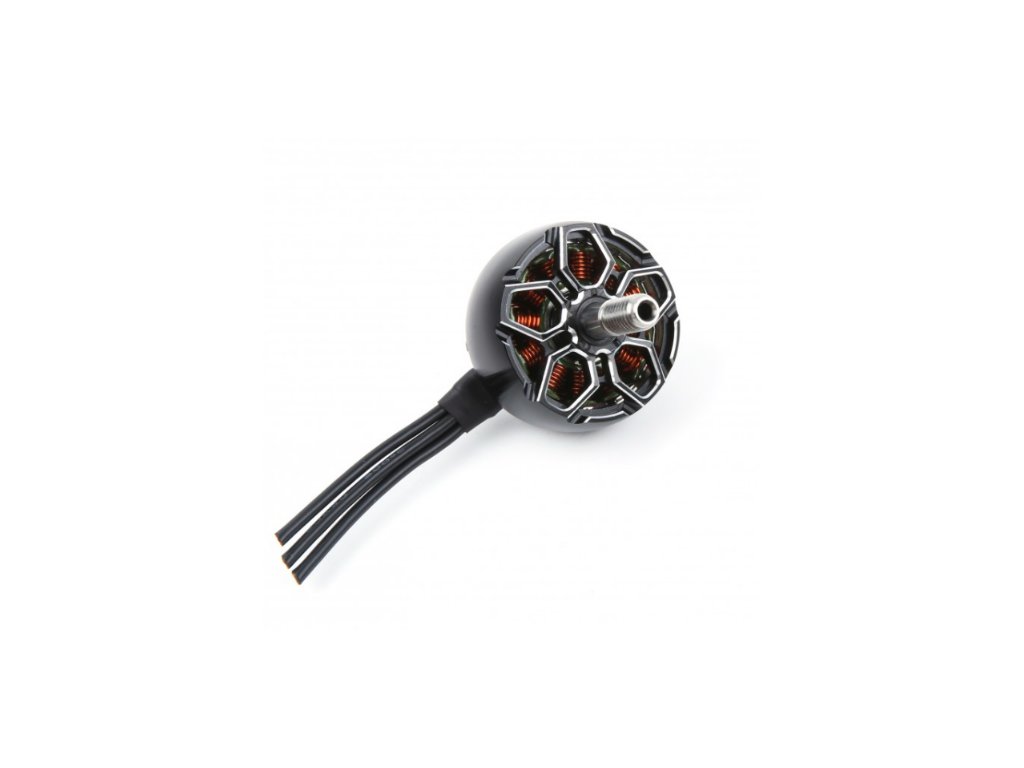

Motor iFlight XING2 2207 Unibell 2050KV

Product detailed description

Motor iFlight XING2 2207 Unibell 2050KV

The iFlight XING2 2207 FPV Unibell 2050KV motor is a high-performance brushless motor designed for FPV drone racing and freestyle flying.

Features:
- 5mm titanium alloy shaft
- Crash resistant 7075 aluminum bell
- Smooth and long-lasting NSK 9x4x4 bearings
- Center slotted N52H curved arc magnets
- XING O-ring bearing gap protection
- Motor wires protector
- Dynamically balanced

Specifications:
KV: 2050KV
Weight: 30.5 g (including wires)
Dimension: φ29x32.25mm
Interphase Resistance: 56.3mmΩ
Input Volts: 25.2V (6S LiPo)
Peak Current: 46.05A
Max Watt: 706.9W
Mounting Holes: 16x16 φ3mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 13.5mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ9xφ4x4
Winding: Single Strand copper winding

Package includes:
1x Motor iFlight XING2 2207 Unibell 2050KV
4x M3x10 screws
1x M5 Flanged Nylon Insert Lock Nut
