Motor FLYWOO Nin V2 2303.5 3000KV

Product detailed description

Motor FLYWOO Nin V2 2303.5 3000KV

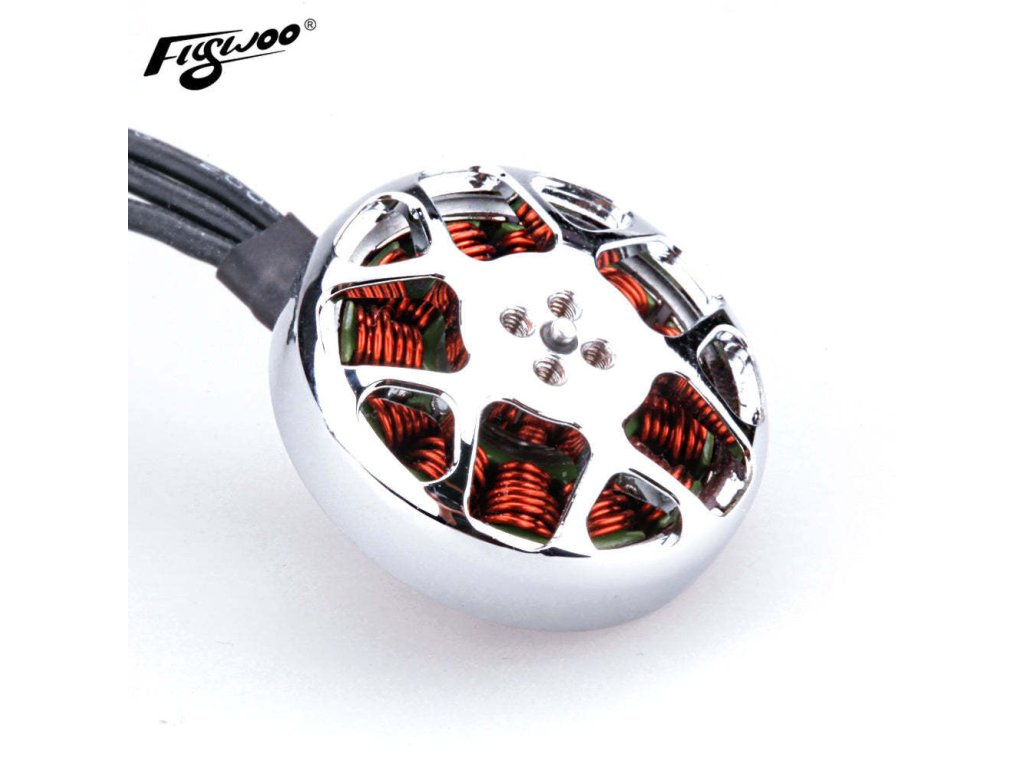

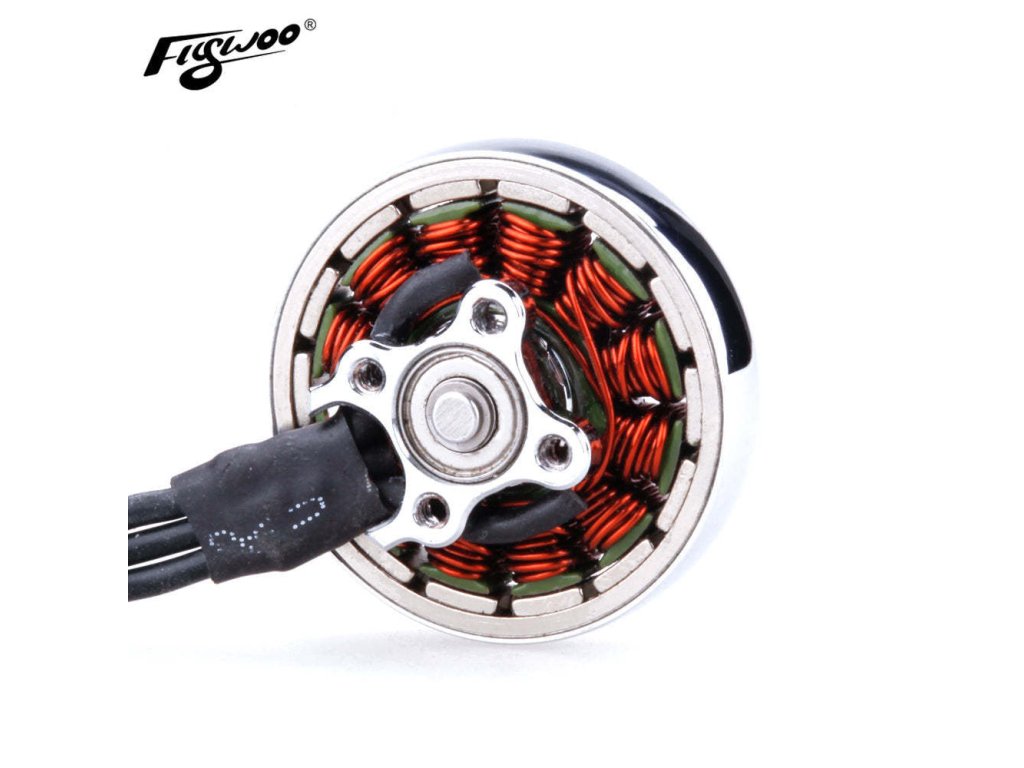

The FLYWOO NIN V2 2303.5 3000KV motor is engineered for demanding FPV freestyle pilots seeking power, efficiency, and smooth handling. With a stator size of 23×3.5 mm and a high 3000KV rating, this motor delivers impressive thrust and responsiveness on 3–4S setups. It uses premium components, including curved N52H magnets, durable NSK bearings, and a sleek electroplated unibell design. At only 21.5 g with wire, it offers an excellent power-to-weight ratio, ideal for agile tricks and precise control. Whether for racing or cinematic freestyle, the NIN V2 2303.5 offers powerful, stable, and efficient performance in every flight.

Specifications:

KV Rating: 3000KV
Configuration: 12N14P
Stator Diameter: 23 mm
Stator Length: 3.5 mm
Shaft Diameter: 3 mm (internal), 1.5 mm (external)
Motor Dimensions: 29.1 × 13.5 mm
Weight: 21.5 g (with 3 cm wire)
Idle Current @10V: 1.25 A
Input Voltage: 3–4S LiPo
Max Continuous Power (3S): 656 W
Max Current (3S): 41 A
Max Efficiency Current: 2.5–5 A (>85%)
Internal Resistance: 71 mΩ
Bearings: Japan NSK
Magnet: Curved N52H

Package Includes:

1 × Motor FLYWOO Nin V2 2303.5 3000KV
