Motor FLYWOO Nin V2 2104 3000KV

Product detailed description

Motor FLYWOO Nin V2 2104 3000KV

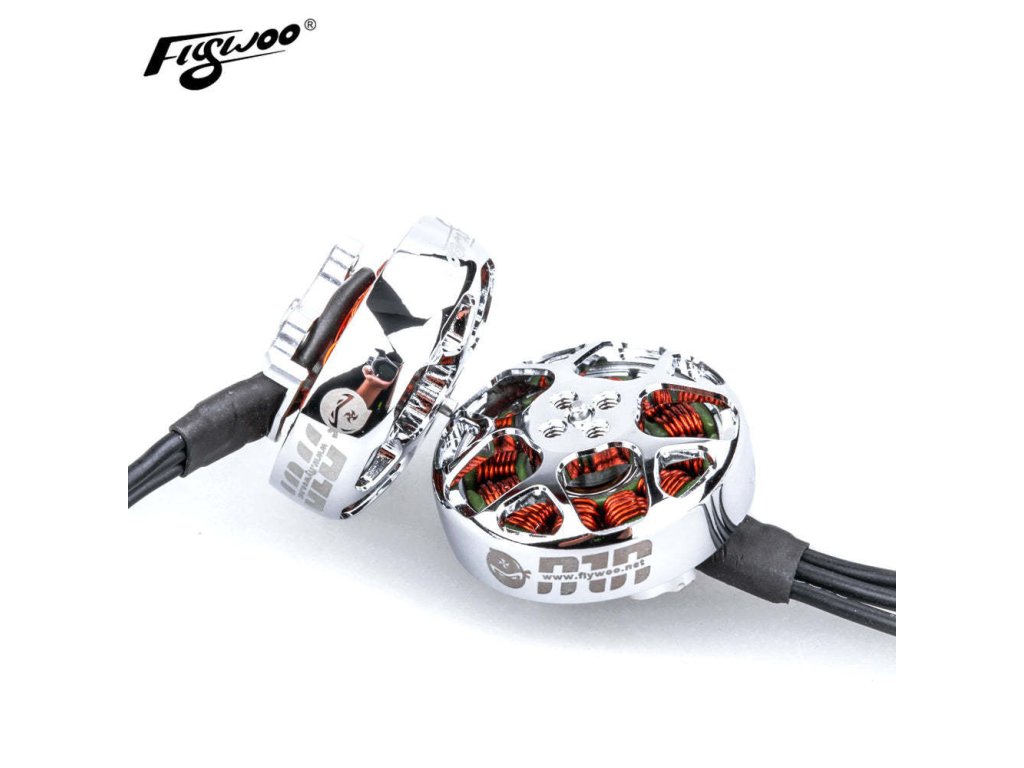

The FLYWOO NIN V2 2104 3000KV motor is engineered for peak FPV freestyle performance, combining lightweight design with exceptional power delivery. Built with a unibell structure and stylish electroplated finish, this motor features high-grade curved N52H magnets and precision Japan NSK bearings for smooth, efficient operation. Supporting 3S–4S LiPo configurations, it delivers up to 581W of continuous power with excellent throttle response. Its low weight of just 16g makes it perfect for agile and responsive quad builds. Whether you're chasing cinematic shots or tight freestyle gaps, the NIN 2104 3000KV provides the control and punch you need.

Specifications:

KV Rating: 3000KV
Configuration: 12N14P
Stator Diameter: 21 mm
Stator Length: 4 mm
Shaft Diameter: 3 mm (internal), 1.5 mm (external)
Motor Dimensions: 25.57 × 13.5 mm
Weight: 16 g (with 3 cm wire)
Idle Current @10V: 0.9 A
Input Voltage: 3–4S LiPo
Max Continuous Power (3S): 581 W
Max Current (3S): 36.3 A
Max Efficiency Current: 2.5–5 A (>85%)
Internal Resistance: 110 mΩ
Bearings: NSK (Japan)
Magnet: Curved N52H

Package Includes:

1 × Motor FLYWOO Nin V2 2104 3000KV
