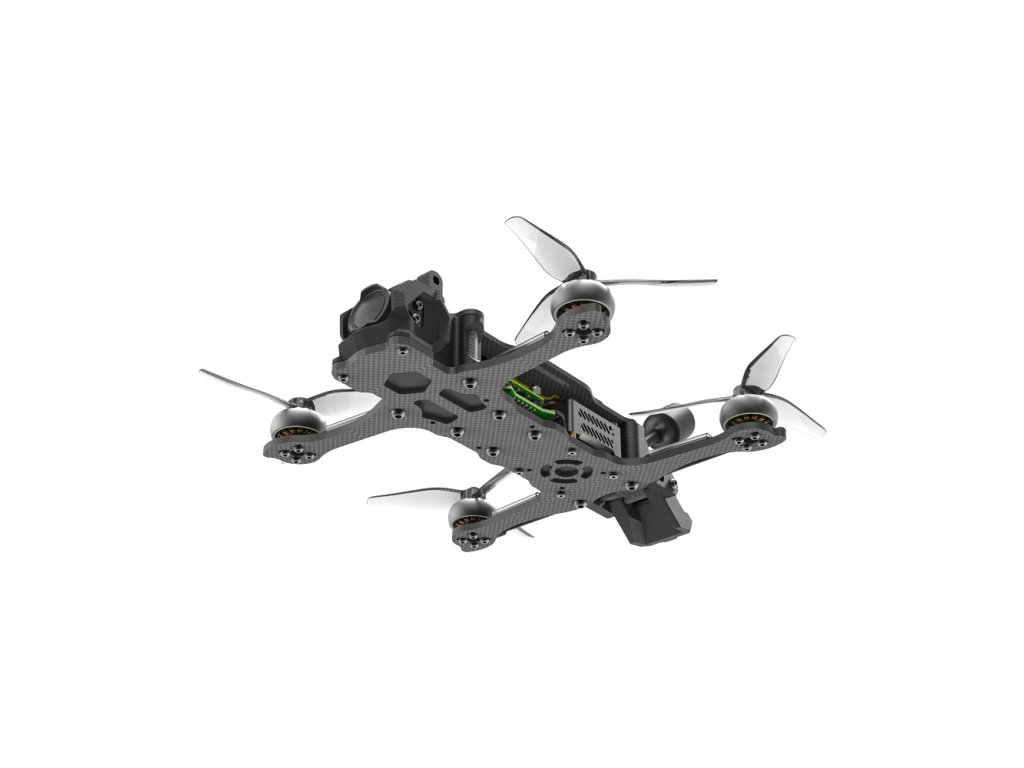

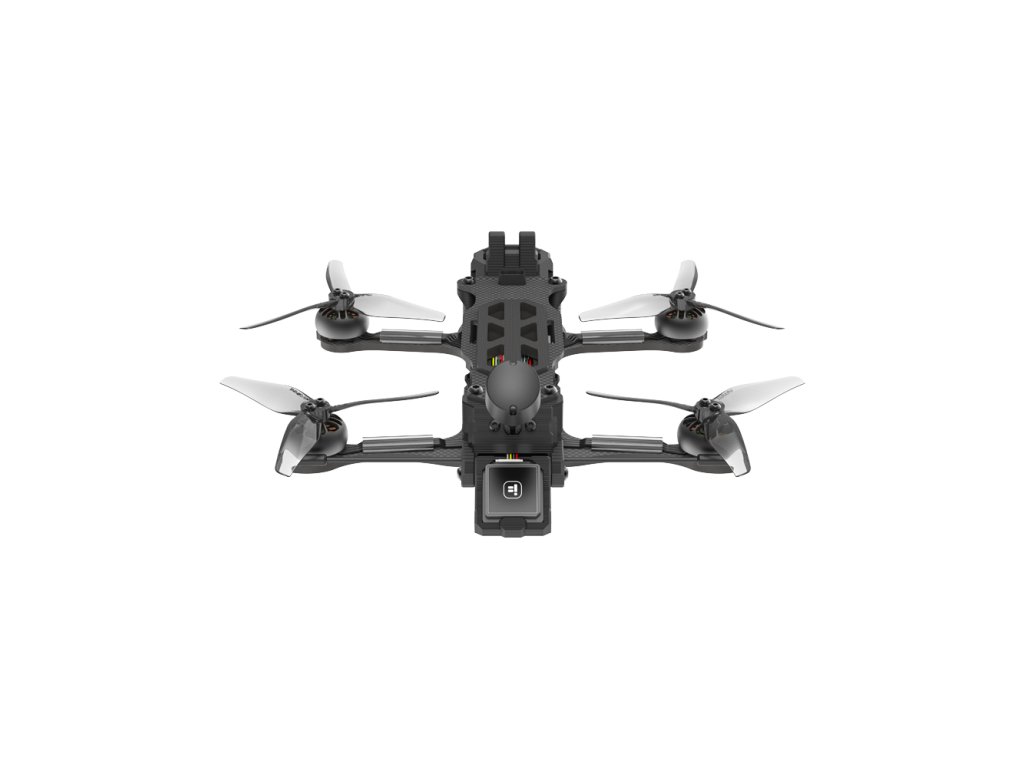

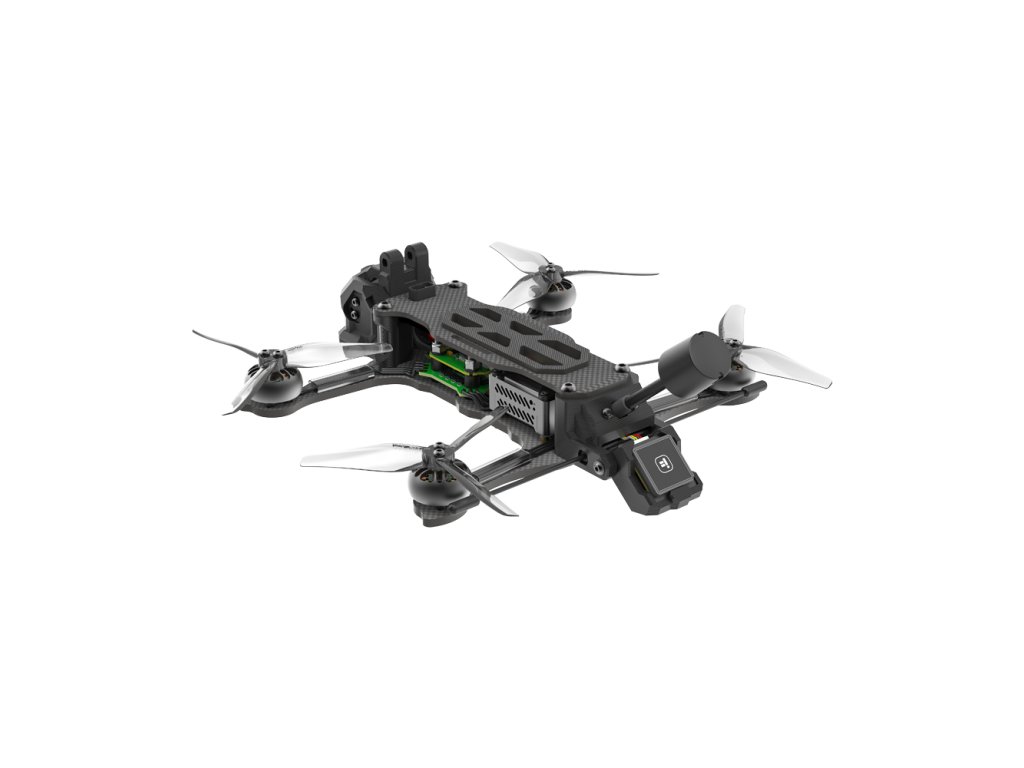

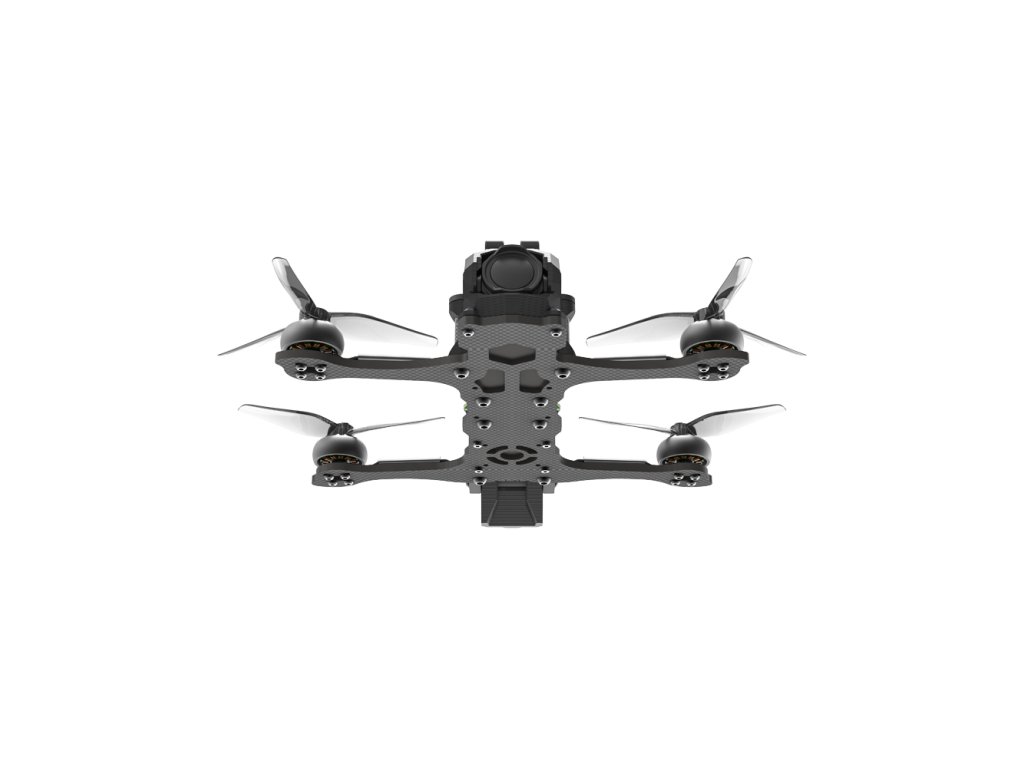

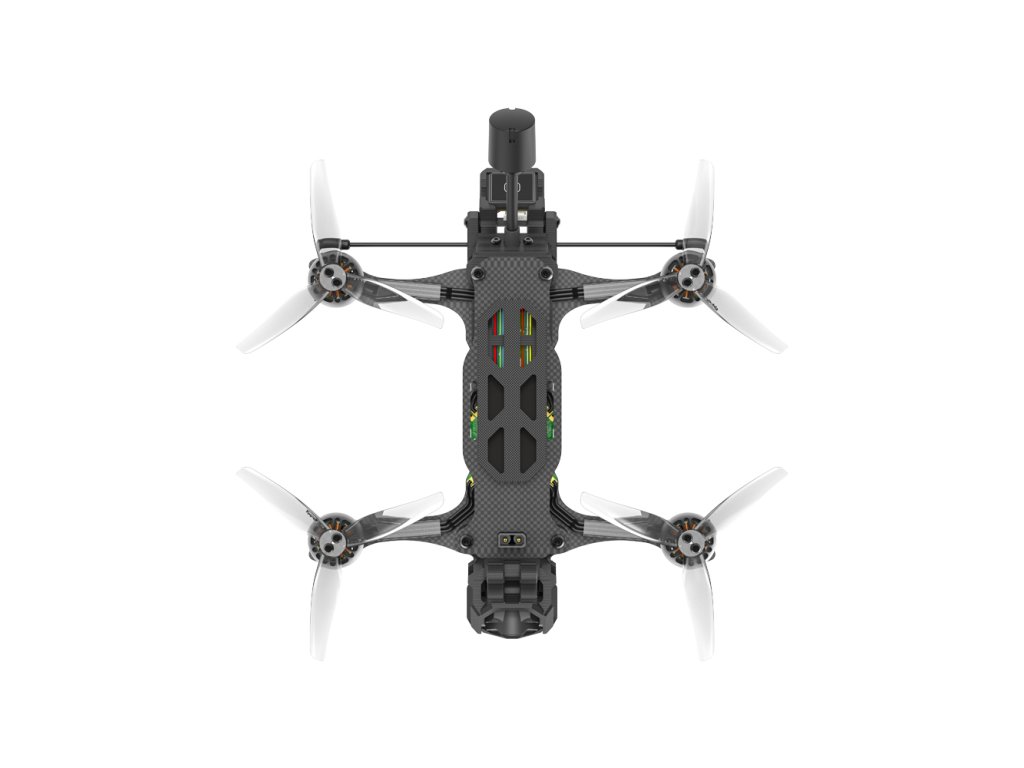

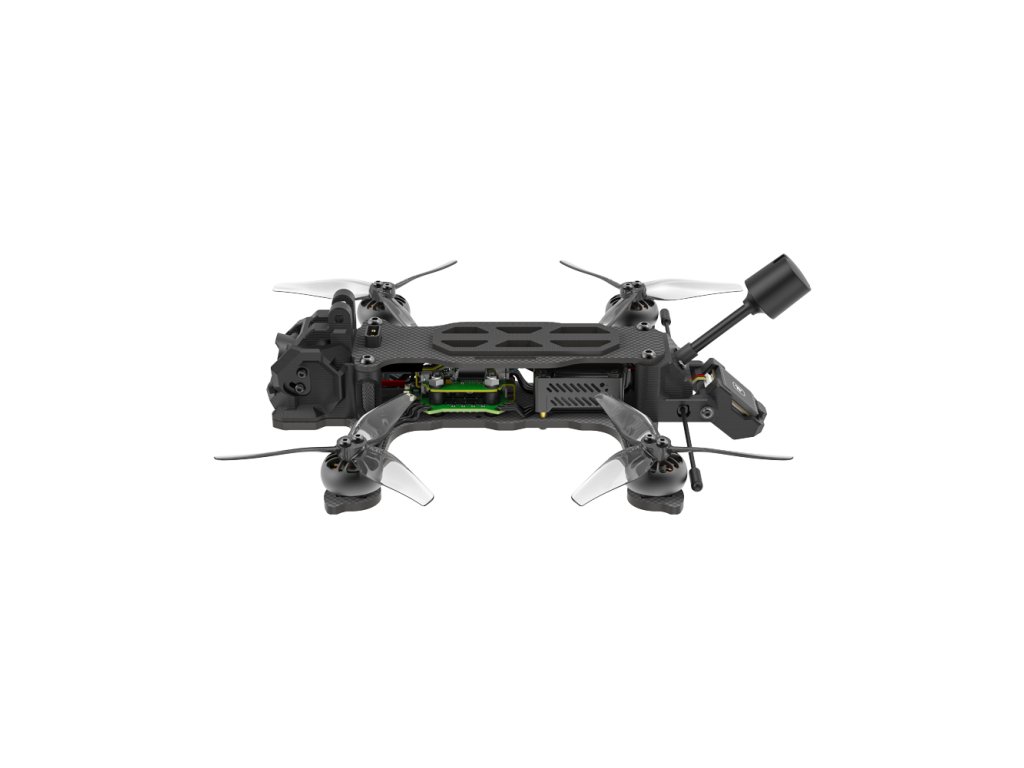

FPV Drone iFlight iH3 HD O3 Air Unit 4S BNF (TBS)

Product detailed description

iH3 HD O3 Air Unit 4S BNF (TBS)

Features:

- DJI O3 HD Air Unit Low-Latency digital transmission
- 4K Stabilized Video with 155° Ultra-Wide Angle
- Secured Battery Plug with Anti-Spark Filter
- GPS Pre-Installed for More Safety at A Distance
- Special canopy to carry naked GoPro or Gopro Bones.
- The H-shaped frame structure for balance, no props in view.

Specifications:
Product Name: iH3 O3 4S HD BNF
FC: BLITZ Mini F7 FC
ESC: BLITZ Mini E55 4-IN-1 ESC
Video Transmission: DJI O3 Air Unit
Geometry: H-shaped
Frame: 168 mm (wheelbase)
Motor: XING 1504 3100KV motors
Prop: HQ 3.5*2.5*3 propellers
Weight of the Aircraft: Approx. 216 g (Without Battery)
Dimensions (L×W×H): 135×100×40 mm (From Canopy)
Max Speed: 110 Km/h (Manual Mode)
Maximum Takeoff Altitude: 3200m
Max Hover Time:
Approx. 12 mins (No Load with 4S 850mAh Battery)
Approx. 18 mins (No Load with 4S 1050mAh Battery)
Max Wind Speed Resistance: Level 5
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: DJI O3 Air Unit Dual-band Antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Receiver Option: TBS Crossfire NANO RX

Video Transmission
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams (headband included)
Dimensions (L×W×H): L32.5 * W30.5 * H 14.5mm
Communication Bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication Frequency: 2.400-2.4835 GHz; 5.725-5.850 GHz
End-to-End Latency
With DJI FPV Goggles V2:
-810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
-810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
-1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
-1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A

Package Includes:
1 x iH3 O3 4S HD BNF (TBS)
1 x DJI O3 Air Unit Antenna
1 x Battery pads
1 x Prop(Pair)
1 x Screw Bag
1 x Naked Gopro Cable
