Battery Charger + PD 100W Plug Set iFlight Defender 20

Product detailed description

D20 battery Charger + PD 100W Plug Set

Charge Adapter Specifications:
Product: Defender 25 Type-C Charge Adapter
Applicable batteries: Defender 25 550mAh 4S and Defender 25 900mAh 4S
Operating Temperature Range: 5°C to 40°C
Input voltage: 5-20V
Output current: 3.1A(MAX)
Balance current: 500mA
Size: 145*35*27mm
Weight: 50g

Charger Specifications:
Product Name: iFlight GaN PD100W Charger
Model NO.: RH-PD100W
Input Voltage: AC110-240V~50/60Hz2.1A
Output USB-C1/C2: 5V=3A; 9V=3A; 12V=3A; 15V=3A; 20V=5A
Output USB-A1/A2: 4.5V-5A; 5V-4.5A; 9V=3A; 12V=2.5A; 20V=1.5A
Output USB-C1: 100W
Output USB-C2: 100W
Output USB-C1+USB-C2/USB-C1+USB-A1/USB-C1+USB-A2/ USB-C2+USB-A1/USB-C2+USB-A2: 65W+30W
Output USB-C1+USB-A1+USB-A2/USB-C2+USB-A1+USB-A2: 65W+7.5W+7.5W
Output USB-C1+USB-C2+USB-A1/USB-C1+USB-C2+USB-A2: 45W+30W+18W
Output USB-C1+USB-C2+USB-A1+USB-A2: 45W+30W+7.5+7.5W
Total output power: 100W Max

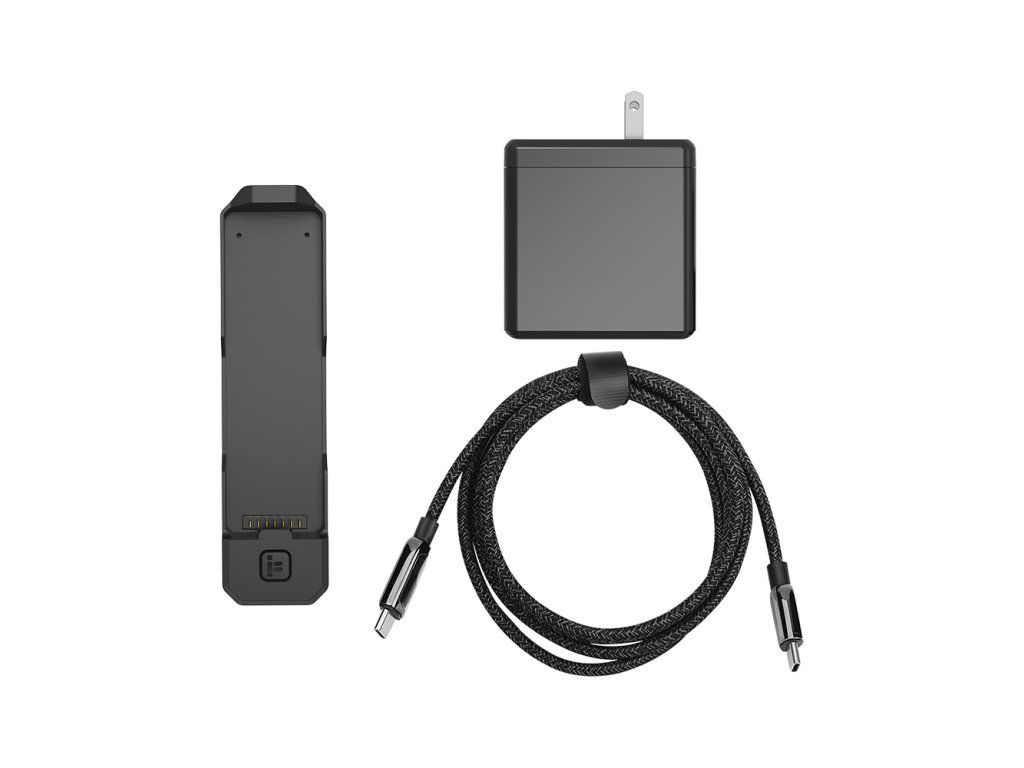

Packing List:
1 x Defender 20 Charge Adapter
1 x GaN PD100W Charger
1 x PD100W cable
