HD system EDGE T3 Combo VTX Air Unit + VRX Ground Unit

Product detailed description

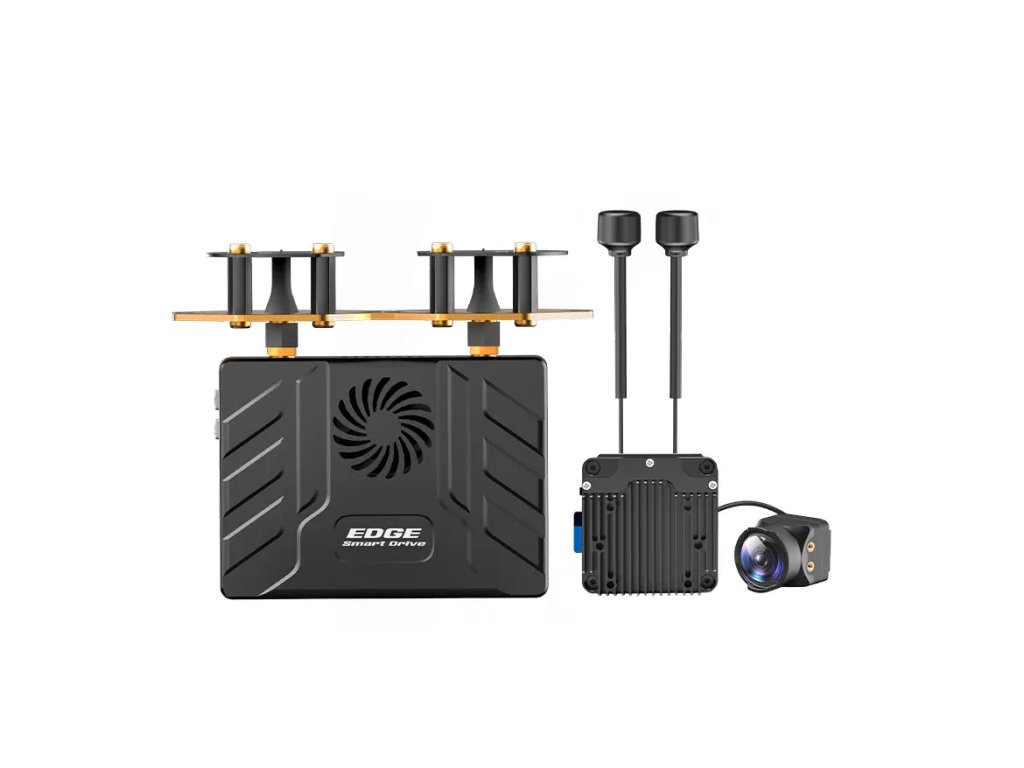

HD system EDGE T3 Combo VTX Air Unit + VRX Ground Unit

EDGE T3 video transmission system is widely applicable to drones, unmanned vehicles, and unmanned boats. It's an essential device that enables seamless communication and real - time video transfer in these unmanned systems, facilitating various operations such as aerial photography, surveillance, and remote control tasks.

The EDGE T3 VRX HD Digital Ground Unit is a high-performance video receiver designed for drones, unmanned ground vehicles (UGVs), and aquatic unmanned systems. It ensures real-time, stable HD video transmission, ideal for aerial photography, surveillance, and remote control applications.

Features:

- AI Image Processing: Enhances color, dynamic range, and detail
- Transmission Range up to 35 km: Stable operation over long distances
- Transmission Latency: Approximately 60 ms
- Maximum Video Bitrate: 120 Mbps
- Night Vision Support: AI algorithms improve image quality in low-light conditions
- 3-in-1 Data Transmission: Combines video, telemetry, and control into a single channel
- Flexible OSD Settings: Ability to customize on-screen display data
- Mobile Device Compatibility: Built-in Wi-Fi for viewing video on smartphones and laptops without extra cables

Specifications:

Image Transmission Module (VTX)
Model: T3 VTX
Product Name: T3 Digital HD Image Transmission (Air Unit)
Communication Frequency: 5.18-5.24GHz, 5.745-5.825GHz
Transmit Power (EIRP): FCC≤30 dBm, CE<14dBm; SRRC<20dBm
Interface: SH1.0-4P, SH1.0-6P, SH1.0-8P
Mounting Hole Spacing: 2×25.5 / 4×20 mm
Dimensions: 36×36×11.8 mm
External Storage: Support microSD card (16-256GB)
Recording Specifications: 1080p@60fps
Weight: 25g (including heat sink)
Operating Temperature: 0°C to +50°C
Available Frequency Points: 9
Voltage Input Range: 6-28V DC
Supported Flight Control Systems: ArduPilot, Betaflight, iNav

Camera Module
Model: T3 Camera Module
Image Sensor: 1/2.8-inch 2MP 16:9 sensor
Resolution: 1080P/60FPS
Aspect Ratio: 16:9
Lens (Standard): 2.9mm HD120
Aperture: F1.4
FOV: 120°
Lens (Optional): 2.2mm HD155
Aperture: F1.9
FOV: 155°
Shutter Type: Rolling Shutter
Weight: 13g
Dimensions: 20×20×30mm / 20×20×25mm
Coaxial Cable Length: 130mm

Antenna
Name: Omnidirectional Antenna
Polarization Direction: Left-hand Circular Polarization (LHCP)
Working Bandwidth: 5500-6000 MHz
Input Impedance: 50 Ω
VSWR: ≤1.5
Interface Type: IPEX-1
Dimensions: 15×122 mm
Weight: 2.5 g (single)

Image Transmission Module (VRX)
Model: T3 VRX
Product Name: T3 Digital HD Image Transmission (VRX)
Communication Frequency: 5.18-5.24GHz, 5.745-5.825GHz
Transmit Power (EIRP): FCC≤30 dBm, CE<14dBm; SRRC<20dBm
Available Frequency Points: 9
Interface: SH1.0-4P, SH1.0-6P
Type-C: Video Output 1080P/60FPS
Fixed Hole Spacing: 15mm (M2×2)
Dimensions: 82×26×68mm
Built-in Battery: 5000mAh, 3.7V Lion
Weight: 142 g (without antenna)
Operating Temperature: 0°C to +50°C
Max Charging Power: 20W
Max Discharge Power: 20W

Antenna
Name: Directional Antenna
Polarization Direction: Left-hand Circular Polarization (LHCP)
Operating Bandwidth: 5000-6000 MHz
Input Impedance: 50 Ω
Standing Wave Ratio: ≤1.5
Interface Type: RPSMA
Dimensions: 102×53×27 mm
Weight: 30.5 g

Package includes:
1x HD system EDGE T3 Combo VTX Air Unit + VRX Ground Unit
