GPS Module TBS M10 Glonass

Product detailed description

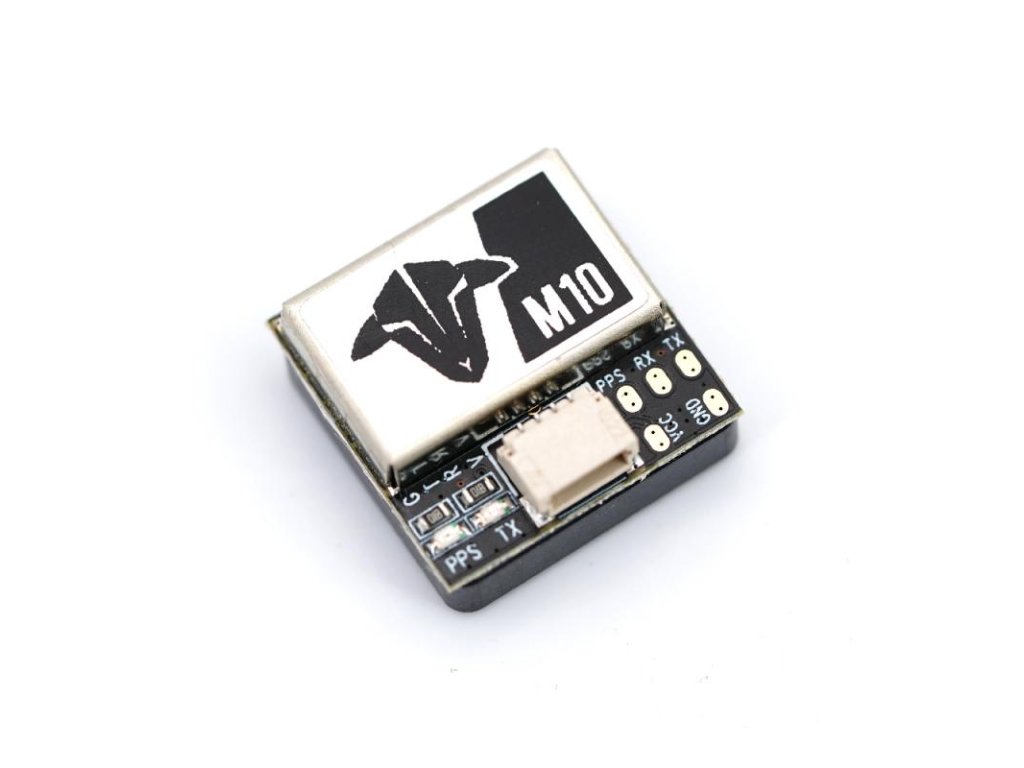

GPS Module TBS M10 Glonass

The TBS M10 GPS GLONASS Module is a compact, high-performance GNSS unit featuring the advanced u-blox UBX-M10050 chipset with flash configuration memory—delivering fast, reliable positioning and compatibility with Betaflight and iNav systems.

Features:
- Multi-band GNSS support encompassing L1, L2, and L3 frequencies for robust satellite reception.
- On-board flash memory stores configuration data, enabling quicker cold and hot restarts.
- High sensitivity tracking ensures strong signal lock even in challenging environments.
- Compact, lightweight design tailored for tight drone builds without compromising performance.

Specifications:
Chipset: ublox UBX-M10050
Flash memory for saving configuration
Frequency: L1 (1575.42MHz), L2 (1561.10MHz), L3 (1602.00MHz)
Baud Rate: 4800bps-921600bps, (default 115200bps)
Channel: N/a
Sensitivity:
- Tracking: 166dBm
- Capture: 160dBm
- Cold Start - 148dBm
Cold start: Average 26 seconds
Warm start: Average 24 seconds
Hot start: Average 1 second
Accuracy:
HorizontalPosition: Autonomous<2m average (SBAS < 2.0m average) Timepulse signal: RMS 30 ns
Maximum height: 50000m
Maximum speed: 500 m/s
Maximum acceleration: ≦ 4G
Refresh Rate: 0.25Hz-18Hz, default 1Hz
Size: 18x18x8.1mm
Weight: 8.5g
Input Voltage: 5V

Package includes:
1x GPS Module TBS M10 Glonass
