Goggle Walksnail Ascent

Product detailed description

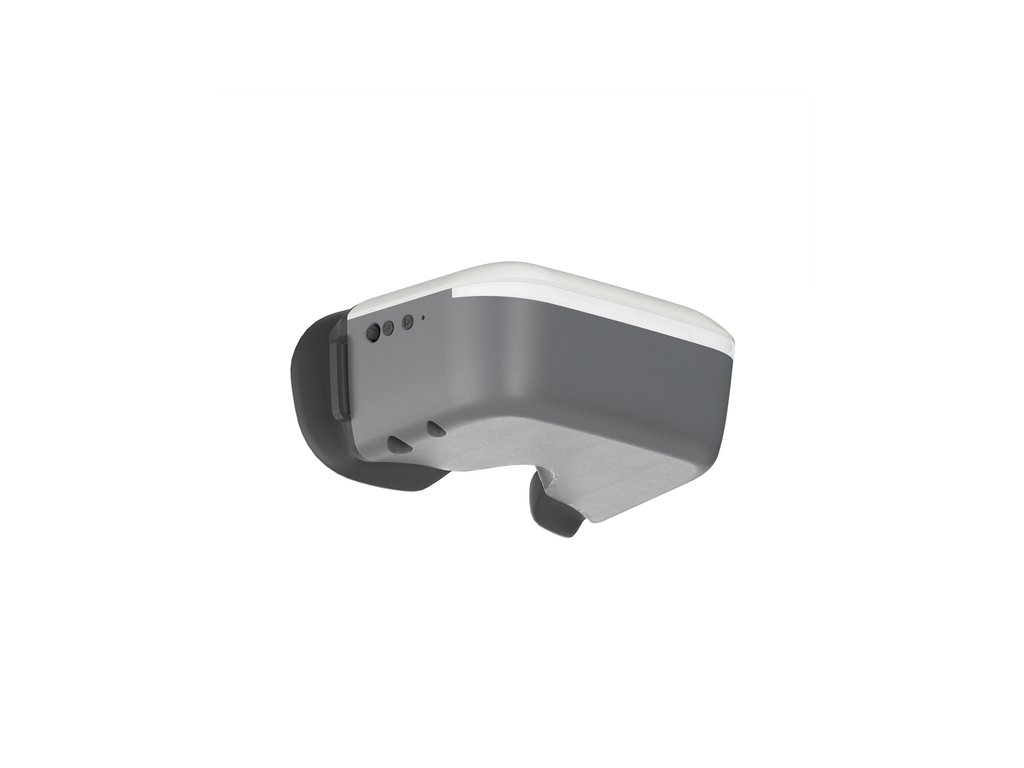

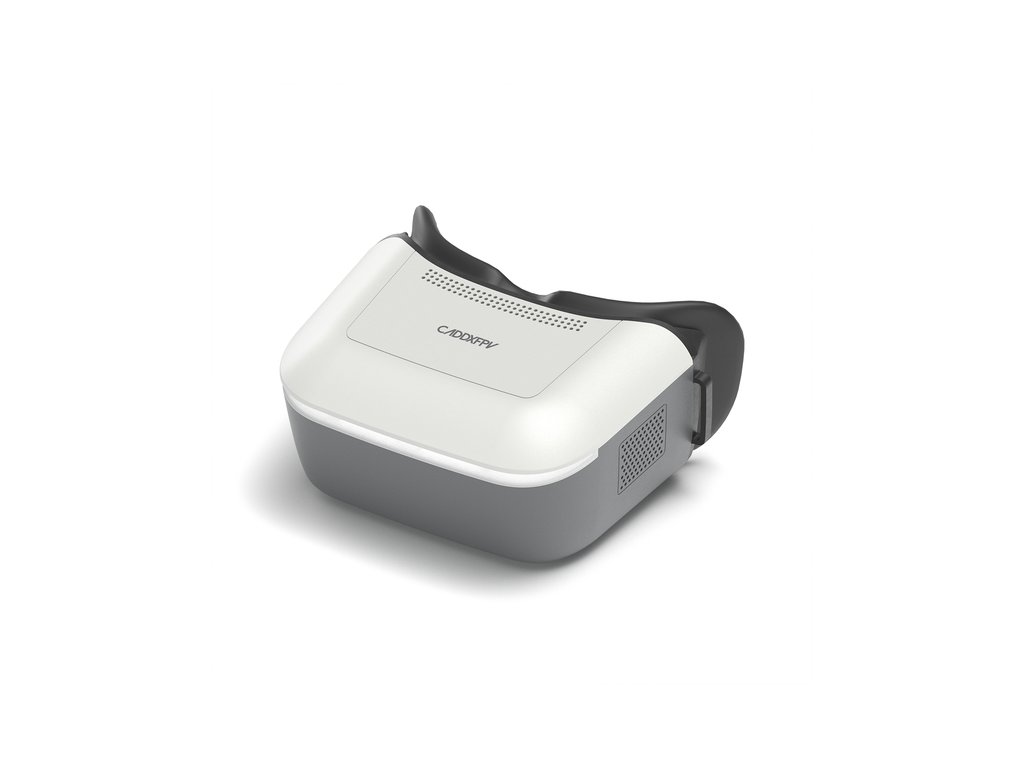

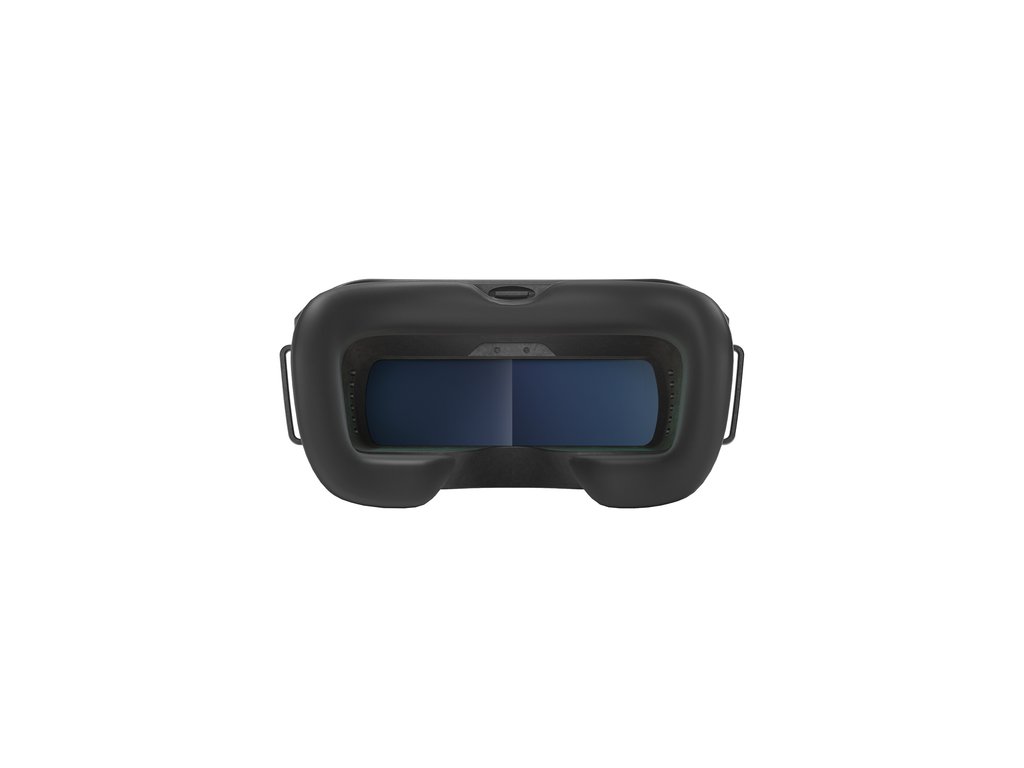

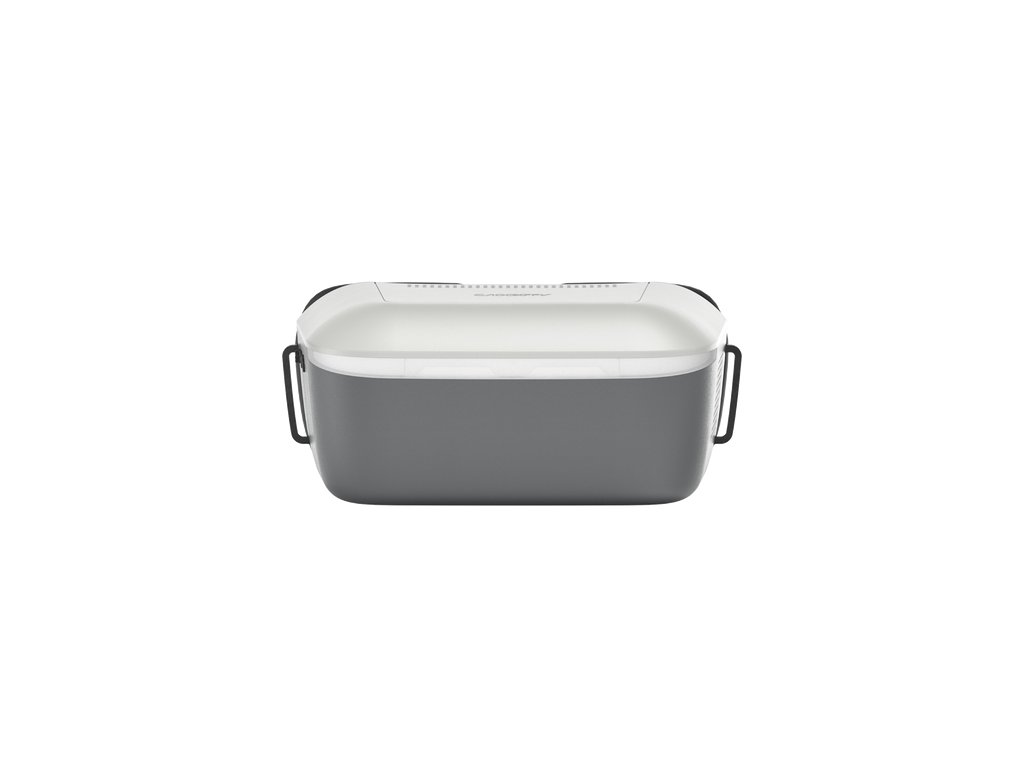

Goggle Walksnail Ascent

The Walksnail Ascent Goggles deliver an immersive FPV experience with a wide field of view, stable signal reception, and built-in HD recording. Designed specifically for the Walksnail Ascent system, these goggles combine comfort, clarity, and reliability for extended flight sessions.

Features:
- Wide-angle display creates an immersive FPV viewing experience.
- Built-in DVR records flights in high-definition 1080p directly to a TF card.
- Integrated high-gain antennas provide strong, stable, and interference-resistant signal reception.
- Multi-function interface supports video recording, playback, and firmware upgrades.
- Customizable goggle lenses support nearsighted, farsighted, and blue-light-blocking options.
- Efficient power system extends operating time for longer flying sessions.
- Lightweight and ergonomic design reduces neck fatigue during prolonged use.

Specifications:
Video / RF:
Communication Frequency: 5.725 – 5.850 GHz (5.8 GHz digital)
Transmit Power (EIRP): FCC <30 dBm; CE <14 dBm; SRRC <20 dBm; MIC <25 dBm
Channels: 8
Transmission Resolution Supported: 1080p 60 FPS, 720p 60 FPS
Maximum Bitrate: Up to 50 Mbps
Minimum Latency: ~32 ms average
Polarization: LHCP (Left-hand circular)
Average Gain: ~4.9 dBi
Transmission Distance (typical): >4 km (varies by conditions)

Display:
Screen Size: 4.5 inch
Screen Resolution: 1920 × 1080 @ 60 Hz
Screen Type: LCD panel

Storage & Interfaces:
SD Card Slot: Supports micro SD (up to 256 GB)
I/O Interface: 4-pin 3.5 mm plug, DC 5.5×2.1 mm power port, Micro SD slot

Power:
Voltage Input: Wide range 6 V – 25.2 V (2S – 6S)

Dimensions & Build:
Weight: Not officially listed in this source (likely lightweight ergonomic design similar to other Walksnail/Caddx goggles but not confirmed)
Lenses / Comfort: Supports customizable lens inserts (e.g., diopters) — typical with Walksnail-style goggles, though exact range not officially listed here

Compatibility:
Compatible only with Walksnail Ascent Lite VTX Kit

Package includes:
1x Walksnail Ascent Goggles
1x Power Cable
1x Mirror Cloth
1x User Manual
