FC GEPRC STABLE-F411
Code: GP102076Product detailed description

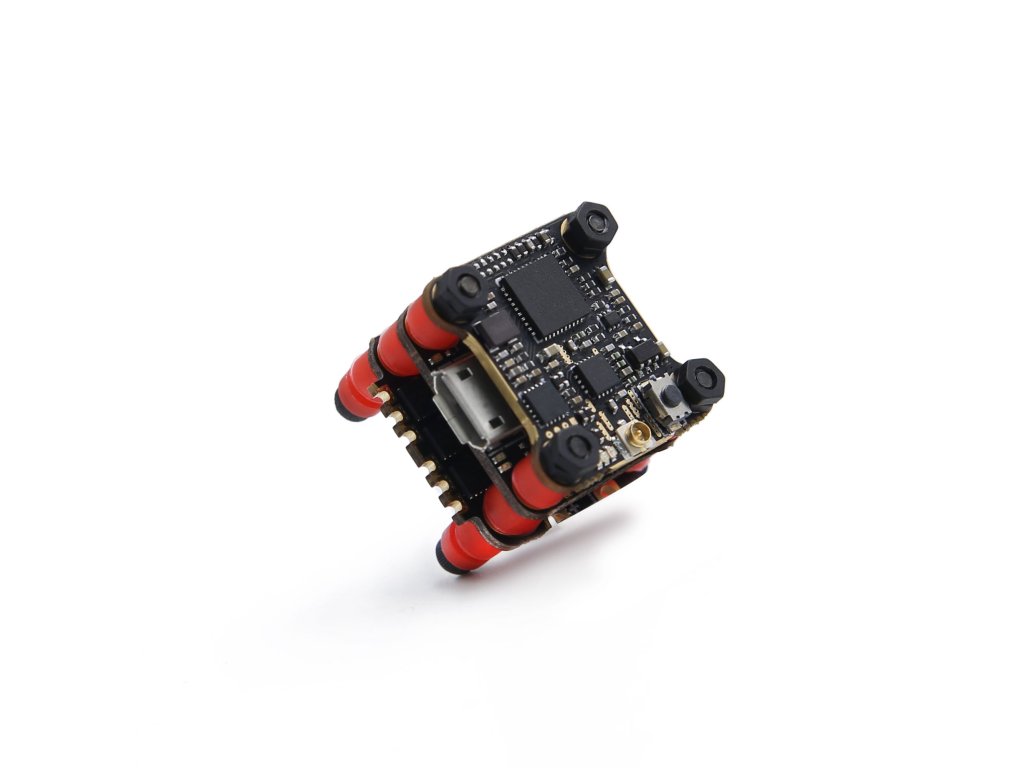

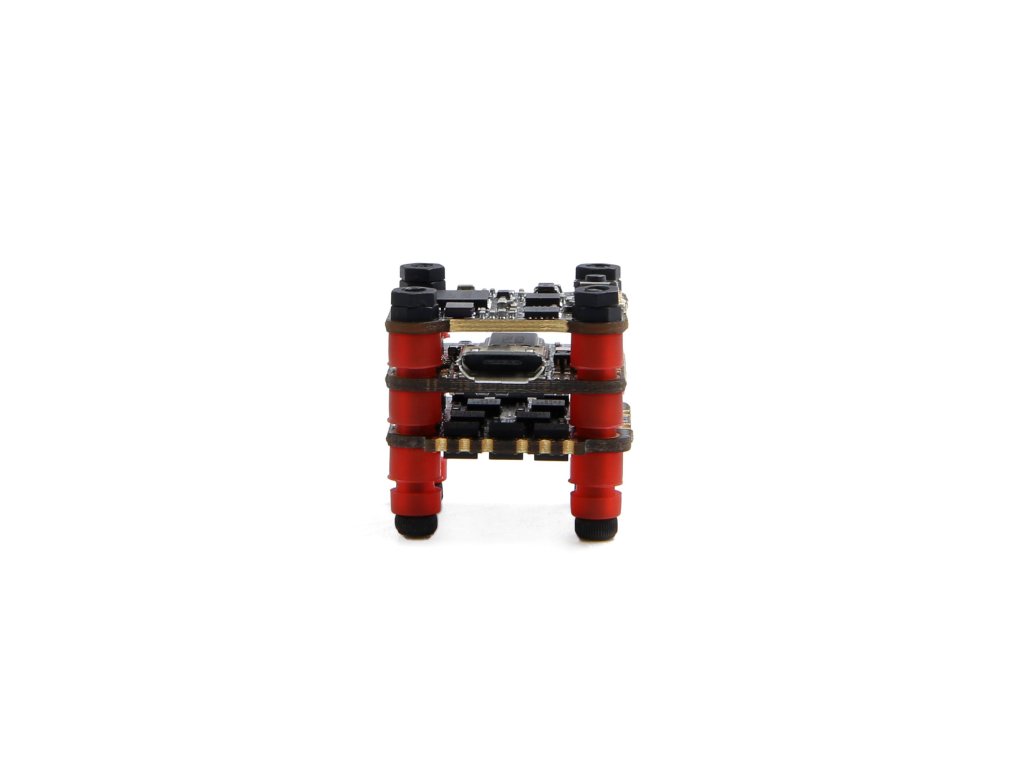

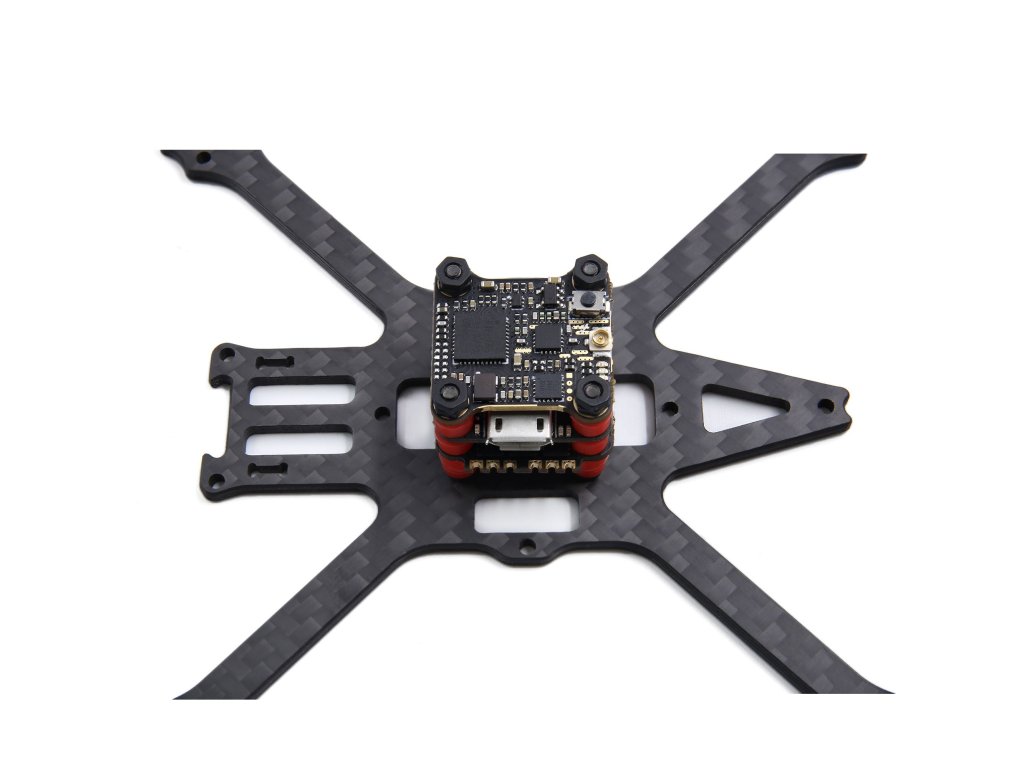

STABLE-F411 The GEPRC STABLE F411 is an electronic system designed for micro quadcopters, that includes an F411 flight controller, a 4-in-1 BLS 12A ESC, and a 5.8G VTX with multiple power options (PIT/25/100/200mW). It supports 2-4S LiPo batteries, making it versatile for different flying conditions. Specifications: STABLE F411 Flight Controller(16*16mm): MCU: STM32F411 IMU: MPU6000 gyro/accelerometer (SPI) OSD: BetaFlight OSD with AT7456E chip BEC Output: 5V@2A Size: 21mm x 21mm Mounting holes: 16x16mm Input voltage: 2-4S LiPo Firmware target: GEPRCF411 Weight: 2.5g STABLE F411 BLheli_S 4IN1 12A ESC (16x16mm): MCU: BB21F16G Continuous current: 12A Input voltage: 2-4S LiPo ESC protocol: PWM, Oneshot125, Multishot, Dshot150, 300, 600. Size: 23mm x 21mm Mounting hole: 16x16mm Firmware target: Blheli_S G_H_30 Current meter: 210 Weight: 2.7g STABLE F411 VTX 5.8G 200mW (16x16mm): Power: PIT/25/100/200mW Antenna interface: IPEX (UFL) Telemetry: IRC Tramp Size: 17mm x 27mm Mounting holes: 16x16mm Integrated LC Filter Weight: 1.6g
