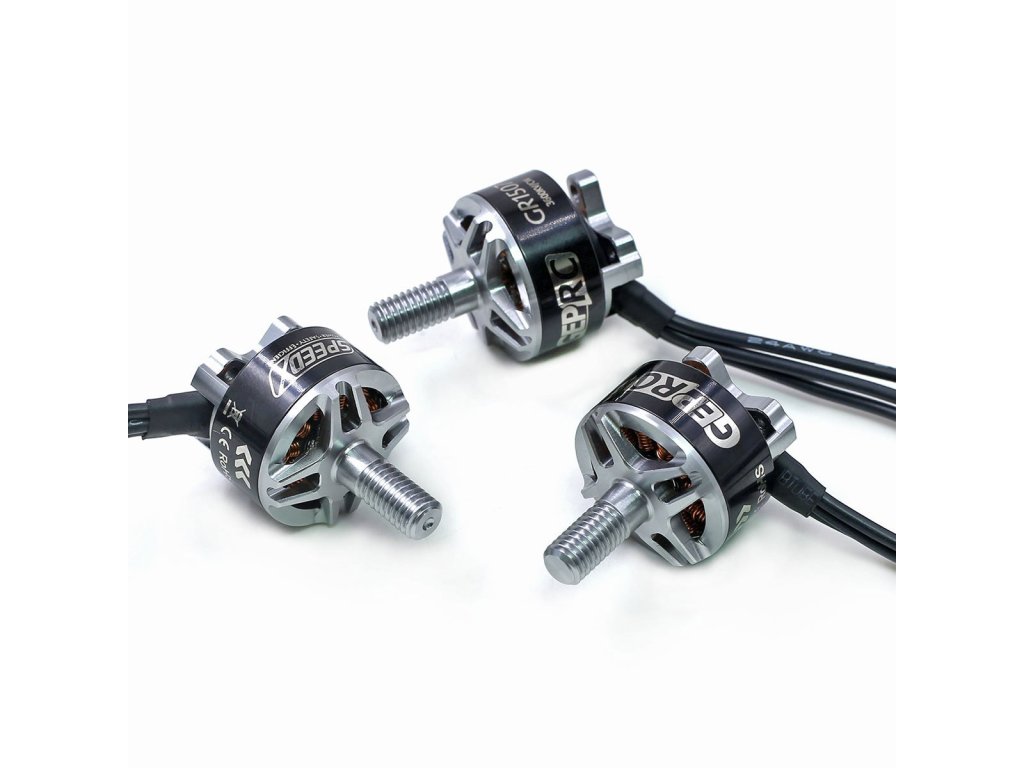

Motor GEPRC GEP-GR1507 (4200KV)
Code: GP102142Product detailed description
GEP-GR1507 (4200KV) The GEP-GR1507 motor is designed to offer improved performance and cooling for 3-inch and 4-inch model drones. It provides multiple KV options and incorporates a range of features for efficiency and reliability: - High-precision CNC processing and the use of 7075 aluminum alloy materials result in high precision and strength. - N52H magnets guarantee torque, high-temperature resistance, and magnet retention. - Designed for optimal power delivery in the 50% to 90% throttle range. - Precise dynamic balancing of the motor body reduces vibration and noise at high speeds. - Japanese NSK bearings ensure smooth motor operation. - Tile-shaped magnets and a 0.15mm air gap enhance power delivery. - The heat radiation structure design reduces the temperature by 20% compared to motors of the same type. Specifications: Item Name: GEP-GR1507 KV Option: 4200KV Configuration: 12N14P Stator Diameter: 15mm Stator Length: 7mm Shaft Diameter: 2mm (Hollow) Motor Dimensions (Diameter x Length): 19.6 mm x 29.1mm Battery (LiPo): 2-4S Rotor: N52H arc magnets Bearings: NSK Base Casing: Al 7075 Wire AWG: 24AWG Weight: 15.5g
