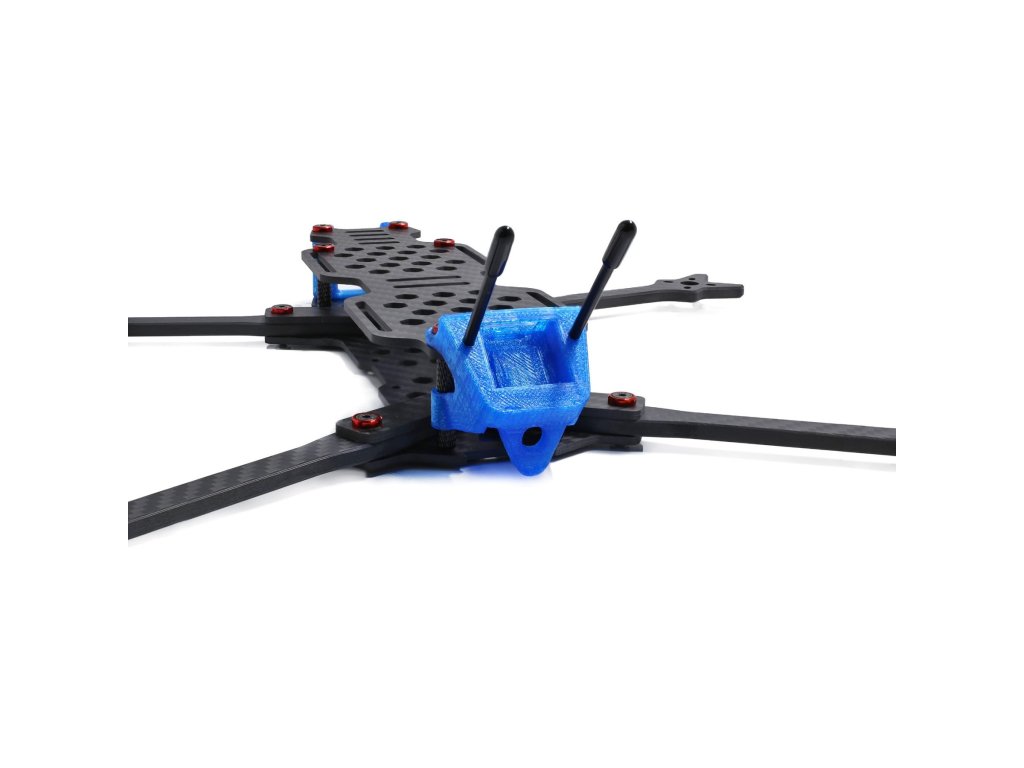

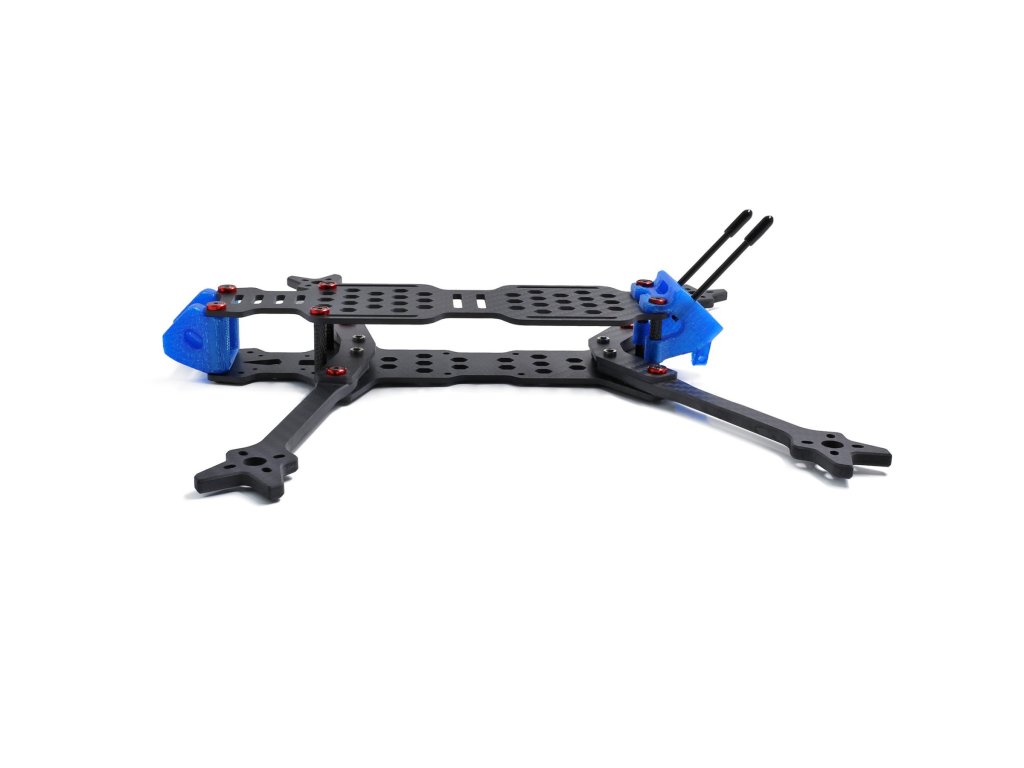

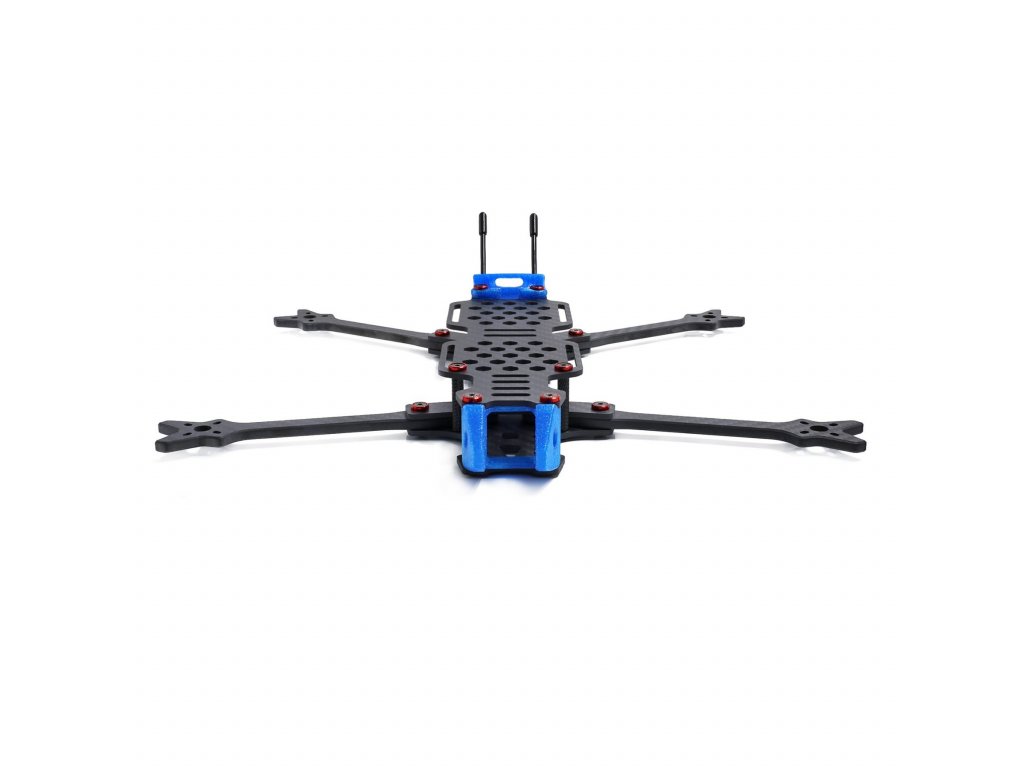

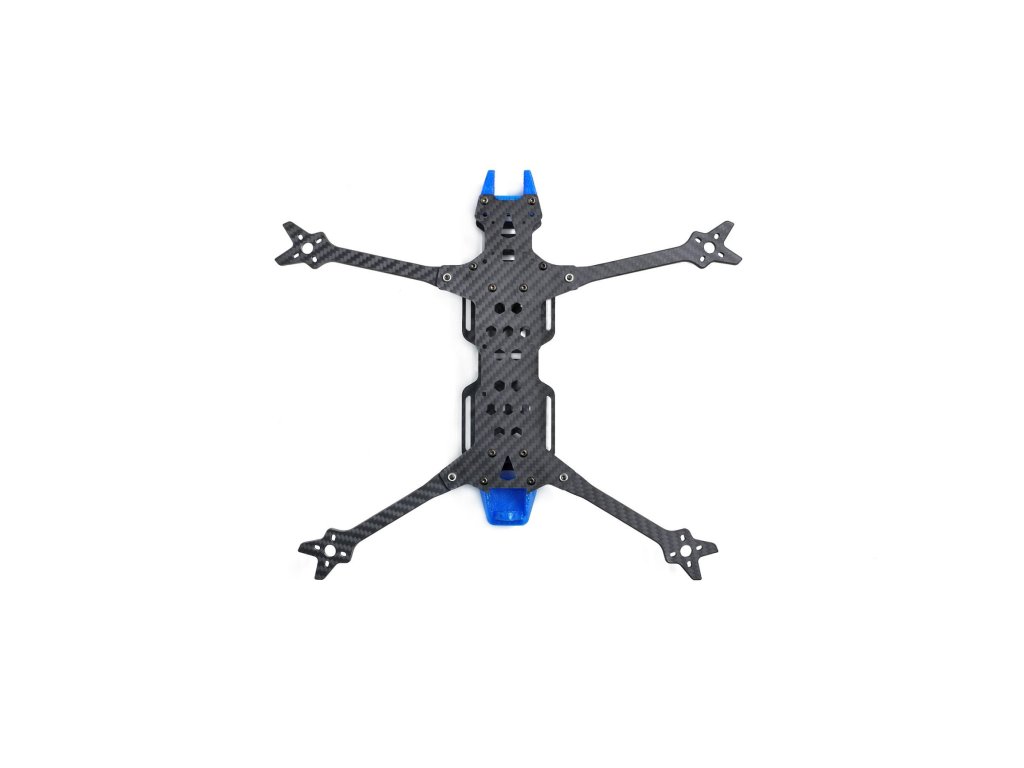

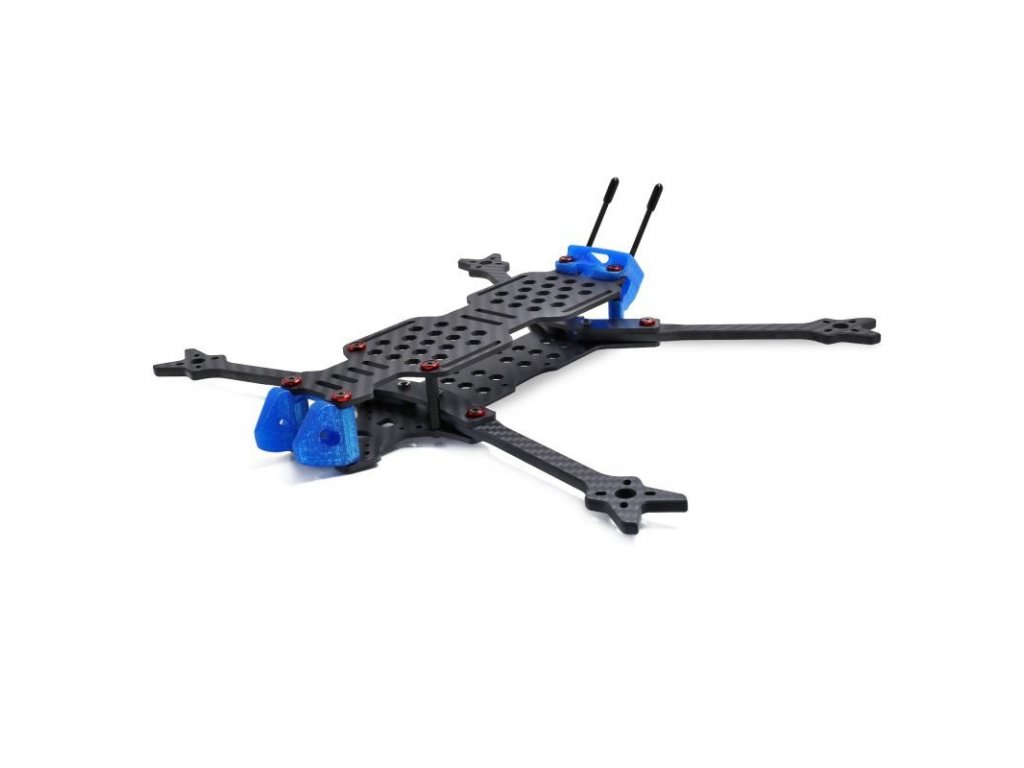

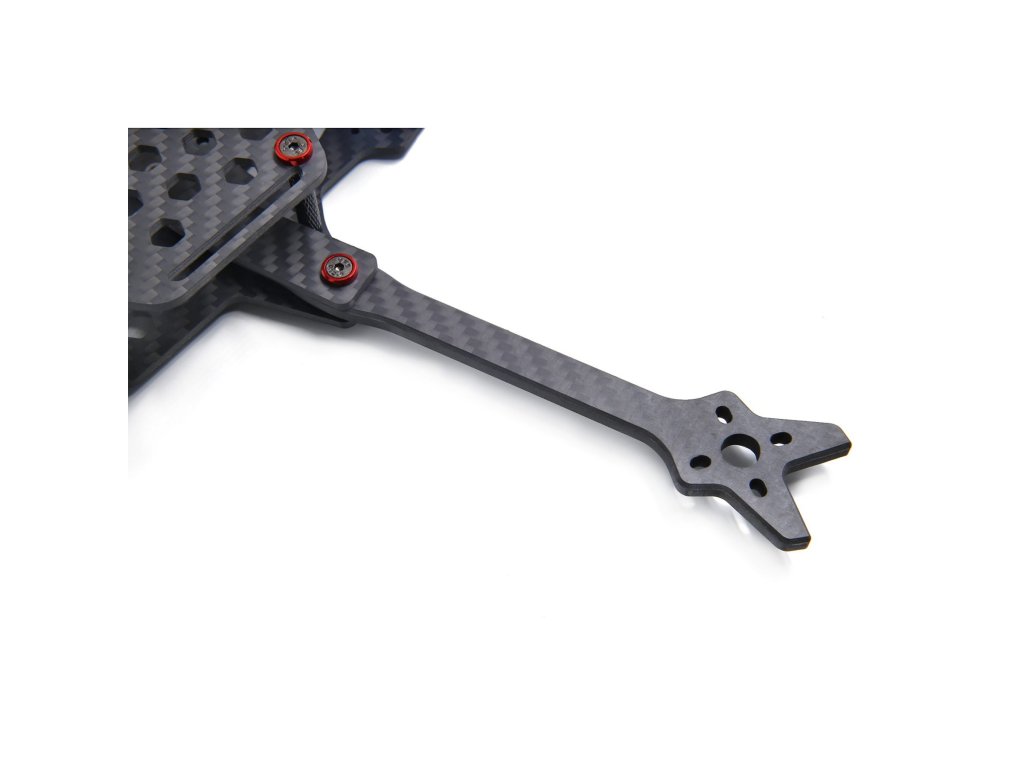

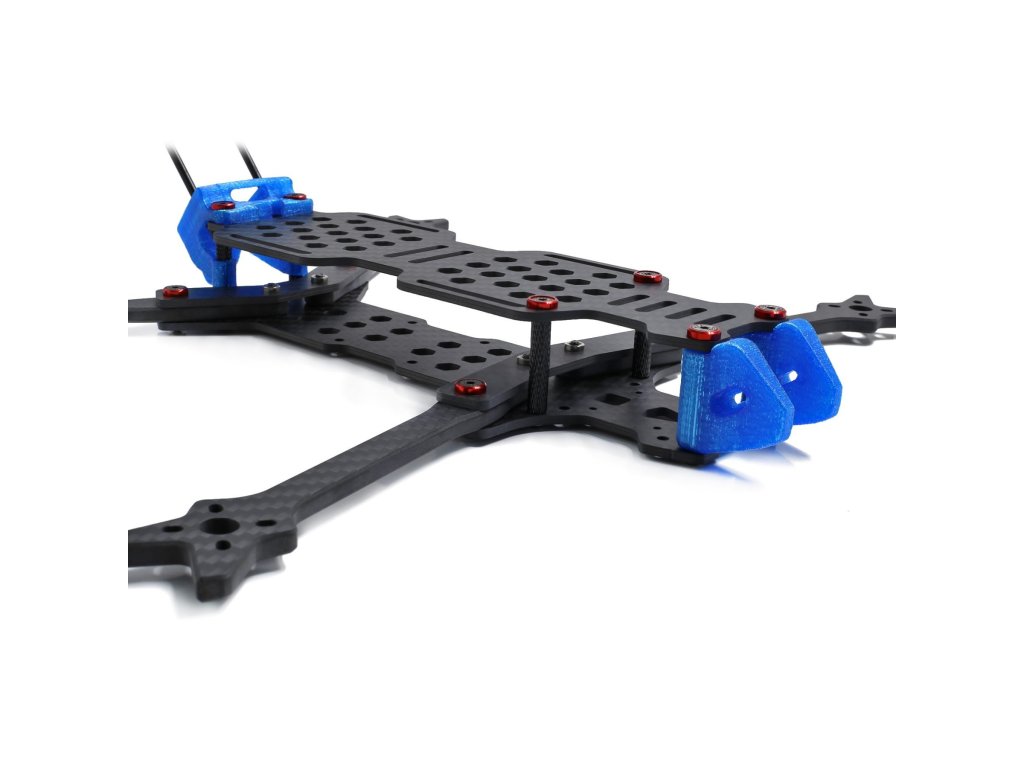

Frame GEPRC GEP-LC7 for Crocodile7 Drone
Code: GP101520Related products
Product detailed description
GEP-LC7 GEPRC GEP-LC7 Crocodile is a 7-inch frame designed for long-range flights. Its large size of 315mm provides stability for extended flights. The frame is compatible with both 6-inch and 7-inch propellers. The front part of the frame features two types of mounting holes, 30.5 x 30.5mm and 20 x 20mm, for the PCB from the Split HD camera. This means you can mount any Split HD cameras available on the RC market, such as RunCam Split 2S, RunCam Split Mini 2, Foxeer Mix, or Caddx Turtle. The FPV camera, antenna, and GPS are secured and protected using TPU plastic components. The mounting hole for the GPS is designed for a size of 22 x 20mm. There is plenty of room in the stack for electronic components. The frame is highly durable and comes with 5mm arms. Specifications: Motor-to-motor size: 315mm Arm thickness: 5mm Top plate: 2.5mm Bottom plate: 2.5mm Camera mounting width: 19mm Weight: 153g Recommendations: Flight Controller: F7/F4/F3/Kiss/RF Motors: 2207 - 1500-1700KV / 2306 - 1500-1700KV / 2407 - 1300-1700KV ESC: 40A-60A Propeller: 6-7 inches Battery: 6S 2200mAh - 6S 2600mAh
Additional parameters
| Category: | FPV Frames |
|---|---|
| Material: | Carbon fiber |
| Camera Mounting: | Micro (19mm) |
| Size: | 7 inch |
| Wheelbase: | 315mm |
| Drone Type: | Long Range |
| The item has been sold out… | |
Be the first who will post an article to this item!
Only registered users may submit ratings. Please log in or sign up.
Be the first who will post an article to this item!
Add a comment
GEPRC is a team of over 100 specialists who are committed to providing users with high-quality FPV drones. There are drones for fun, freestyle, racing, and commercial purposes. Through years of experience accumulation, GEPRC has developed a variety of products, and the company is committed to creating high-quality FPV drones and parts (electronics, motors, frames, etc.) to help more people get into the FPV hobby.
