Frame GEPRC for Cinelog20

Product detailed description

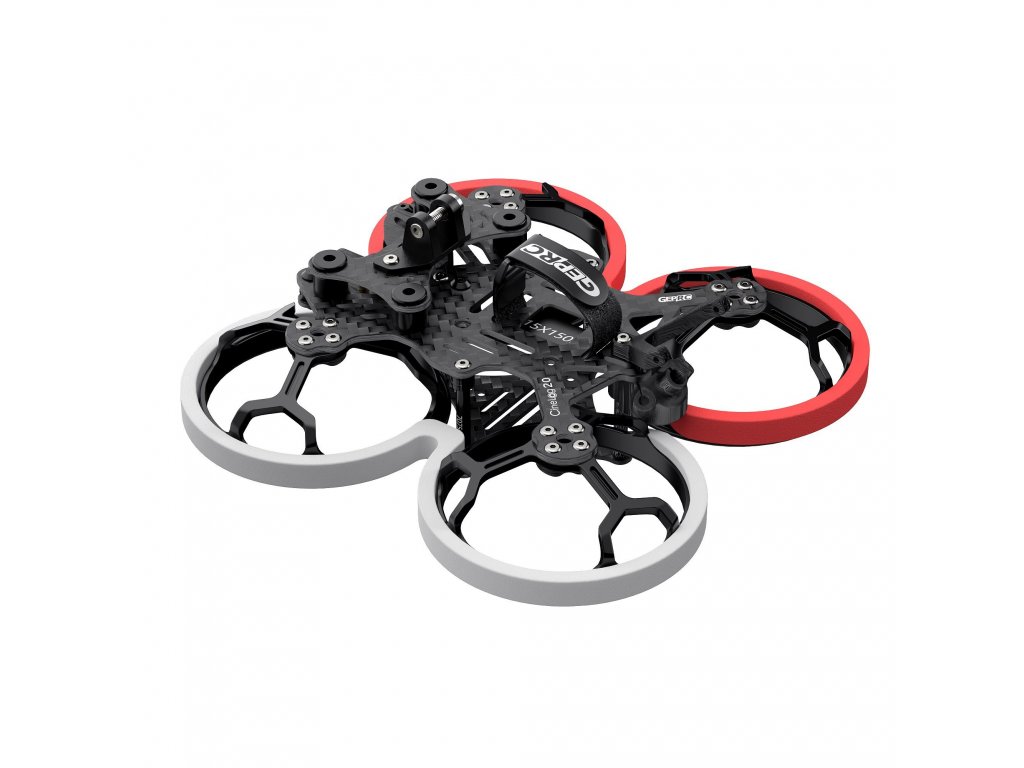

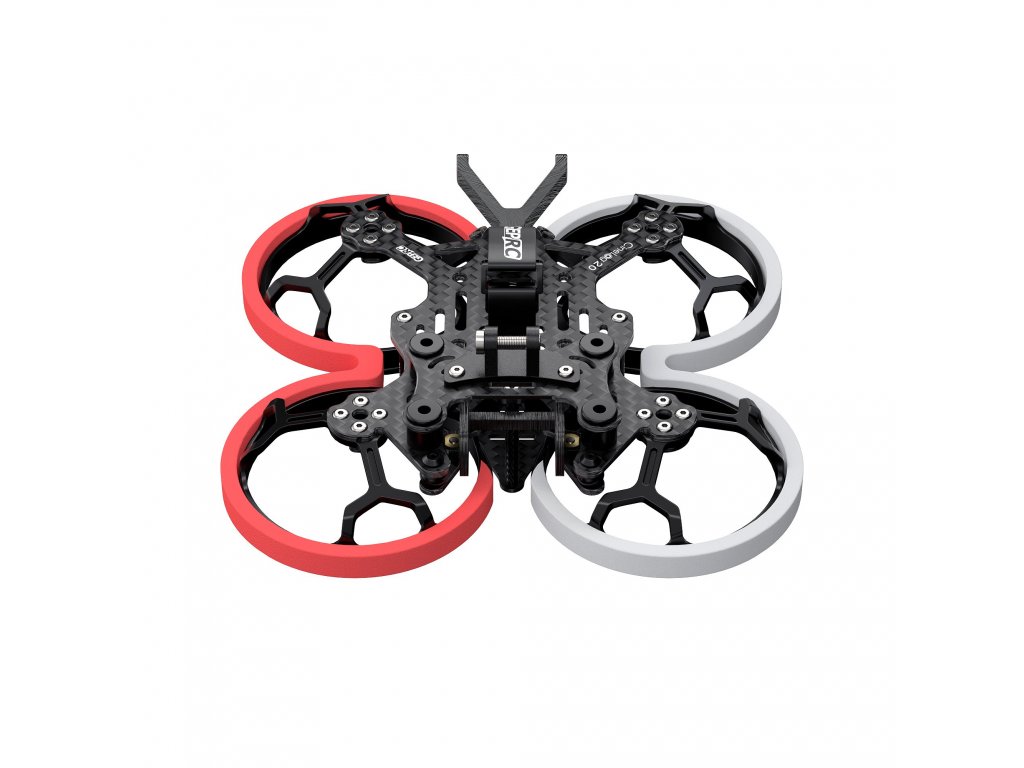

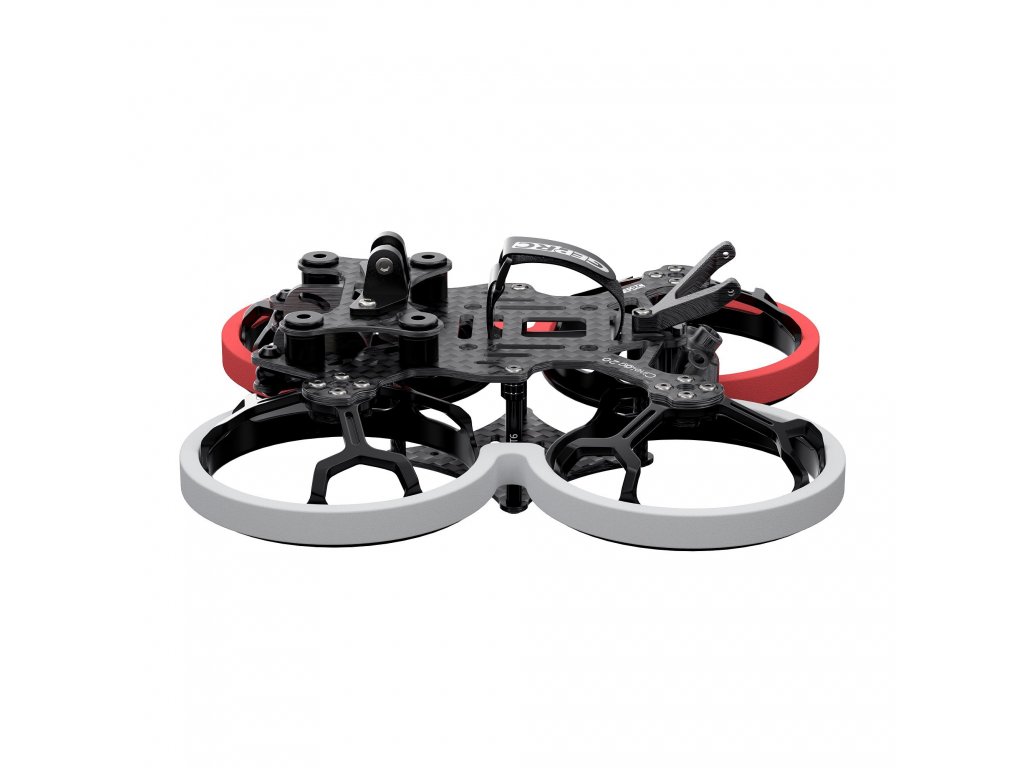

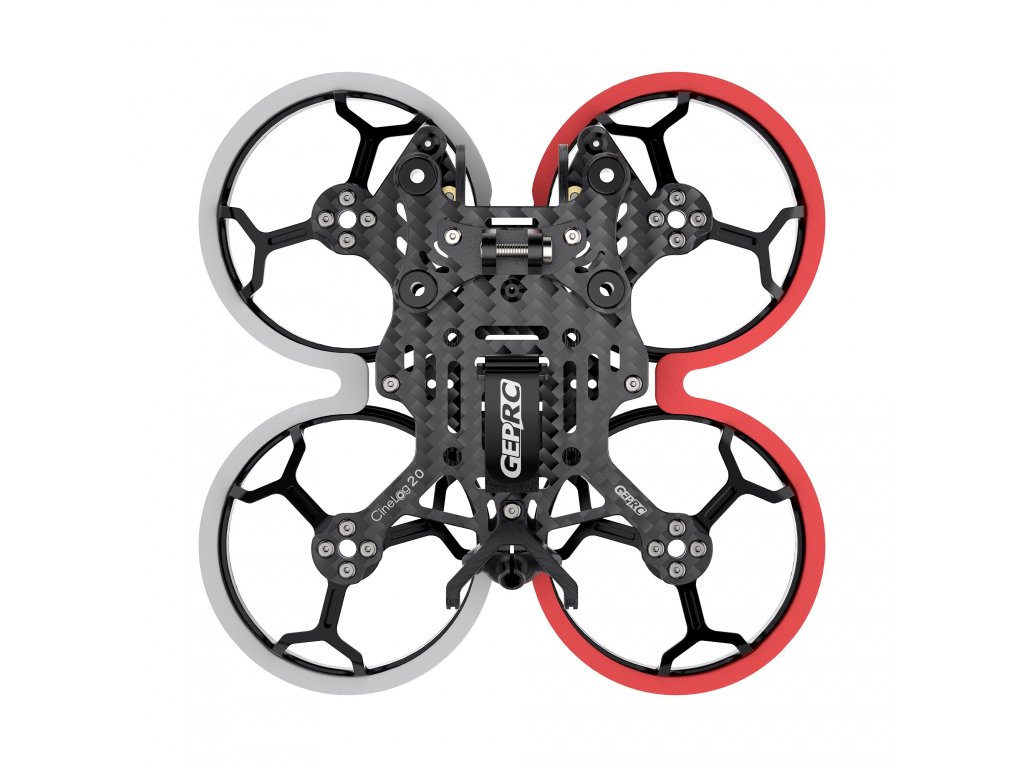

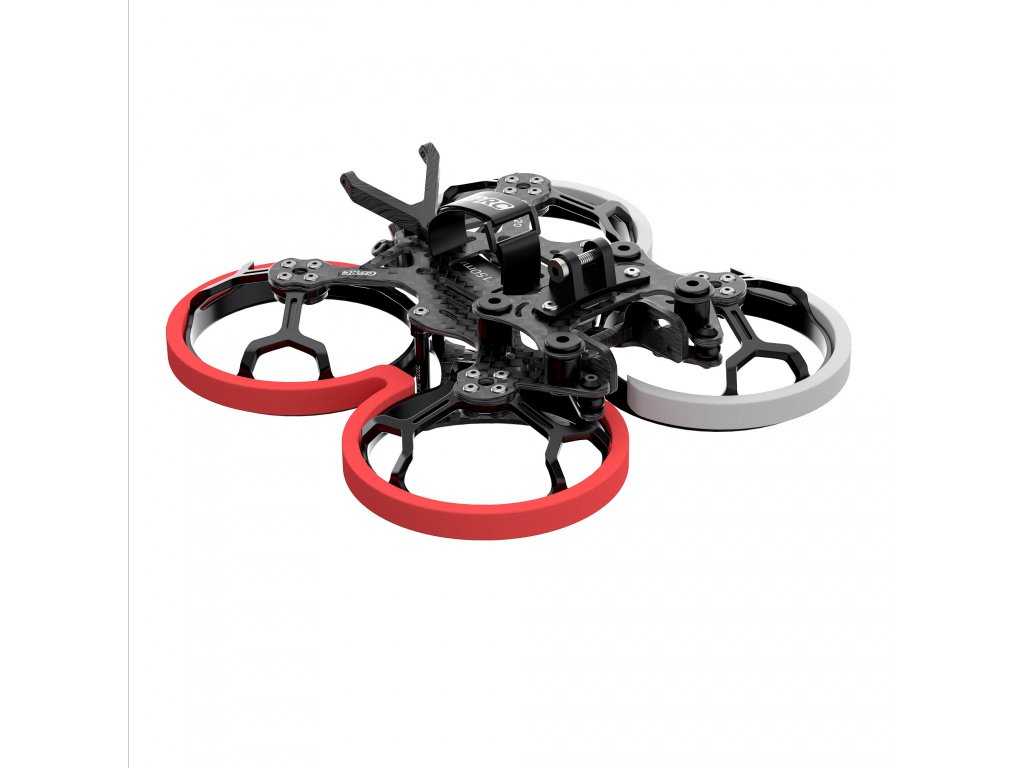

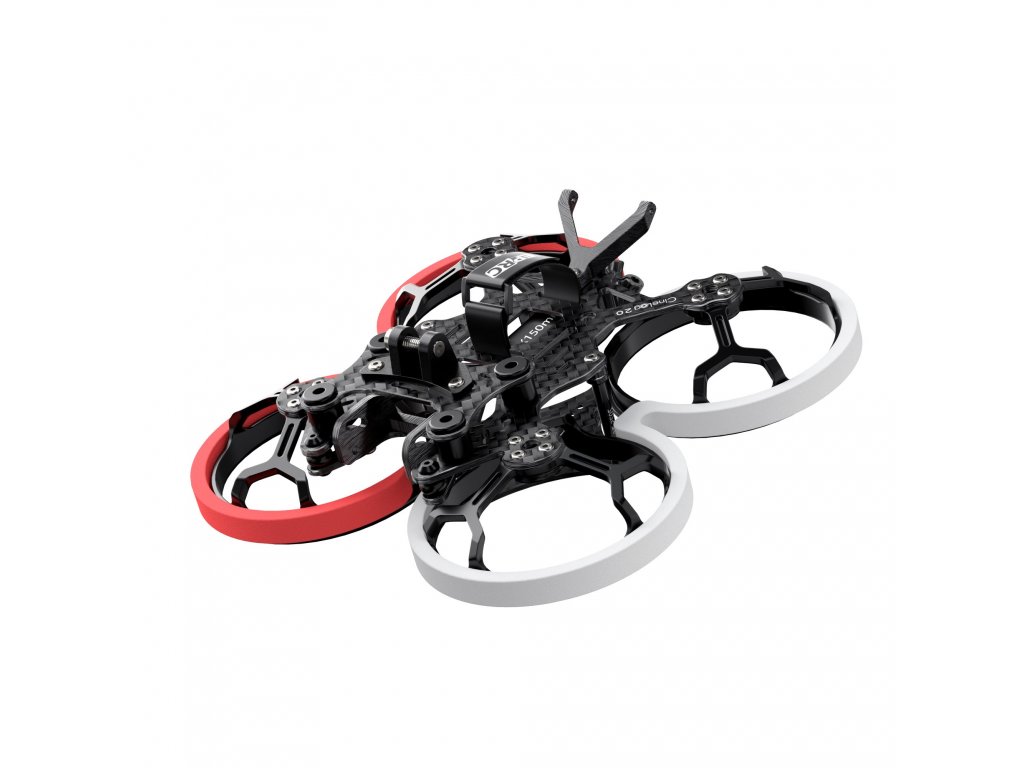

GEP-CL20 Frame

The 2-inch frame can be shuttled in a narrow space, and can be adapted to O3 VTX, and can also shoot shocking effects in a narrow space. The resigned camera gimbal can easily eliminate high-frequency vibration and jello issues. The soft connection damping design of the camera gimbal can also be mounted with a naked GP camera base, which supports the installation of Naked camera GP8/910/11, Insta360 Go2, and DJI Action2 cameras.

The flight controller mounting hole spacing is 25.5mm*25.5mm, which is compatible with various VTX holes on the market with 20mm*20mm/25.5mm*25.5mm. The 9mm * 9mm motor mounting hole is used to install larger 12-13 series motors, and the compact body makes the flight more confident.

Specification
Model: GEP-CL20

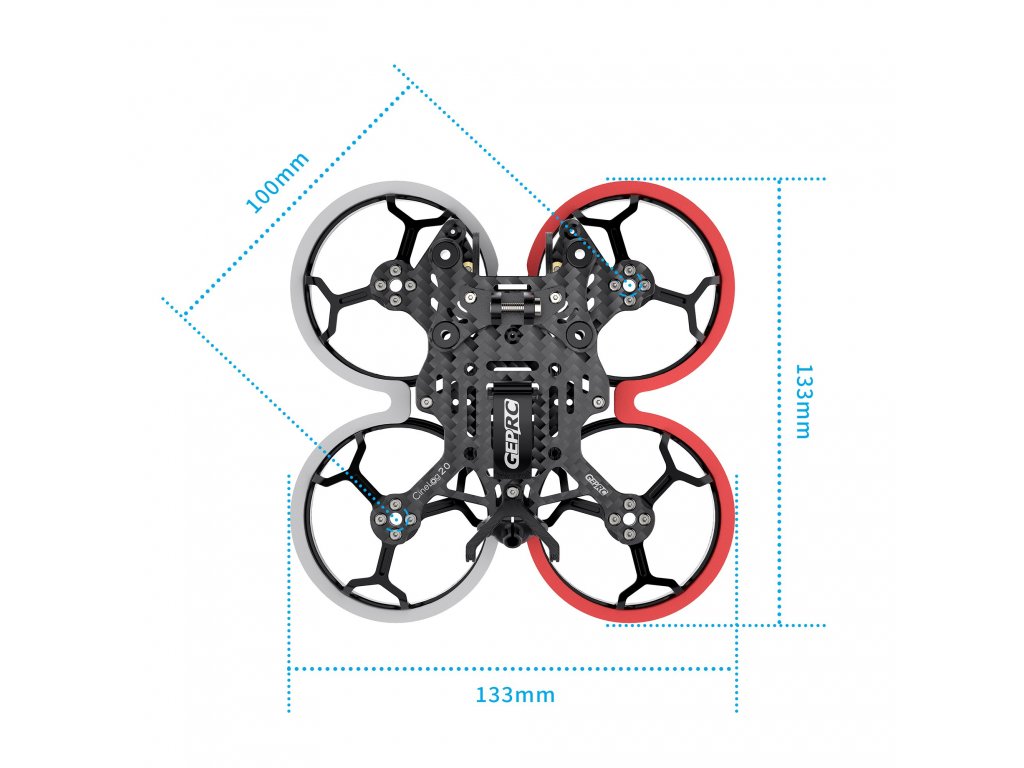

Wheelbase: 100mm
Main plate: 2.5mm
Bottom plate: 1.5mm
Camera gimbal plate: 2.0mm
Motor plate gasket: 2.0mm
FC mounting holes: 25.5mm x 25.5mm
VTX mounting holes: 20mm x 20mm /25.5mm x 25.5mm
Motor mounting holes: 9mm x9mm
FPV camera spacing: 20mm
Suitable propeller size: 2-inch propeller
Weight: 53.4g
Flight controller: GEP-F4-35A AIO (mounting holes: 25.5mm×25.5mm)
Motor: 1303.5 (mounting holes: 9mm×9mm)
ESC: 35A
Propeller: 2 inch

Feature
1. Combining aesthetics and engineering for compact design
2. Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image.
3. 2-inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting.
4. SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers make the flight shooting unhurried.
5. Design the outer EVA damping ring to effectively reduce the impact force.
