Frame HGLRC Wind5 V2 Lite

Product detailed description

Frame HGLRC Wind5 V2 Lite

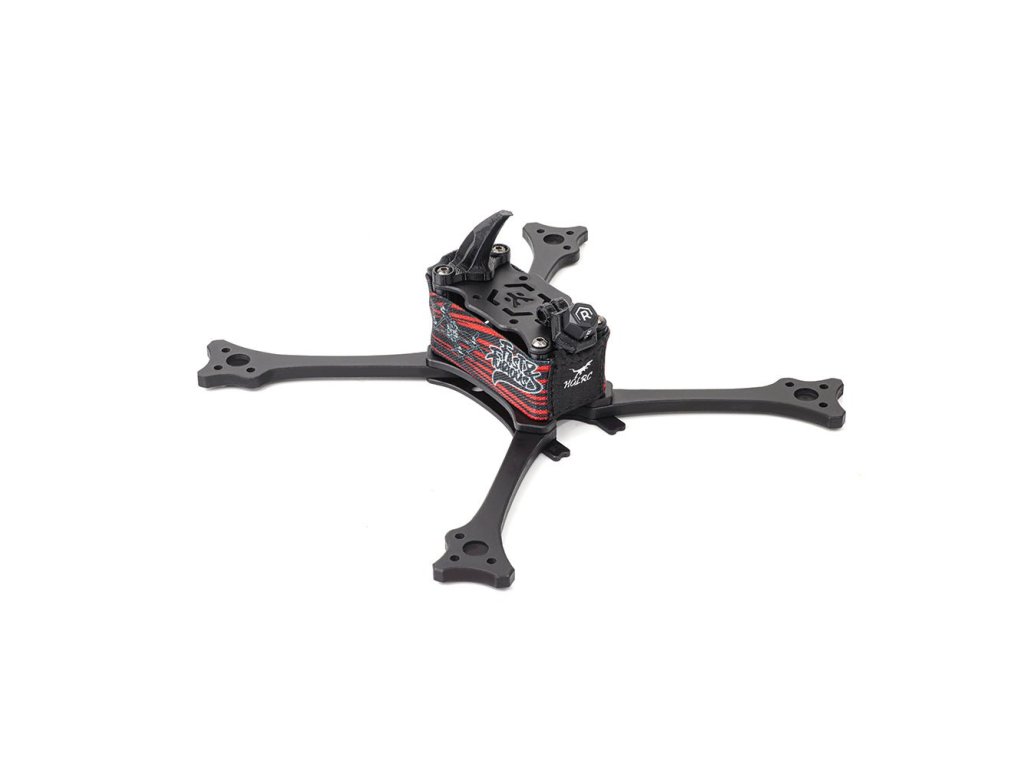

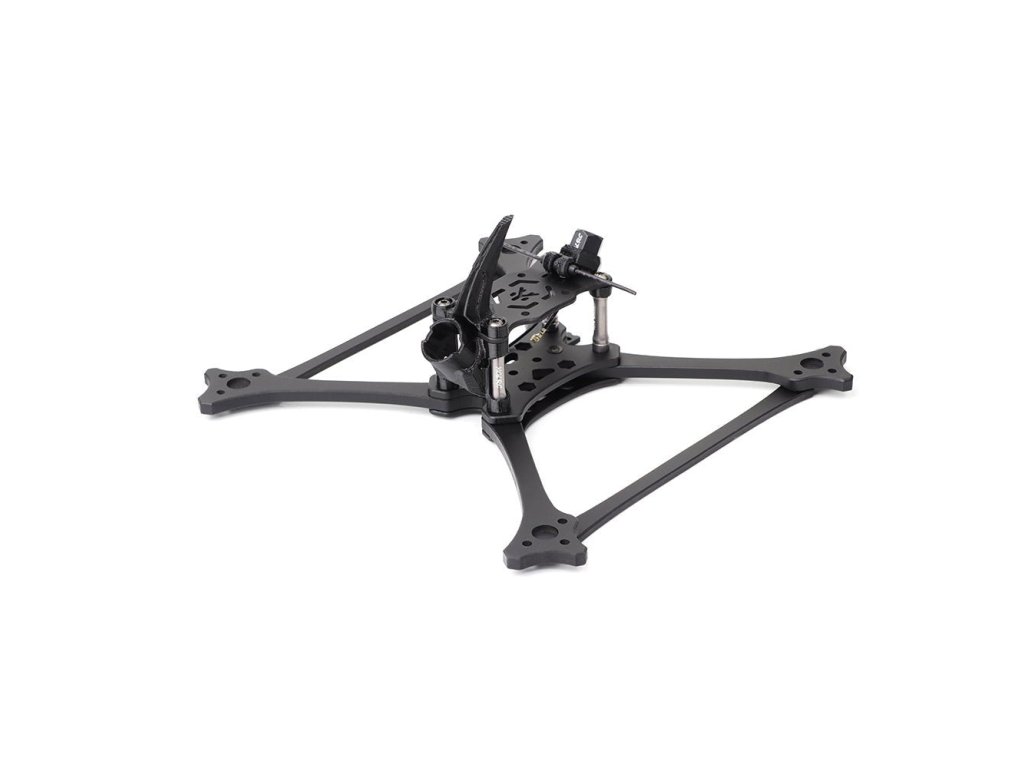

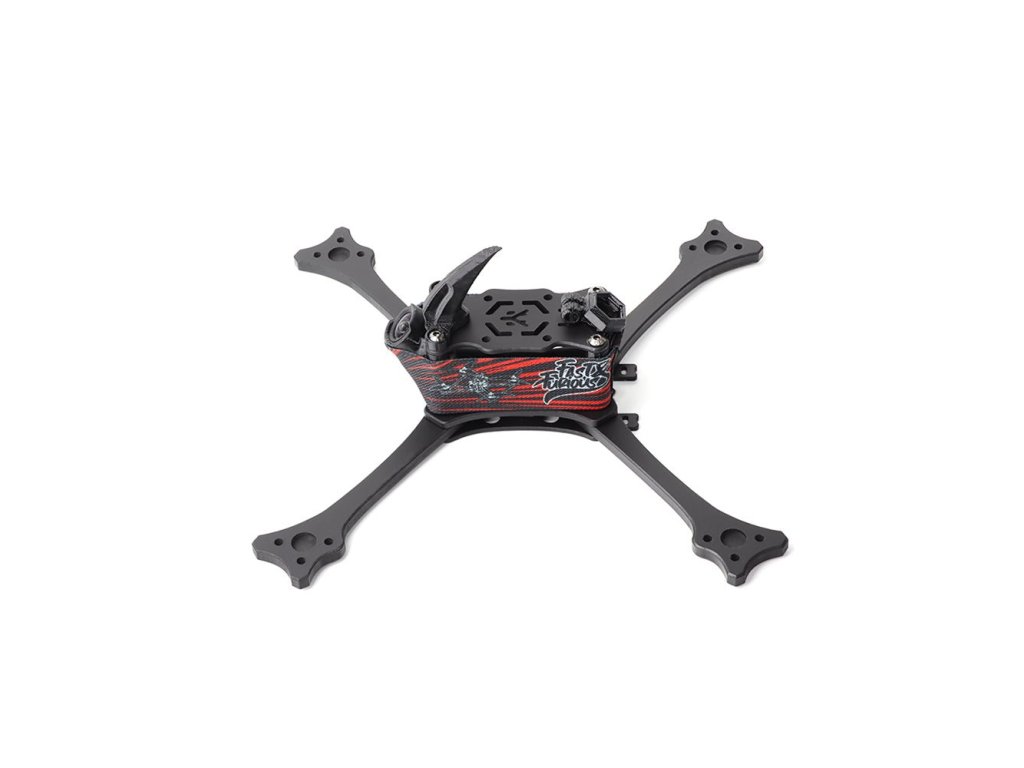

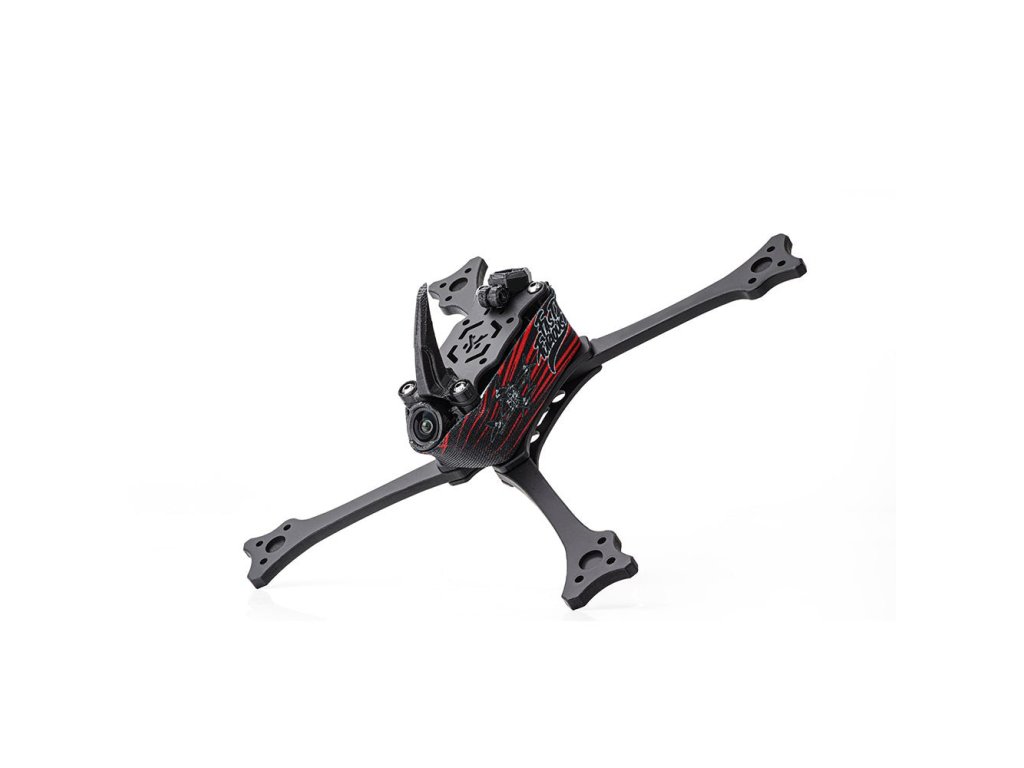

The HGLRC Wind5 V2 Lite is a lightweight and high-performance racing drone frame designed for competitive FPV racing. Featuring a positive X structure with a 195mm wheelbase, it provides improved agility and flight responsiveness. Built with Toray-T700 carbon fiber and 7075 aviation-grade aluminum columns, this frame ensures exceptional durability while maintaining a lightweight profile. The quick-release arm design allows for easy maintenance, making it an excellent choice for professional racers.

Specifications:

- Material: Toray-T700 carbon fiber + 7075 aviation-grade aluminum
- Frame Wheelbase: 195mm
- Installation Space: 26mm
- Flight Controller Mounting Holes: 20x20mm (M3)
- VTX Mounting Holes: 20x20mm (M3)
- Motor Mounting Holes: 16x16mm (M3)
- Frame Dimensions (L x W x H): 172.5mm x 169mm x 70mm
- Default Camera Mount: FOXEER Predator 5 NANO (45-degree mount)
- Frame Thickness: Top Plate: 2mm / Middle Plate: 3mm / Bottom Plate: 2mm / Arms: 5mm / Protective Rod: 3mm
- Weight (Single Frame): 69.5g (including printed parts, aluminum columns, and screws)

Package includes:

- Frame HGLRC Wind5 V2 Lite
