Frame BETAFPV Pavo20 Pro II Brushless Whoop Frame O4 Pro Transparent Grey

Product detailed description

Frame BETAFPV Pavo20 Pro II Brushless Whoop Frame O4 Pro Transparent Grey

The Pavo20 Pro II Brushless Whoop Frame is a rugged, aerodynamic chassis crafted for the 2.2″ cinewhoop builds, now with full support for both the DJI O4 and O4 Pro Air Units through an upgraded carbon plate. Its stiff, four‑screw mount system and thick PA12 ducts ensure crash resilience without compromising performance. Designed for 3S setups, it gives you a compact yet powerful platform for HD cinematic or freestyle flying.

Features:
- Fast and secure building thanks to a 4-screw design and embedded nuts — no fiddly alignment needed.
- Built-in vibration damping and a supported structure keep the frame rigid and stable, ideal for smooth HD footage.
- Durable PA12 ducts are impact-resistant and shaped for airflow, helping to increase thrust while protecting propellers.
- Compatibility with both O4 and O4 Pro means future-proof flexibility for HD video setups.
- Open-ended battery mount provides a rock‑solid hold without limiting your pack options.

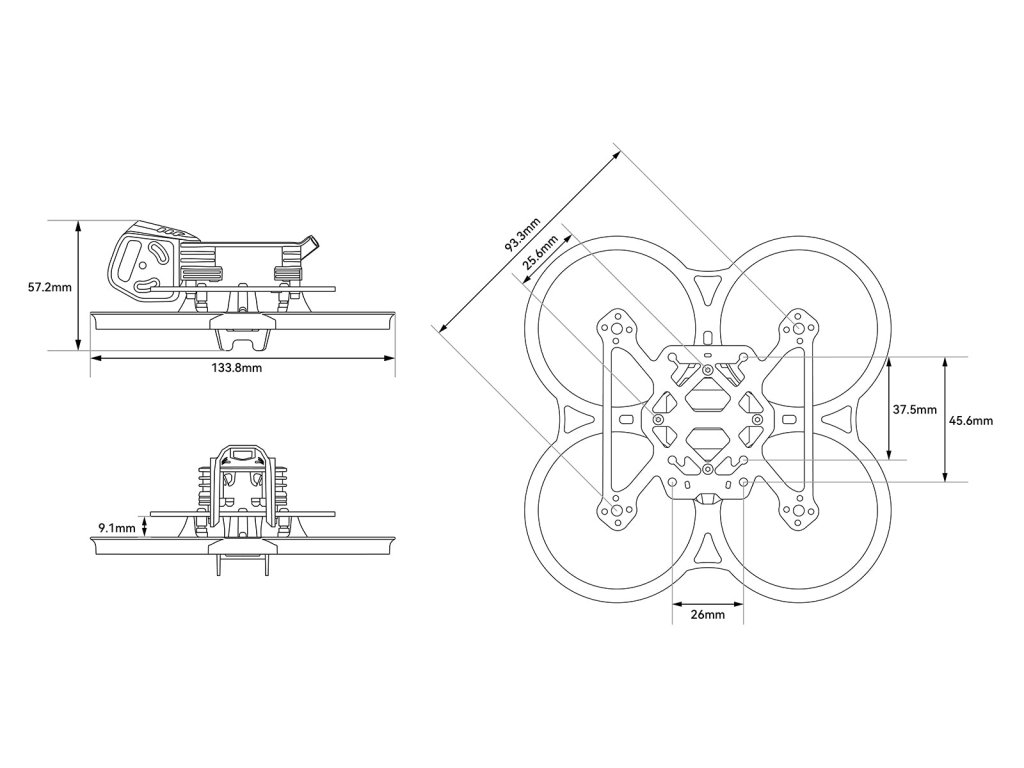

Specifications:
Wheelbase: 93.9mm
Material: PA12 / PP
Top plate thickness: 2mm

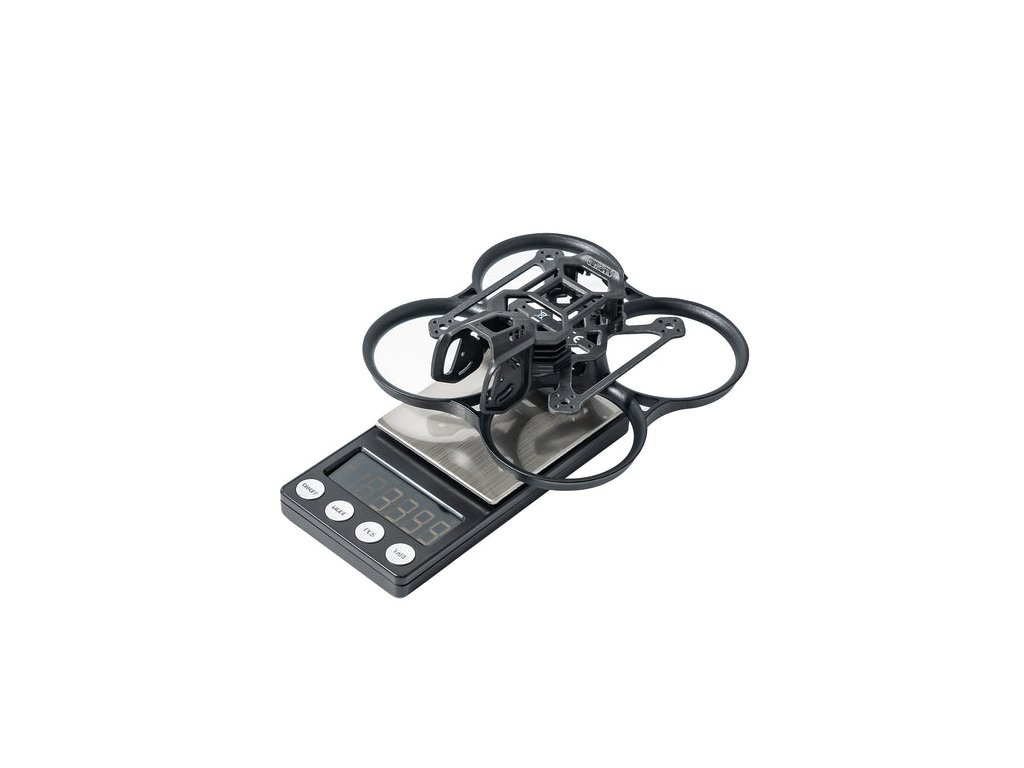

Frame weight: 34g (with O4 Air Unit Pro bracket)
Whoop duct weight: 18.8g
Color options: Transparent Grey
Camera mounting spacing: 20mm
FC mounting: 26x26mm
Motor mounting: 4xM2, hole diameter φ 9 mm
Battery slot width: 20mm
Camera filter support: Yes

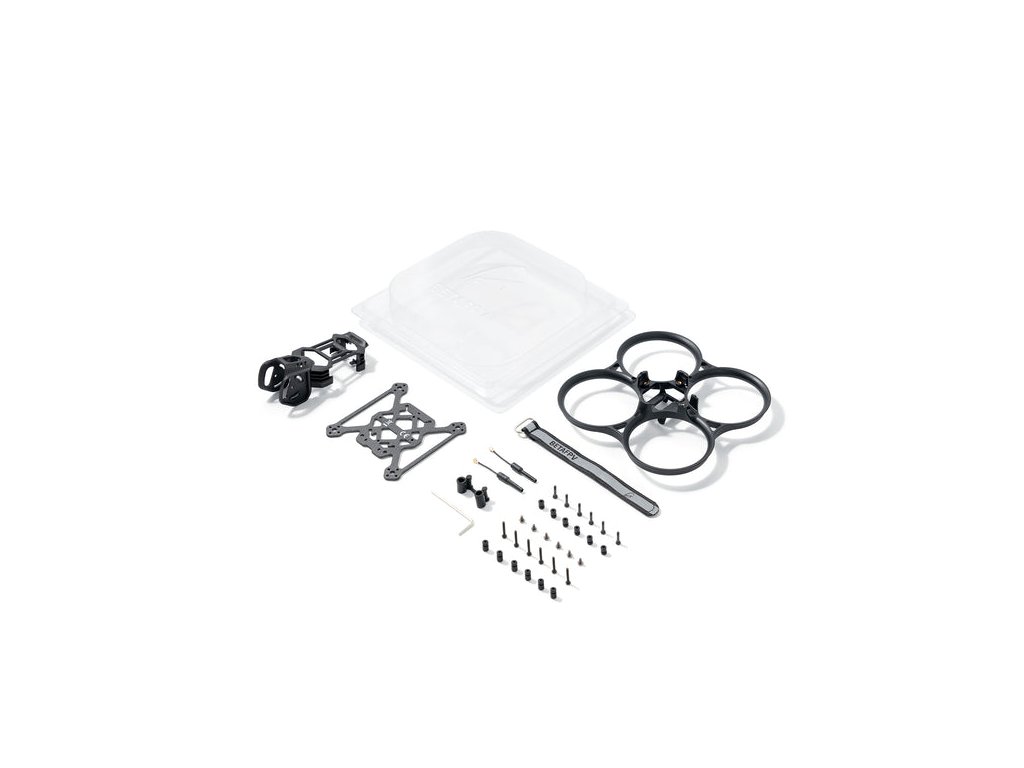

Package includes:
1x Pavo20 Pro II Top Plate
1x Pavo20 II Whoop Duct
1x O4 Air Unit Pro Bracket
6x Shock-absorbing Balls for Flight Controller (8mm)
6x Shock-absorbing Balls for O4 Air Unit Pro Bracket (6.6mm)
6x M2x10 Screws
6x M2x4 Screws
6x M2x14 Screws
1x 130mm Battery Strap
2x 5.8g Antenna
1x 5.8G VTX Antenna Mount
1x H1.5 Hex Screwdriver
