FPV Thermal Camera HobbyDrone Mini2 384x288

Product detailed description

FPV Thermal Camera HobbyDrone Mini2 384x288

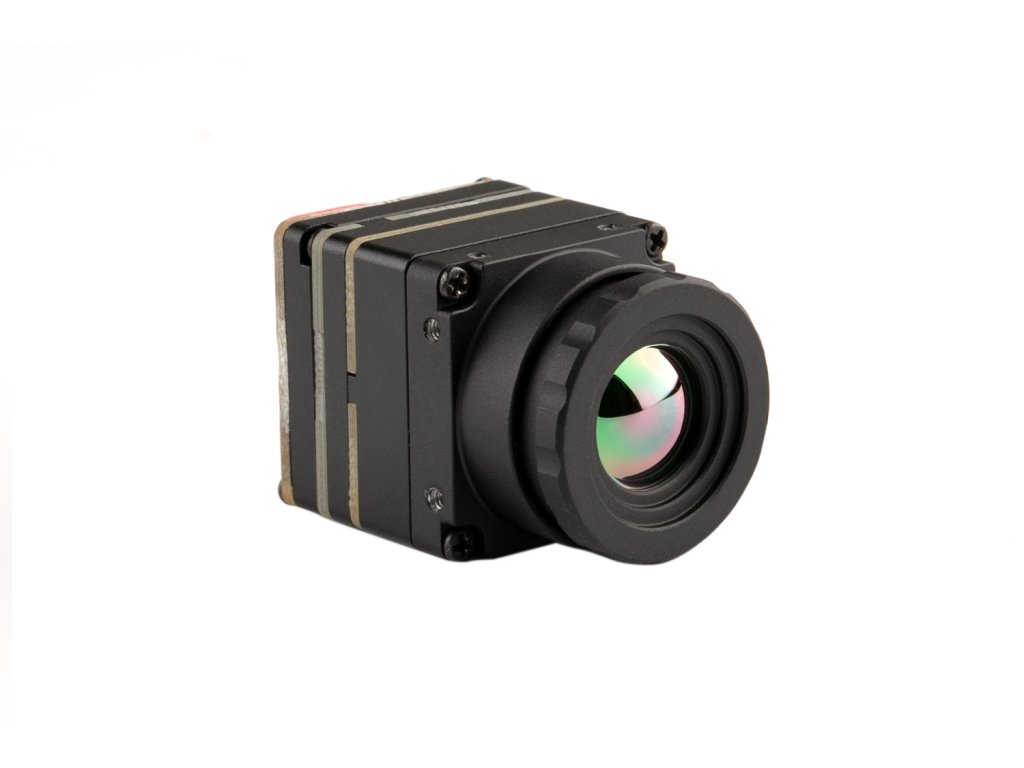

The HobbyDrone Mini2 384x288 is a high-performance uncooled infrared thermal camera designed for FPV, UAV, and industrial vision systems. Featuring a vanadium oxide detector with 25mK sensitivity, it captures crisp thermal images with smooth 30/60Hz frame rates. Its lightweight, compact design and versatile interfaces make it ideal for integration into drones and compact imaging setups.

Features:
- Vanadium oxide uncooled IR focal plane array for high sensitivity and stability
- High 384x288 thermal resolution with 12μm pixel pitch
- Real-time 30/60Hz frame rate and <12ms response time
- Multiple palettes: white-hot, black-hot, and color modes for flexible imaging
- Continuous 1.0–8.0x digital zoom with mirroring options
- Dual correction methods: shutter and shutter-less for consistent performance

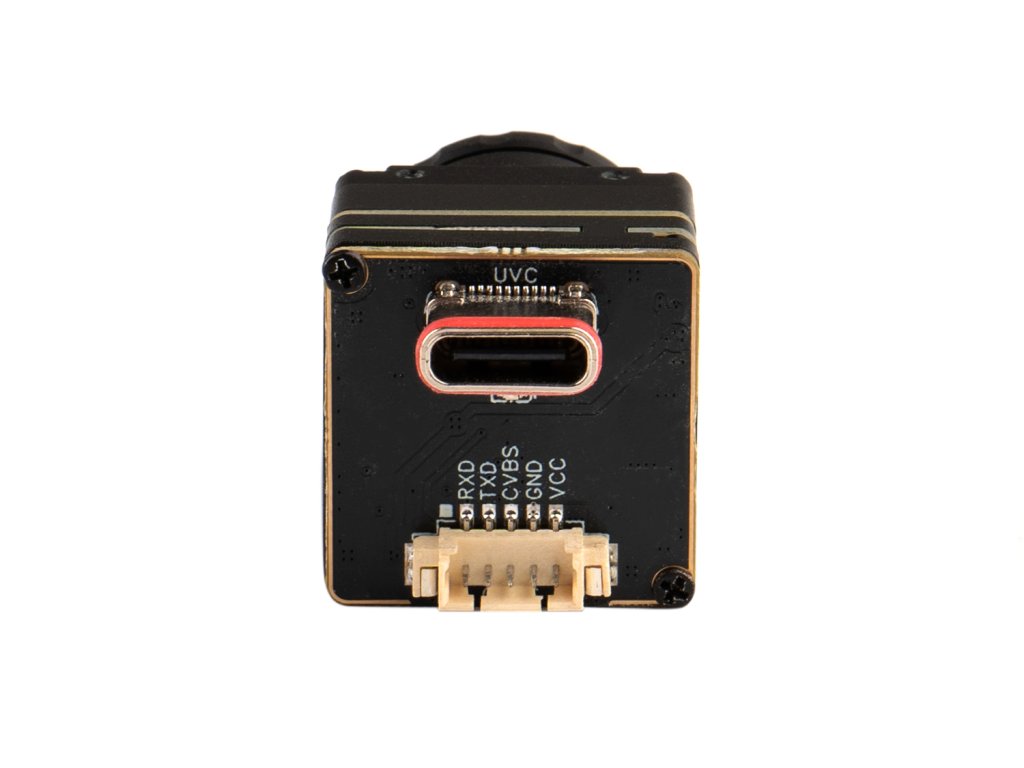

- Multi-interface support including USB, UART, I²C, and DVP
- Ultra-light, compact module for easy integration on drones and embedded systems
- Designed to withstand extreme temperatures, vibration, and impact

Specifications:
Overview:
Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane Detector
Resolution: 384x288
Effective Frame Rate: 30/60Hz
Pixel Pitch: 12μm
Spectral Band: 8~14μm
Noise Equivalent Temperature Difference (NETD): 25mK@25 °C,F#1.0,25Hz
Thermal Time Constant: <12ms

Image Adjustment:
Non-uniformity Correction: Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment: 0~100, optional
Polarity/Palette:White-hot/Black-hot/Various palettes supported
Digital zoom: 1.0~8.0xcontinuous zoom (step size: 0.1)
Image Mirroring: Vertical/Horizontal/Diagonal

Electricity Parameters:
Analog Video: PAL/NTSC
Digital Video: DVP/BT656/USB2.0/MIPI
Communication Interface: UART/12C/USB2.0
Power Supply Input: 5V
Typical power consumption of USB output @25°C: <0.42W

Physical Characteristics:
Weight (without lens): <7g
Dimensions (without lens): 21x21x10.3 mm

Environment Adaptability:
Operating Temperature: -40 °C~+80°C
Storage Temperature: -50°C~+85°C
Humidity: 5%-95%, non-condensing
Vibration: 6.06g, random vibration, all axes
Impact: 80g, 4ms, final peak sawtooth wave, three axes and six directions

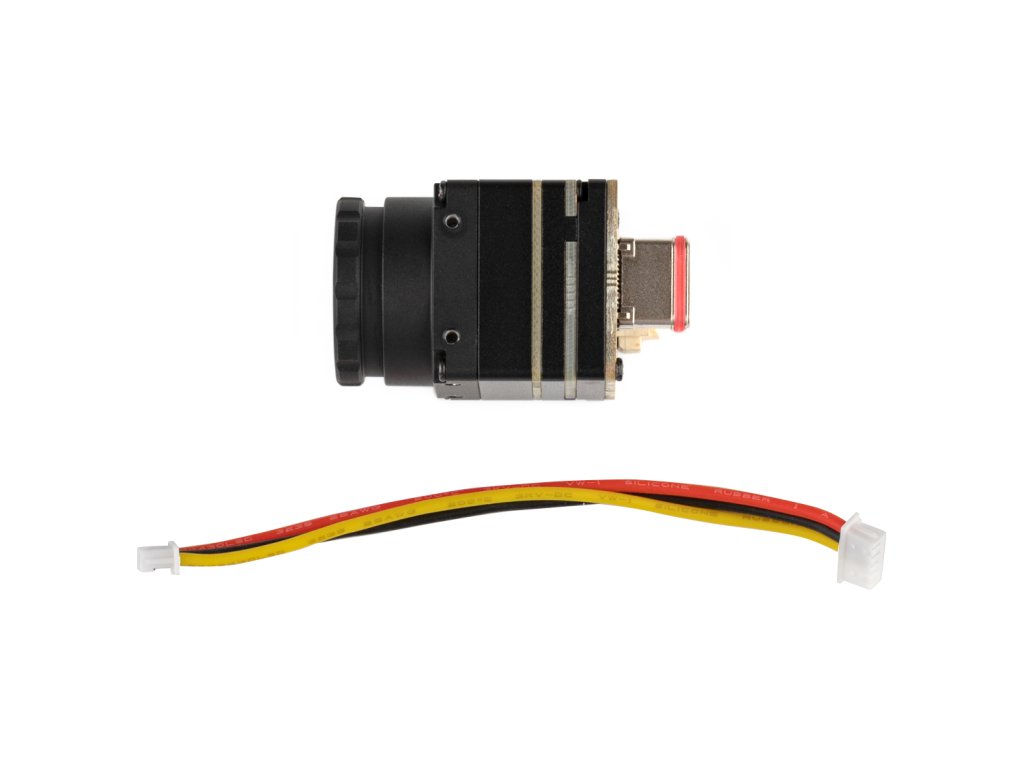

Package includes:
1x FPV Thermal Camera HobbyDrone Mini2 384x288
1x Interface Cable
