FPV drone Pilotix Spark 2inch Cinewhoop 4S O4 PNP

Product detailed description

FPV drone Pilotix Spark 2inch Cinewhoop 4S O4 PNP

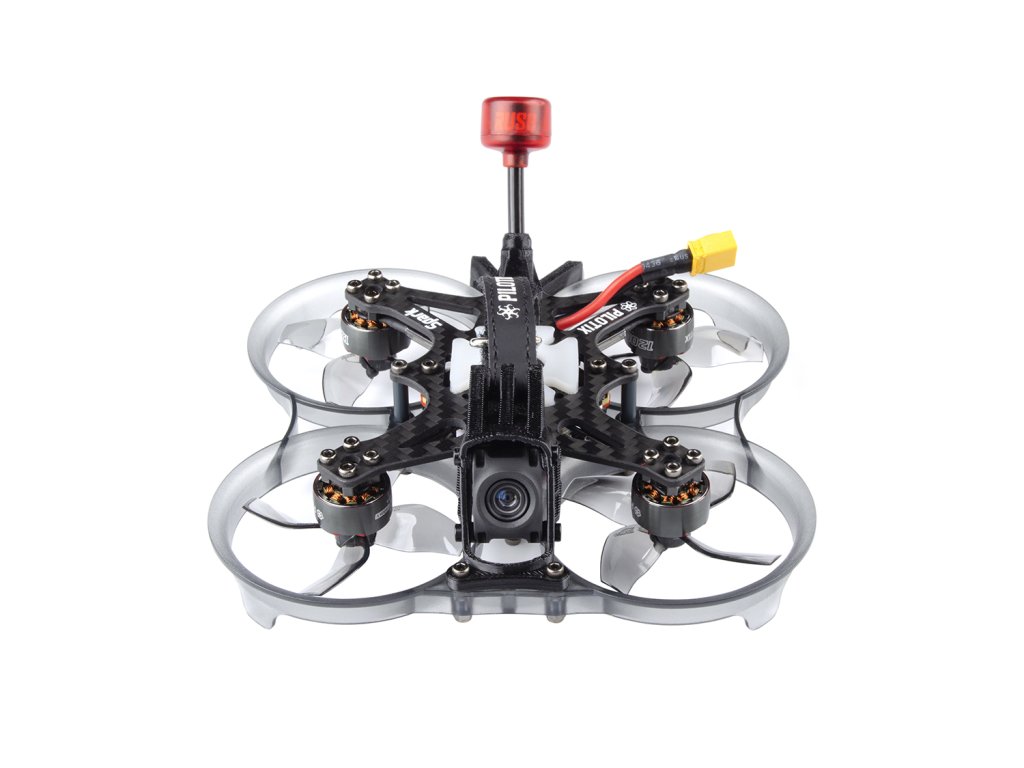

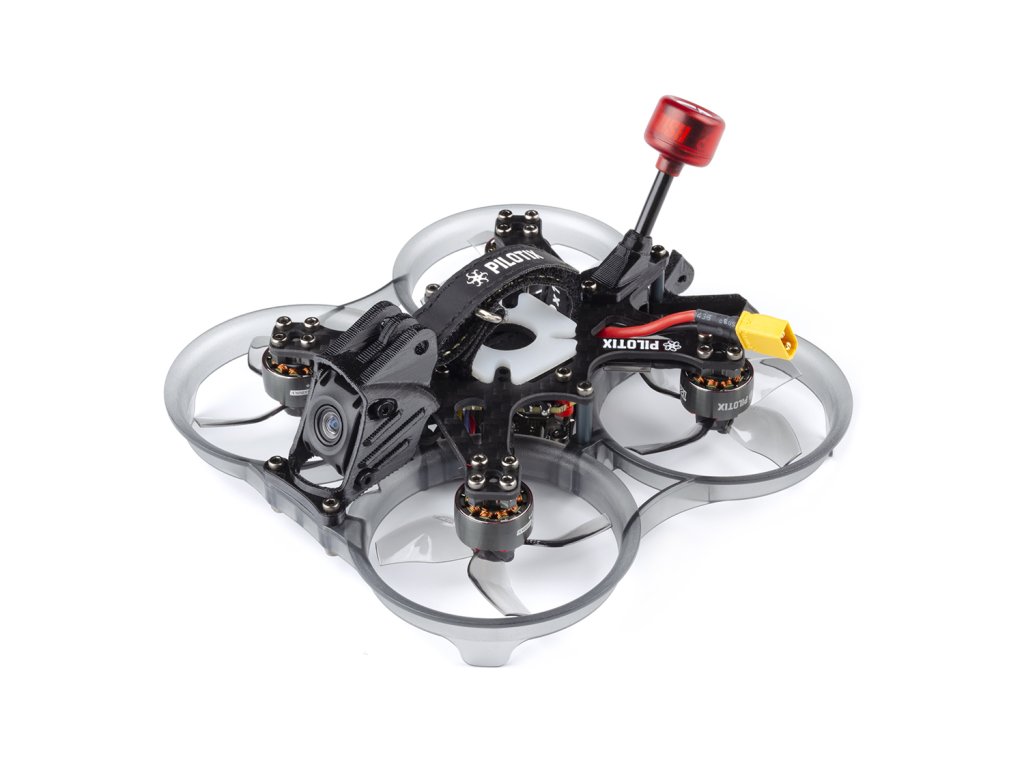

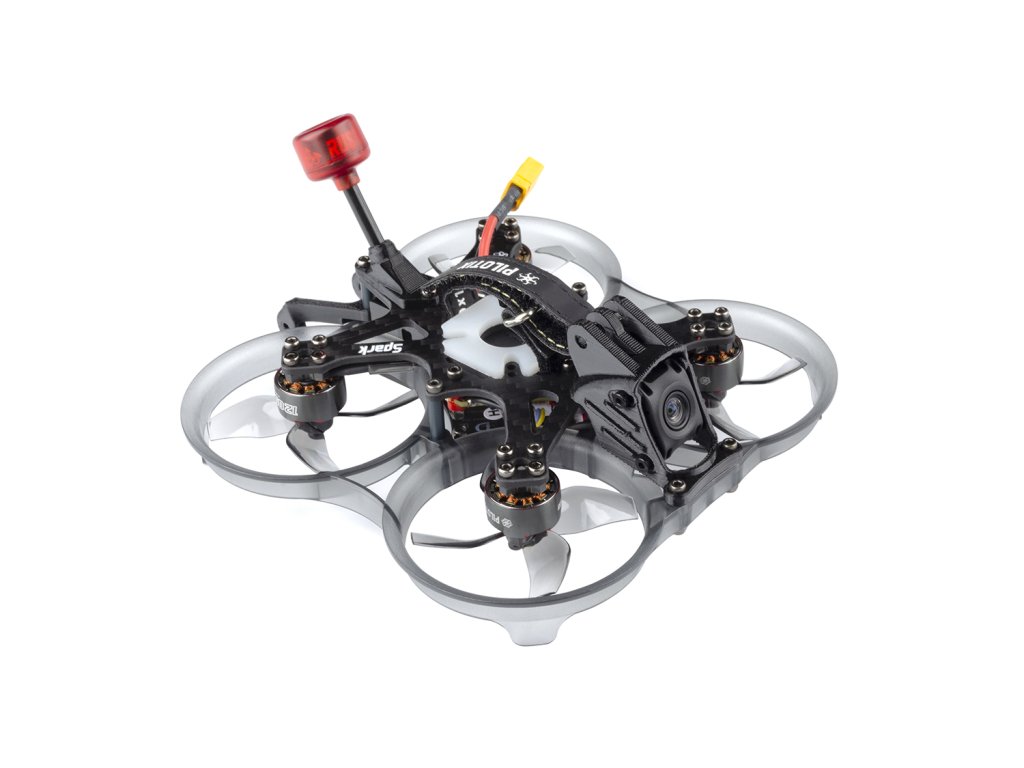

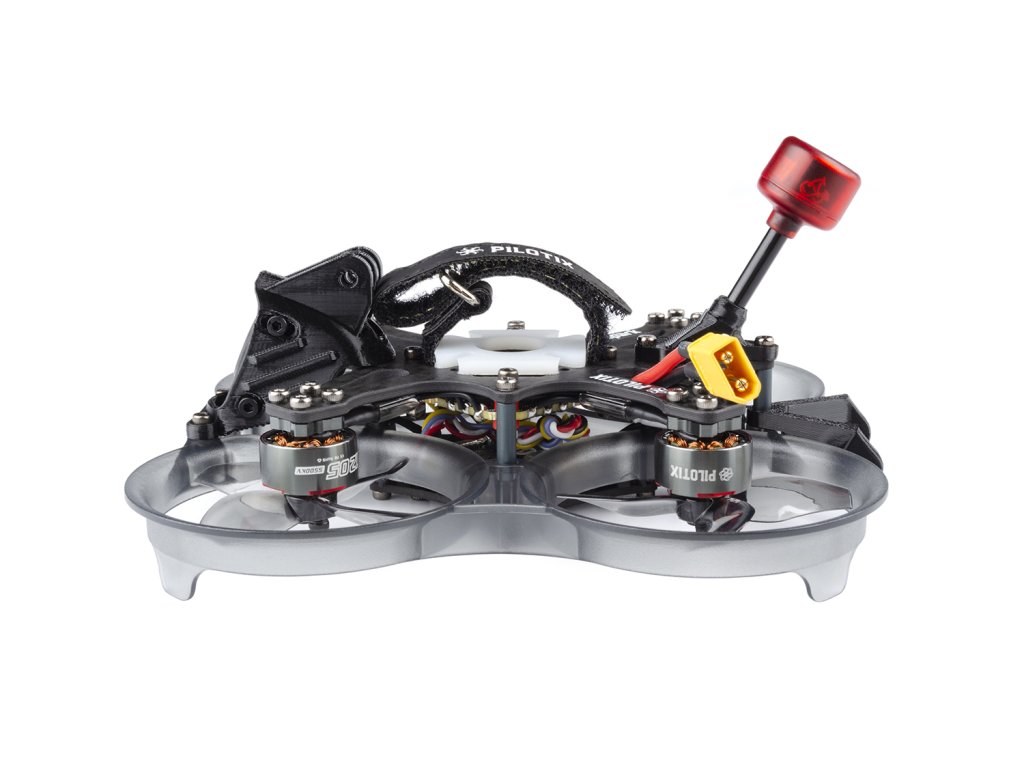

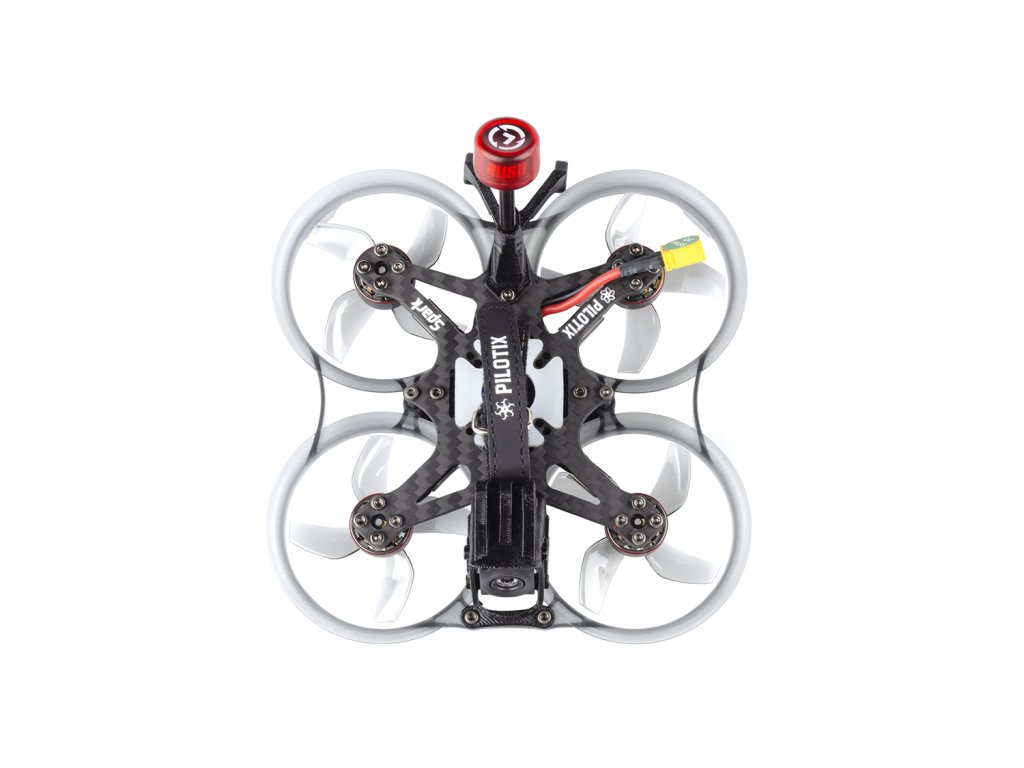

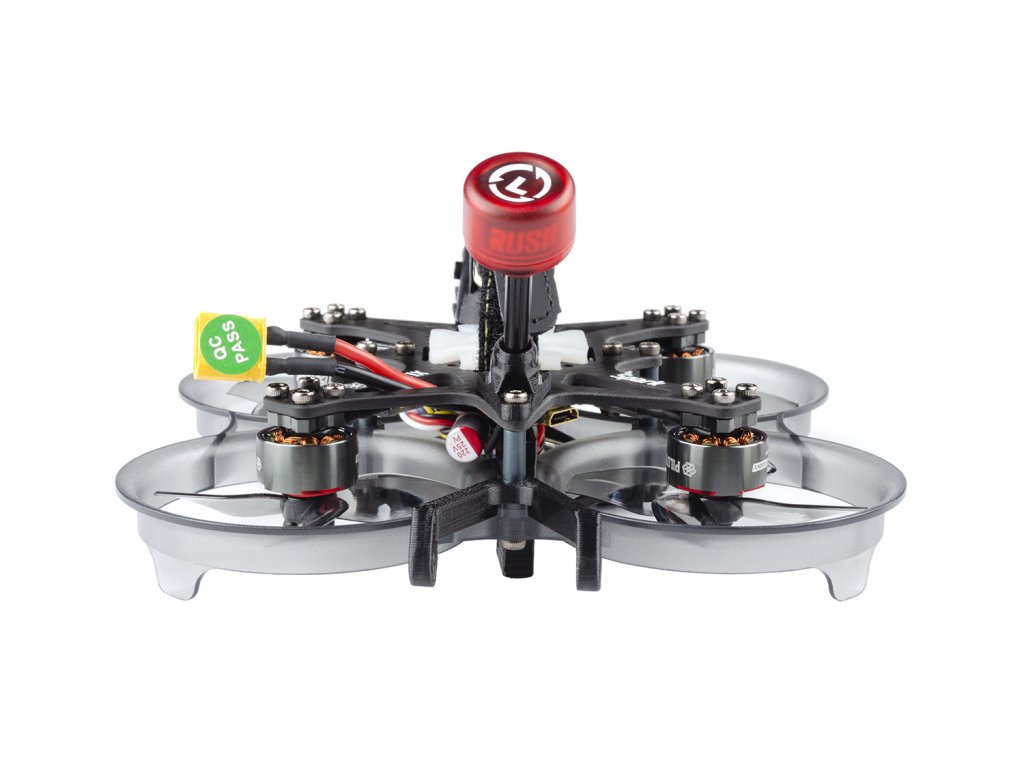

The Pilotix Spark 2inch Cinewhoop is a compact and powerful FPV drone designed for smooth cinematic flights in tight spaces. Featuring a durable, lightweight frame with propeller guards, it ensures safe indoor and outdoor operation without compromising agility. Equipped with high-efficiency brushless motors and a 4S power system, it delivers stable, responsive control with impressive flight times.

At the core of the Spark is the JHEMCU UPDATED GHF405-HD AIO F4 flight controller with OSD and a built-in 40A Bluejay 2–6S 4in1 ESC, providing reliable performance, advanced tuning options, and precise handling for both beginners and experienced pilots.

The Spark HD comes equipped with the DJI O4 video transmission system, offering ultra-low latency, extended range, and crystal-clear digital video, ensuring a reliable and immersive FPV experience in any environment.

How to bind your DJI Controller to the Spark O4:

1. In DJI Goggles go to Setting → Control → Protocol and select SBUS Baud Fast
2. In Betaflight Configurator:
- Go to tab CLI, type: set sbus_baud_fast = ON, press enter, then type save
- In PORTS tab: switch off UART 2 Serial RX and turn on UART 1 Serial RX
- In Receiver tab: choose Serial (via UART) and select SBUS
- Hit Save and Reboot

Specifications:

Product Name: Spark 2” Cinewhoop 4S O4
Frame: Spark 2”
FC: F4 40A AIO
Motor: Pilotix-1205 5500KV Motor
Prop: GEMFAN D51-4
VTX: DJI O4 Air unit
Camera: DJI O4 Camera
Antenna: DJI O4 Antenna
Receiver: PNP

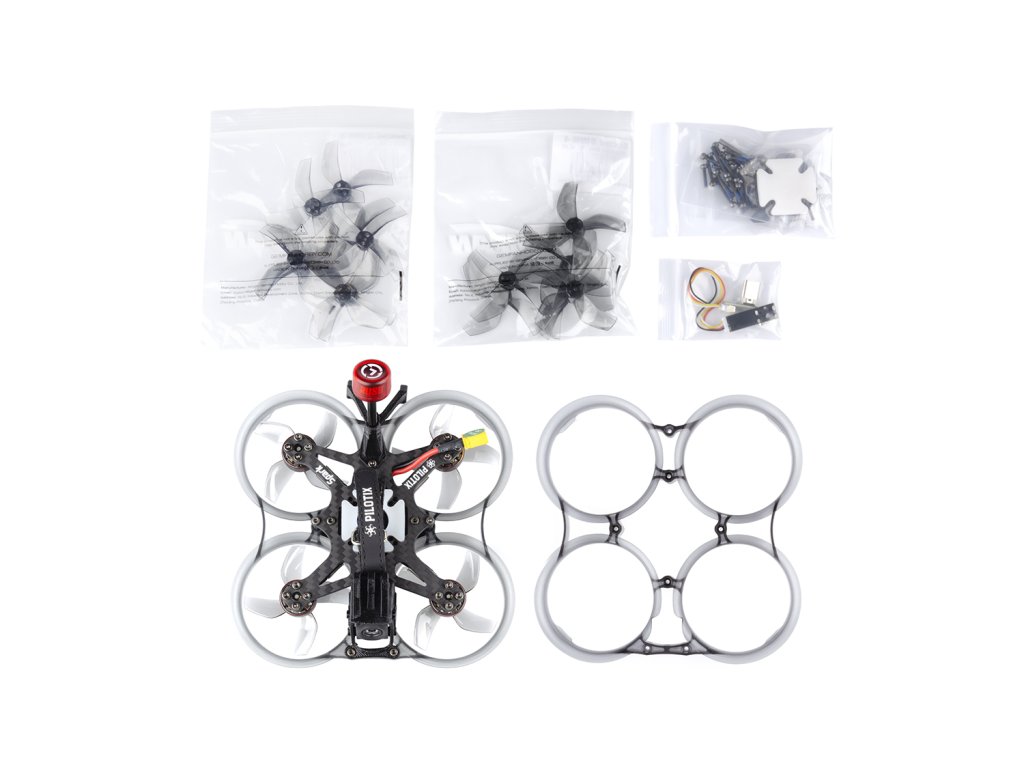

Package includes:
1x FPV drone Pilotix Spark 2inch Cinewhoop 4S O4 PNP
