FPV Drone CaddxFPV Protos 1.6"

Product detailed description

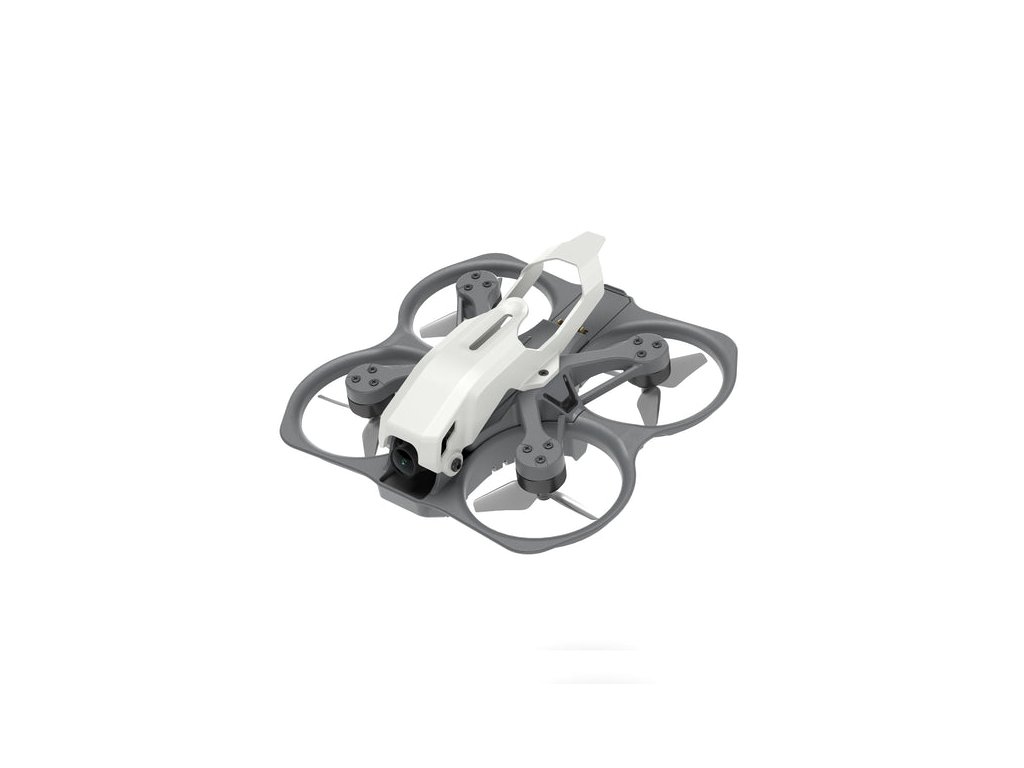

FPV Drone CaddxFPV Protos 1.6"

The CaddxFPV Protos 1.6" is a compact HD FPV drone built for smooth, stable, and immersive flying in a micro format. Equipped with an integrated ELRS 2.4 GHz receiver and the Ascent Lite digital video system, it delivers responsive control and clear HD video, making it ideal for both training and fun freestyle flights in tight spaces.

Features:
- Ultra-compact 1.6″ micro FPV drone, perfect for indoor and light outdoor flying
- Caddx Protos AIO 1.0 flight controller with STM32F405RGT6 for stable and precise performance
- BMI270 gyroscope and SPL06 barometer for smooth flight control and altitude stability
- Integrated ExpressLRS 2.4 GHz receiver (ESP8285) for fast, low-latency control
- Ascent Lite digital VTX with adjustable 25–100 mW output and up to 3 km range
- HD video recording and transmission in 1080p 60 FPS or 720p 60 FPS
- Wide 147° field of view for an immersive FPV experience
- Powerful 1102 14000KV motors paired with efficient HQProp 1.6″ propellers
- 12 A ESC compatible with Bluejay and BLHeli-S firmware
- Lightweight design delivers agile handling with up to 8.5 minutes of flight time

Specification:
Flight Controller: Caddx Protos AIO 1.0 (STM32F405RGT6)
Gyroscope: BMI270
Barometer: SPL06
Receiver: Integrated ELRS 2.4 GHz (ESP8285)
ESC: 12 A (Bluejay / BLHeli-S compatible)
Motors: 1102 14000KV
Propellers: HQProp U40x3GR-PC, 1.5 mm
VTX: Ascent Lite, 25–100 mW, up to 3 km range
Video Resolution: 1080p 60 FPS / 720p 60 FPS
Camera Sensor: 1/2.8″ CMOS
Field of View: 147°
Flight Time: Approx. 8.5 minutes
Dimensions: 110x102.8x41 mm
Weight: 104.4 g ± 1.5 g

Package Include:
1x FPV Drone CaddxFPV Protos 1.6"
