FPV Camera BETAFPV C02 Micro

Product detailed description

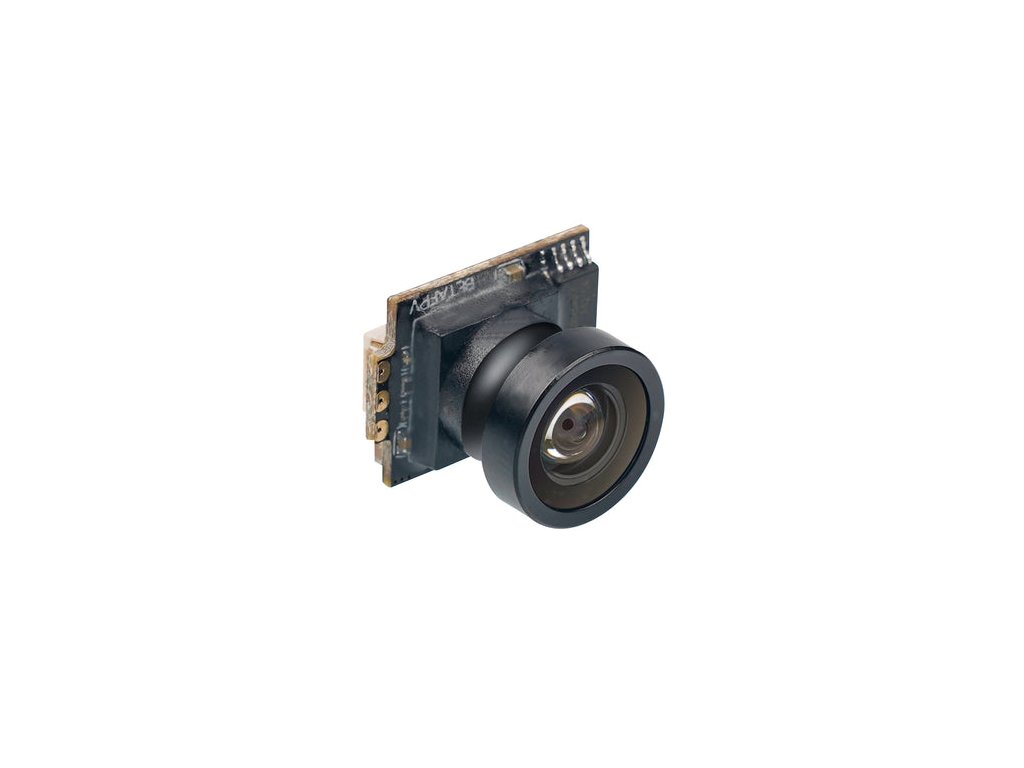

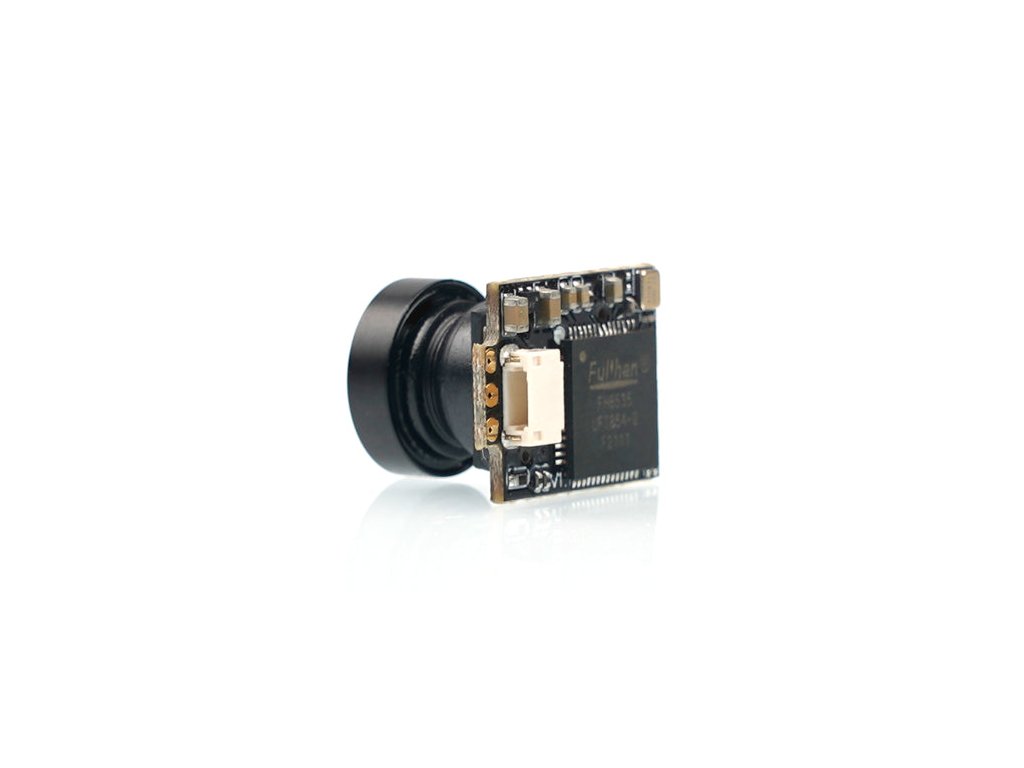

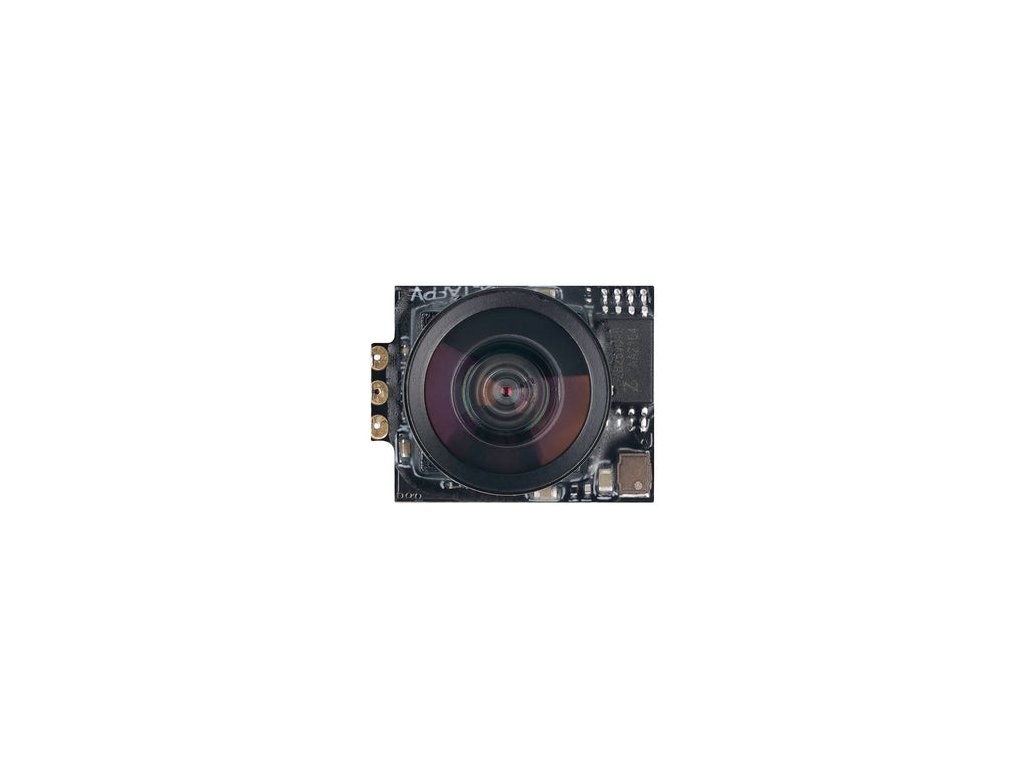

C02 FPV Micro Camera

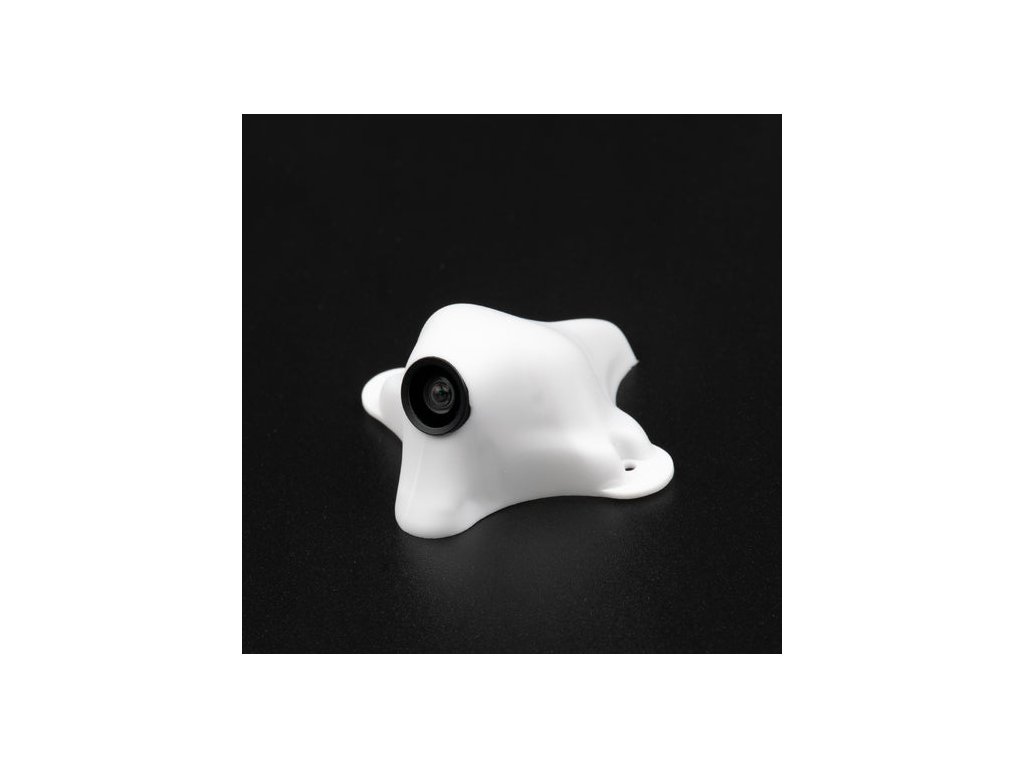

The C02 Micro Camera is designed for micro whoop drones. Boasting a 1/4'' CMOS sensor, 2.1mm lens, and 1200TVL resolution, it ensures excellent image quality with minimal latency at a weight of just 1.4g. Featuring a JST-0.8 connector, the C02 camera adopts a plug-and-play design, eliminating the need for soldering during installation. Ideal for Cetus series drones, BETAFPV F4 1S AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers. Safeguarded by a micro canopy, this camera remains resilient even in hard crashes.

Specification:
Item: C02 Camera
Image Sensor: 1/4" CMOS Sensor
Horizontal: 1200TVL with Global WDR
Signal System: NTSC
Lens : 2.1mm(M8) FOV 160°
S/N Ratio: >50db
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power: DC 3-5.5V
Current: 110mA@5V / 120mA@3.3V
Housing Material: ABS

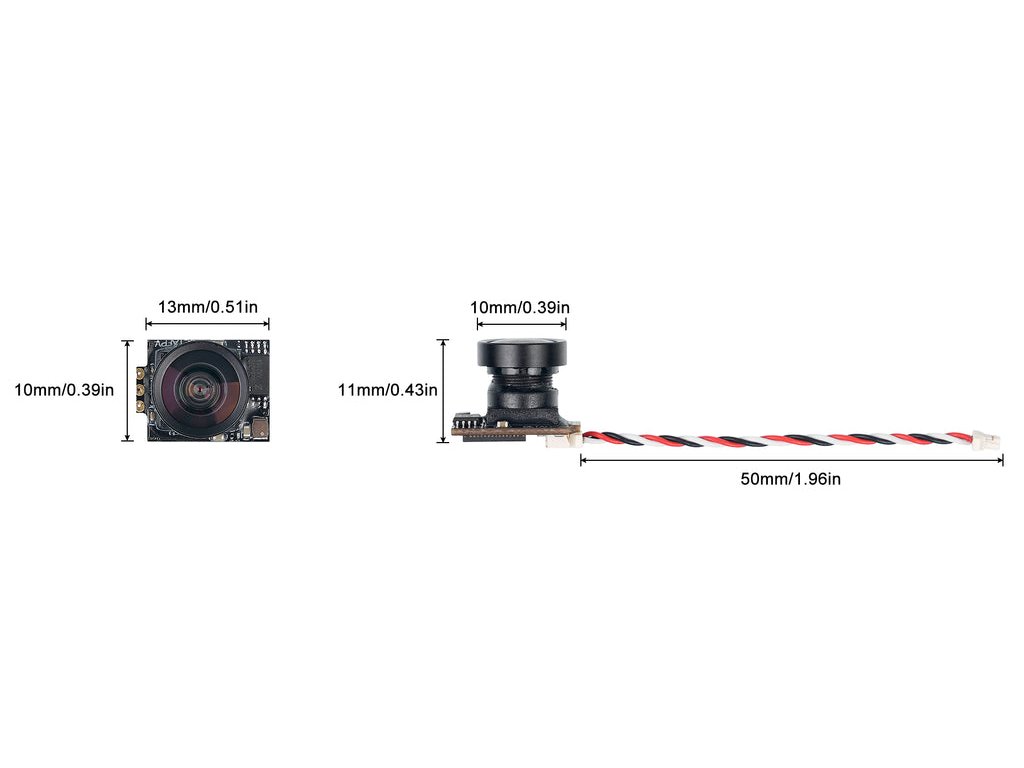

Dimension: 13x11mm
Net weight: 1.4g
