FC SpeedyBee F405 V5 30.5x30.5

Product detailed description

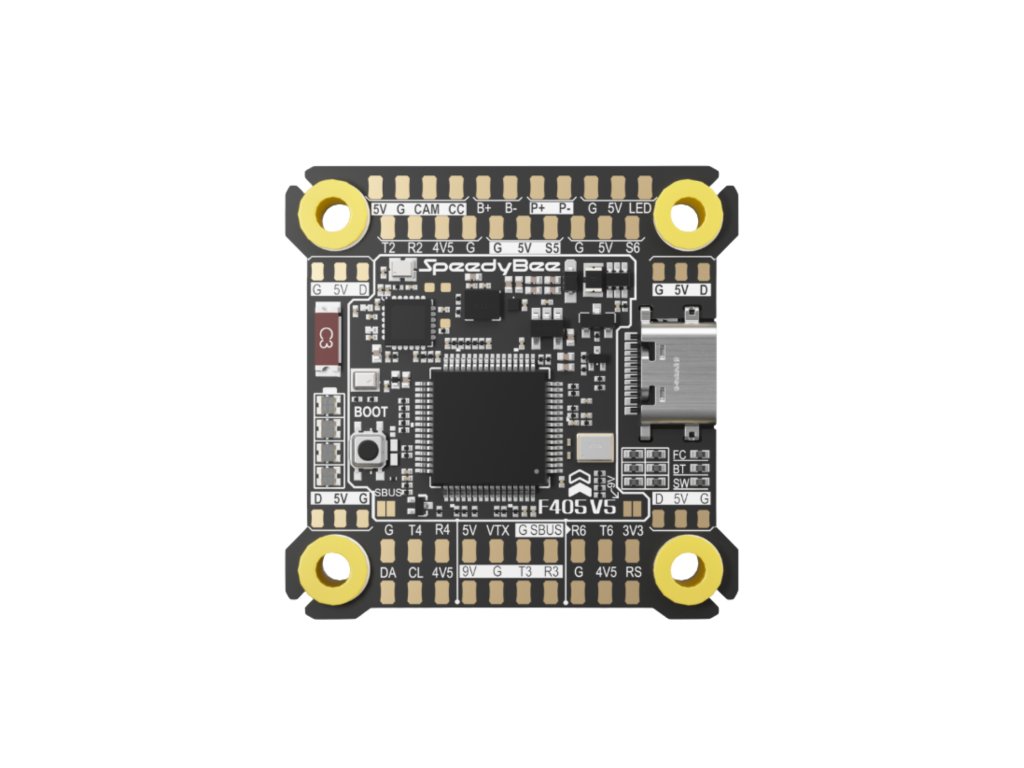

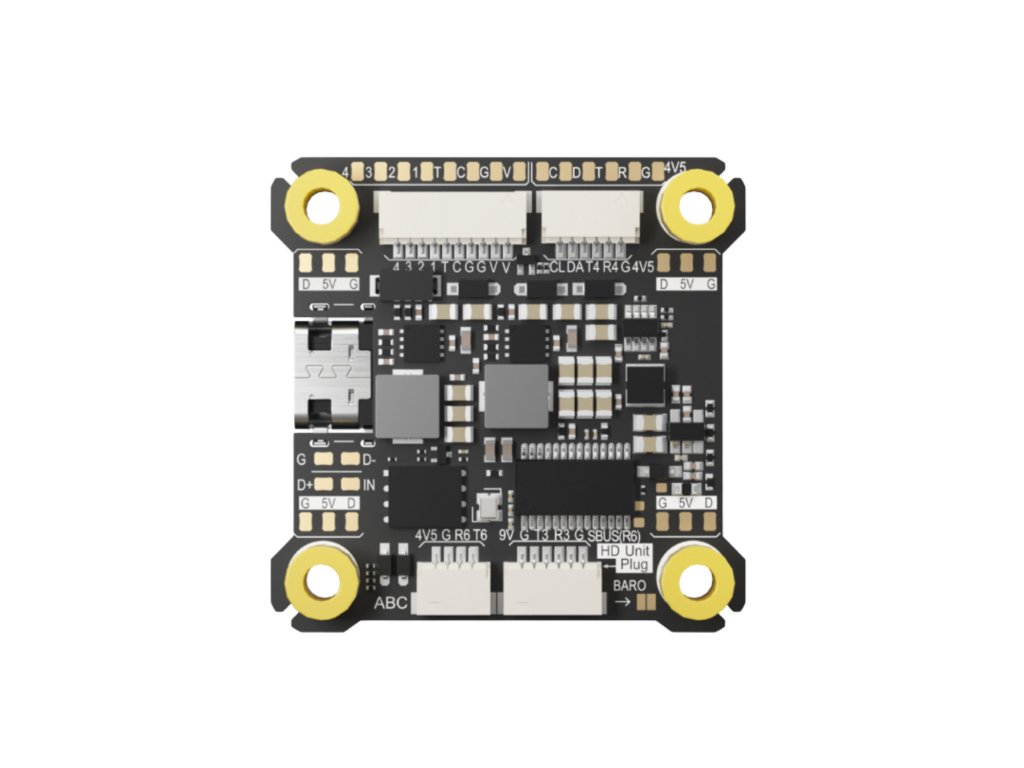

SpeedyBee F405 V5 Flight Controller – 30.5×30.5 mm

NEW versatile and modern flight controller built for FPV pilots who need reliable performance, wireless tuning, and broad system compatibility. The SpeedyBee F405 V5 combines strong processing power, integrated storage, and both Bluetooth and Type-C connectivity, making setup and field adjustments fast and straightforward.

Features:

- Wireless configuration via Bluetooth and the SpeedyBee App
- Direct plug-in compatibility with DJI Air Unit (6-pin)
- Built-in 16MB Blackbox storage for precise flight tuning
- Type-C USB port for fast and secure wired access
- Multiple regulated power outputs for clean subsystem power
- Support for Betaflight, INAV, and Ardupilot
- Flexible LED support, including ST-LED and Meteor LED Strip modes
- Compact 30.5×30.5 mm mounting pattern suitable for most frames

Specifications:

Product Name: SpeedyBee F405 V5 30.5×30.5 mm Model Aircraft Flight Controller
MCU: STM32F405
IMU (Gyro): ICM42688P
USB Port Type: New Type-C interface
Barometer: SPA06-003
OSD Chip: AT7456E
Full-featured Bluetooth Tuning: Supported. Connect via SpeedyBee App for FC firmware flashing and parameter tuning.
Wireless FC Firmware Upgrade: Supported
DJI Air Unit Connection: Supports 6-pin direct plug-in or solder connection
Blackbox: Supported, built-in 16MB storage chip
Input Voltage: 3–6S LiPo battery
Independent 5V BEC Output: 9 groups. Total output current: 1.5A
Independent 9V BEC Output: 2 groups. Total output current: 3A. Supports PINIO remote on/off control
MCU & Gyro Power: Independent LDO
3.3V Output: 1 group
4.5V Output: 3 groups. Max current: 1A
ESC Signal: M1–M4 pads and 10-pin connector
Servo Signal: S5–S6 pads
ESC Telemetry Input: Supported (UART5)
Betaflight Camera Tuning Pad: Supported
I2C: Supported (GPS connector + pads)
UART:
• UART1 (Bluetooth)
• UART2 (front pads for receiver)
• UART3 (DJI VTX pads + rear SH1.0-6-pin)
• UART4 (GPS pads + front SH1.0-6-pin)
• UART5 (TLM)
• UART6 (receiver pads + rear SH1.0-4-pin)
ST LED Pads: Supported
Meteor LED Strip Pads: Supported
Buzzer Pads: Supported
BOOT Button:
• Hold BOOT while powering on to force DFU mode
• Short-press cycles LED modes; long-press switches SB-LED/ST-LED
RSSI Pads: Supported
SmartPort: Not supported
Supported FC Firmware: Betaflight, INAV, Ardupilot
Firmware Target Name: SPEEDYBEEF405V5
Factory Firmware Version: Betaflight 4.5.2
Configurator Version: Betaflight 10.10.0
Mounting Holes: 30.5 × 30.5 mm (Ø4 mm), side opening
Dimensions: 39 × 39 × 4.9 mm
Weight: 8.1 g

Package Includes:

1x SpeedyBee F405 V5 Flight Controller
