FC Holybro Pixhawk 6X Module (No GPS included)

Product detailed description

FC Holybro Pixhawk 6X Module (No GPS included)

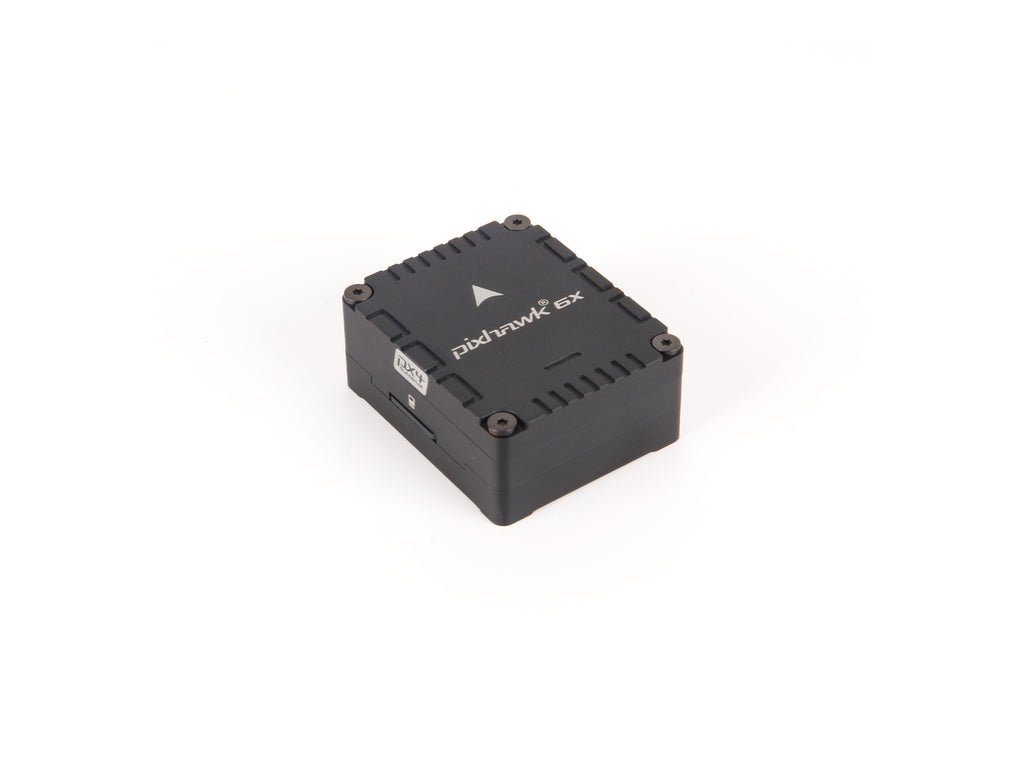

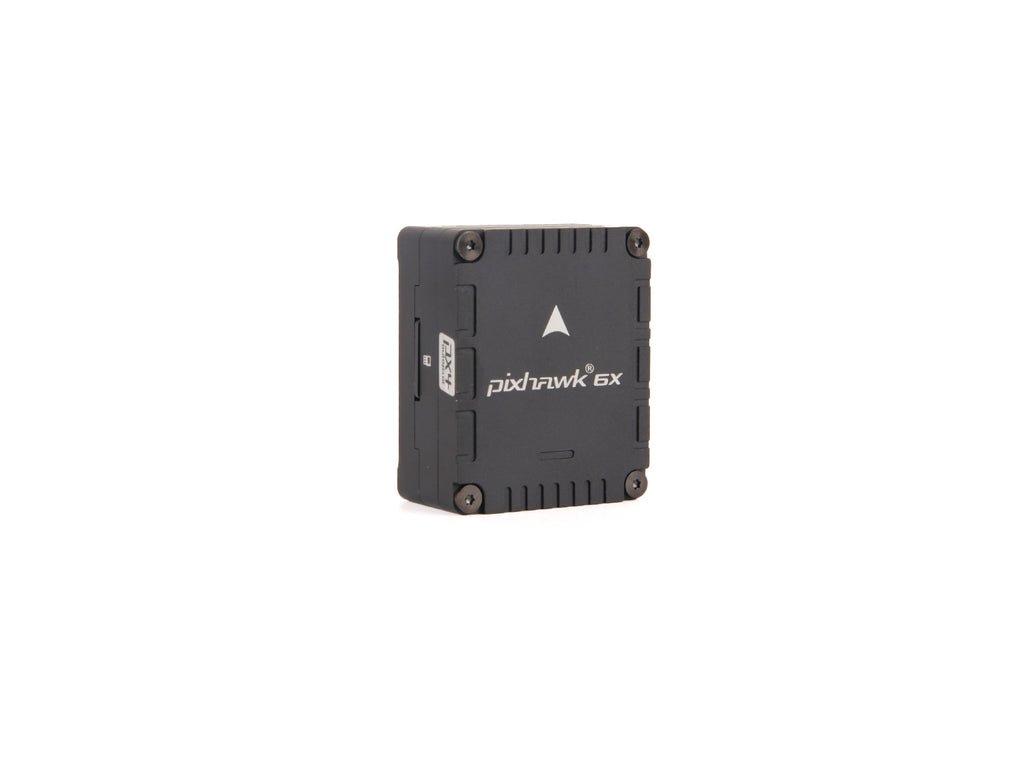

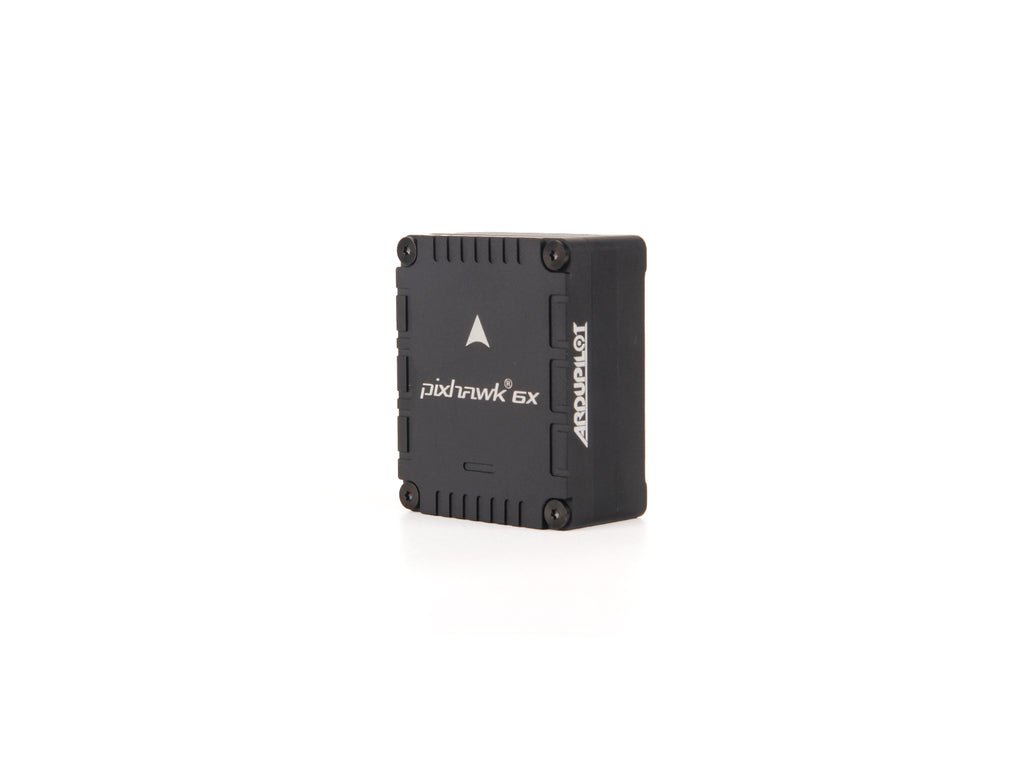

The Holybro Pixhawk 6X FC Module is a high-performance flight controller designed for professional UAV and robotics applications. Built around a powerful STM32H753 processor and triple-redundant IMU architecture, it delivers exceptional reliability, precision, and flight stability. Its modular Pixhawk design allows flexible integration into advanced autopilot systems.

Features:
- Triple-redundant IMU system enhances flight accuracy and system reliability
- High-performance STM32H753 processor ensures fast data processing and stable control
- Modular Pixhawk Autopilot Bus design allows easy separation of FMU, IMU, and base system
- Fully isolated sensor domains with independent buses and power control for maximum safety
- Advanced vibration isolation material improves sensor performance in high-vibration environments
- Designed for demanding professional, industrial, and research UAV applications

Note: This is only the Flight Controller module. You must purchase a separate Pixhawk 6X Baseboard (Standard or Mini) to make it operational, as the module itself lacks the necessary ports and power regulation for a complete system.

Specifications:
Processor: STM32H753 (480MHz Cortex-M7)
Sensors: 3x ICM-45686 IMUs, 2x Barometers (ICP20100, BMP388)
Redundancy: Triple IMU, double barometer
Isolation: Advanced vibration dampening, isolated sensor domains
Connectivity: Ethernet PHY for high-speed data
Standard: Follows Pixhawk FMUv6X & Autopilot Bus standards
Power: USB (4.75-5.25V), Servo Rail (0-36V), 3.3V/5V logic

Package includes:
1x FC Holybro Pixhawk 6X Module (No GPS included)
